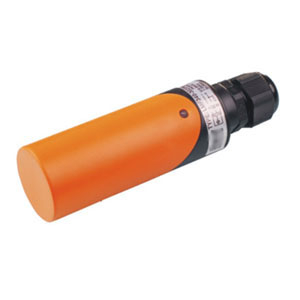

LMF340
OVERALL DIMENSIONS |  | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 20mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LMF340-3020NA |
| NC | LMF340-3020NB | |||
| NO+NC | LMF340-3020NC | |||
| PNP | NO | LMF340-3020PA | ||
| NC | LMF340-3020PB | |||
| NO+NC | LMF340-3020PC | |||
two wire system | NO | LMF340-3020LA | ||
| NC | LMF340-3020LB | |||
| SCR Control- lable silicon | NO | LMF340-2020A | ||
| NC | LMF340-2020B | |||
| NO+NC | LMF340-2020C | |||
| Relay output | ||||
Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA | |||
| Output voltagc dropDC/AC | (NPN PNP)3V、：3.9V、AC 10V DC<3V、AC<10V | |||
| Consumption current | (NPN PNP)DC 12V8mA、24V15mA、AC 10mADC<15mA、AC<10mA | |||
| Standard detected object | 35X35X1(A3iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 300Hz/10Hz | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ||||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | ||||
