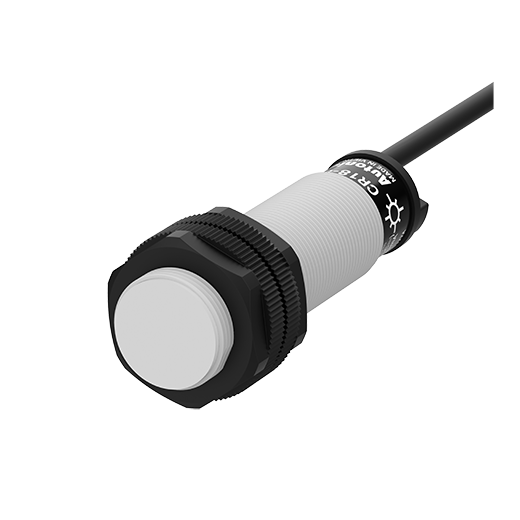

Autonics Proximity Sensor CR18-8AO

Sensor, Capacitive Prox, 18mm Round, Shielded, AC, NO, 2 Wire, 90-250 VAC
Availability:
Inquire Add to Basket

  • CR18-8AO

  • Autonics

Description:

Wire type and powerAC 2-wire type
100-240VAC~
Sensing side diameterM18
Sensing distance8mm
Standard sensing target50×50×1mm(iron)
Response frequency20Hz
Current specificationLeakage current: Max. 2.2mA
Control outputNormally Open
MaterialPolyamide 6
Protection structureIP66
Environment_Ambient temperature-25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)Max. 20% of sensing distance
WeightApprox. 82g(approx. 70g)
