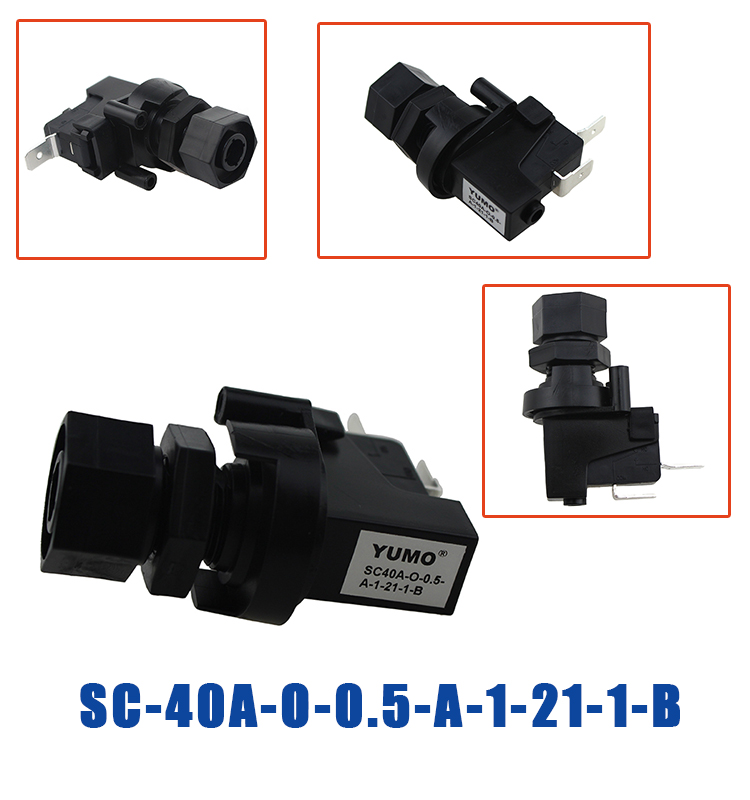

SC-40A-C-0.5-A-1-21-1-B
1.Product Introduction of the SC-40 Air Switch
SC-40 can be used together with air button (also called as Actuator) for remote control purpose.It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitaryequipment, out door machines, medical equipment etc. As a remote control switch, it is small enough to fix in thecontrol box of the engine. Used as a remote control.
2.Product Parameter（Specification）of the SC-40 Air Switch
| Model | SC-40 |
| Media | Non hazardous gas or liquid |
| Operating Pressure Range | 0.25~15psi for momentary action |
| Proof Pressure | 50 PSI |
| Operating Temperature Range | -10~+85°C |
| Contact Arrangement | SPST or SPDT |
| Electric Rating | 5A,125/250VAC(0.25psi~15psi) |
| Terminals | 6.35 or 4.88 mm male Q.C. |
| Connection | Inlet 4.0mm for tube connection (Optional 1/8”NPT or other fittings are available) |

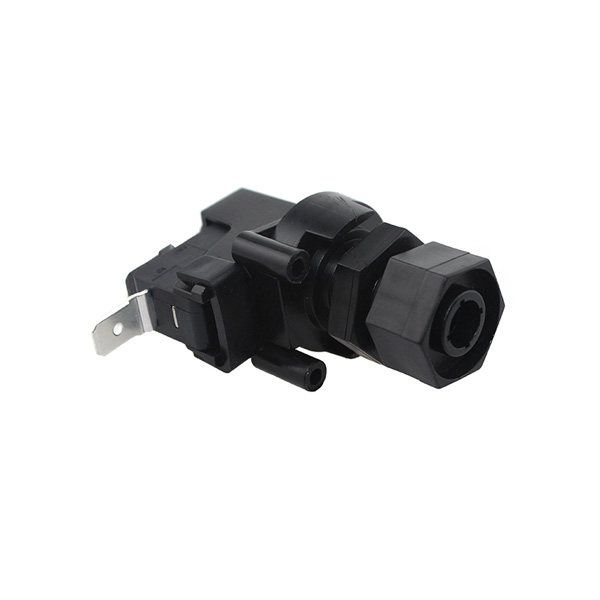

3. Production Details of the SC-40 Air Switch
4.Product Qualification of the SC-40 Air Switch
5. FAQ
1.Q:What's your main products?
A:We mainly produce switch,sensors,encoder,warning light ,PLC and so on.
2.Q:Is sample order acceptable?
A:Yes, it's ok.
3.Q:How to place the order?
A:You can send us email, and we can contact via whatsapp or wechat.
4.Q:How many days for deliver?
A:Generally it's 5-10 days if the goods are in stock.
5.Q:How will you make the shipment
A: By sea shipment/Air/Express service.
