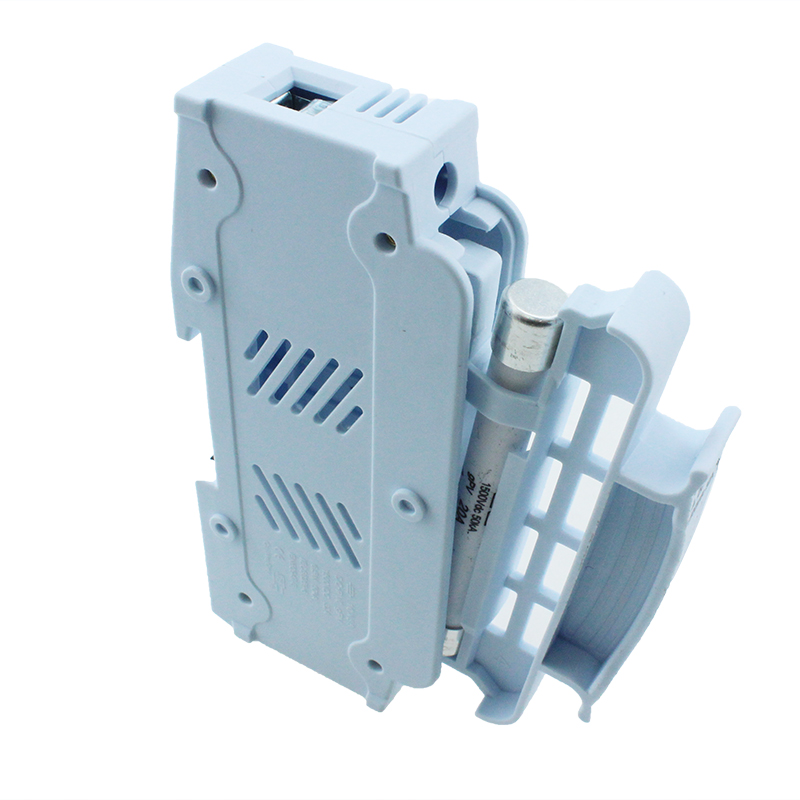

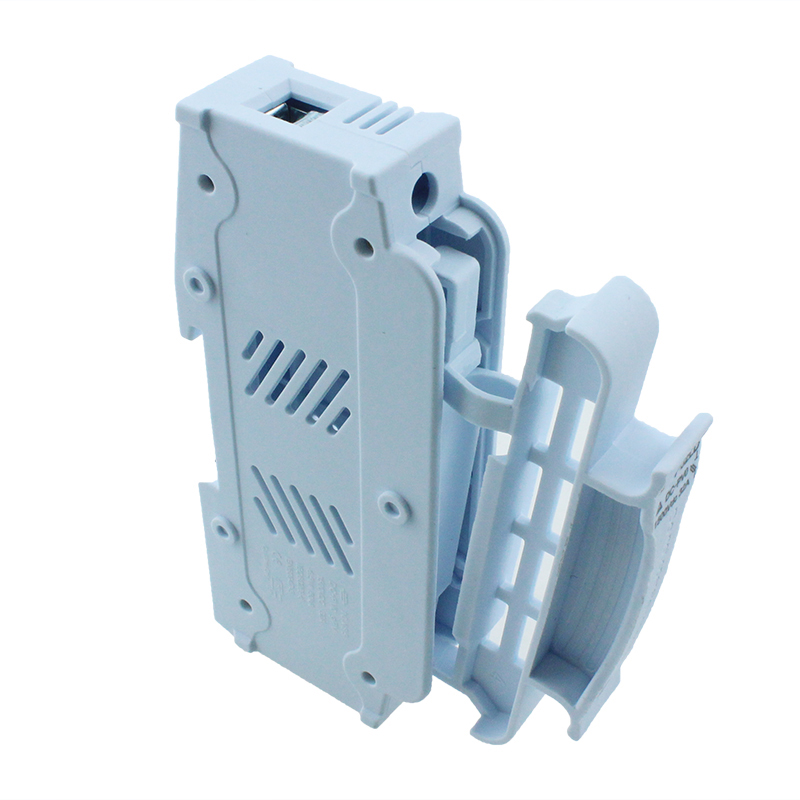

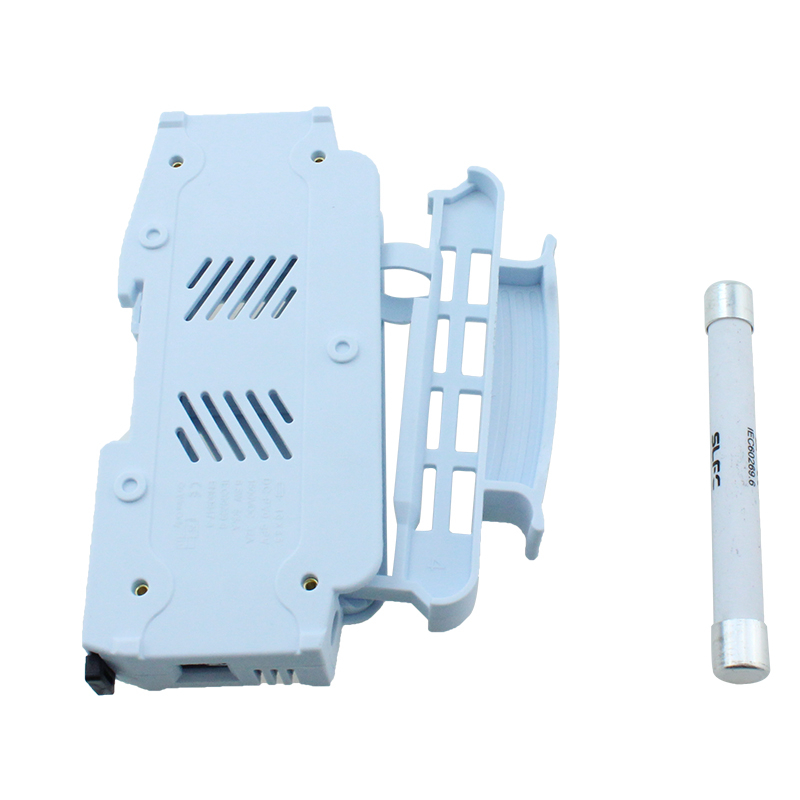

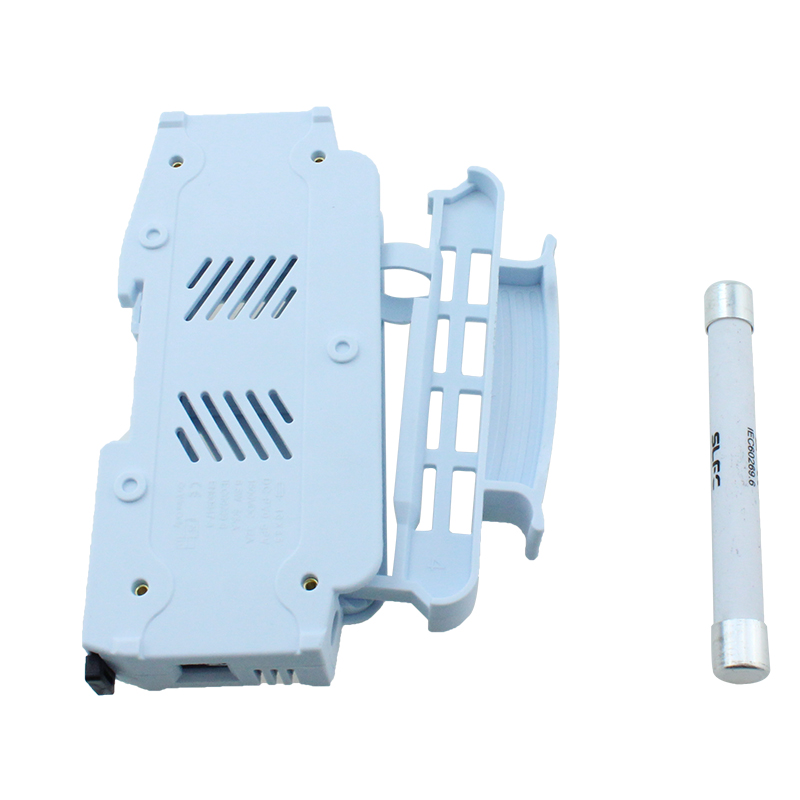

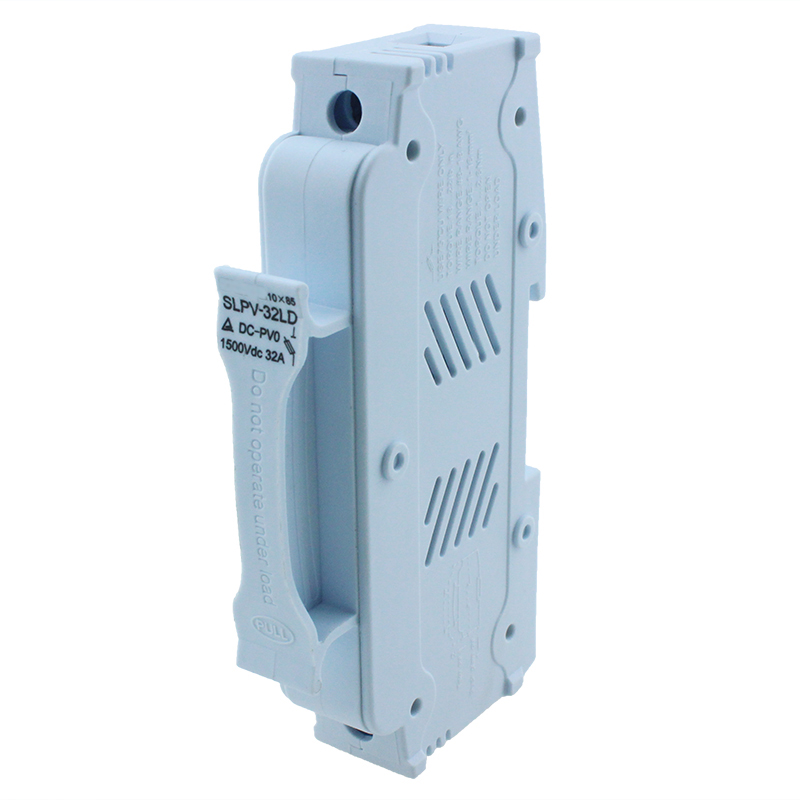

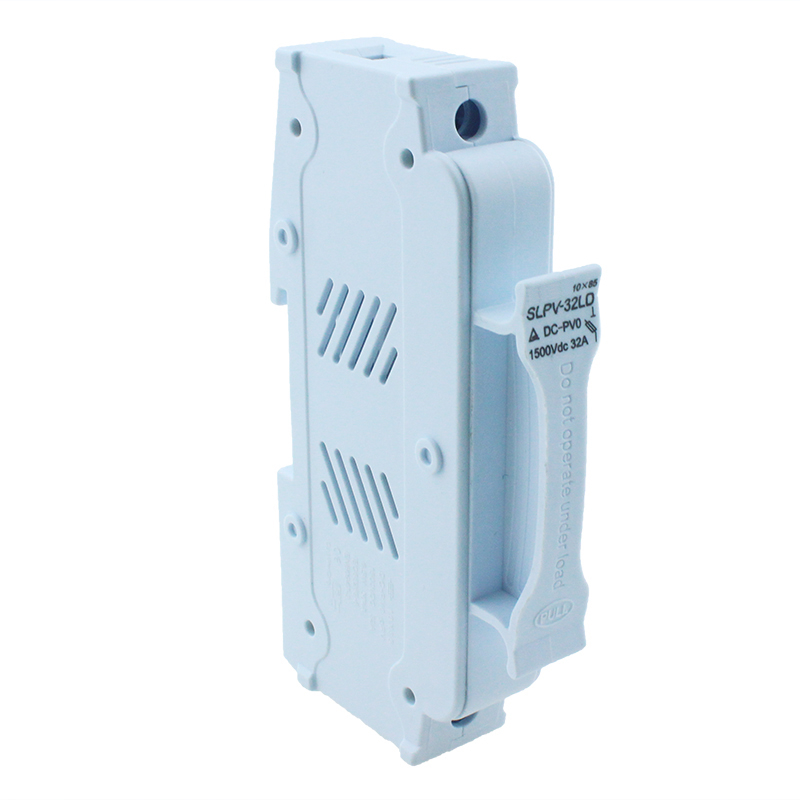

SLPV-32LD
Purpose and use
This series fuse is suitable for the line with rated DC voltage to 1500V and rated current to 32A. The batteries are connected in series and in parallel, and short-circuit breaking protection is provided for the charging converter system; meanwhile, for photovoltaic power stations, Road fault interruption protection; and fast break protection for surge current and short-circuit fault overvoltage of photovoltaic power generation system, rated interruption Capable to 50kA, the product meets the requirements of the International Electrotechnical Commission standard IEC60269.
Technical Speifications
Fuses not included, fuses must be purchased separately

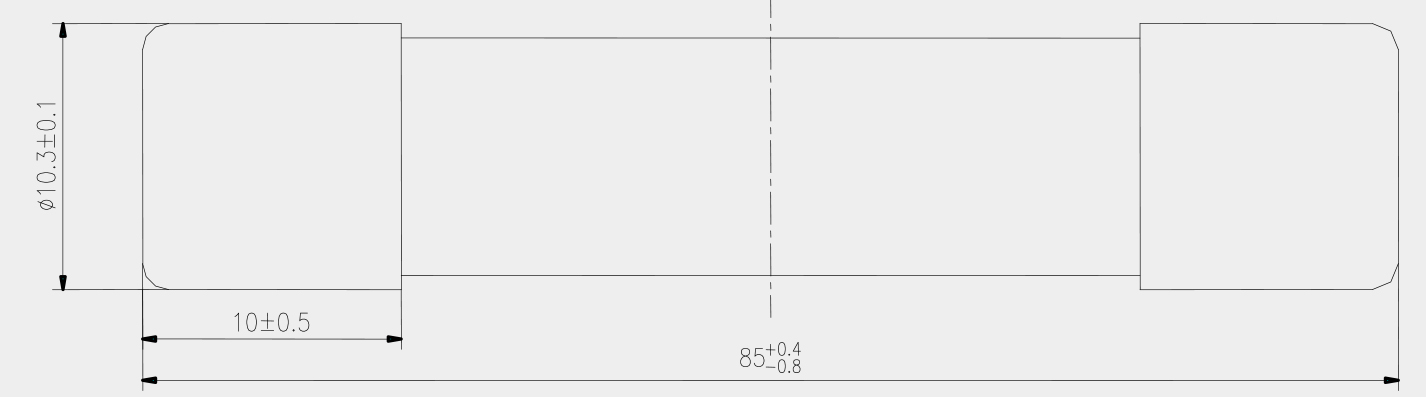

| Fuse | Rated voltage | Rated current (A) | Dimensions(mm) | Power |
| SLPV-32L | DC1500V | 1,2,3,4,5,6,8,10,12,15,20,25,30,32 | 10.3±0.1*38±0.6 | ≤4.5W |

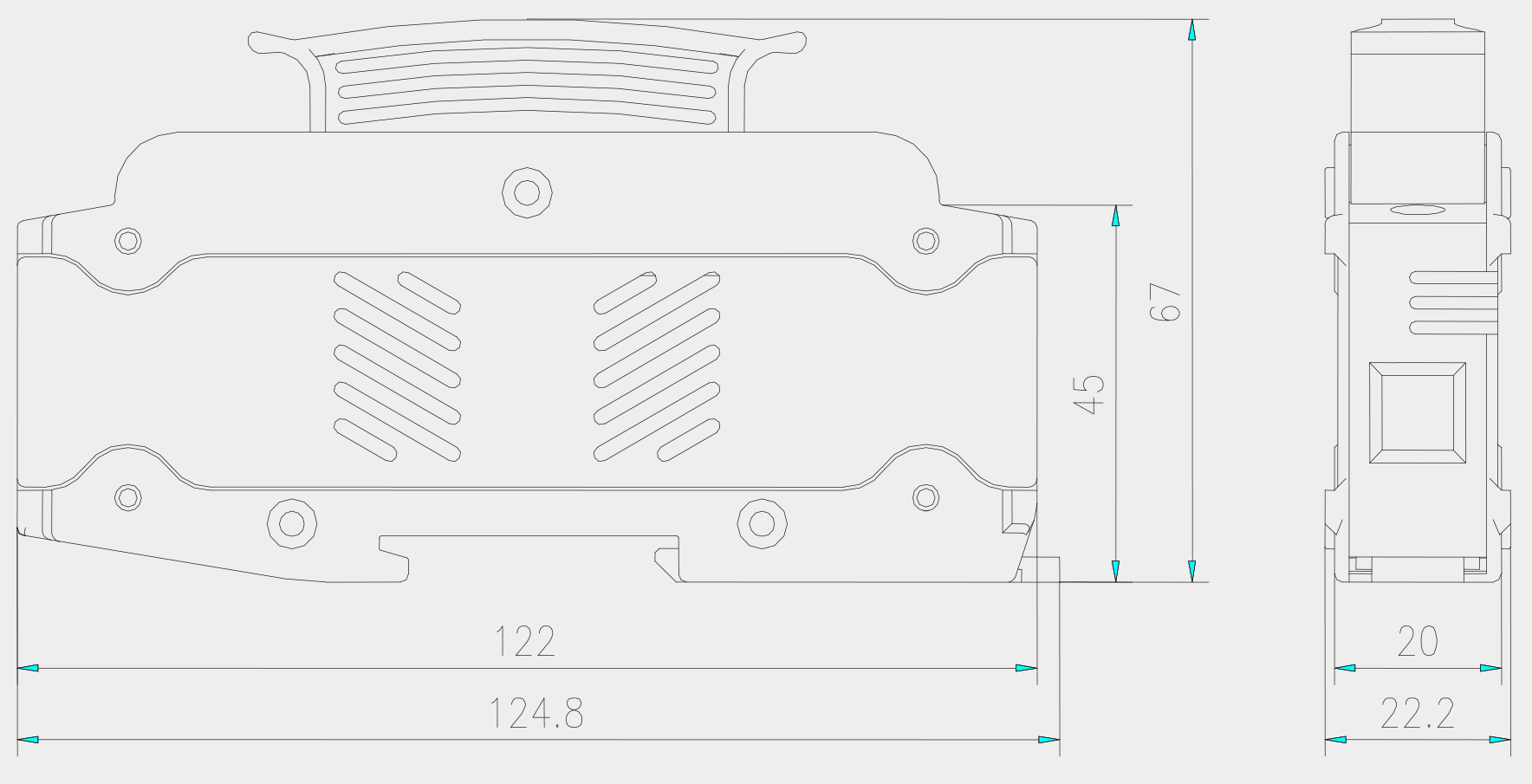

| Fuse Box | Fuse body size | Rated voltage | Rated current |
| SLPV-32LD | 10*85 | DC1500V | 32A |
