S-1500-12
Information

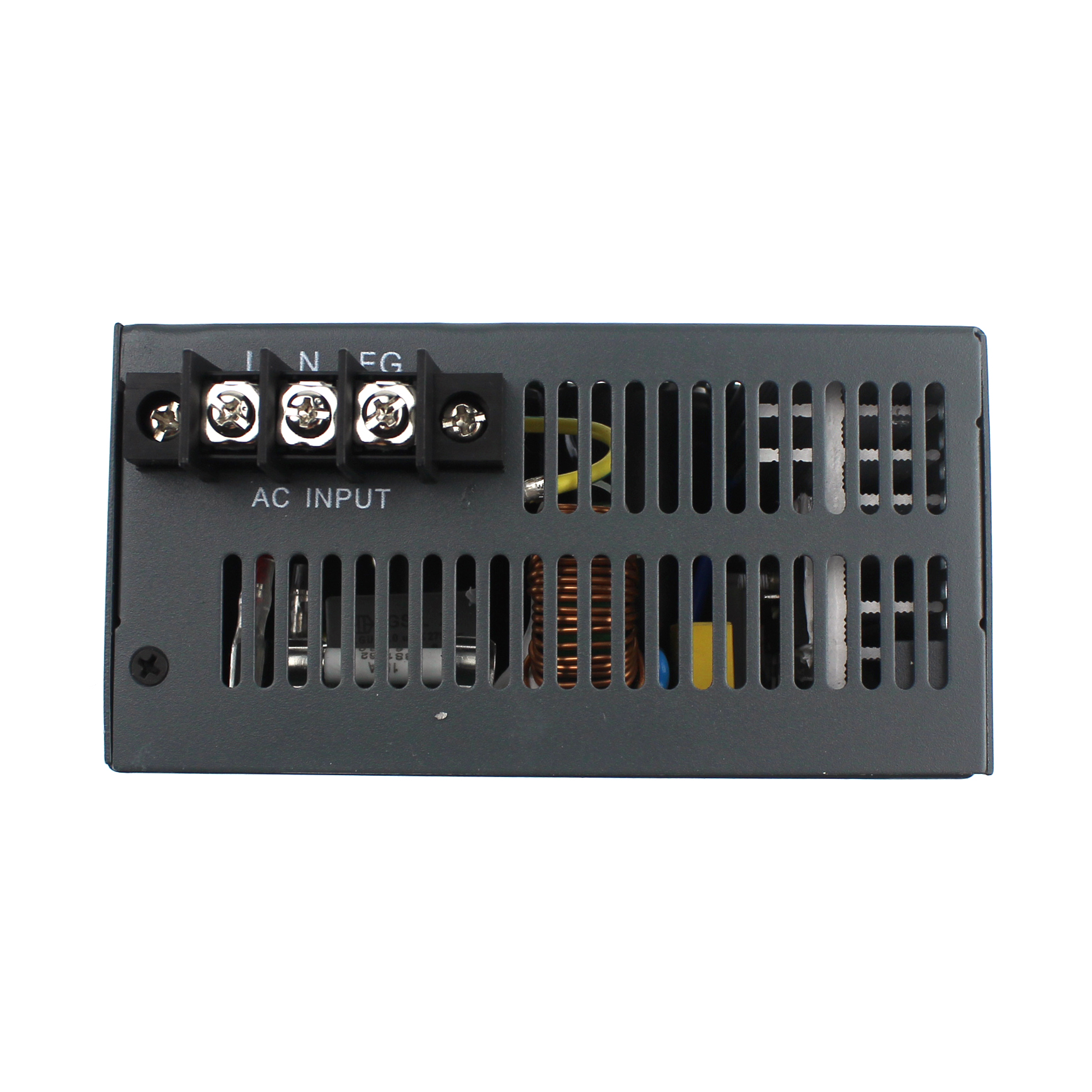

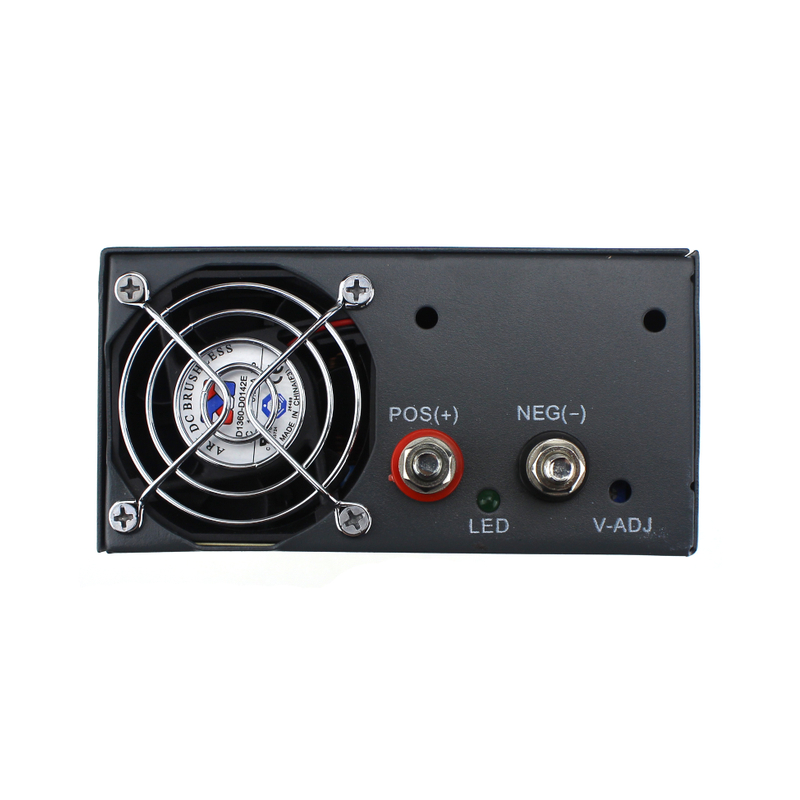

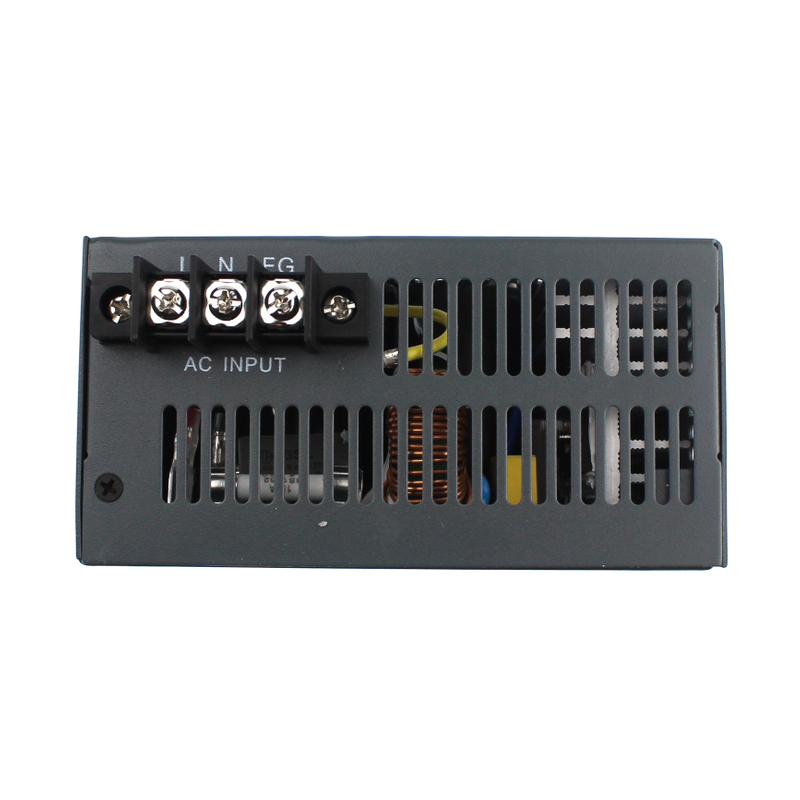

Switching Power Supply 1000W Single phase output S-1500-12
switching power supply,switch power supply,DC power supply
Protection:Over load,over voltage,short circuit
Professional export
Industrail Switching Power Supply
(1) high efficiency and good price.
(2) CE RoHS certification.
(3) good quality and timely delivery.
Industrial switching power supply (s-1500)
Model S - 1500
Ac input voltage range 100-120vac / 200-240vac switch select 50-60hz: 12VDC.
Input current 10A / 20A.
AC surge current cold start current 60A / 230V.
Leakage current<3.5mA / 240VAC.
Overroad protection 105% - 135% type: current limit automatic recovery.
Overload protection 110-135%.
Set the upkeep time 1.5ms.50ms20ms.
Working temperature - 10 ℃ to + 50 ℃ 20% 90% RH
Pressure input/output interval: 1.5VAC input and shell 1.5KVAC output and 0.5KVAC.
Weight/package 3.0Kg.
EMC CISPR22 (EN5022) CLASSB. Iec 801-2.3.4. Iec 555-2.
| Model | S-1000-12 | S-1000-15 | S-1000-24 | S-1000-27 | S-1000-48 | |||
| DC output voltage | 12V | 15V | 24V | 27V | 48V | |||
| Output voltage error | ±10% | ±10% | ±5% | ±5% | ±5% | |||
| Rated output current | 80A | 67A | 40A | 37A | 20A | |||
| Output current range | 0-80A | 0-67A | 0-40A | 0-37A | 0-20A | |||
| Wave and noise | 200mVp-p | 200mVp-p | 240mVp-p | 240mVp-p | 300mVp-p | |||
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||
| DC output power | 960W | 1005W | 960W | 999W | 960W | |||
| Efficiency | 75% | 75% | 78% | 80.00% | 84.00% | |||
| Adjustable range for DC voltage | 10~13.2V | 13.5~18V | 20~26.4V | 24~30V | 41~56V | |||
