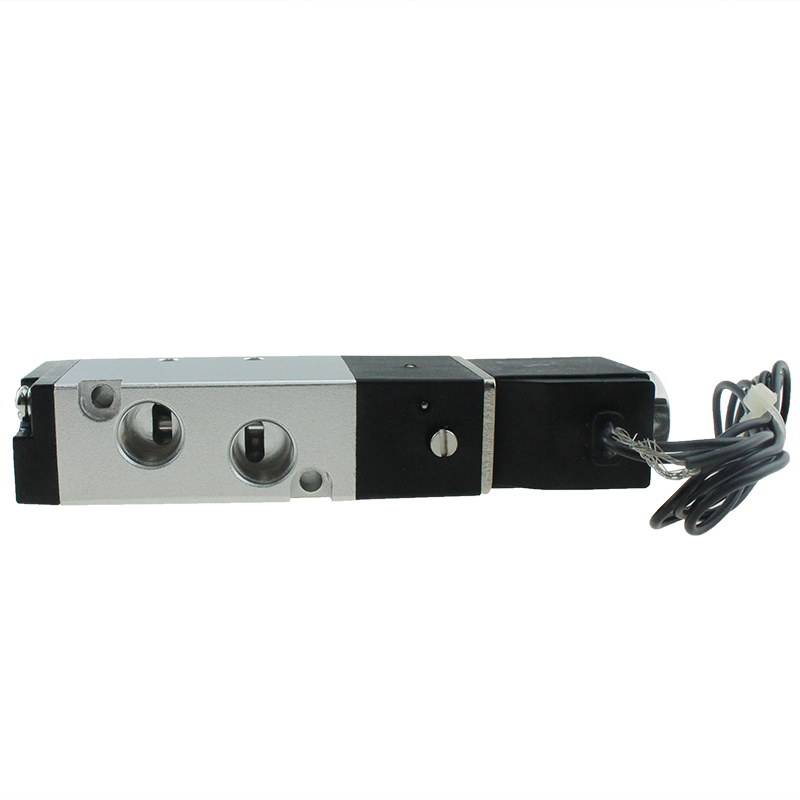

4V110-06
Product feature
Pilot-oriented mode:Internal pilot or external pilot.
Structure in sliding column mode: good tightness and sensitive reaction.
Three position solenoid valves have three kinds of central function for your choice.
Double control solenoid valves have memory function.
Internal hole adopts special processing technology which has lttle : atrition friction, low start pressure and long service life.
No need to add oil for lubrication.
It is available to form integrated valve group with the base to save installation space.
Afiliated manual devices are equipped to facilitate installation and debugging.
Several standard voltage grades are optional.
Specifi cations
| Model | 4V110-06 |
| Position and way NO. | 5/2 way |
| Effective area | 12mm2 (CV=0.67) |
| Port size | Air inlet=Air outlet=Exhaust=G1/8″ |
| Fluid | 40 micron fi ltered air |
| Operation | Inside pilot type |
| Operating pressure | 0.15 ~ 0.8MPa |
| Max. proof pressure | 1.2MPa |
| Temperature | 5 ~ 50 ℃ |
| Allowable voltage | ± 10% of rated voltage |
| Power consumption | AC: 2.5VA DC: 2.5W |
| Coil insulation & protection grade | Class F. IP65 |
| Electrical entry | Lead wire or connector |
| Highest action frequency | 5 cycle / second |
| Shortest excitation time | 0.05 second |

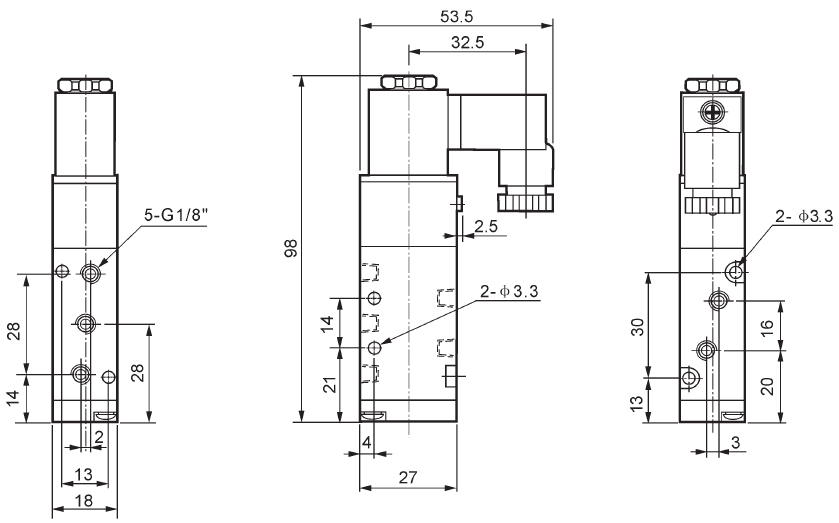

Dimensions
