LB22E-S-B-5-24V
22mm MAX Current 16A Metal Push Button Switch Waterproof IP65 Momentary with LED Light
Features:
1.16A/250VAC, 3500W reactive load

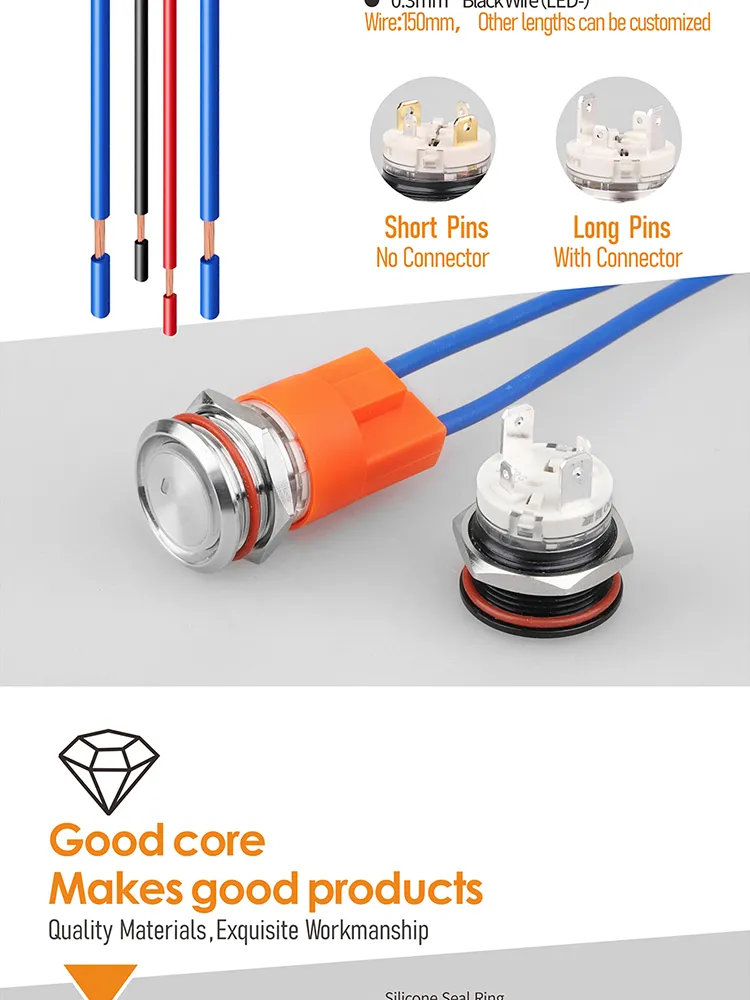

2. Optional connector to ensure contact performance and reduce labor waste

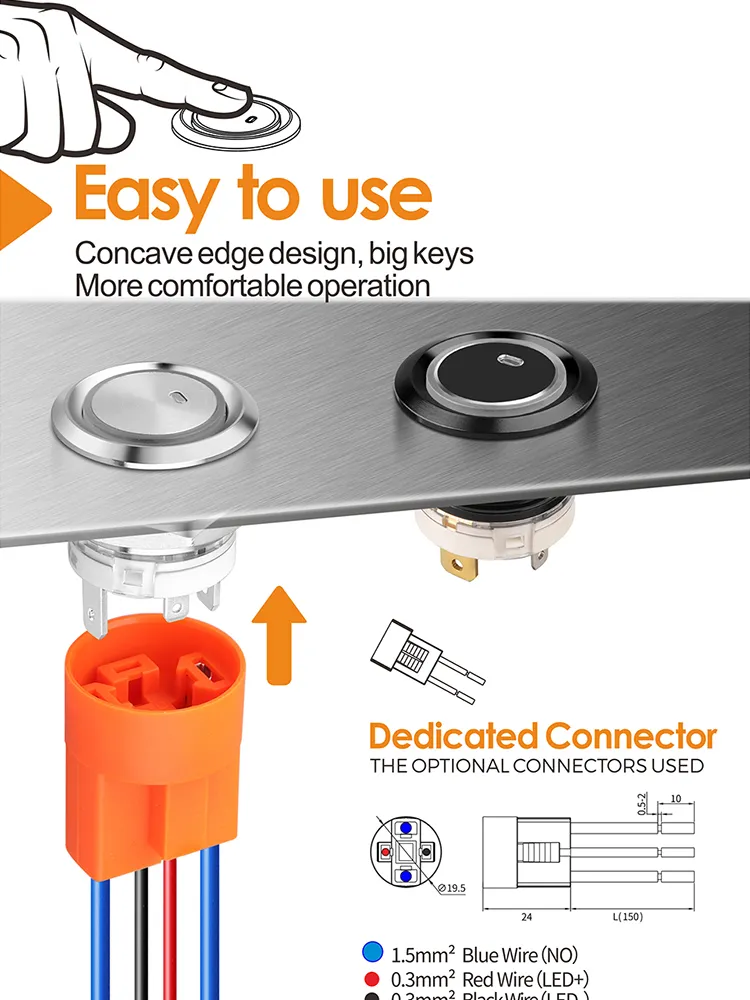

3. Concave design, more convenient operation
4. Super metal texture and high-end appearance design, improve the ability to resist welding deformation
5. The waterproof and dustproof grade is IP65
6. Mechanical life: up to 300,000 times, can work at -40℃~80℃
7. Has applied for a number of patents, CCC, CE certification
8. Instant glow

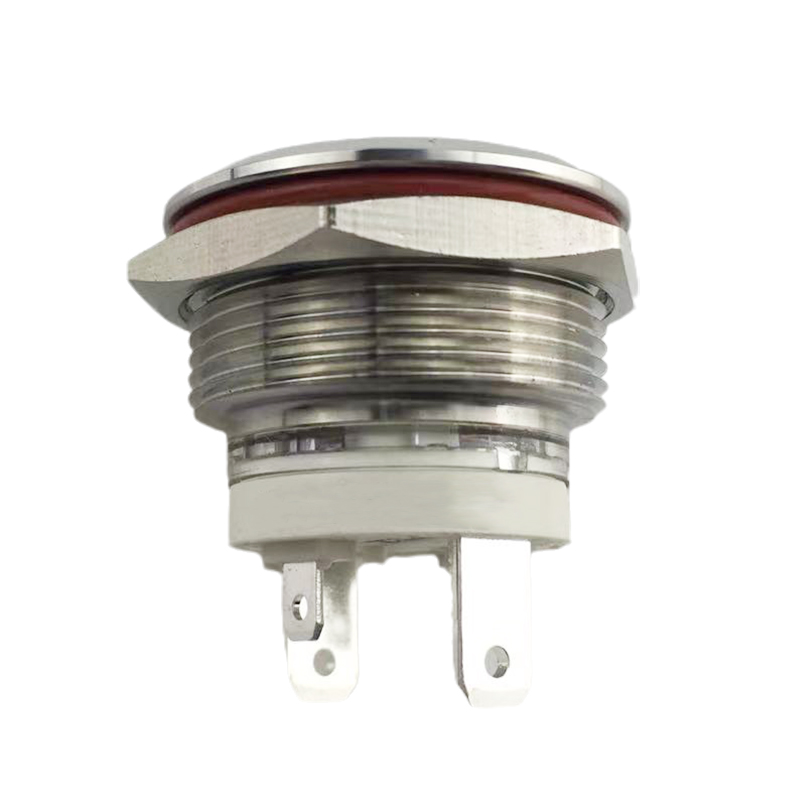

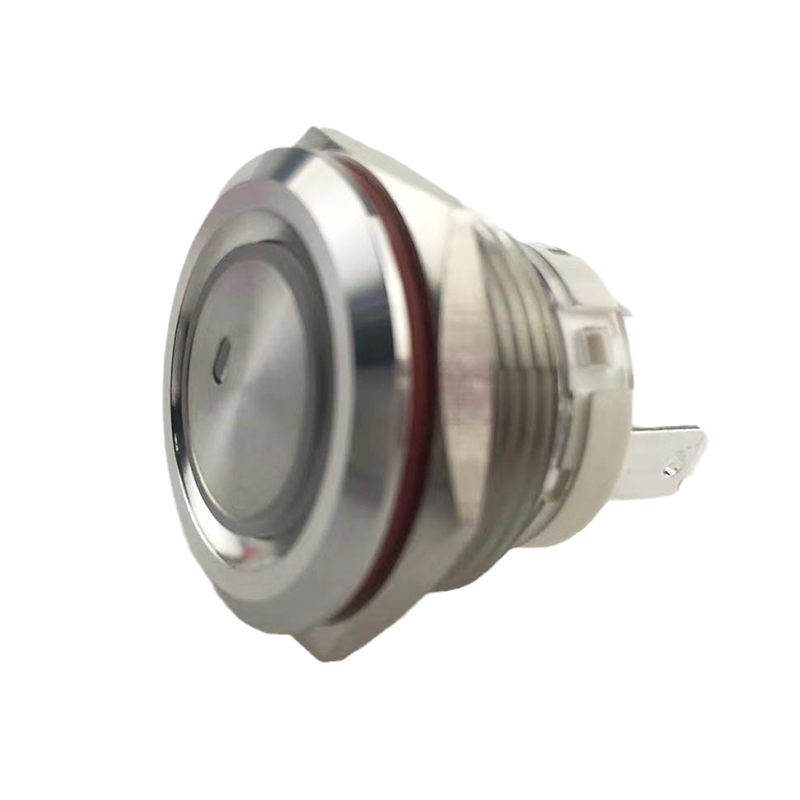

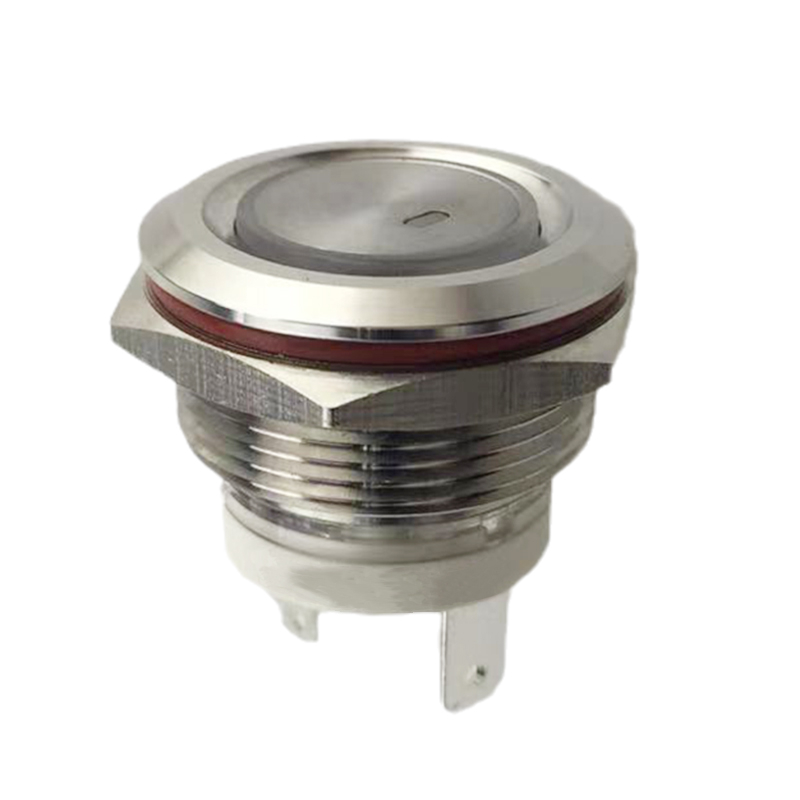

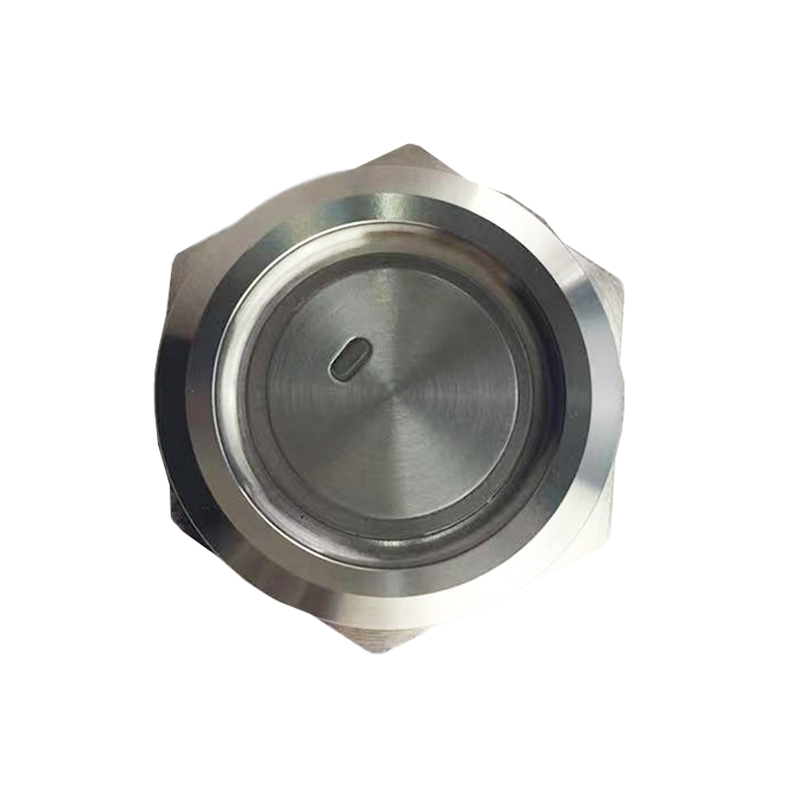

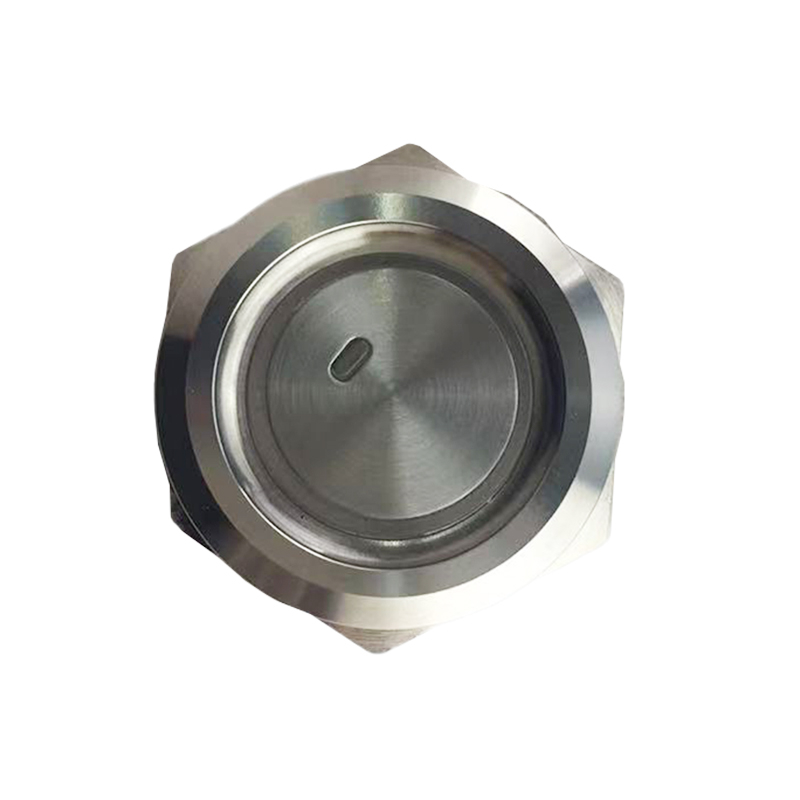

Product Image
Ring LED
Ring blue light

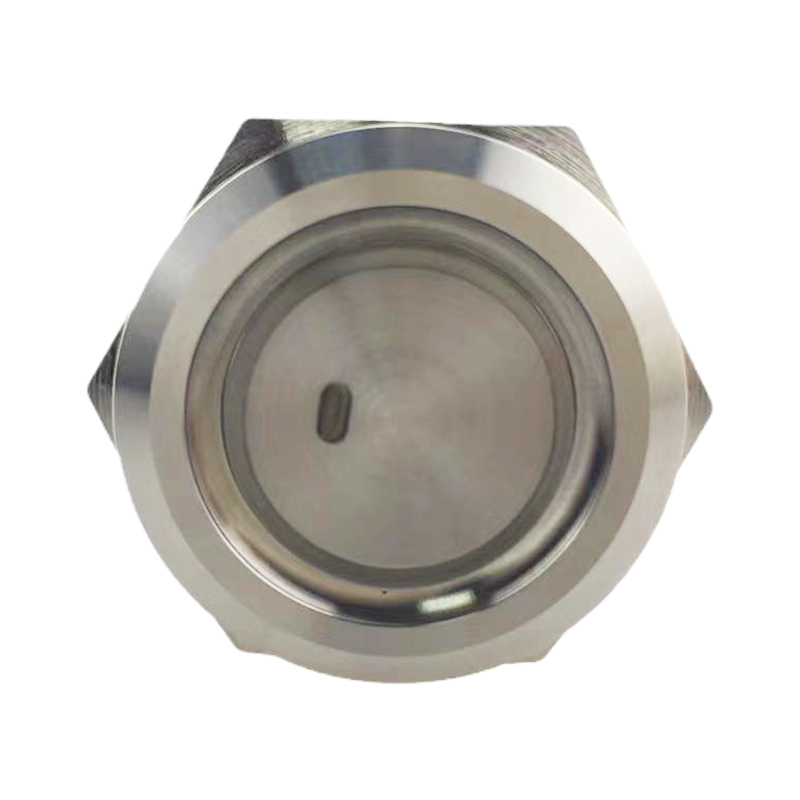

Momentary button
LBLB22E-S-G-5-24V

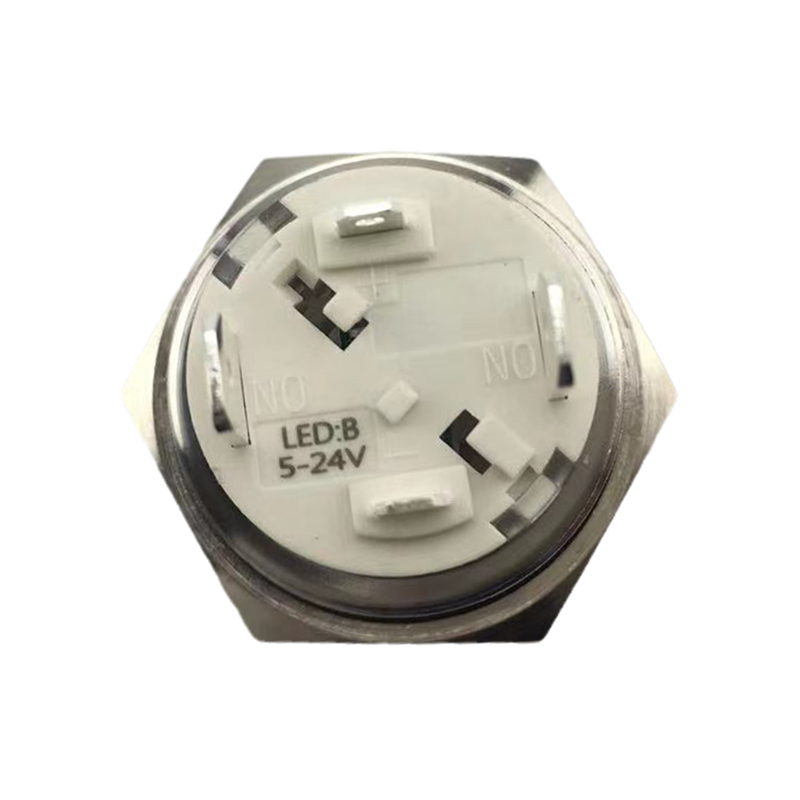

Four contacts

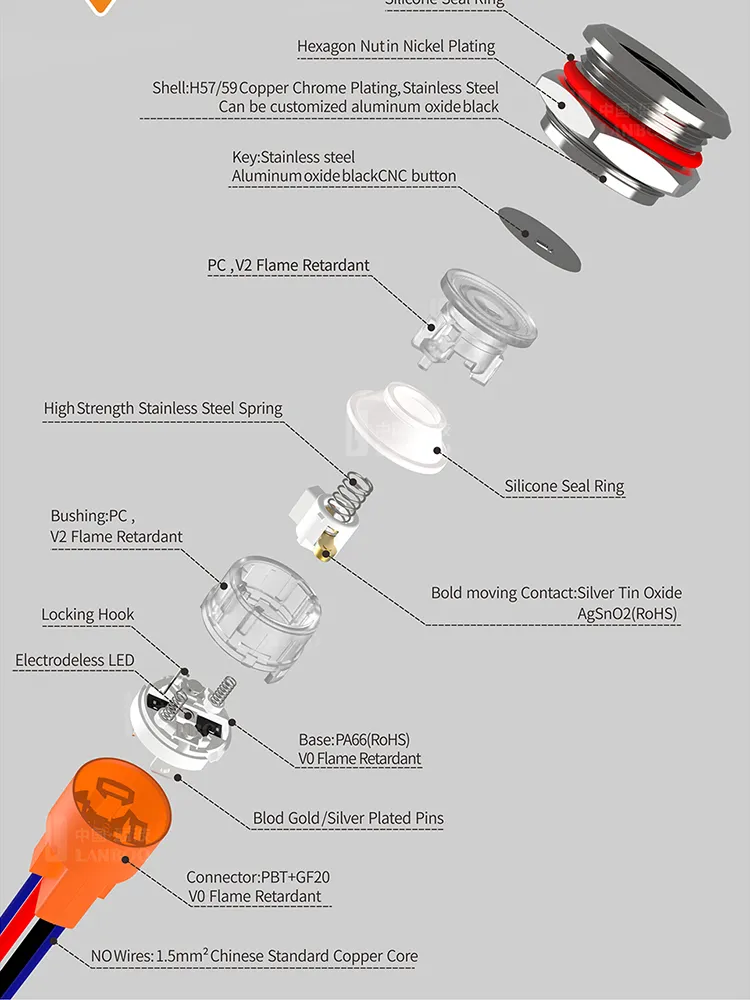

Stainless Steel
Other kinds of materials can be customized
Details
Parameters
| LB22E-S-B-5-24V | |
| Mounting diameter | 22mm |
| Head shape | Plat Head |
| Switch combination | 1NO |
| Operation type | Momentary |
| Illuminating type | Ring LED |
| Illuminating color | Blue |
| Shell material | Stainless steel |
| LED Lamp | |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Blue |
| Rated Voltage | AC/DC9~24V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
