LR-D-D15L20 8*8
LR-D-D15L20 8*8 Hole Diameter Thread Type Flexible Shaft Rotary Encoder Clamp Elastic Coupling
Use and characteristics
Integral molded metal elastic coupling.
High elasticity angle error compensation.
The elastic action compensates the radial, angular, axial deviation.
Zero rotation gap.
Applications
1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy
Product size
Size control table
| Proiect type | D (mm) | L (mm) | D1-D2 (mm) | M (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Screw tightening torque(n.m) |
| LR-D-D15L20 | 15 | 20 | 3-8 | M3.0 | 2.5 | 2 | 0.4 | 1.2 |
| LR-D-D19L25 | 19 | 25 | 6-10 | M3.0 | 3 | 2 | 0.4 | 1.2 |
| LR-D-D25L30 | 25 | 30 | 8-12 | M4.0 | 4 | 2 | 0.4 | 2.5 |
| LR-D-D30L35 | 30 | 35 | 8-18 | M4.0 | 4 | 2.5 | 0.5 | 2.5 |
| LR-D-D35L40 | 35 | 40 | 8-22 | M5.0 | 5 | 2.5 | 0.5 | 5 |
| LR-D-D40L45 | 40 | 45 | 10-28 | M6.0 | 6 | 3.5 | 0.6 | 8 |
Technical parameter
| Proiect type | Maximum shaft hole (mm) | Rated torque (n.m) | Maximum torque (n.m) | Maximum speed (rpm) | Moment of inertia (Kg.m²) | Allow eccentricity (mm) | Allowable declination (°) |
| LR-D-D15L20 | 8 | 0.5 | 1 | 30000 | 2.5*10-7 | 0.05 | 0.5 |
| LR-D-D19L25 | 10 | 1 | 2 | 25000 | 5.8*10-7 | 0.05 | 0.5 |
| LR-D-D25L30 | 12 | 1.5 | 3 | 18000 | 1.8*10-6 | 0.05 | 0.5 |
| LR-D-D30L35 | 18 | 2 | 4 | 16000 | 4.7*10-6 | 0.05 | 0.5 |
| LR-D-D35L40 | 22 | 3 | 6 | 14000 | 1.1*10-5 | 0.05 | 0.5 |
| LR-D-D40L45 | 28 | 6 | 12 | 12000 | 2.3*10-5 | 0.05 | 0.5 |

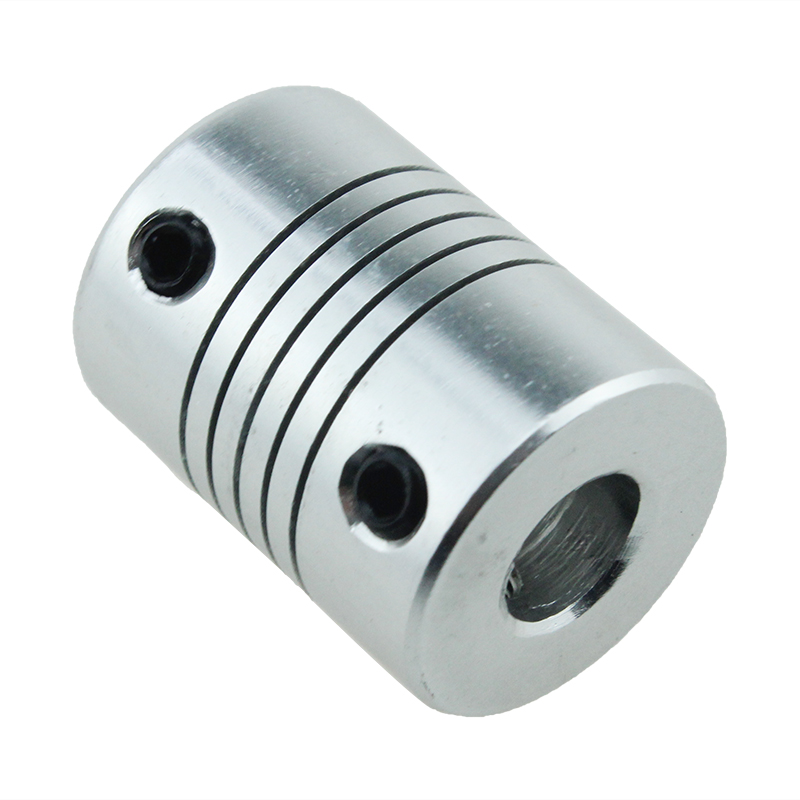

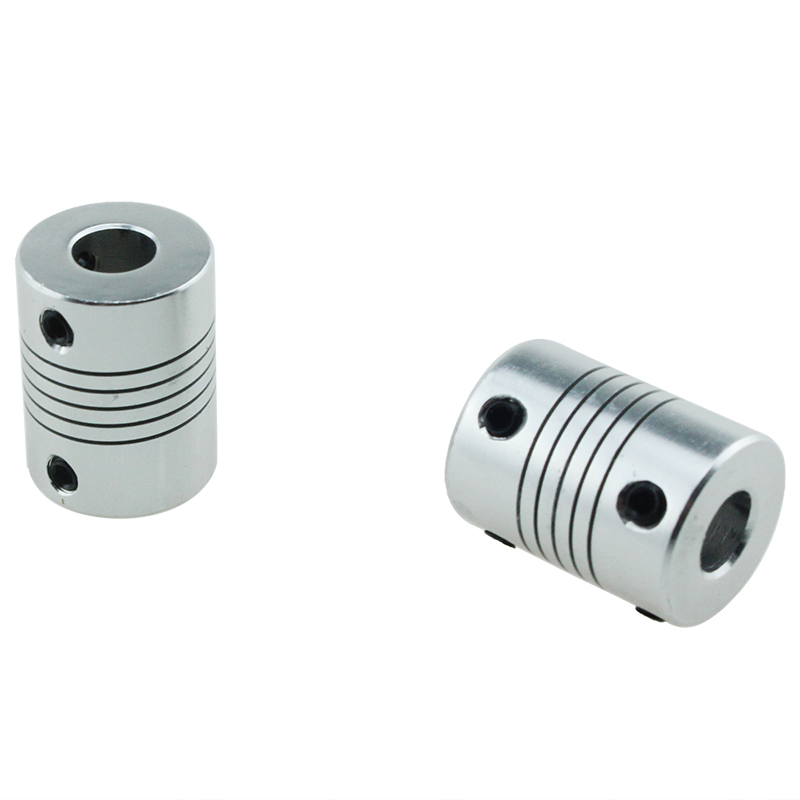

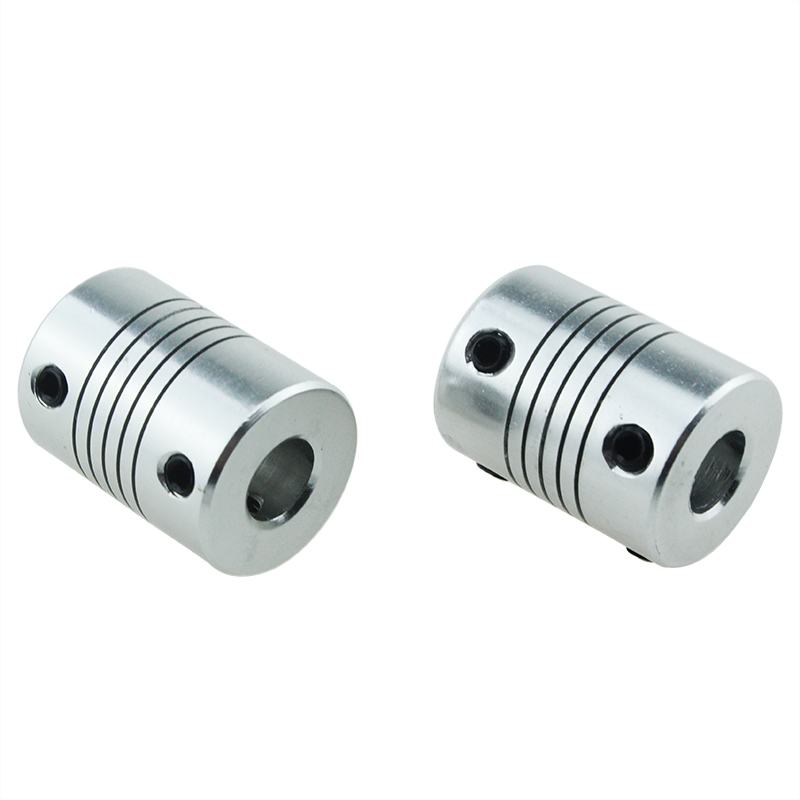

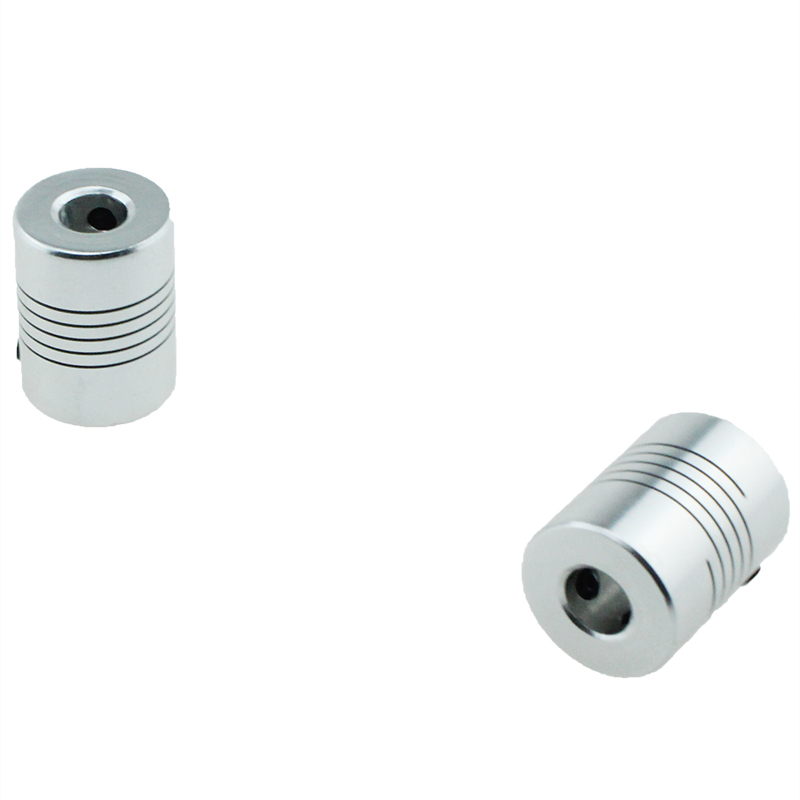

Pictures
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
