LXK3-20S/T
LXK3-20S/T IP65 AC380V DC220V waterproof limit switch limit switch travel switch
Specialty:
The product cover made of special alloying metal, which is to service at such control circuit as AC50-60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control Mechanical tool limit movement and action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25℃~+40℃,an ambient relative humidity of 90%, an altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.
| Main technology data | ||||
| usage | The typical usage of travel switch is to control electrical magnet of AC or DC | |||
| Control capacity | AC-15 | DC-13 | ||
| Ue Rated insulation voltage | Le Rated working current | Ue Rated insulation voltage | Le Rated working current | |
| 380V | 0.8A | 220V | 0.15A | |
| 220V | 1.4A | 110V | 0.3A | |
| 110V | 2.8A | |||
| Rated value | Rated insulation voltage Ui=380V, conventional enclosed heating current lth2=10A | |||
| Protection for short-circuit | Rated fuse current 1000A RL 1-15/10 | |||
| operation frequency | AC 2400 times/H, DC 1200 TIMES/H | |||
| Electrical life | Electrical life of AC one million and half times, electrical life of DC three hundred of thousand times | |||
| Mechanical | LXK3-20 S.H/H1,H2,H3,LXK3-20 S.H/W is 6,000,000 times, others are 10,000,000 times | |||
| Repetition precision | The difference between the maximum (or the minimum) and the means is more than 0.05mm in ten times of actions | |||
| Protection degree of enclosure | IP65 GB4208-84 | |||
| Vibration resistance | 10-55HZ, acceleration 10g(90m/s), amplitude0.75mm | |||
| Type | PT | MD | TT | OF | RF | TF |
| LXK3-20S H/Z | 1.75 ~2mm | ≤ 1.2mm | ≥ 6mm | 1± 0.15kg | ≥ 0.5kg | <3kg |
| LXK3-20S H/L | ||||||
| LXK3-20S H/B | 18° ~22° | ≤15° | ≥60° | 1.53± 0.35Kg.Cm | >0.6Kg.Cm | <2.4Kg.Cm |
| LXK3-20S H/T | ||||||
| LXK3-20S H/J | 1± 0.25Kg.Cm | >0.3Kg.Cm | <2.2Kg.Cm | |||
| LXK3-20S H/D | ||||||
| LXK3-20S H/H1 | 70°~ 80° | 40°~ 60° | 90°~ 5° | 2± 0.3Kg.Cm | 2± 0.3Kg.Cm | |
| LXK3-20S H/H2 | ||||||
| LXK3-20S H/H3 | ||||||
| LXK3-20S H/W | 12°~ 20° | 8°±2° | 0.38±0.08Kg.Cm | >0.15Kg.Cm |
| Code name for operation mode | |
| Z | Plunger-type,autonmatic reset |
| L | Roller plunger-type, automatic reset |
| B | Roller rotary arm type, automatic reset |
| T | Adjustable roller rotary arm type, automatic reset |
| J | Adjustable metal pendulum arm type, automatic reset |
| D | Elastic pendulum arm type, automatic reset |
| H1 | Fork type, two wheels at same direction, no automatic rest |
| H2 | Fork type, right wheels front, left wheel back, no automatic rest |
| H3 | Fork type, right wheels front, left wheel back, no automatic rest |
| W | Universal type, automatic reset |
| Code name for protection enclosure mode | |
| K | No protection enclosure, open type of component |
| S | Vertical type, a outgoing hole at the bottom |
| H | Horizontal type, there is respectively a outgoing hole at the bottom and two sides |
Overall dimensions: (unit: mm)

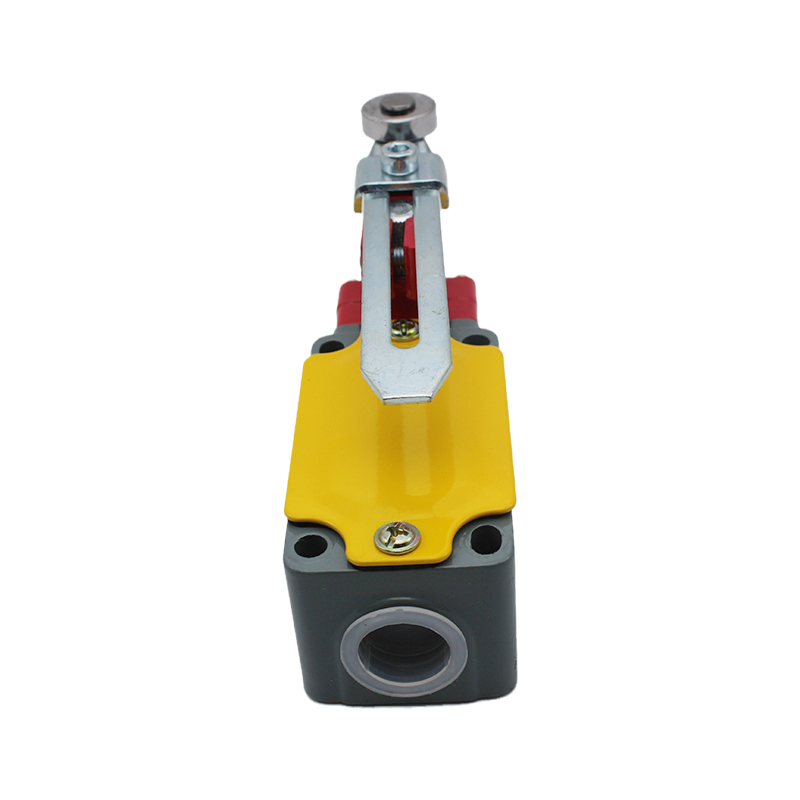

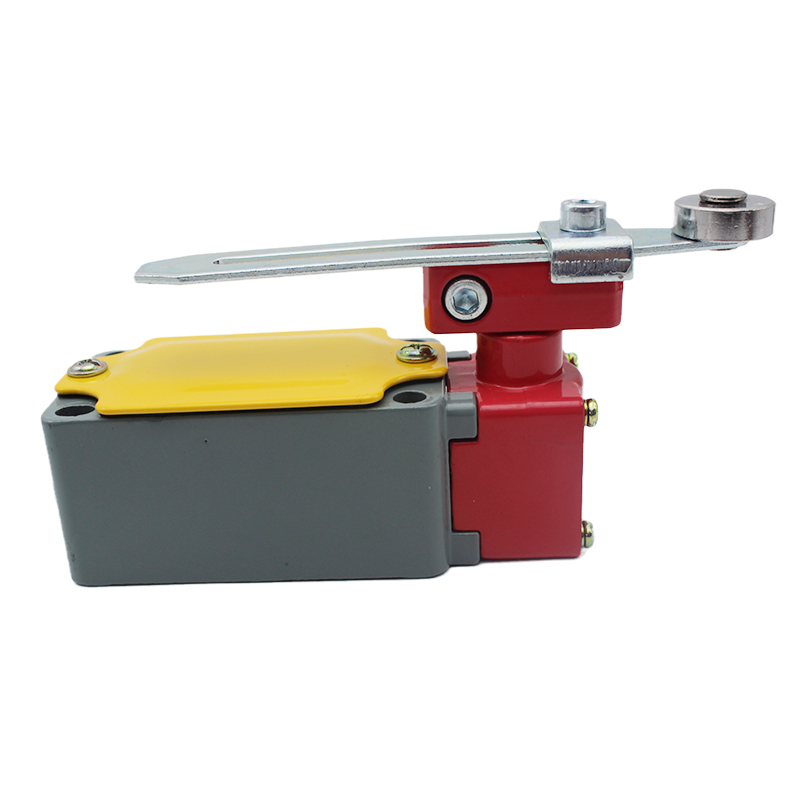

Product photos:
