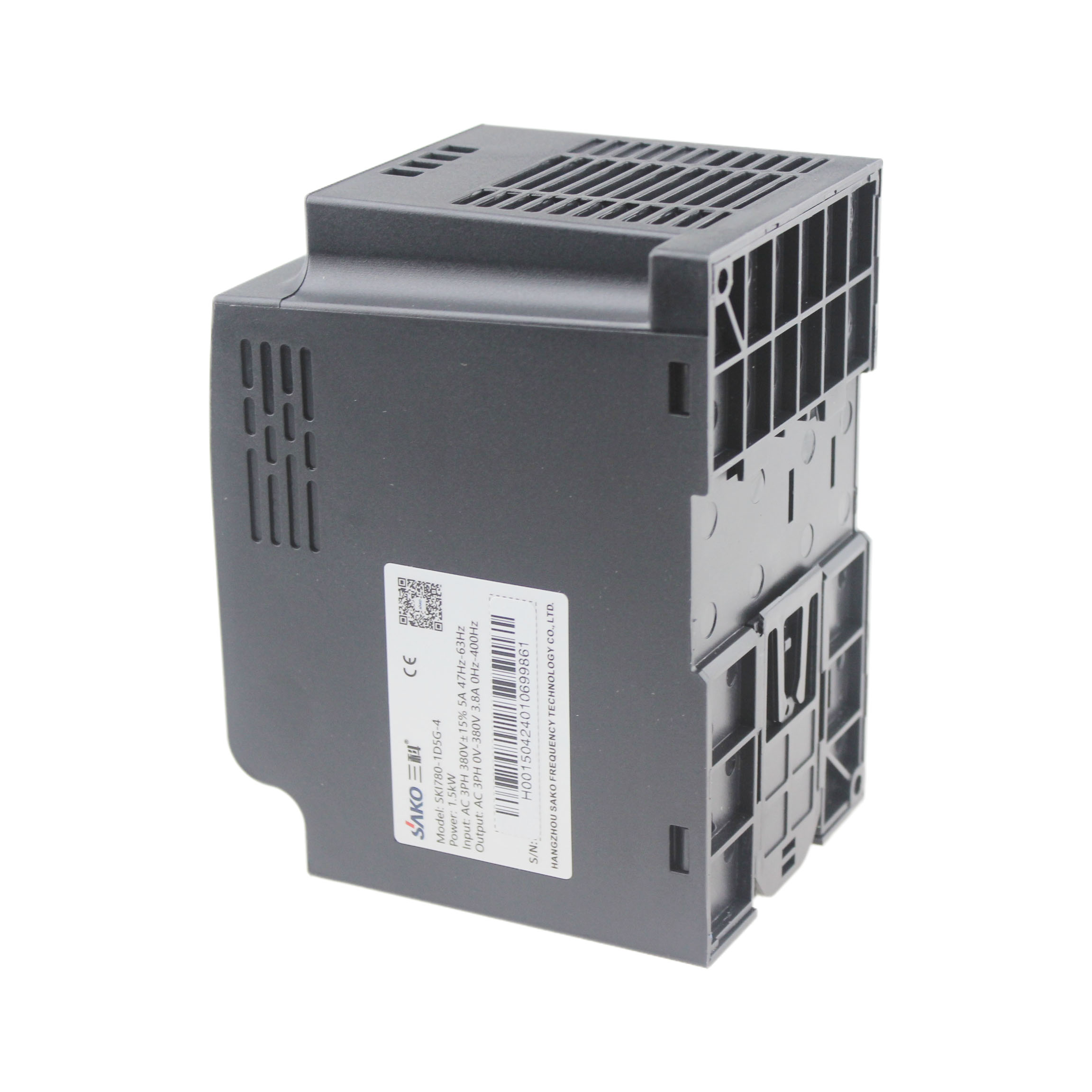

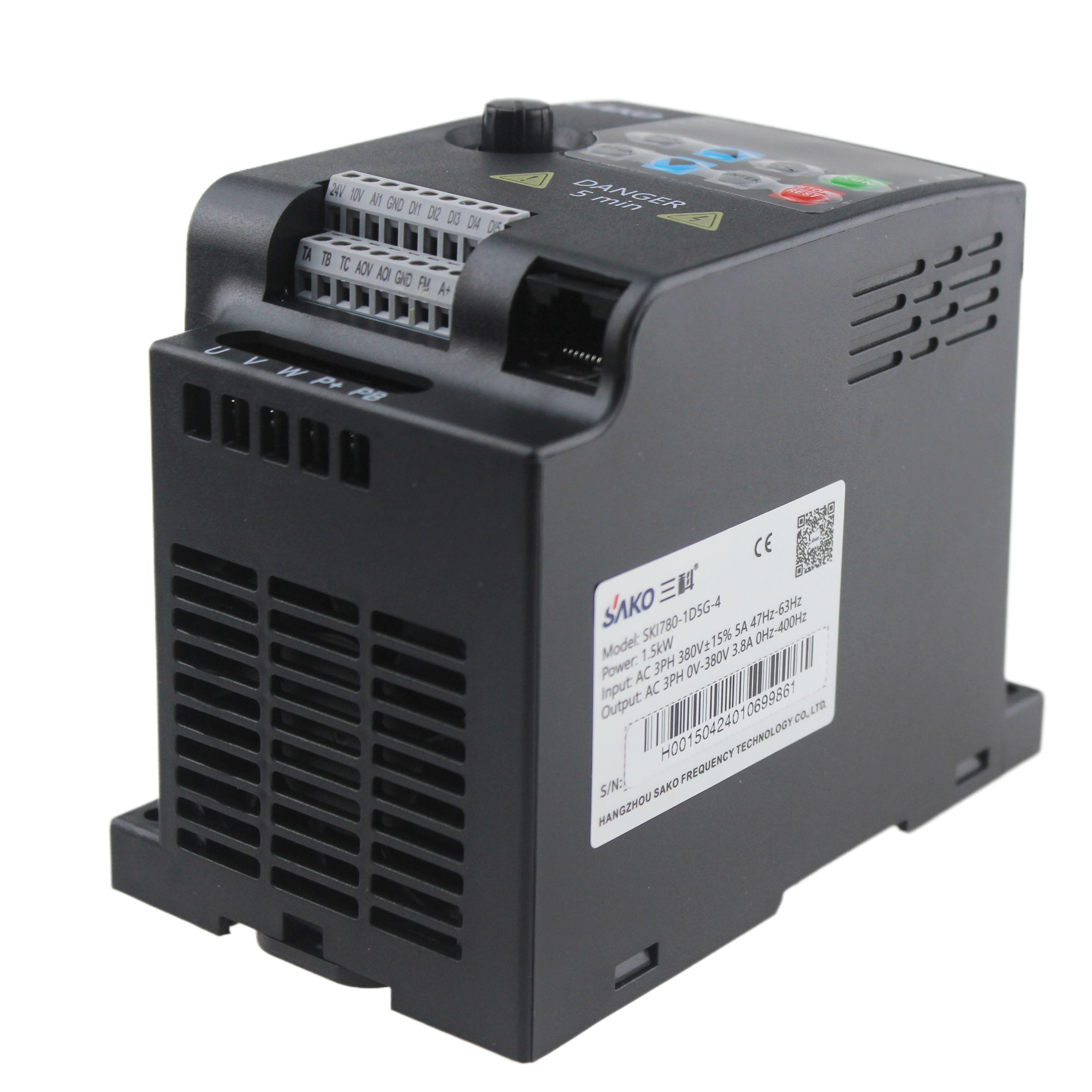

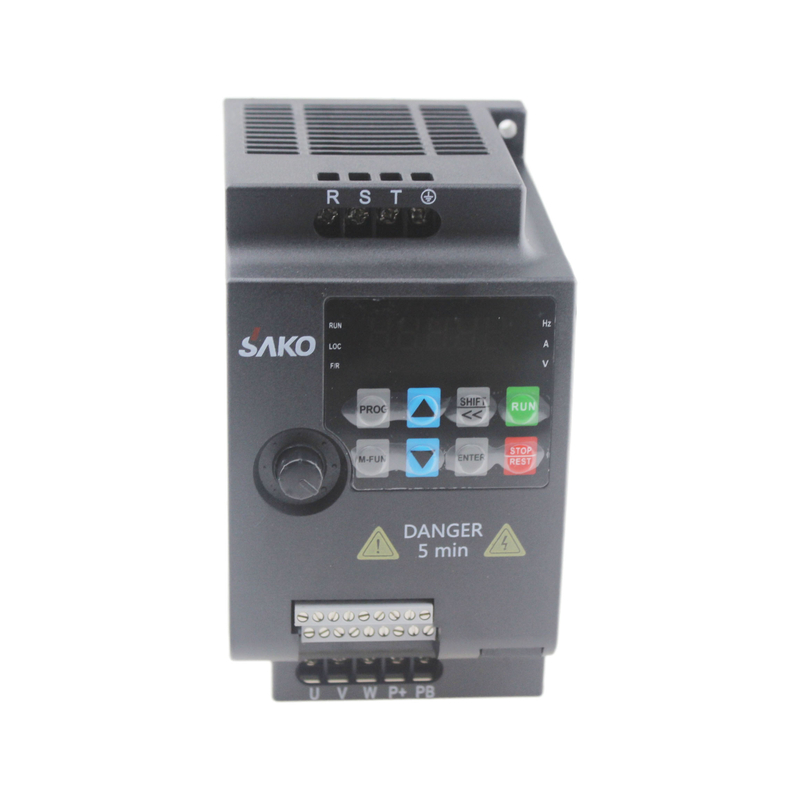

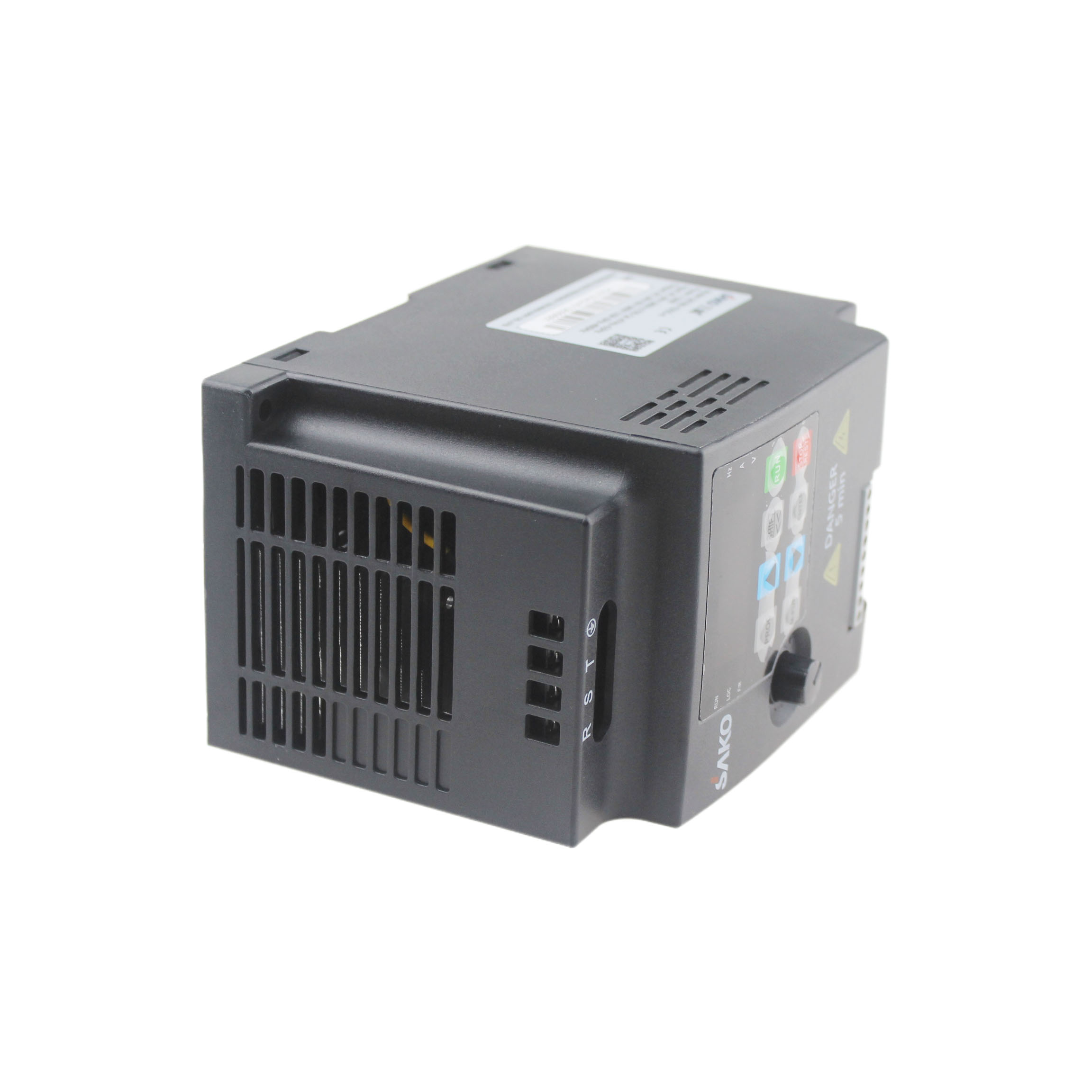

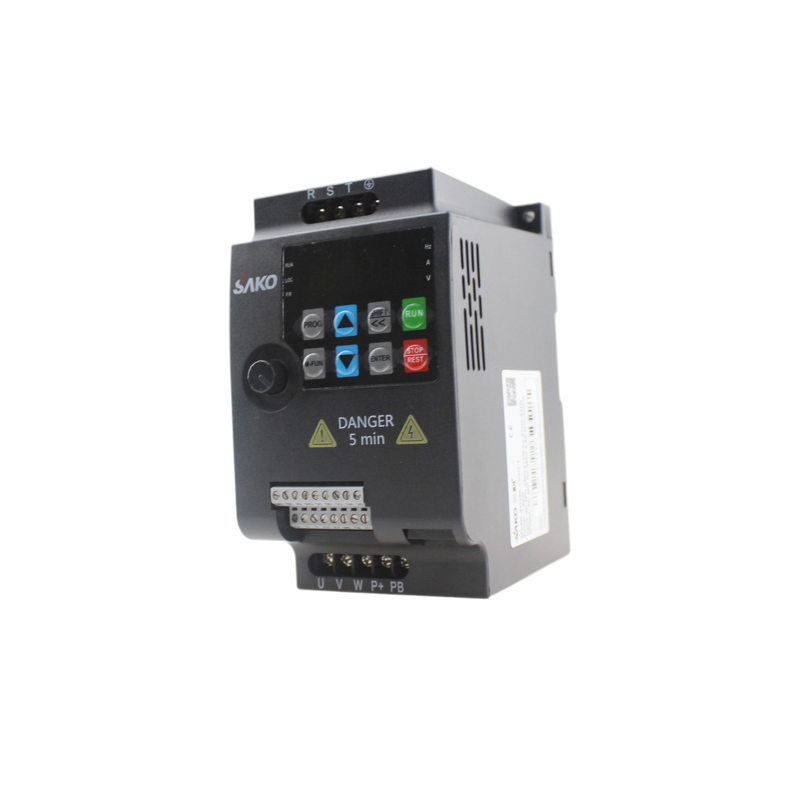

Transducer SKI780-1D5G-4 Frequency Changer Frequency Converter Uuivertor SAKO 1.5KW 380VAC

Availability:
Inquire Add to Basket

  • SKI780-1D5G-4

  • SAKO

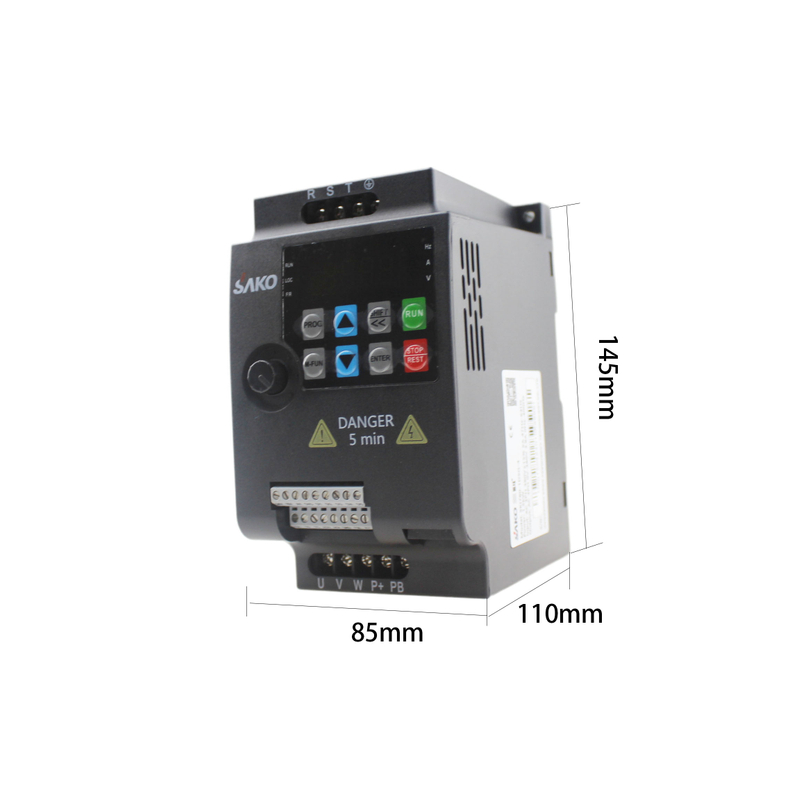

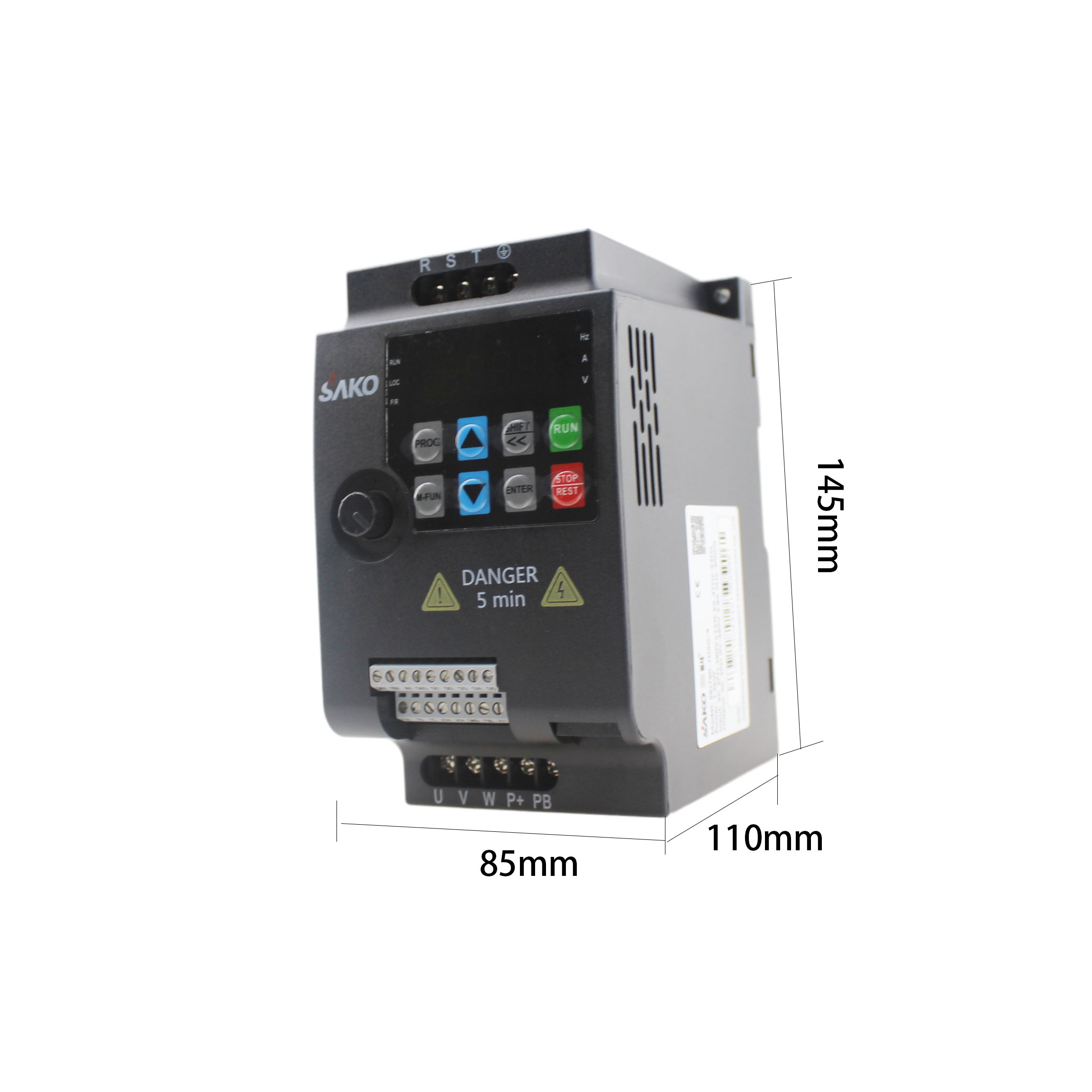

SKI780-1D5G-4 尺寸图

Product Parameter

Code：SKI780-1D5G-4

Brand：SAKO

Power：1.5kW


Rated Current：3.8A

Input Voltage：380V three phases

Output Voltage：380V three phases

Boundary Dimension：145*110*85mm

Installation Dimension:130*73mm

Dimensions of Panel Openings:61*81mm

Weight：1kg

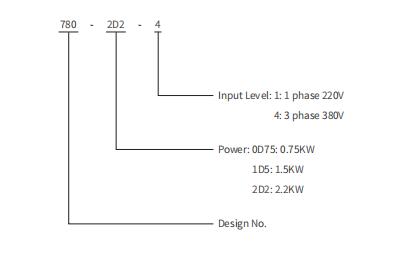

Designation Rules


QQ截图20240410130405

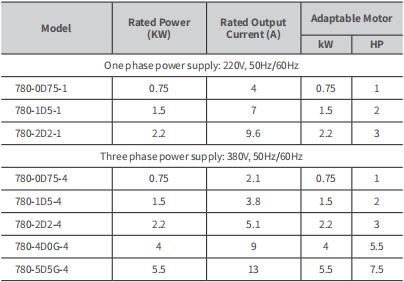

Technical Specifications

QQ截图20240410130803
