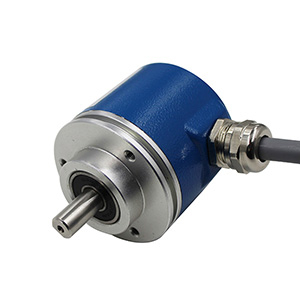

ASC5810

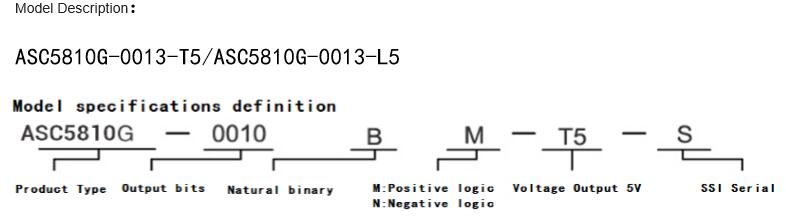

External direction line setting presets, easy installation, no change is required.
External direction line setting presets, easy installation, no change is required.
Parameters:
| Operating Voltage | 10-30Vdc or 5Vdc polarity protection |
| Current consumption | <110mA (24V power supply) <190mA (12V power supply) |
| The output signal | Synchronous serial SSI signal (Gray code output) |
| Output load capacity | ≤ 400 Ohm, Ohm standard operating 200-250 |
| Linear resolution of | 1/4096 |
| Working temperature | -25-70 ℃ temperature range of programming: 0 ℃ ~ + 70 ℃ |
| Storage temperature | -40-100 ℃ |
| Degree of protection | IP65 |
| Permissible speed | 2400 rev / min |
| Output refresh cycle | <1.4ms |
| Connecting cable | 1 m 8-core shielded cable, or 8-pin socket Shape features Clamping flange or servo flange, metal, sealed double bearing structure (see dimension drawings) |
| Shaft | Clamping flange shaft diameter 10mm, length 20mm, with D-flat, stainless steel, servo flange shaft diameter 6mm, length 10mm |
External direction line setting presets, easy installation, no change is required.
External direction line setting presets, easy installation, no change is required.
Parameters:
| Operating Voltage | 10-30Vdc or 5Vdc polarity protection |
| Current consumption | <110mA (24V power supply) <190mA (12V power supply) |
| The output signal | Synchronous serial SSI signal (Gray code output) |
| Output load capacity | ≤ 400 Ohm, Ohm standard operating 200-250 |
| Linear resolution of | 1/4096 |
| Working temperature | -25-70 ℃ temperature range of programming: 0 ℃ ~ + 70 ℃ |
| Storage temperature | -40-100 ℃ |
| Degree of protection | IP65 |
| Permissible speed | 2400 rev / min |
| Output refresh cycle | <1.4ms |
| Connecting cable | 1 m 8-core shielded cable, or 8-pin socket Shape features Clamping flange or servo flange, metal, sealed double bearing structure (see dimension drawings) |
| Shaft | Clamping flange shaft diameter 10mm, length 20mm, with D-flat, stainless steel, servo flange shaft diameter 6mm, length 10mm |
