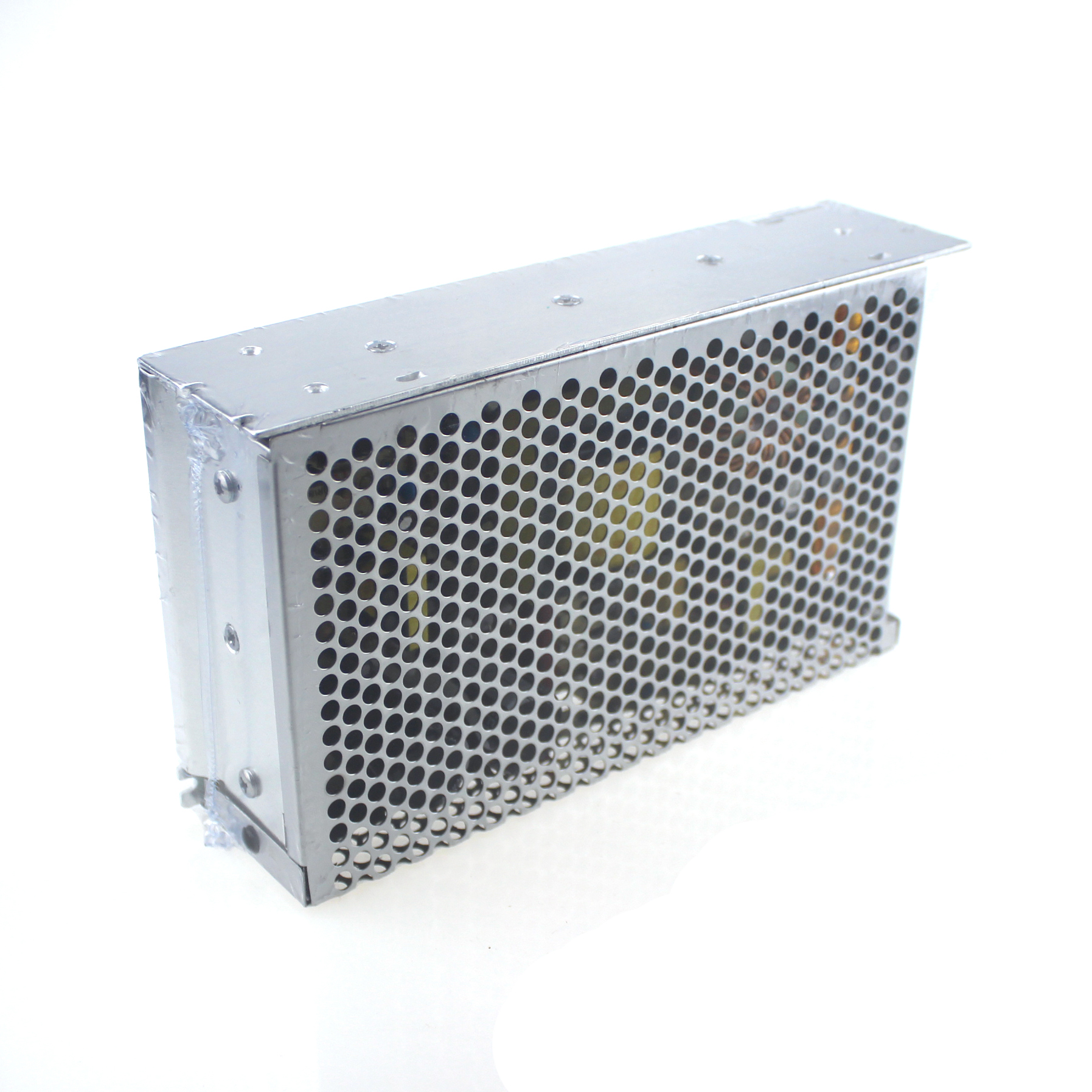

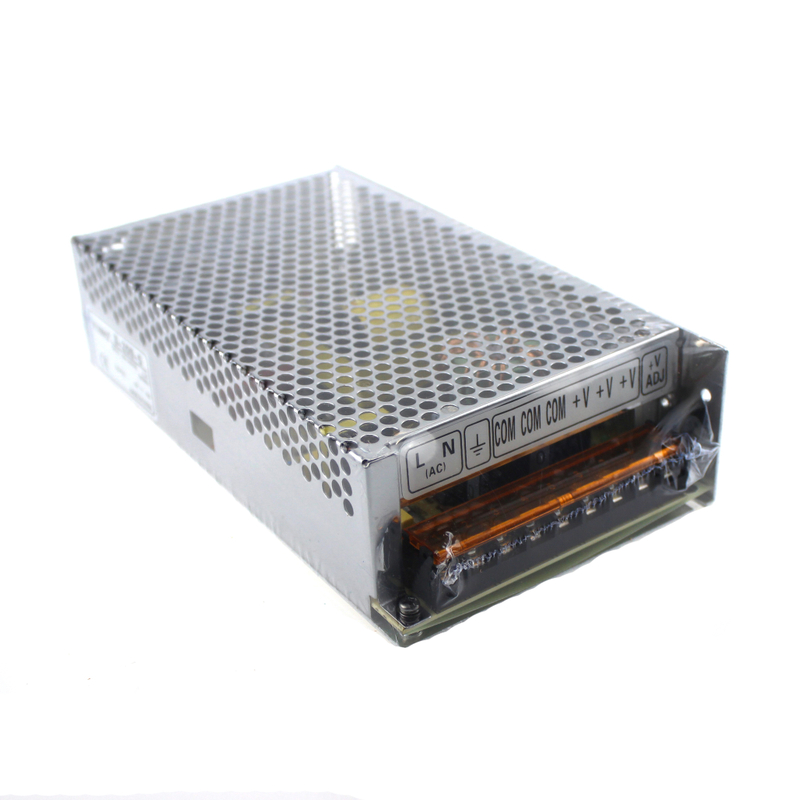

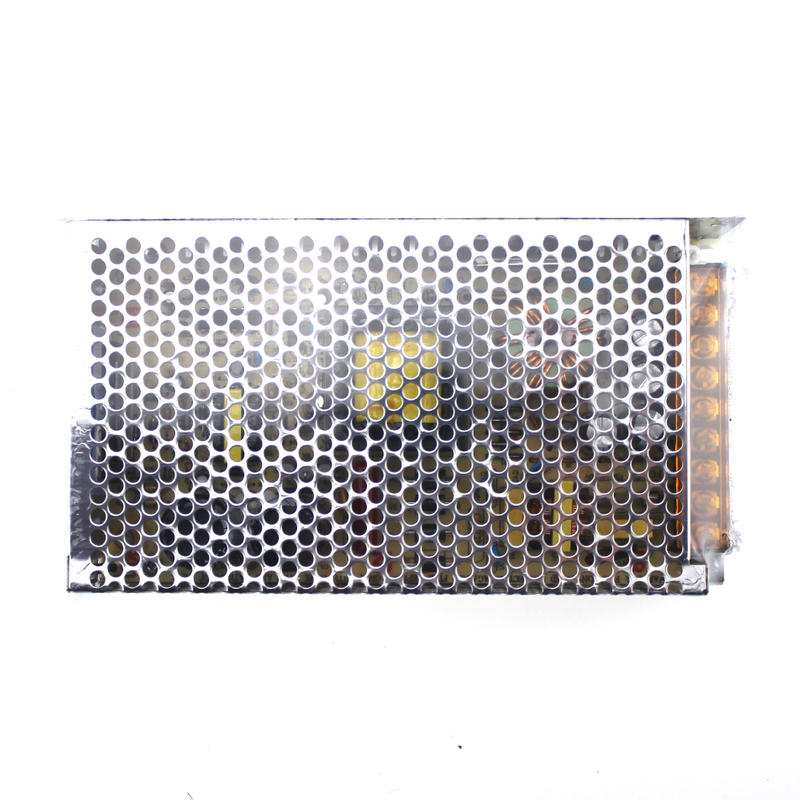

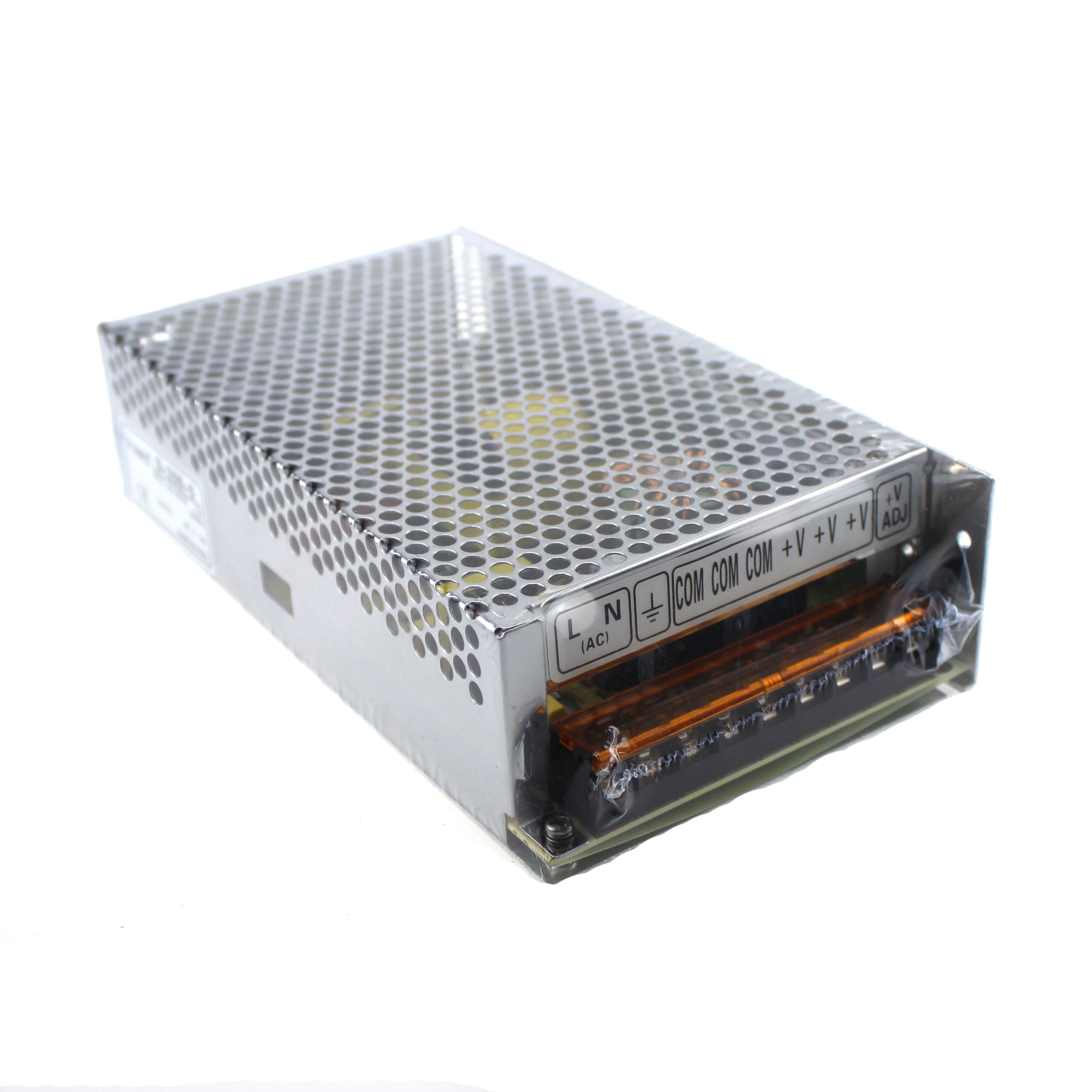

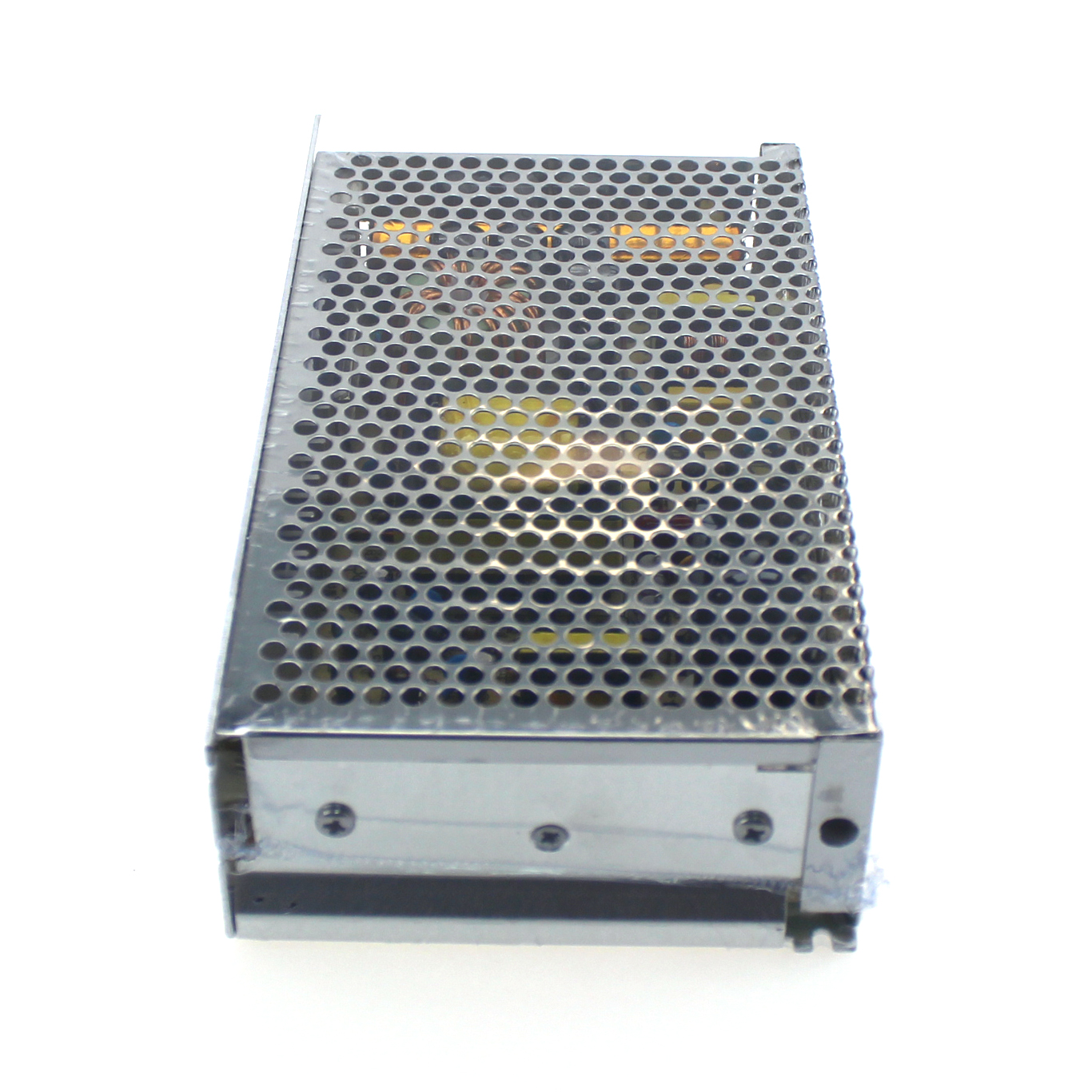

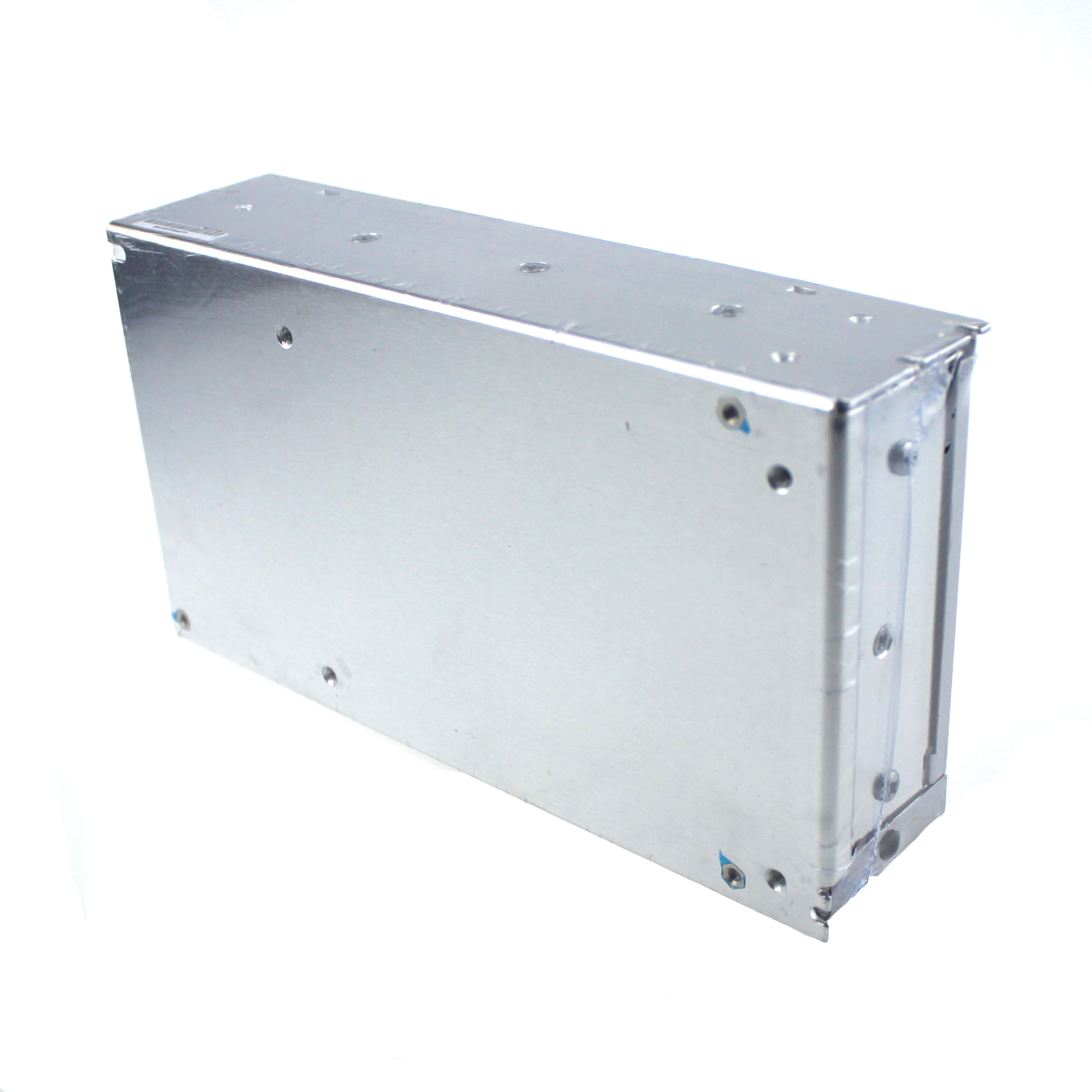

S-200-5
1.CE RoHS approved
2.2 years warranty
3.high quality
4.100% test
Specification:
| Model | S-200-5 | S-200-12 | S-200-24 | S-200-48 |
| DC output voltage | 5V | 12V | 24V | 48V |
| Rated output current | 40A | 16.7A | 8.3A | 4.2A |
| Output current range | 0-40A | 0-16.7A | 0-8.3A | 0-4.2A |
| Wave and noise | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 80% | 85% | 85% | 86% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 85~132VAC/176~264VAC selected by switch | |||
| Input current | 4.5A/115VAC 2.5A/230VAC | |||
| AC INnrush current | Cold-start current 20A/115V 35A/230V | |||
| Over load protection | 105%~150% rated output power | |||
| Protection:Hiccup mode,recover automatically | ||||
| Over voltage protection | 5.6~6.6V | 13.8~16V | 27.5V~32V | 55~64V |
| Protection:Shut down output voltage | ||||
| Setup rise hold up time | 200s,100ms,20ms | |||
| Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | |||
| Overall dimension | 199*110*50mm /20pcs per carton | |||
| Safety standards | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | |||
| EMC standards | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | |||
| Weight | 0.85Kgs | |||
