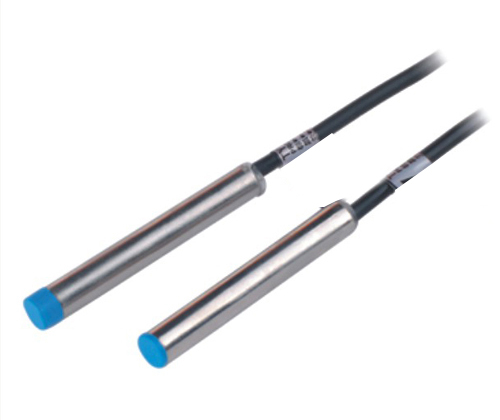

Lm6

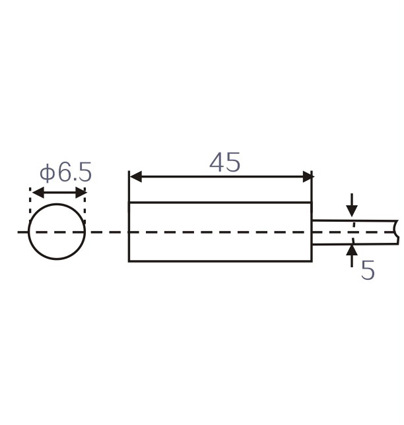

OVERALL DIMENSIONS |  | |||
| DETECTION DISTANCE 1mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LM6-3001NA |
| NC | LM6-3001NB | |||
| NO+NC | ||||
| PNP | NO | LM6-3001PA | ||
| NC | LM6-3001PB | |||
| NO+NC | ||||
two wire system | NO | LM6-3001LA | ||
| NC | LM6-3001LB | |||
| SCR Control- lable silicon | NO | LM6-2001A | ||
| NC | LM6-2001B | |||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 1.5mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LM6-3002NA |
| NC | LM6-3002NB | |||
| NO+NC | ||||
| PNP | NO | LM6-3002PA | ||
| NC | LM6-3002PB | |||
| NO+NC | ||||
two wire system | NO | LM6-3002LA | ||
| NC | LM6-3002LB | |||
| SCR Control- lable silicon | NO | LM6-2002A | ||
| NC | LM6-2002B | |||
| NO+NC | ||||
| Relay output | ||||
Control output | DC | 200mA | ||
| SCR/ Relay | ||||
| Output voltagc dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 8X8X1(A3 iron) | |||
| Repeated precision | 0.01 | |||
| DC/AC | 500Hz | |||
| Working environment temperature | -25℃～+75℃ | |||
| Insulation resistance | ≥30MΩ | |||
| Shell material | Stainless steel | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | ||||
