LM16 M16 detection distance 3mm 5mm Inductive proximity switch sensor

Proximity switches is the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . China Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch ,  will be your best choice .
Availability:
  • LM16

LM16 series cylinderical inductive proximity switch
Outside diameter 16mm cylinder inductive proximity switch, sensing range from 3mm~5mm . China offer customized design!

Detecting rang 3mm part no. other part no.
Flush DC   NPN NO LM16-3003NA LJ16A3-3-Z/BX
NC LM16-3003NB LJ16A3-3-Z/AX
NO+NC LM16-3003NC LJ16A3-3-Z/CX
  PNP NO LM16-3003PA LJ16A3-3-Z/BY
NC LM16-3003PB LJ16A3-3-Z/AY
NO+NC LM16-3003PC LJ16A3-3-Z/CY
2 Wires NO LM16-3003LA LJ16A3-3-Z/EX
NC LM16-3003LB LJ16A3-3-Z/DX
AC SCR NO LM16-2003A LJ16A3-3-J/EZ
NC LM16-2003B LJ16A3-3-J/DZ

NO+NC

Relay output

Detecting rang 5mm
Non-flush DC NPN NO LM16-3005NA LJ16A3-5-Z/BX
NC LM16-3005NB LJ16A3-5-Z/AX
NO+NC LM16-3005NC LJ16A3-5-Z/CX
PNP NO LM16-3005PA LJ16A3-5-Z/BY
NC LM16-3005PB LJ16A3-5-Z/AY
NO+NC LM16-3005PC LJ16A3-5-Z/CY
2 Wires NO LM16-3005LA LJ16A3-5-Z/EX
NC LM16-3005LB LJ16A3-5-Z/DX
AC   SCR NO LM16-2005A LJ16A3-5-J/EZ
NC LM16-2005B LJ16A3-5-J/DZ

NO+NC

Relay output
Sensor Characteristics

Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10V
Consumption current DC(NPN;PNP) DC 12V 8mA;24V 15mA;AC type: AC <10mA
Standard detected object 15&times;15&times;1(A3 Iron)
Repeated precision 0.02
Response Frequency 300Hz/25Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance &ge;50M&Omega;
Shell material Metal
Protection grade IP67

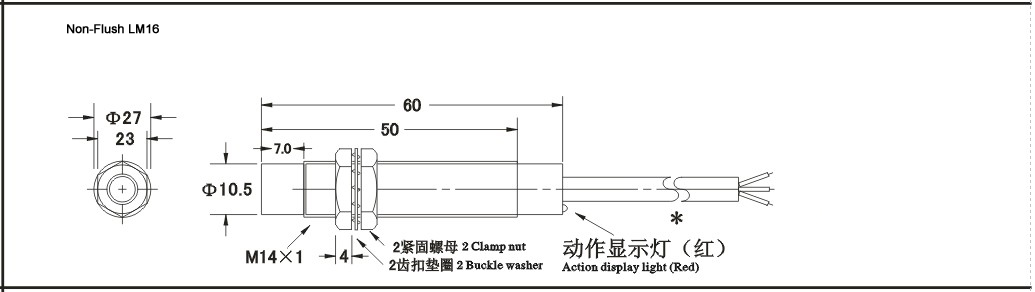

LM16

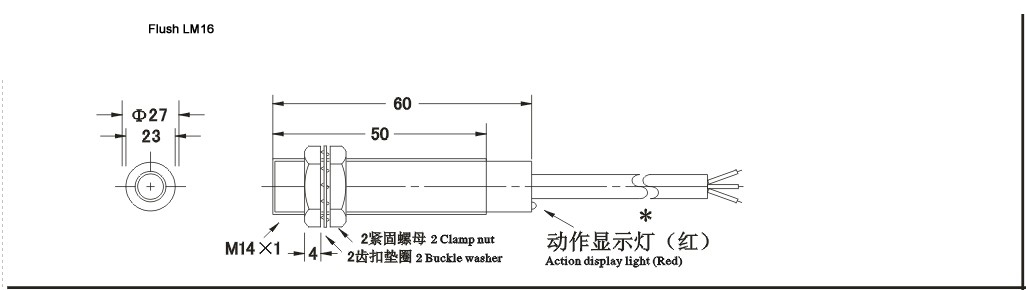

LJ16
