ISL5815
Note

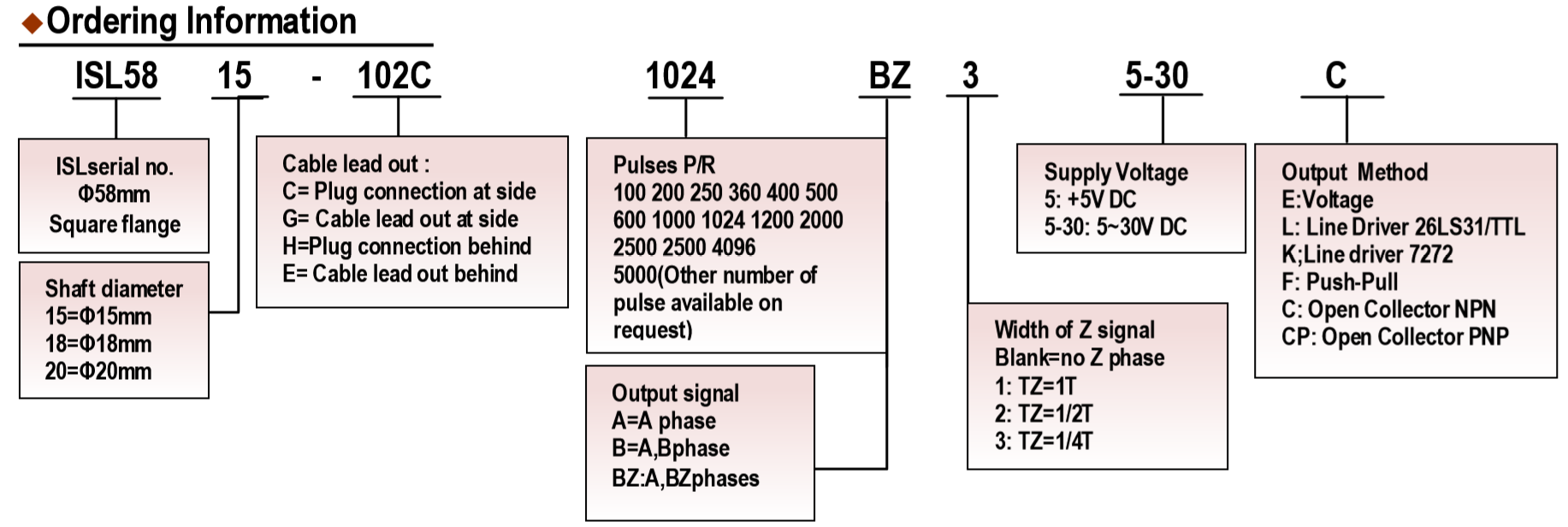

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option.
3, 500,600,1024 cpr is not available with index width 1T
Technical Specifications
| Parameter | Value | Note |
| Supply Voltage | DC5V / 7~24V (±10%) | Max. response frequency is gated by max. rotation speed |
| Max. Response Frequency | 150 kHz | |
| Max. Rotation Speed (*1) | 3000 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 200ns (Line Driver) | |
| Max. Rise-Fall Time | 1us (Other Output Mode) | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) | |
| IP Rating | IP54 |
Connection Table
Signal | A | B | Z | Ā | B(-) | Z(-) | Vcc | GND | Block |
Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black | Copper Web |
7Pin Plug | 3 | 5 | 2 | 1 | 4 | 6 | |||
9Pin/10Pin Plug | 5 | 3 | 2 | 7 | 6 | 8 | 1 | 4 | 9 |

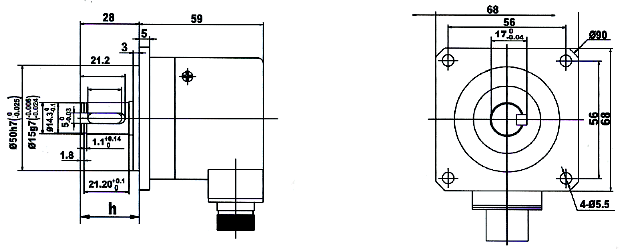

Diamension
Output Waveform
