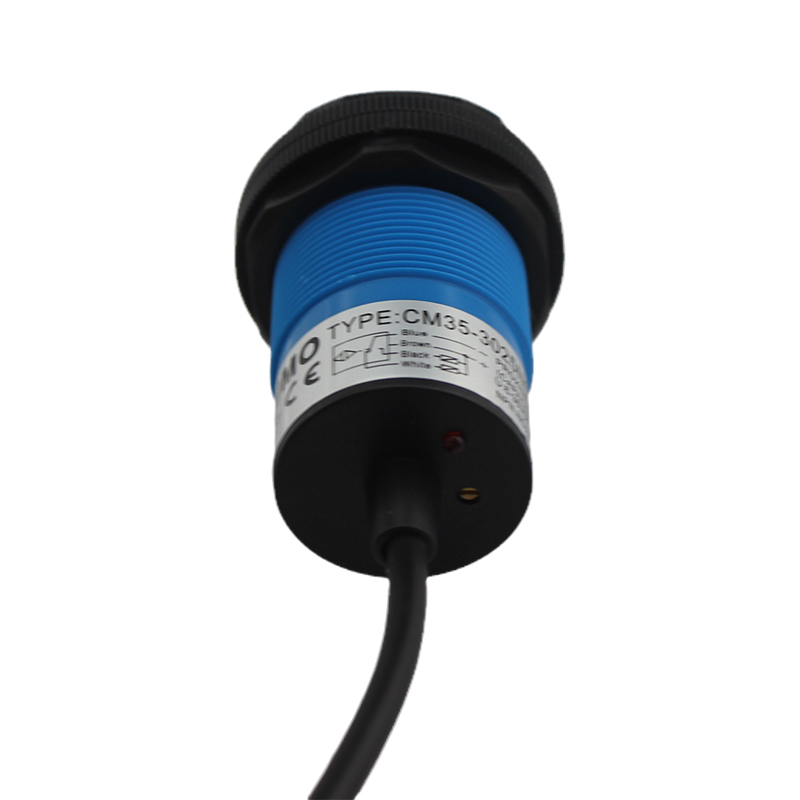

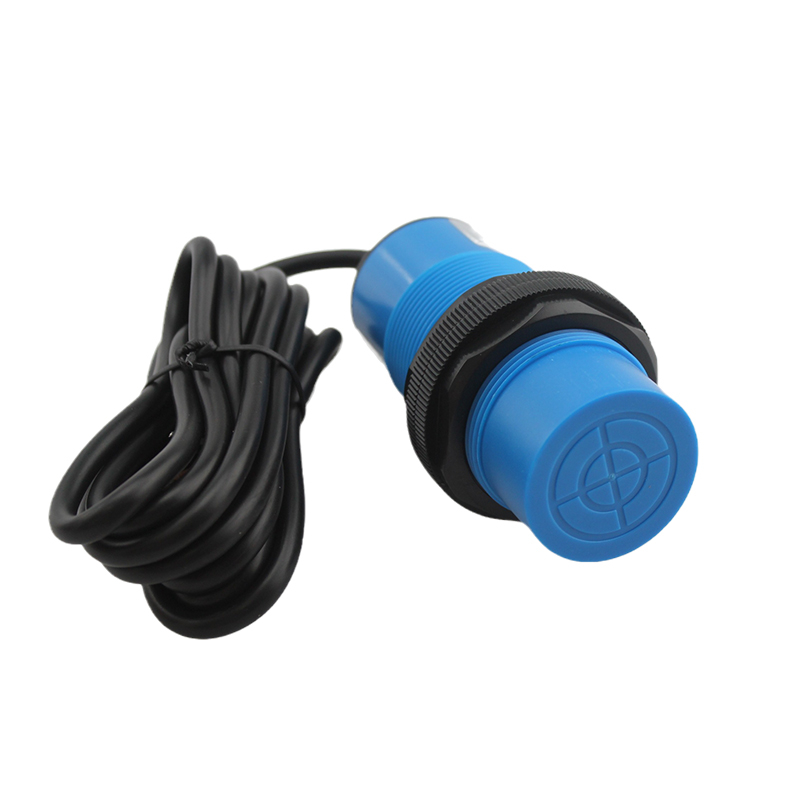

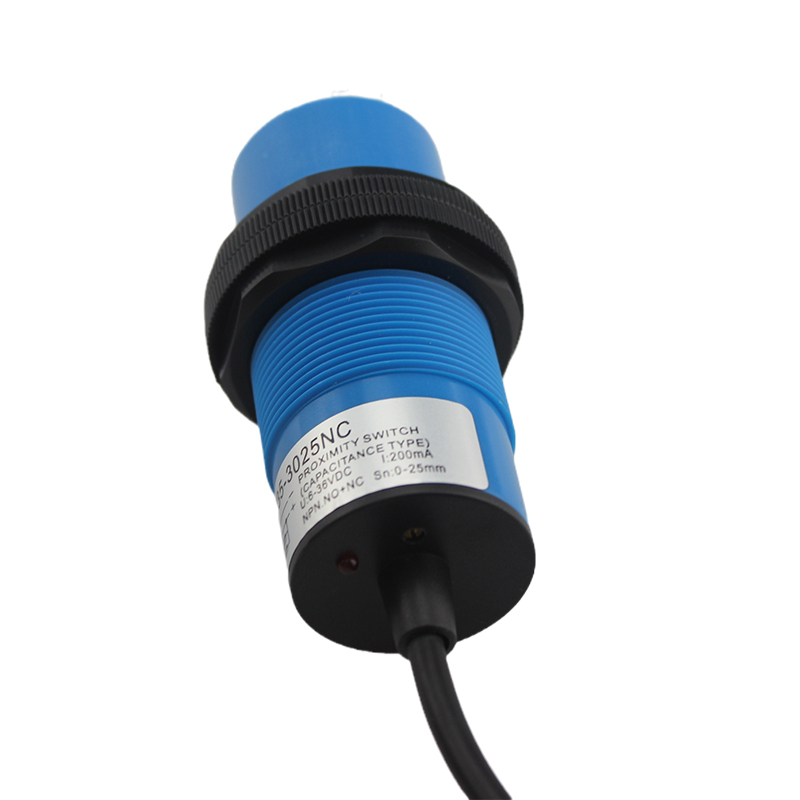

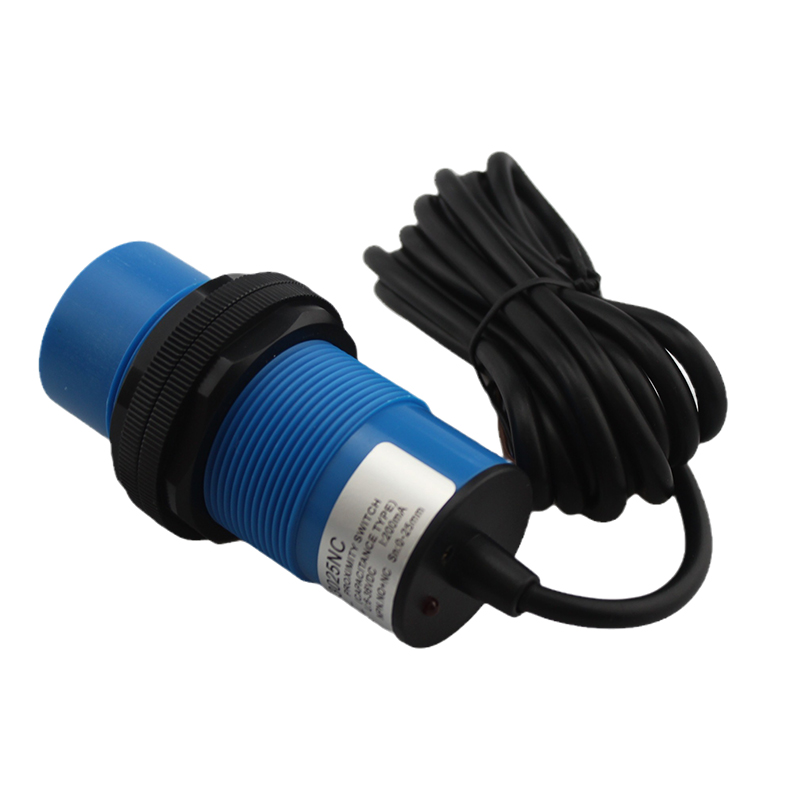

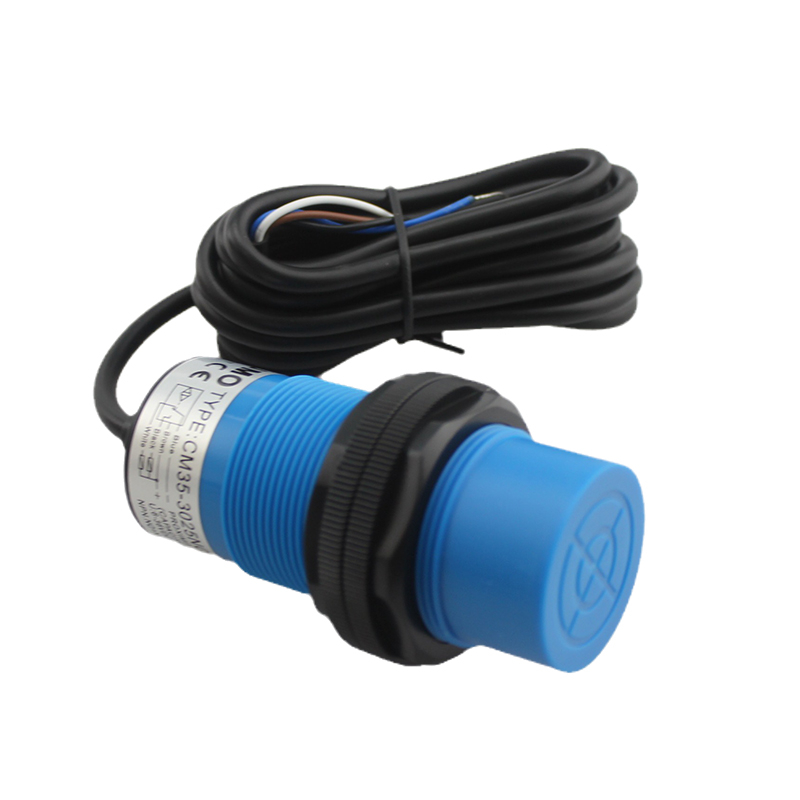

Capacitive Proximity Switch Sensor CM35-3025NC Adjustable NPN NO NC Level Measuring

◆Introduction

The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.

◆Feature

1. Multiplicity appearance

2.  Compact volume

3. High repeat orientation precision

4. Many output form

5. Strong protection distribution

6, High on-off frequency commonly 600Hz

7. Wide voltage range

8. Dustproof, vibration-proof, waterproof and oil-proof

9. With short-circuit protection and inverted connecting protection

10. Service life up to one million

11. Adopts envelop glue, temperature resist, oil-proof colophony in it

12. Limit upgrade product

◆Working Principle

◆Outward Appearance

◆Technical Parameter

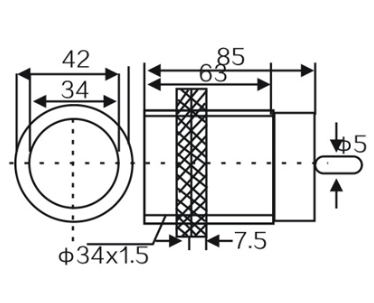

OVERALL DIMENSIONS
DETECTION DISTANCE                             0-10mm
F l u s h	DC 6- 36 VDC   AC 90- 250 VAC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		SCR Control- lable silicon	NO
			NC
DETECTION DISTANCE                           0-25mm
F l u s h	DC 6- 36 VDC   AC 90- 250 VAC	NPN	NO	CM35-3025NA
			NC	CM35-3025NB
			NO+NC	CM35-3025NC
		PNP	NO	CM35-3025PA
			NC	CM35-3025PB
			NO+NC	CM35-3025PC
		SCR Control- lable silicon	NO	CM35-2025A
			NC	CM35-2025B
Detectable object’				conductor and dielectric body
Consumption current				(NPN PNP) DC12V 8mA，24V DC<15mA、AC<10mA
Controloutput				200mA，300mA
Output voltagc dropDC/AC				（NPN PNP）DC<3V、AC<7V
DC/AC Response frequency				50Hz，10Hz
Shell material				Metal/ABS Resin,
Working environment temperature				-25℃～70℃
Insulation resistance				50MΩ
Protection structure				IEC IP54 IECstandard lp54
Altemative model at home and abroad				E2k-X15M口

◆Application Illustration

 The dielectric constants for some important materials are as:
