LP-D-D16L35
LP-D-D16L35 Top Thread Type Absorb Shock Spring Coupling
Use and characteristics
High torque, high torsional rigidity, high response.
Zero gap.
The presence of bias can also maintain constant velocity motion.
Softness, stainless steel spring can tolerate eccentricity, deflection angle and axis deviation wide error, adjustable.
Standardization of products with different diameters at both ends.
Applications
1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy
Size control table
Model | D(mm) | (mm) | D1-D2(mm) | M(mm) | L2(mm) | L3(mm) | Screw tightening torque (n.m) |
LP-D-D16L25 | 16 | 25 | 4-10 | M4.0 | 4 | 13 | 2.5 |
LP-D-D16L35 | 16 | 35 | 4-10 | M4.0 | 4 | 13 | 2.5 |
LP-D-D26L38 | 26 | 38 | 5-16 | M5.0 | 6 | 18 | 5 |
LP-D-D26L55 | 26 | 55 | 5-16 | M5.0 | 6 | 18 | 5 |
Technical parameter
Model | Maximum shaft hole (mm) | Rated torque (n.m) | Maximum torque (n.m) | Maximum speed (rpm) | Moment of inertia (kg.m) | Allowable eccentricity (mm) | Allowable deflection angle (+) | weight(g) | |
LP-D-D16L25 | 10 | 0.3 | 0.6 | 3000 | 2.5*10 | 1 | 5 | 30 | |
LP-D-D16L35 | 10 | 0.25 | 0.5 | 3000 | 5.8*10 | 2 | 6 | 70 | |
LP-D-D26L38 | 16 | 0.6 | 1.2 | 3000 | 1.8*10 | 1.5 | 6 | 110 | |
LP-D-D26L55 | 16 | 0.45 | 0.9 | 3000 | 4.7*10 | 2.5 | 10 | 130 | |

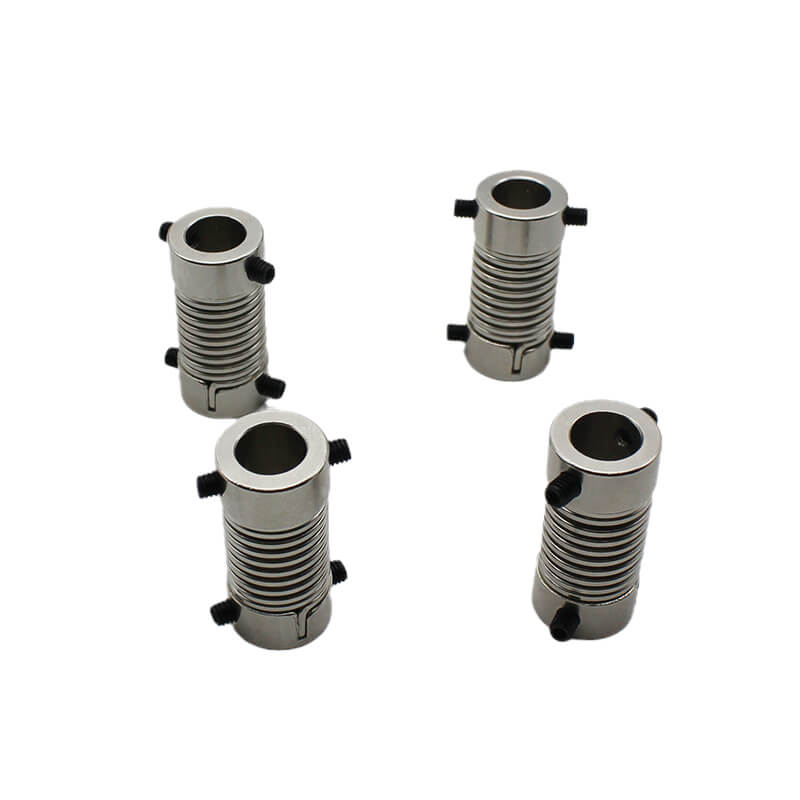

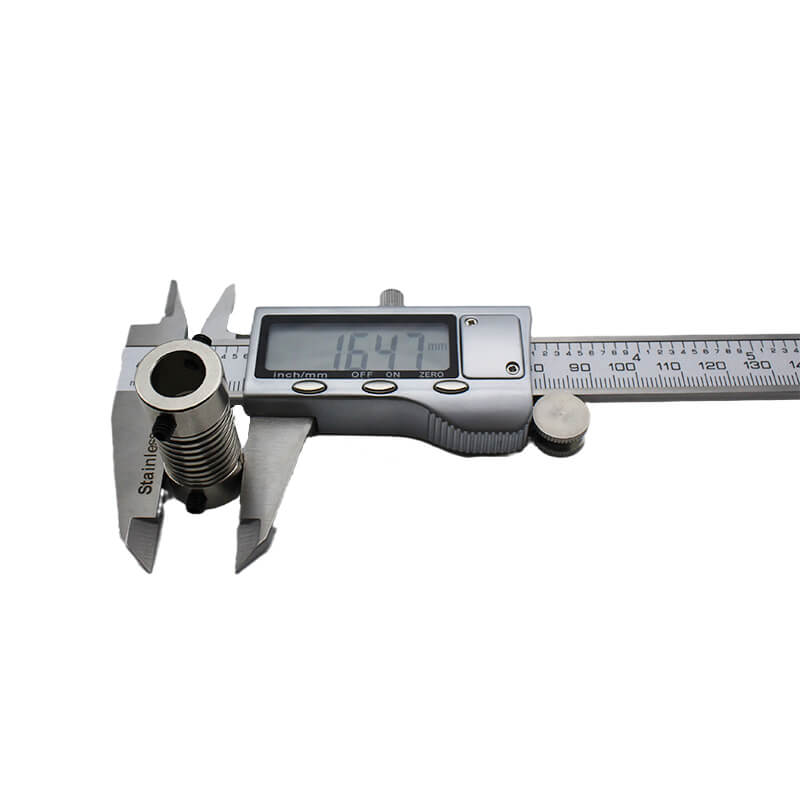

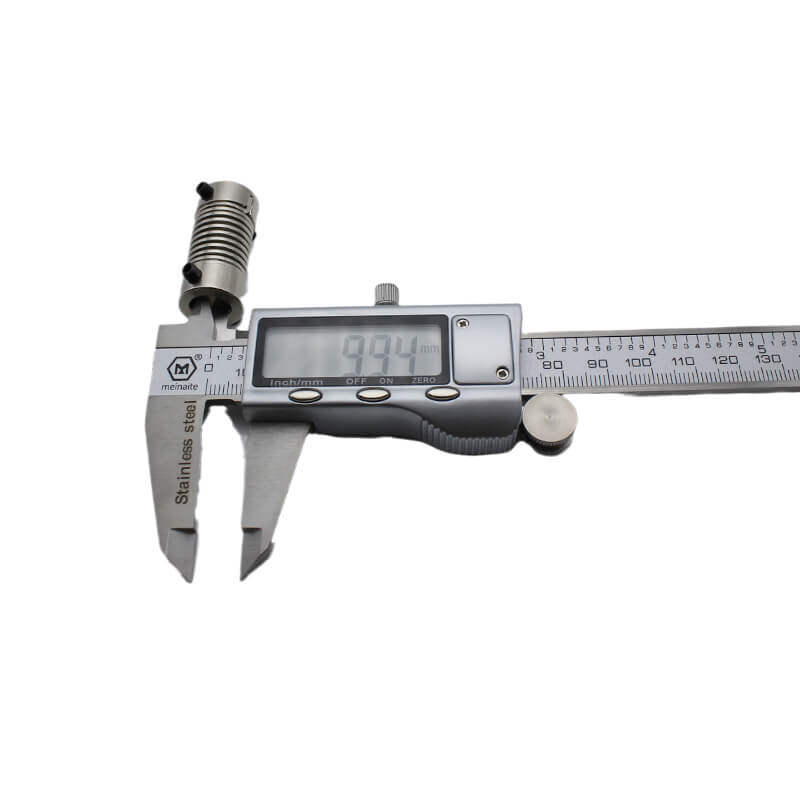

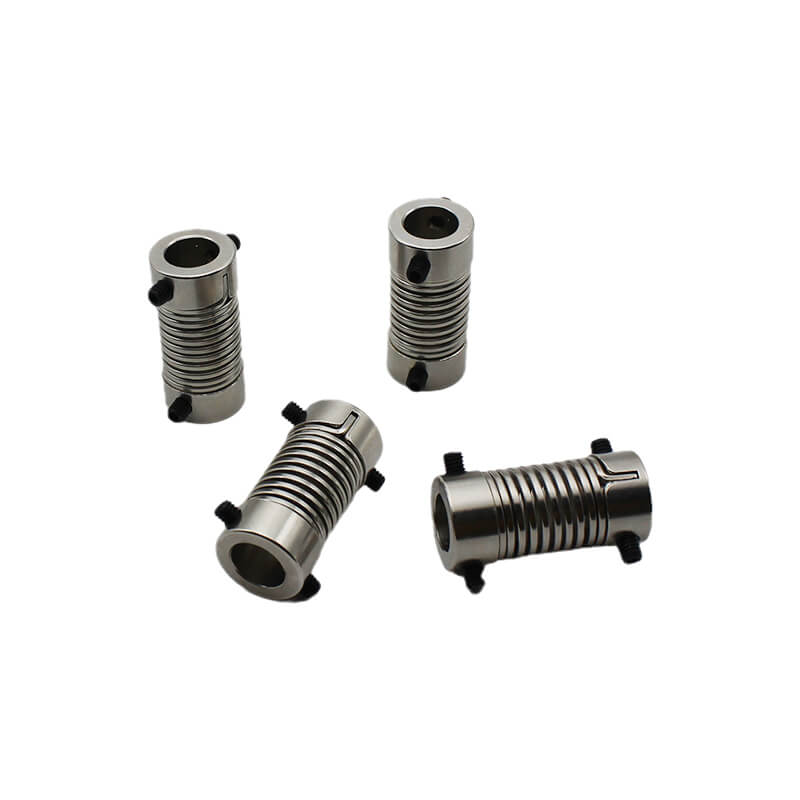

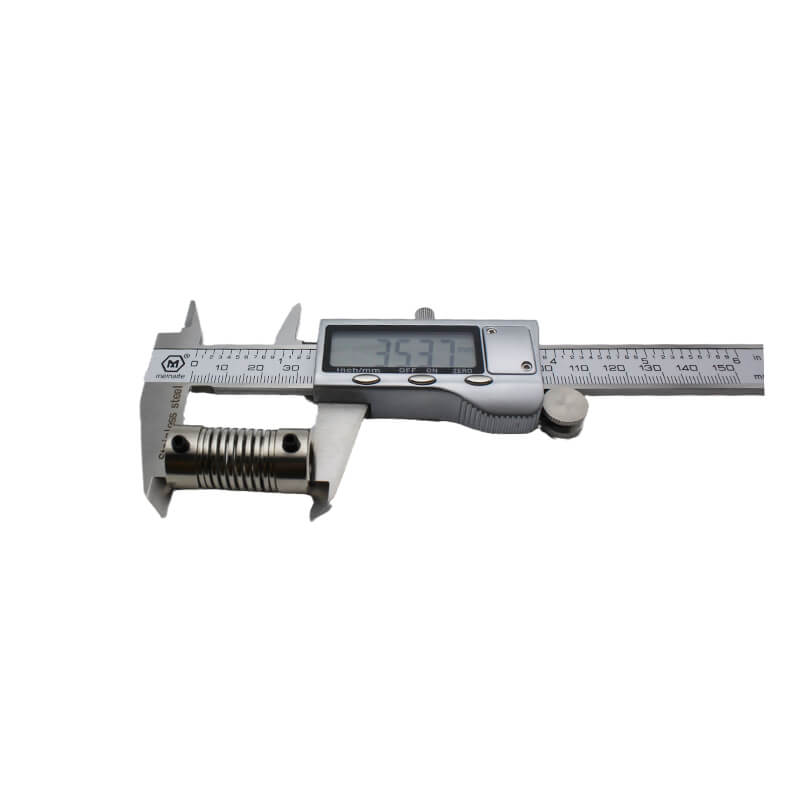

Pictures
