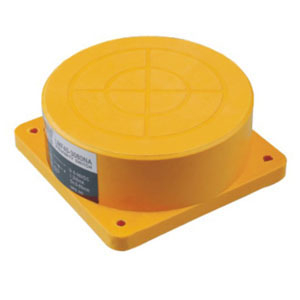

LMF40 inductive proximity switch, detection distance 0-80mm

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
  • LMF40

LMF40 series panel installation type inductive proximity switch

Sensing range 80mm inductive proximity switch. China offer customized design!

LMF40 Inductive proximity switch
Detecting rang mm 0-80MM part no.
Non-flushDC 6-36VNPNNOLMF40-3080NA
NCLMF40-3080NB
NO+NCLMF40-3080NC
PNPNOLMF40-3080PA
NCLMF40-3080PB
NO+NCLMF40-3080PC
2 WiresNO
NC
AC 90-250VSCRNOLMF40-2080A
NCLMF40-2080B
 NO+NCLMF40-2080C
Relay outputLFM40-2080JC
LMF40 Inductive proximity switch  Characteristics
Output currentDC200mA
SCR/relay300mA/2A/10A
Output voltage dropDC≤1.5V /DC(Two wire system)≤5V/ AC≤7V
Consumption currentDC≤1mA/ DC(Two wire system)≤13mA /AC≤2mA
Standard detected object160×160×1(A3 iron)
Repeated precision0.5
Response Frequency10Hz/5Hz
Working environment temperature -25℃ ~+75℃
Insulation resistance50MΩ
Shell materialABS Resin * Glass fiber reinforced plastic
Protection gradeIEC Standard IP65
Alternative model TCB-2080□

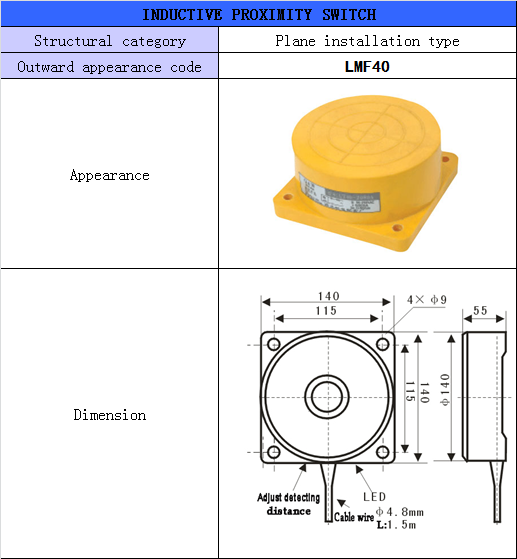

LMF40 proximity switch Dimension
