LM8-3001NB

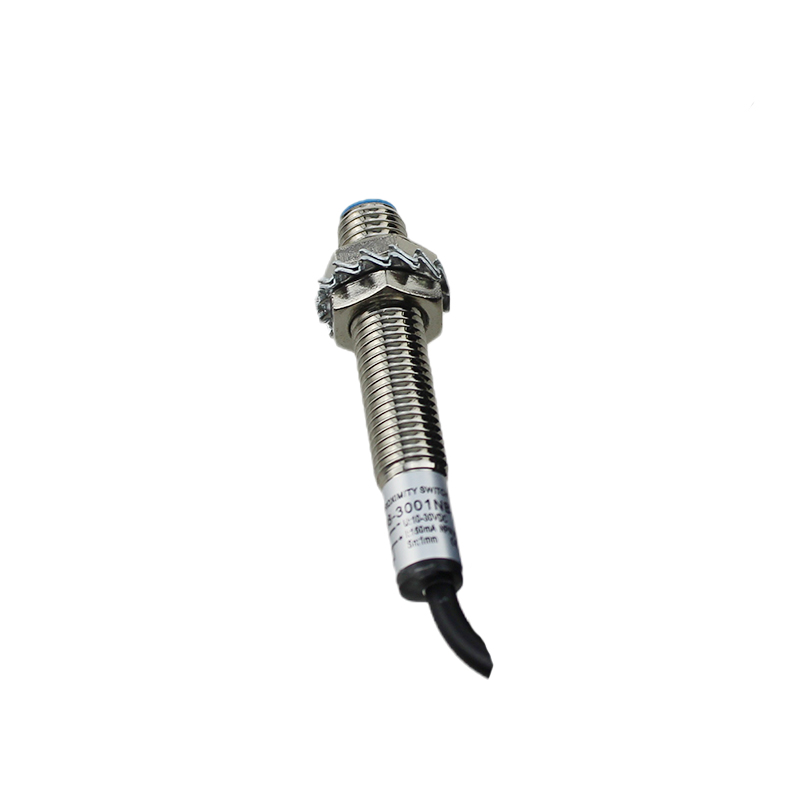

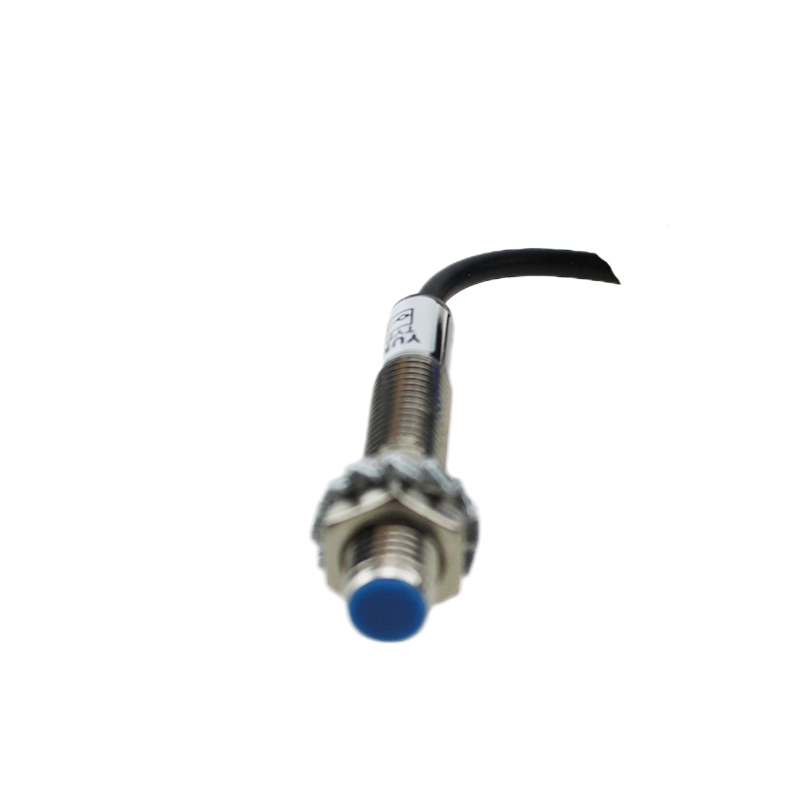

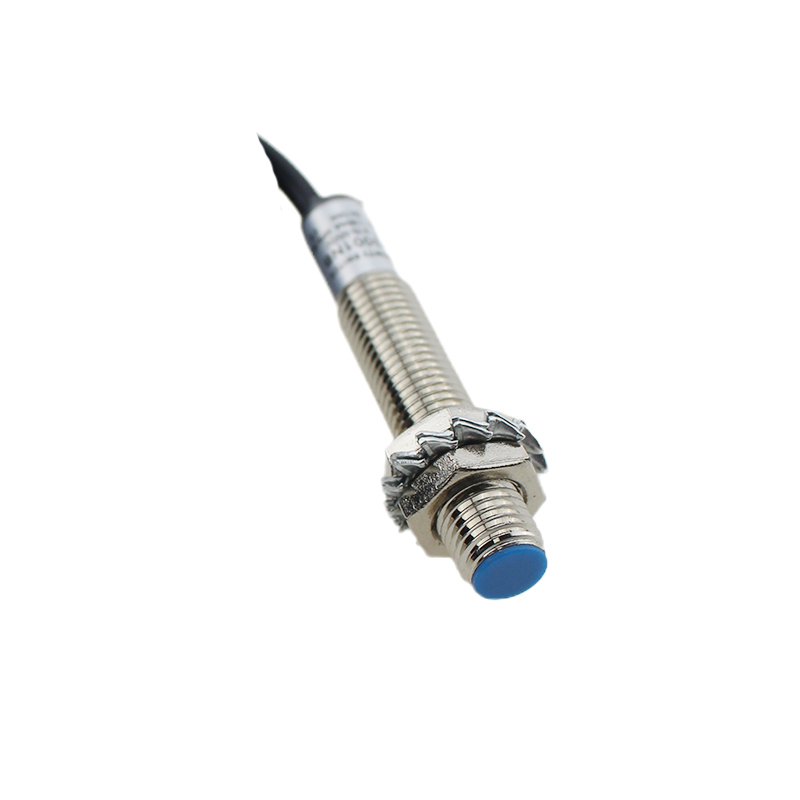

LM8-3001NB Proximity Switch NPN DC10-30V Inductive Proximity Sensor
Main Features of proximity switch
1.Compact volume
2.High precision of repeated location
3.Diversified exterior structures
4.Good performance of anti-interference
5.Many output forms
6.High on-off frequency
7.Wide voltage range
8.Dust proof, vibtation proof, water proof and oil proof
9.With short-circuit protection and inverted connecting protection
10.Long service life
| Model | LM8-3001NB |
| Controloutput | DC 200mA |
| Detection distance | 1mm |
| Protection grade | IP67 |
| Working environment temperature | -25°C~+75°C |
| Shell material | Metal |
| Insulation resistance | ≥50MΩ |
| Repeated precision | 0.01 |
| Standred detected object | 8x8x1(A3iron) |
| DC/AC response frequency | 500Hz |
