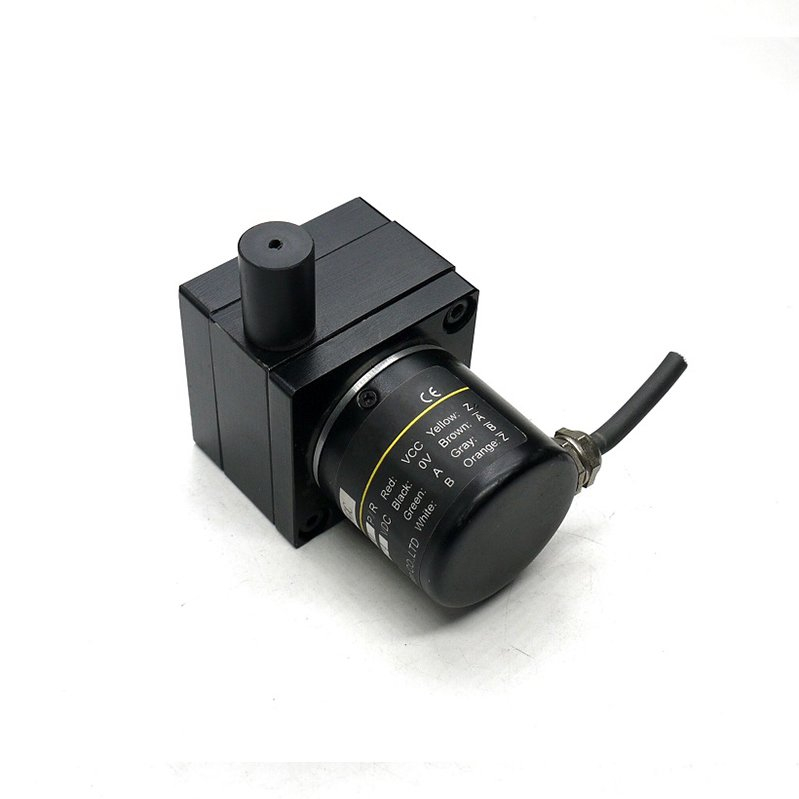

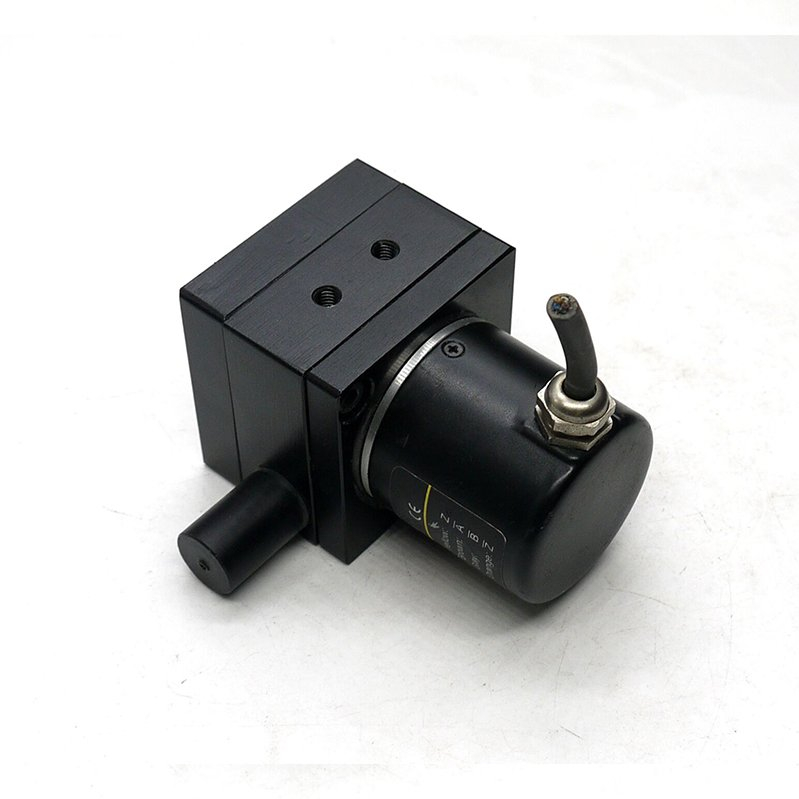

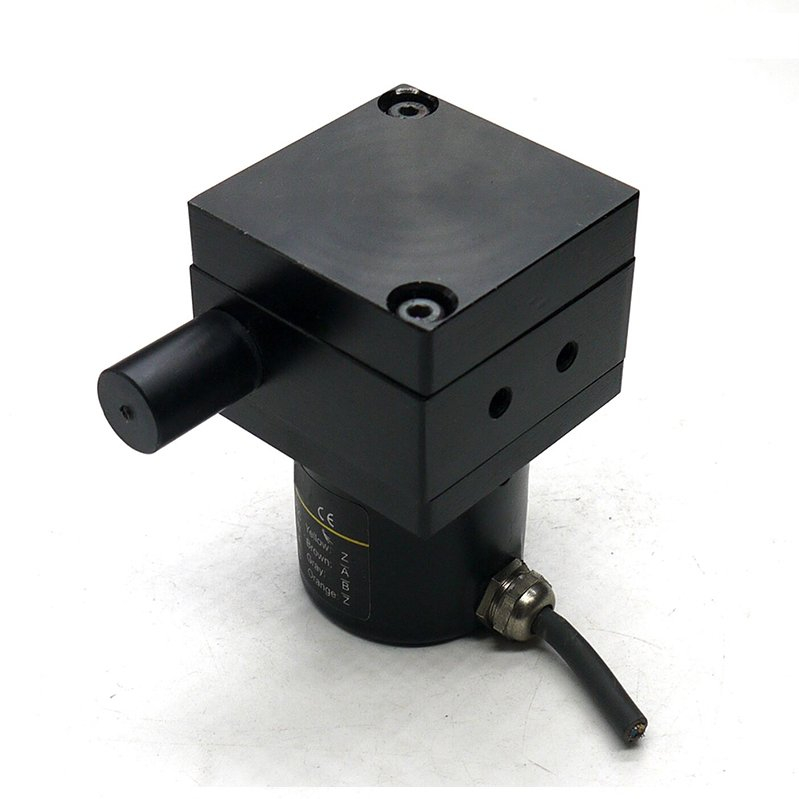

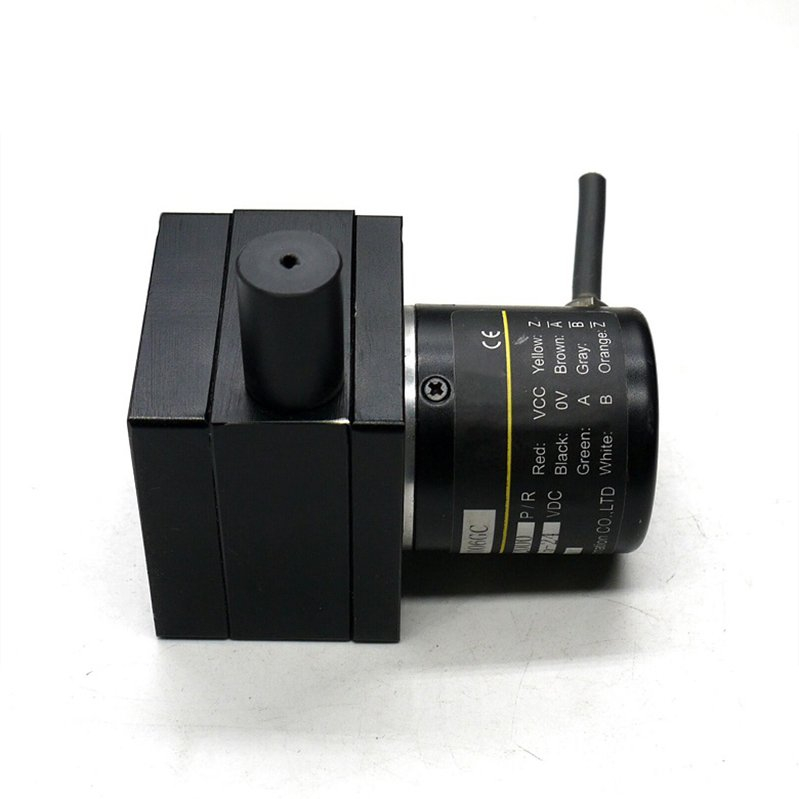

YMR
Ordering Information
Applications
Used in automatic control.measurement.robotics.x-y working platform.
Printing and packaging.
Features
The internal used of ASIC devices.high reliability.long life.strong anti-jamming performance.
Stainless steet shaft possesses higher stability and protective ability.
Metal shell is more strong and can impact resistance.Outlet side of metal plug has waterproof protection
Technical parameters
Type | YMR-Z-S-100-B-L-526 | Range | 0-1000mm |
Current consumption | below 80mA | Operating Temperature | -30°C-85°C |
Load current | 40mA | Axis maxium load | Radial 50N Radial 10N |
Frequency response | 300k Hz | Operating Humidity | 30-85 % No condensation |
Output signal | AB phase, ABZ in Thephase | Cable | 1M |
Supply voltage | DC 5-26V | Anti-shock | 10HZ to2000HZ, 10G |
Starting torque | below 0.05Nm | Impact resistance | 50G/11ms |
Circuit characteristics | voltage, current, push-pull, long-line drive output, open collector | speed | 10m/s |
Degree of protection | IP51 | weight | 500g |
Dimension
