XCD-32
Detailed Product Description
pushbutton switch box prefessional manufacturing company experience in exporting
Q/YDD02-00,GB14048.5-2001,EN60947-5-1:1997
pushbutton switch box Brief Introduction:
XCD 6 series rain-proof crane control button station is a newly developed product which combined with the advantages of both China made products and imported products.The plastic cover is good-looking,strong and easy for handling.It has good structure and big area of contact.The forward and backward control can be mechanically locked in a reciprocal direction.It also can be locked in a reciporal direction by the circuit if necessary,and is therefore more safety in operation.It also has
IP65 dust proof and water proof level thus it is suitable for operating in open area,dusty environment,rainy/snowy weather conditions by wet hands for controlling the electric circuit,conveyer belt and construction apparatus

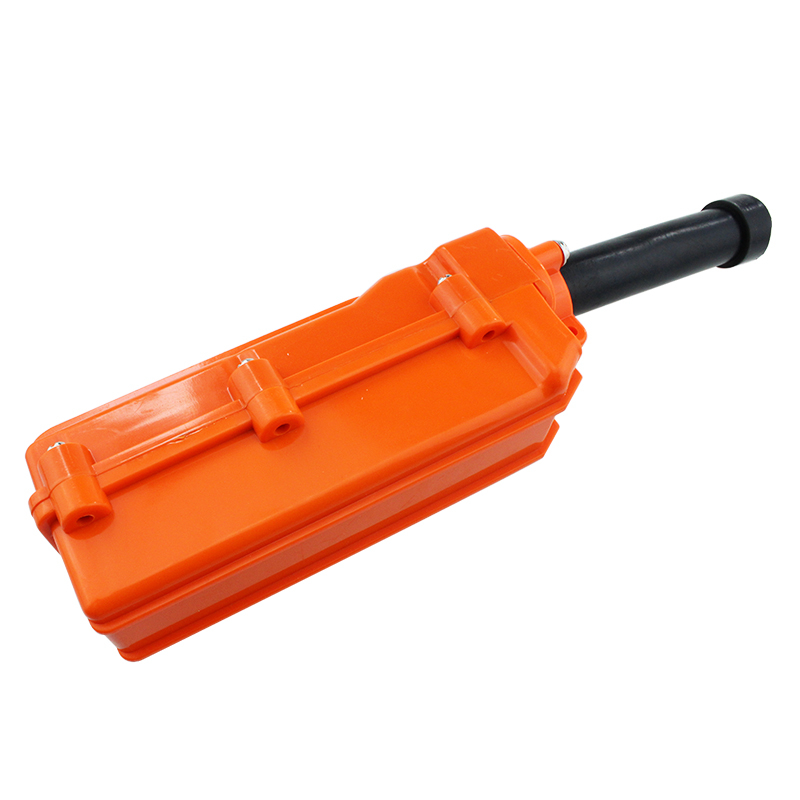

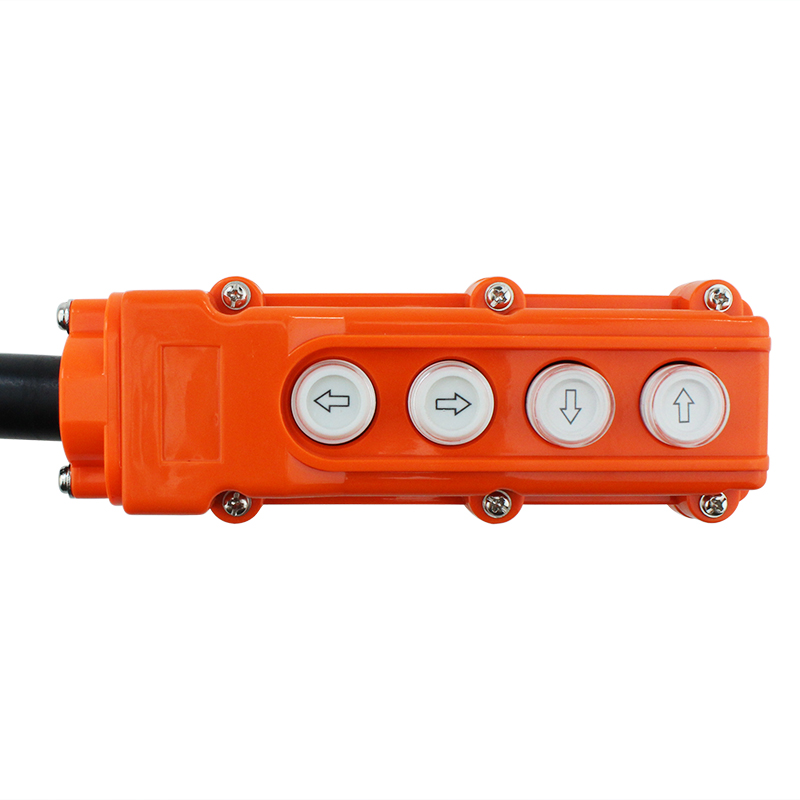

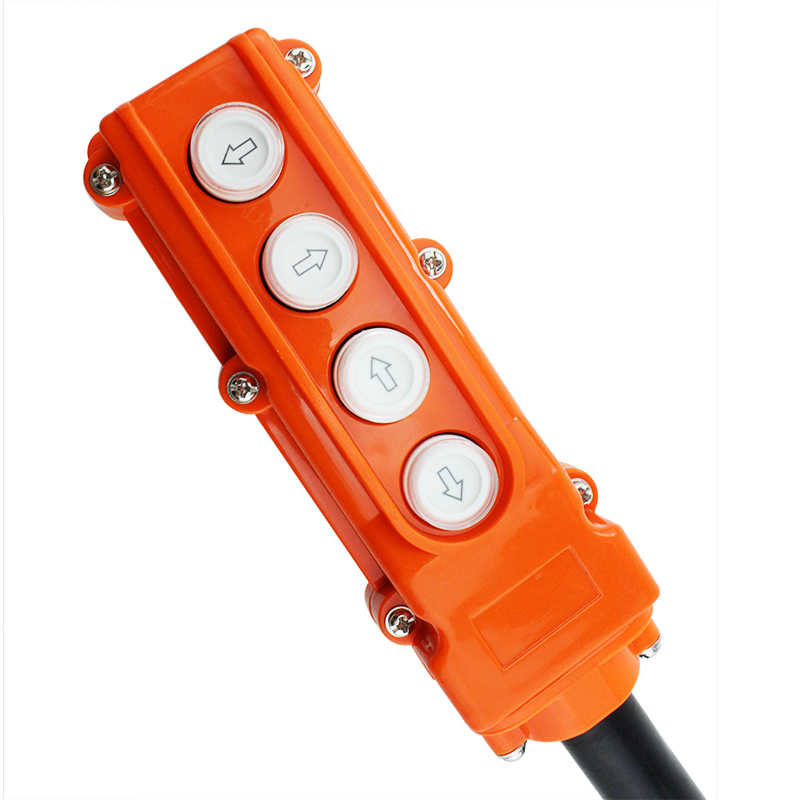

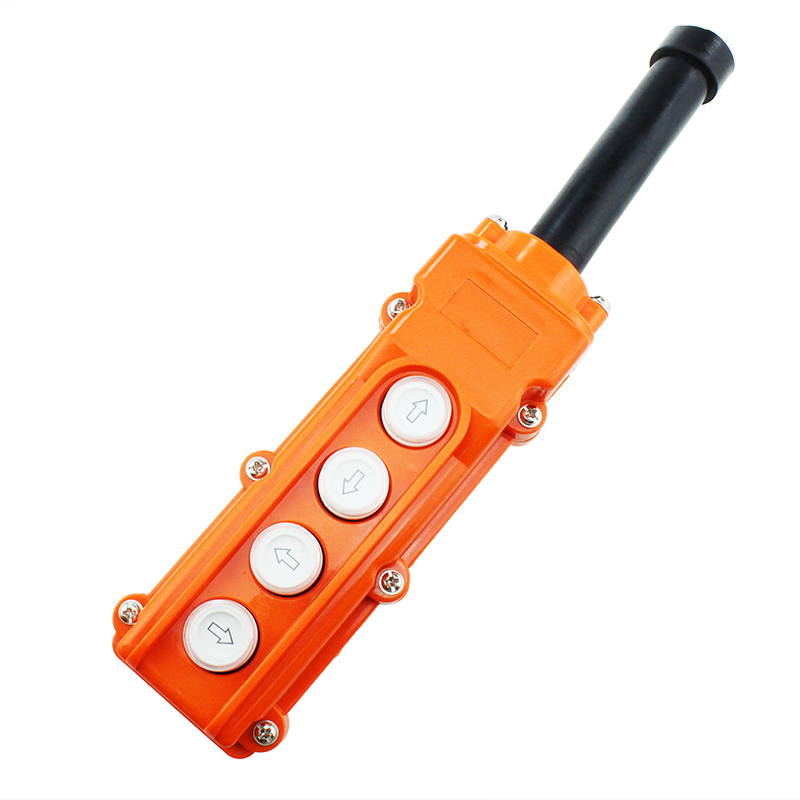

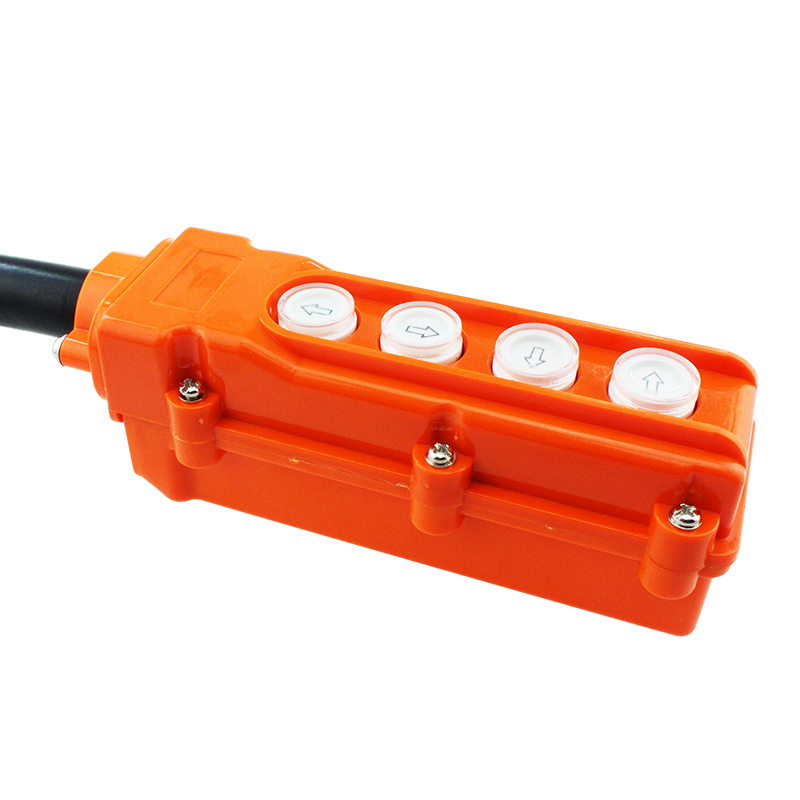

| Product Name | crane push button pendant control station |
| Max. Current | 5A |
| Max. Voltage | 500V |
| Color | Orange |
| Ambient temperature | -25℃~+40℃ |
| Frequency | 50HZ |
| Protection | Rainproof |
| Product type | single speed/double speed |
| mechanical durability | 1 million |
Product Pictures
