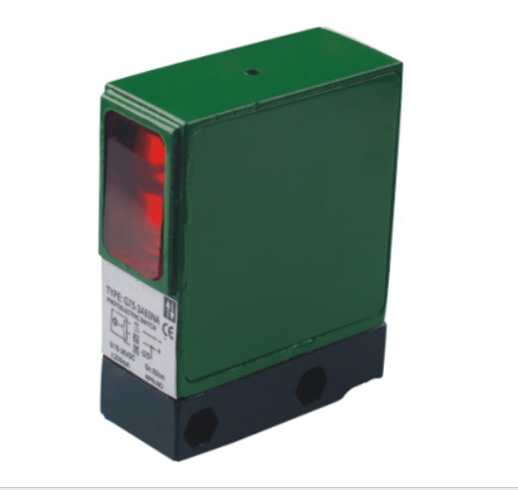

G75 Infrared ray Photoelectric Switch Sensor

The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor. Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.
Availability:
Inquire Add to Basket

  • G75

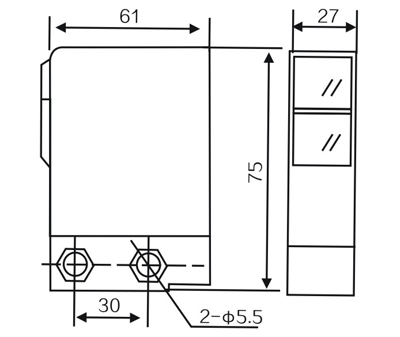

OVERALL DIMENSIONS

 G75 Infrared ray Photoelectric Switch Sensor


D
i
f
f
u
s
e

T
y
p
e



 Detection distance

80cm


10-
10
VDC


NPN

NO

G75-3A80NA

NC

G75-3A80NB

NO+NC

G75-3A80NC


PNP

NO

G75-3A80PA


90～
250
VAC

NC

G75-3A80PB

NO+NC

G75-3A80PC

SCR

ControHable
silicon

NO

G75-2A80LA

NC

G75-2A80LB

Relay output

G75-2A80LC


R
e
t
r
o
r
e
f
l
i
c
t
i
v
e



 Detection distance

3m


10-
10
VDC


NPN

NO

G75-3B3NA

NC

G75-3B3NB

NO+NC

G75-3B3NC


PNP

NO

G75-3B3PA


90～
250
VAC

NC

G75-3B3PB

NO+NC

G75-3B3PC

SCR

ControHable
silicon

NO

G75-2B3LA

NC

G75-2B3LB

Relay output

G75-2B3LC



T
r
o
u
g
h

b
e
a
m



 Detection distance

8m


10-
10
VDC


NPN

NO

G75-3C5NA

NC

G75-3C5NB

NO+NC

G75-3C5NC


PNP

NO

G75-3C5PA


90～
250
VAC

NC

G75-3C5PB

NO+NC

G75-3C5PC

SCR

ControHable
silicon

NO

G75-2C8LA

NC

G75-2C8LB

Relay output

G75-2C8JC

        DC/SCR／Control output

DC:200mA、AC：300mA relay:2A

        DC/AC Consumption current

DC<15mA、AC:<10mA
       DC/AC Response time

Dc<2ms、AC<20ms
       Directional angle

3。-10。
       Detected object

transparent or opaque body
       Working environment temperature

-25℃～-55℃
       Intensity of illumination of working environment

incandescentlamp under 3000LX
       Shell materia

Metal
       Protection grade

IP54
