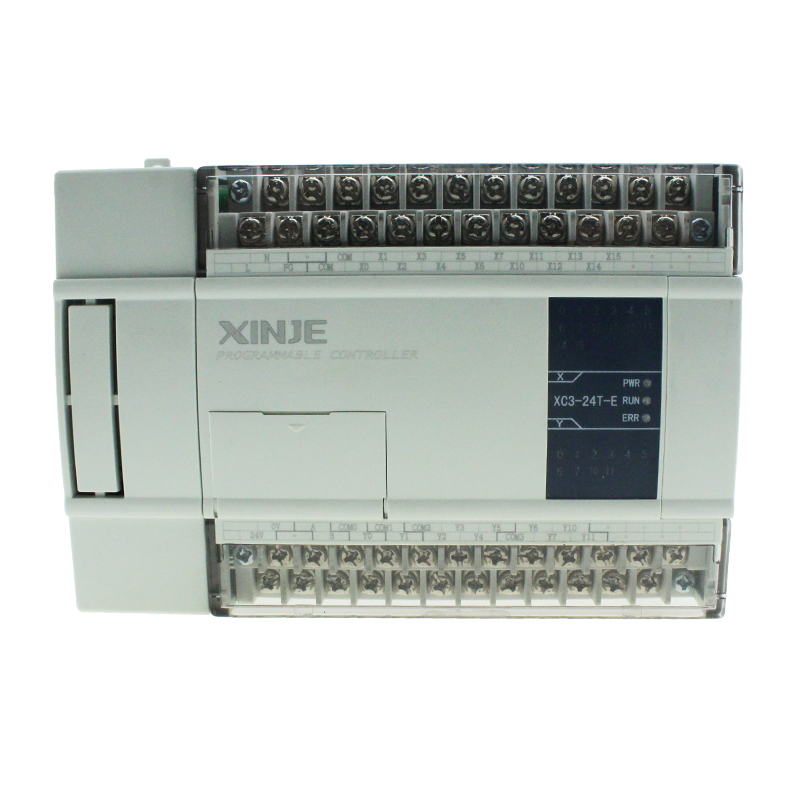

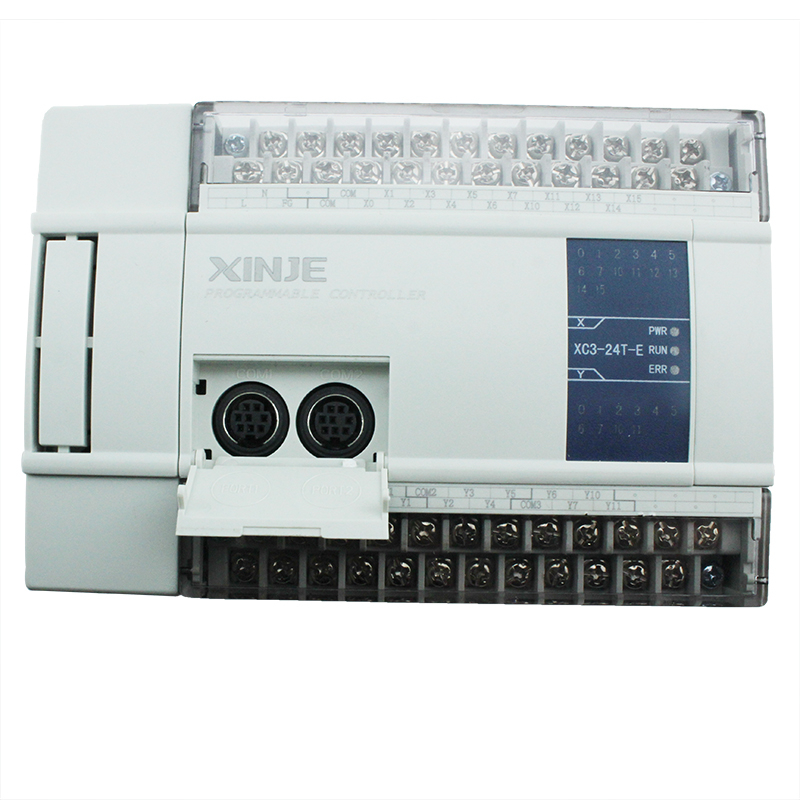

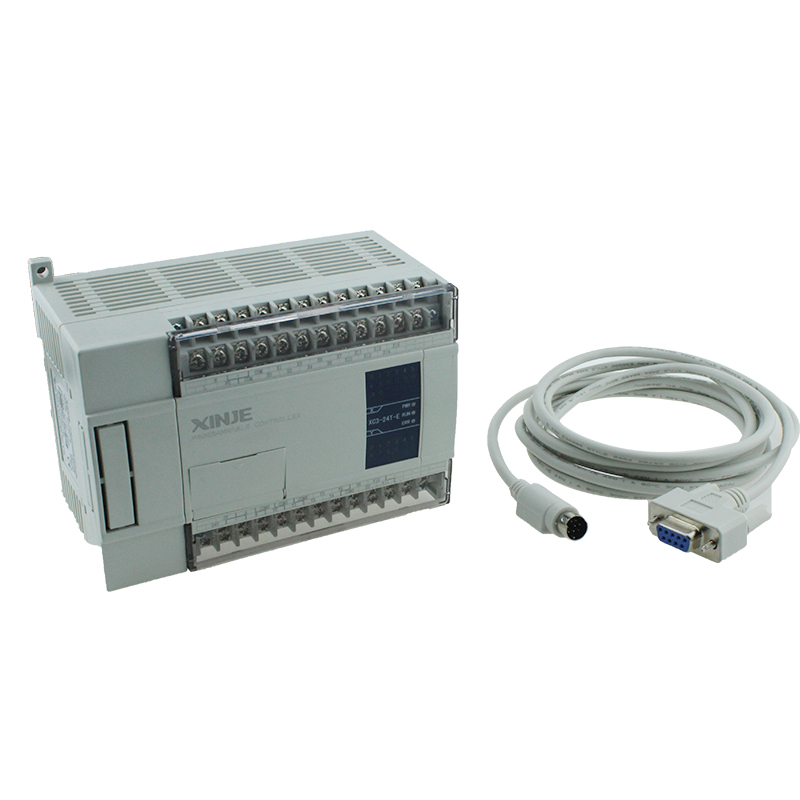

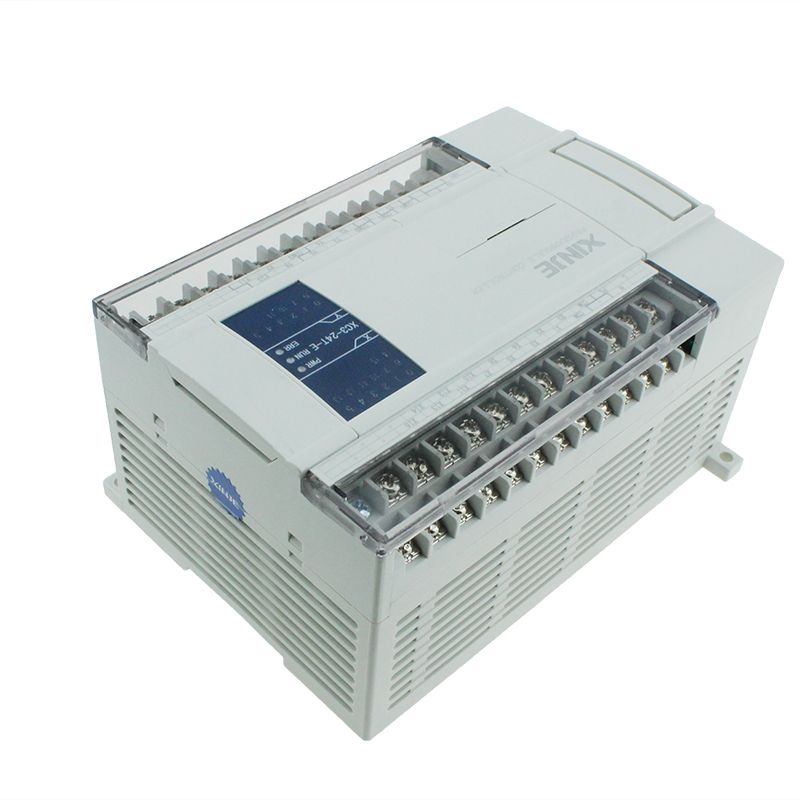

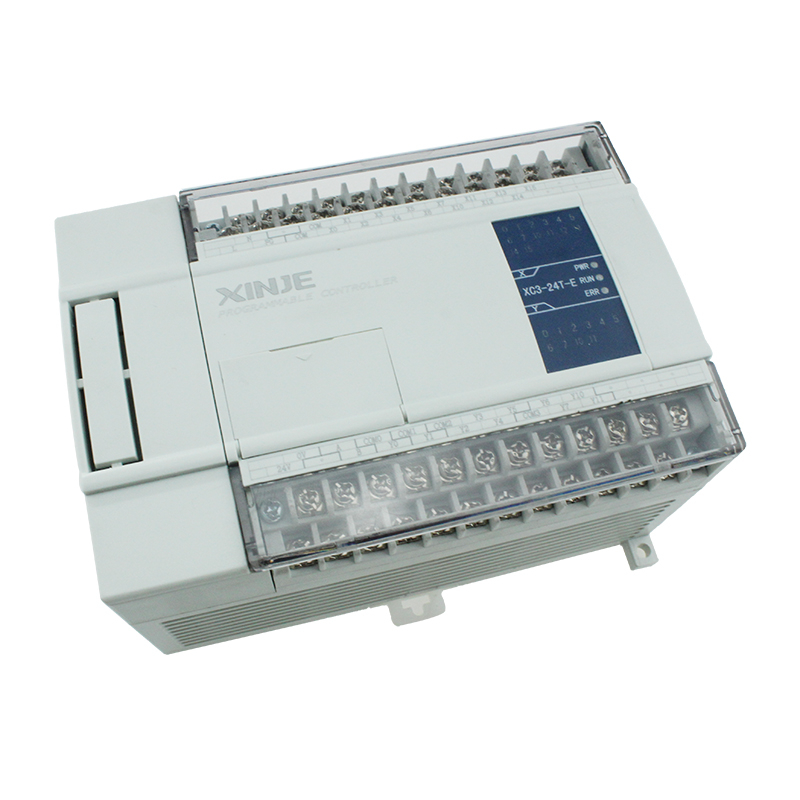

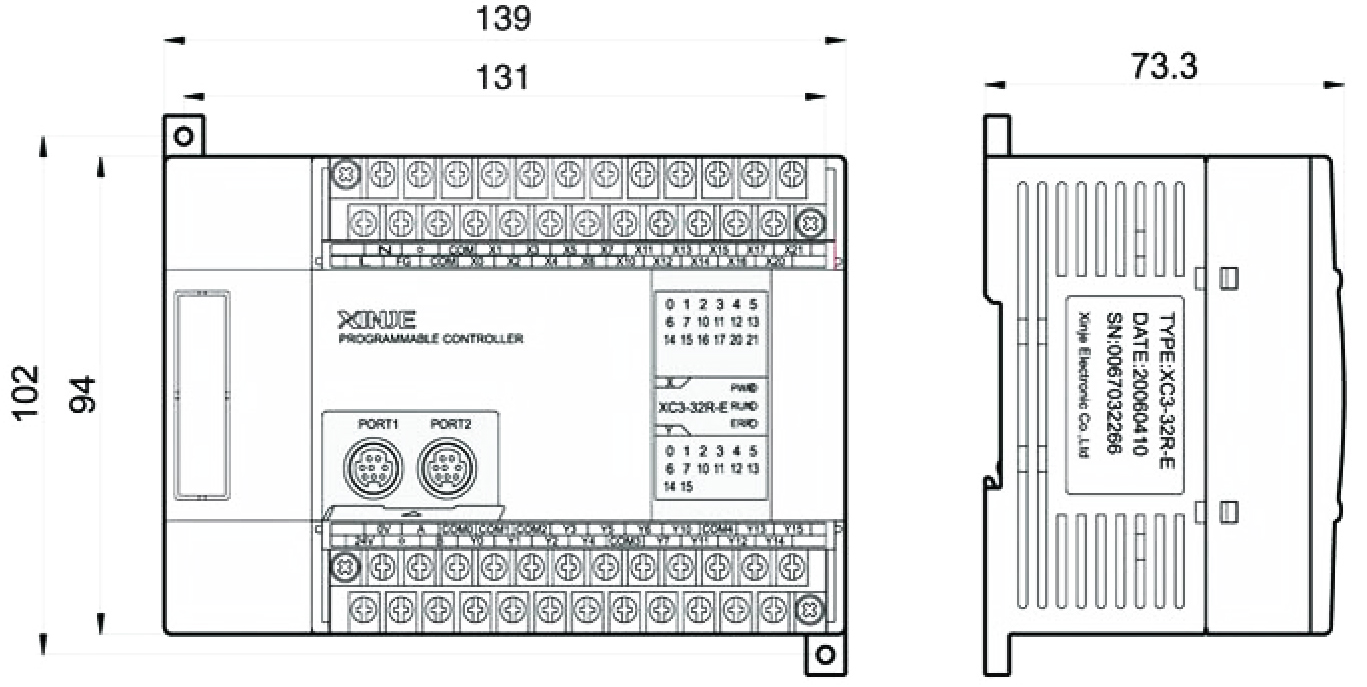

XC3-24T-E
XC3- Standard Series
Control points: 14/24/32/48/60
Small and compact fit for general applications on a budget, with high speed pulsed output control, PWM, frequency control functions, crystal clock for accurate time control and interrupt control, expandable through expansion modules and BD boards.
Performance specifications
| Item | Specifications | |
| Series | XC3 | |
| Points | 24 | |
| Program running mode | Cyclic scan | |
| Programming mode | Instruction, ladder chart | |
| Operation speed | 0.5us | |
| Latched | FlashROM and Li-battery | |
| User program capacity | 128K | |
| I/O points | 14/10 | |
| Internal coil | 8768 | |
| Timer (T) | Points | 640 |
| Spec | 100ms timer; 0.1-3276.7s 10ms timer: 0.01-327.67s 1ms timer: 0.001~32.767s | |
| Counter (C) | Points | 640 |
| Spec | 16-bit counter: 0~32767 32-bit counter: -2147483648-2147483647 | |
| Process (S) | 1024 | |
| Data register (D) | 8000 | |
| FlashROM (FD) | 3272 | |
| Extension internal register (ED) | 16384 | |
| High speed count | Up to 4-channel, 80KHz, 3 HSC mode (single phase, pulse & direction, AB phase) | |
| Pulse output | 2-channel output (special 5-channel) | |
| External interruption | 2 kinds of external interruption (rising edge, falling edge) | |
| Password protection | 6-bit ASCII | |
| Self-diagnosis | Power-on self-test, monitoring timer, grammar checking | |
