LM20

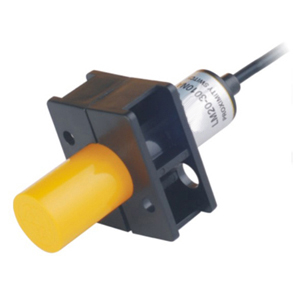

Outside diameter 20mm cylinder inductive proximity switch, sensing range from 10mm . China offer customized design!

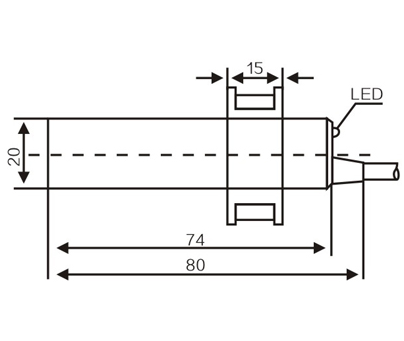

OVERALL DIMENSIONS |
| ||||
Detecting rang 10mm | part no. | other part no. | |||
Non-flush | DC | NPN | NO | LM20-3008NA | LJ20A3-8-Z/BX |
NC | LM20-3008NB | LJ20A3-8-Z/AX | |||
NO+NC | LM20-3008NC | LJ20A3-8-Z/CX | |||
PNP | NO | LM20-3008PA | LJ20A3-8-Z/BY | ||
NC | LM20-3008PB | LJ20A3-8-Z/AY | |||
NO+NC | LM20-3008PC | LJ20A3-8-Z/CY | |||
2 Wires | NO | LM20-3008LA | LJ20A3-8-Z/EX | ||
NC | LM20-3008LB | LJ20A3-8-Z/DX | |||
AC | SCR | NO | LM20-2008A | LJ20A3-8-Z/EZ | |
NC | LM20-2008B | LJ20A3-8-Z/DZ | |||
NO+NC | |||||
Relay output | |||||
Sensor Characteristics | |||||
Output current | DC | 200mA | |||
SCR/relay | 300mA/1A | ||||
Output voltage drop | DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10V | ||||
Consumption current | DC(NPN;PNP) DC 12V 8mA;24V 15mA;AC type: <10mA | ||||
Standard detected object | 20×20×1(A3 Iron) | ||||
Repeated precision | 0.05 | ||||
Response Frequency | 200Hz/25Hz | ||||
Working environment temperature | -25℃ ~+75℃ | ||||
Insulation resistance | 50MΩ | ||||
Shell material | ABS Resin | ||||
Protection grade | IP67 | ||||
