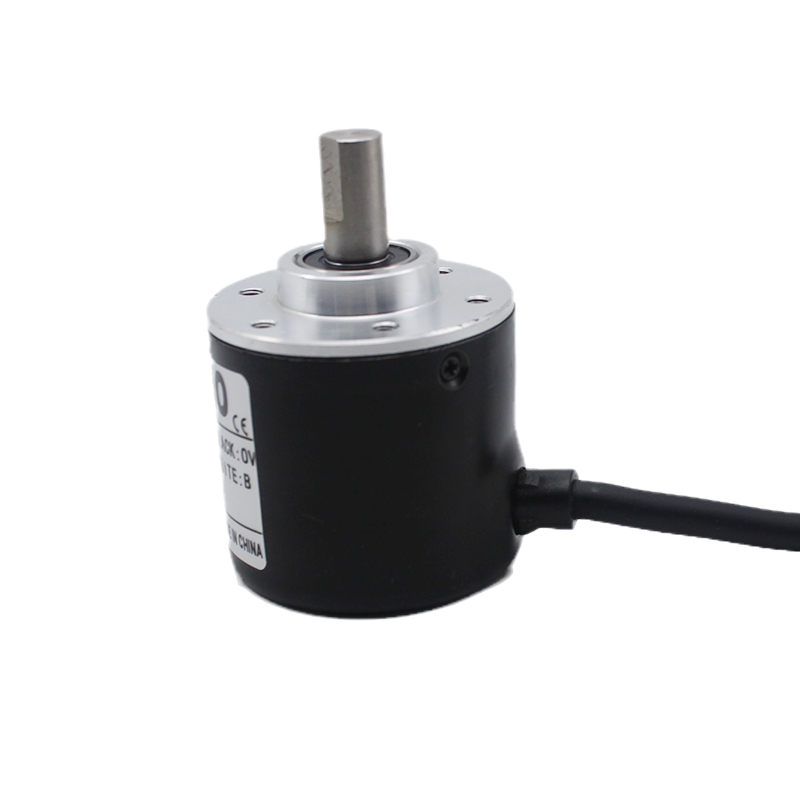

MSC3808-001G-48-AB-12-24F

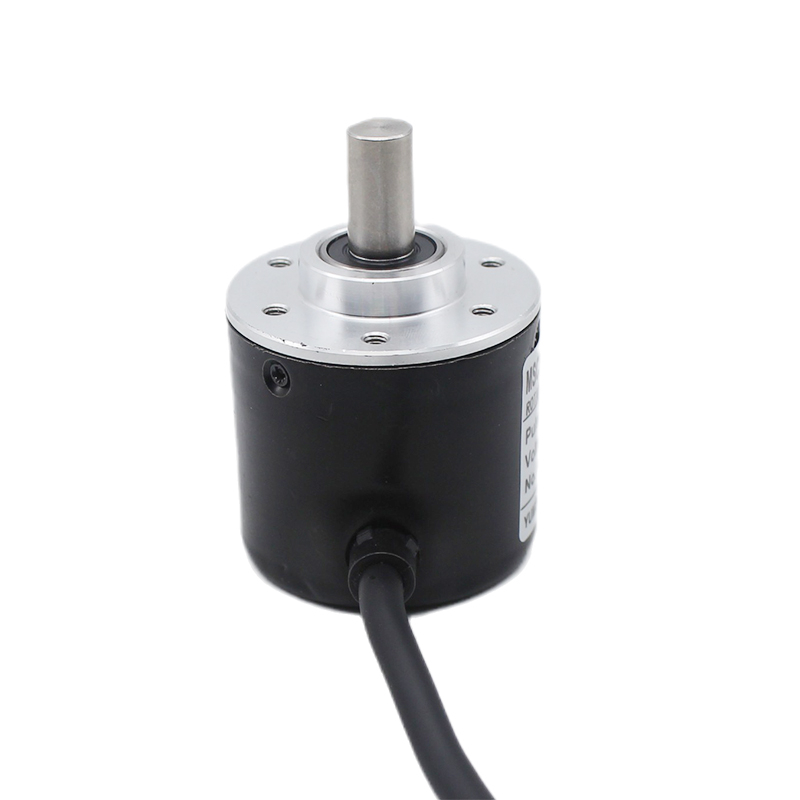

48PPR Incremantal Magnetic Encoder Prices MSC3808-001G-48-AB-12-24F
Application
Compared with traditional photoelectric encoders and grating encoders, magnetic encoders have the characteristics of anti-vibration, anti-corrosion, anti-pollution, anti-interference, and wide temperature, which can be applied to the fields that conventional optical encoders cannot adapt to. High-performance magnetic encoder can be widely used in industrial control, machinery manufacturing, shipbuilding, textiles, printing, aviation, aerospace, radar, communications, military and other fields.
Features
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal
MSC3808 SERIES
Shaft diameter 6mm or 8mm,clamping flange,housing diameter 38mm.
Low price at high performance,small volume,light weight,easy for installing
Property project | Specific parameter |
Out wave & duty ratio | square wave & 0.5T±0.1T |
Current Consumption | ≤100mA |
Response frequency | 0-100KHz |
Supply voltage | 5V DC,5-12V DC,12-24V DC |
Max.permissible revolution | 2000rpm |
Output | ABZ |
Pulse | 1-1024ppr |
IP rating | IP65 |
Operate & Stock temperature | -20-55ºC / -20-60 ºC |
Ambient humidity | 30-85%(with no condensation) |
Shock resistance | 980m/s2,6ms,2 times each in X,Y,Z directions |
Vibration resistance | 50m/s2,10-200Hz,2 times each in X,Y,Z directions |
Operating life | MTBF≥25000h (+25C,2000rpm) |
Output voltage | Vh≥85% Vcc,Vi≤0.3V |
Weight | 0.15kg |
Protection class | IP65 |
