ISMM2189 CNC machine Fanuc System Mpg Manual Pulse Generator from China manufacturer

Model:
ISMM2189-001E-100B-24E

Product Description

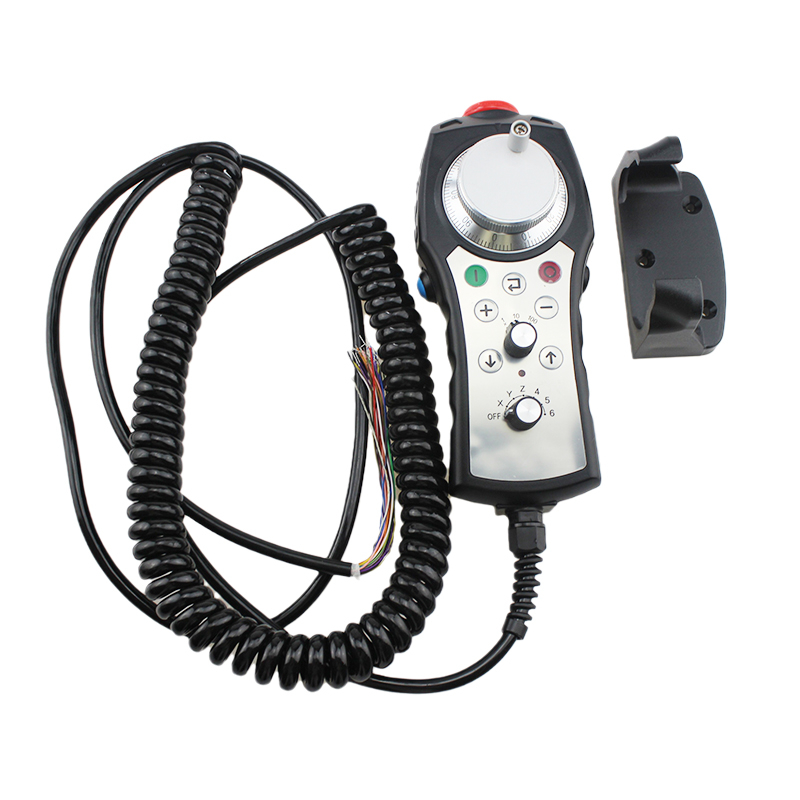

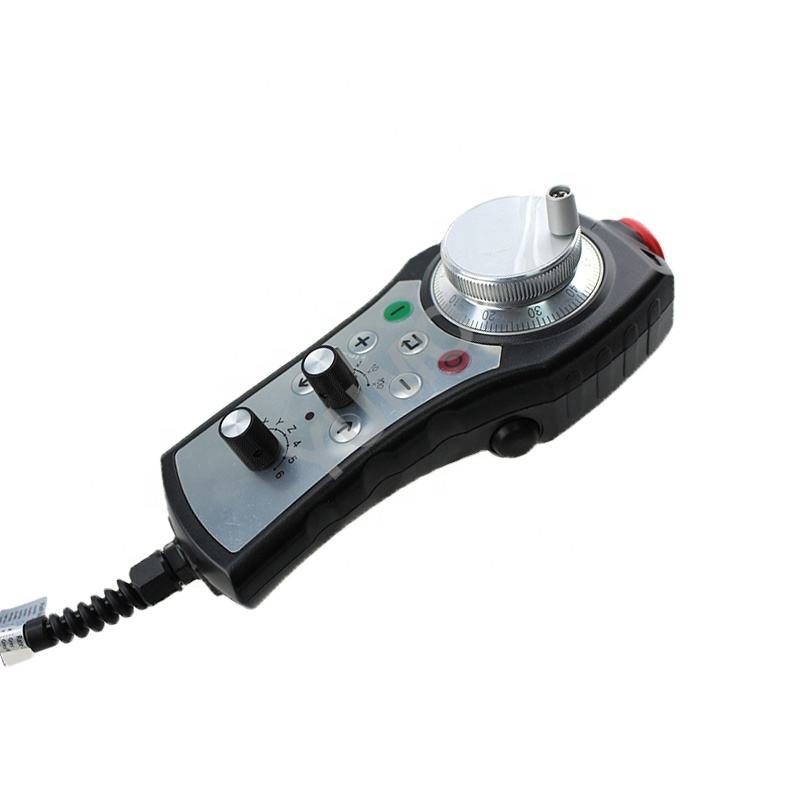

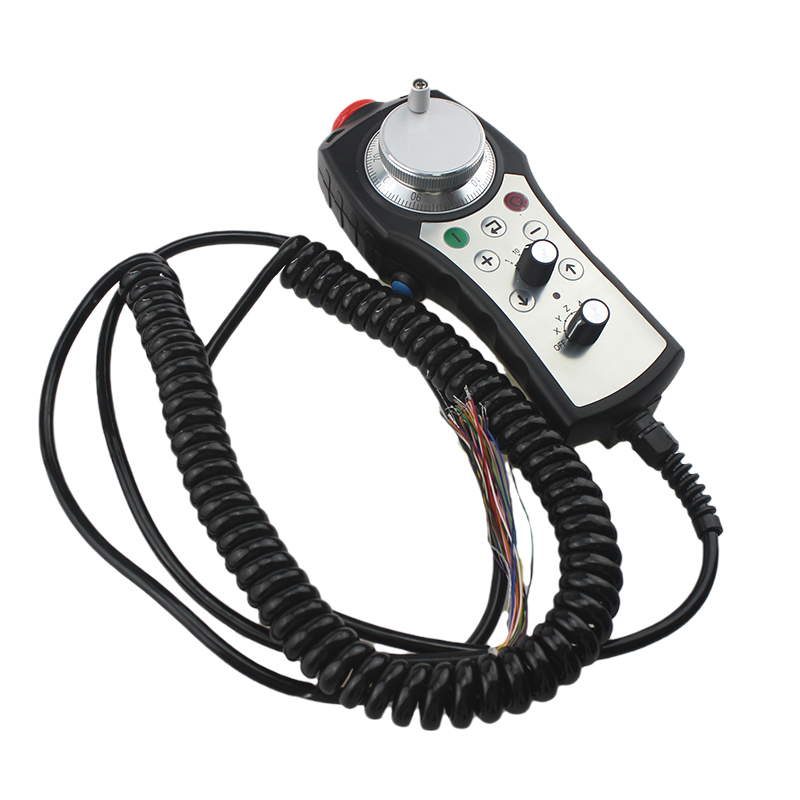

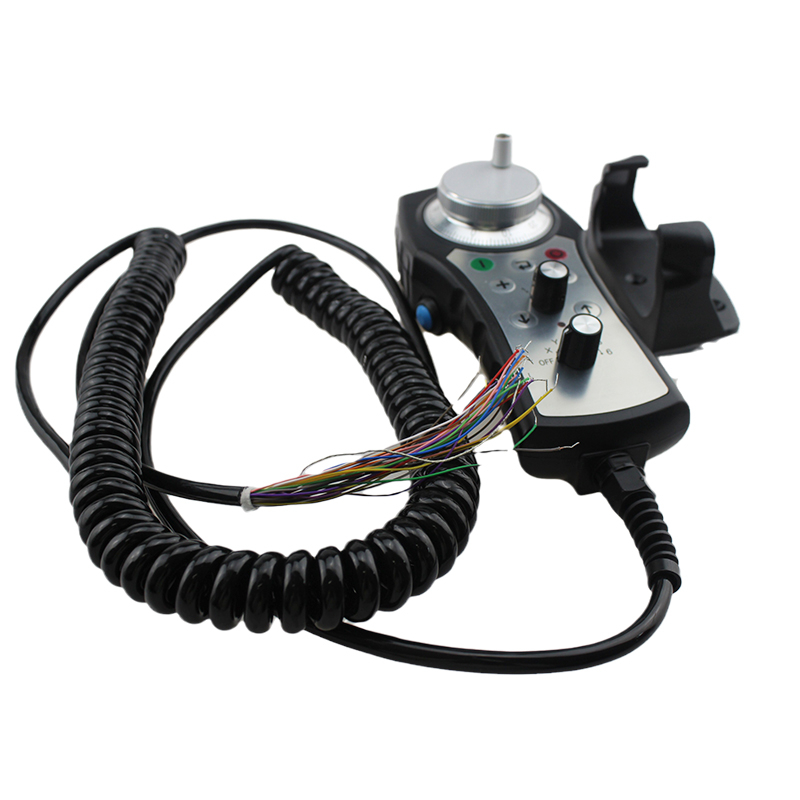

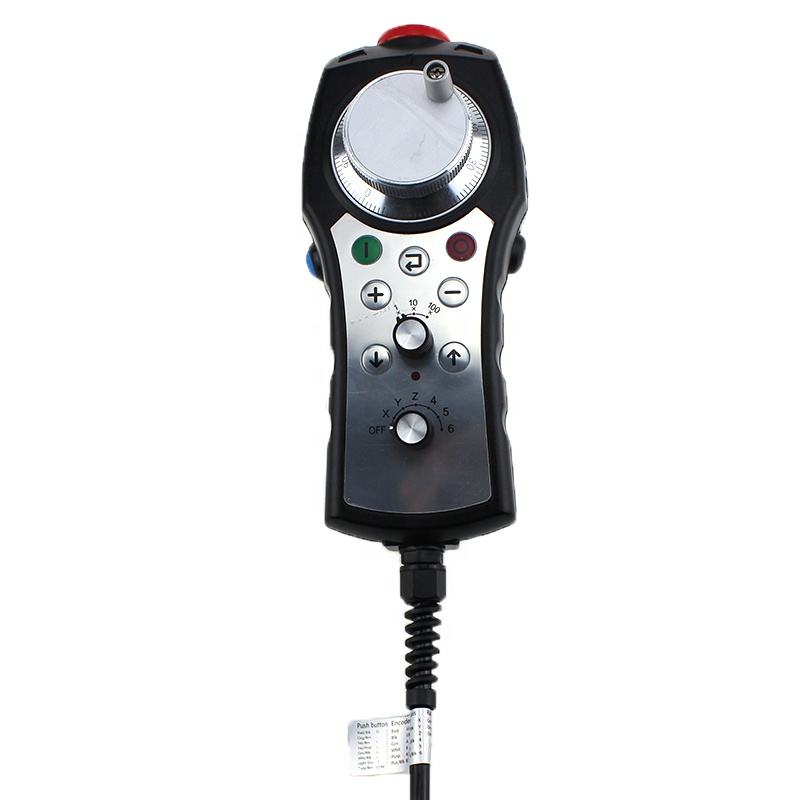

ISMM2189-001E-100B-24E 100 pulse 24V CNC machine Manual Pulse Generator MPG

ISMM2189-001E-100B-24E Manual Pulse Generator
Suitable for manual pulses input type such as CNC or milling machine, plastic case, high electrical resistance. Shaft switching trigger, oil sealed design.

Incremental encoder applications:
Industrial tolling machinery, zero correction of printing machinery or signal cutting, numerical control machine or signal dividing.

Note:
1.Please contact sales representative to confirm the correctness and availability of the part number;
2. Line Drive is only available with 5V DC, 12VDC option.

Technical Specifications

Electrical Specification
Output circuit	Open collector	Voltage output	Push pull output	Line driver output
Power Vcc	5~30	5~30	5±0.25 5~30	5±0.25 12V
Current	≤100mA	≤100mA	≤100mA	≤120mA
Load current	40mA	40mA	40mA	60mA
High-level output	Min Vcc*70%	Min Vcc-2.5V	Min Vcc-1.5V	Min 3.4V
Low-level output	Max 0.4V	Max 0.4V	Max 0.8V	Max 0.4V
Rise Time Tr	Max 1us	Max 1us	Max 1us	Max 20ns
Fall Time Tr	Max 1us	Max 1us	Max 1us	Max 20ns
Max Responding Frequency	20kHz	20kHz	20kHz	20kHz
Mechanical Specification
Max speed(r/min)	Working Temperature	Storage Temperature	Protection Grade	Weight
600	-25~70ºC	-30~85ºC	IP50	750g

Connection Table

Item	Wire color	Signal	Note
1	Red/Black	1	Push button	○
2	Orange/Brown	2		-
3	Yellow/Brown	3		↑
4	Yellow/Pink	4
5	Green/Black	5		+
6	White/Black	6		↓
7	Light Green	7		I
8	Purple/Brown	C		Com port
9	Red	Vcc	MPG Pulses Generator
10	Black	Gnd
11	Green	A
12	White	B
13	Purple	A-		Line driver
14	Purple/Black	B-		Line driver
15	Yellow	X	Axis selection
16	Yellow/Black	Y
17	Brown	Z
18	Brown/Black	4
19	Pink	5
20	Pink/Black	6
21	Grey	X1	Selection multiple
22	Grey/Black	X10
23	Orange	X100
24	Blue	NC1	Brake
25	Blue/black	NC2	Brake
26	Orange/Black	Com	Com port
