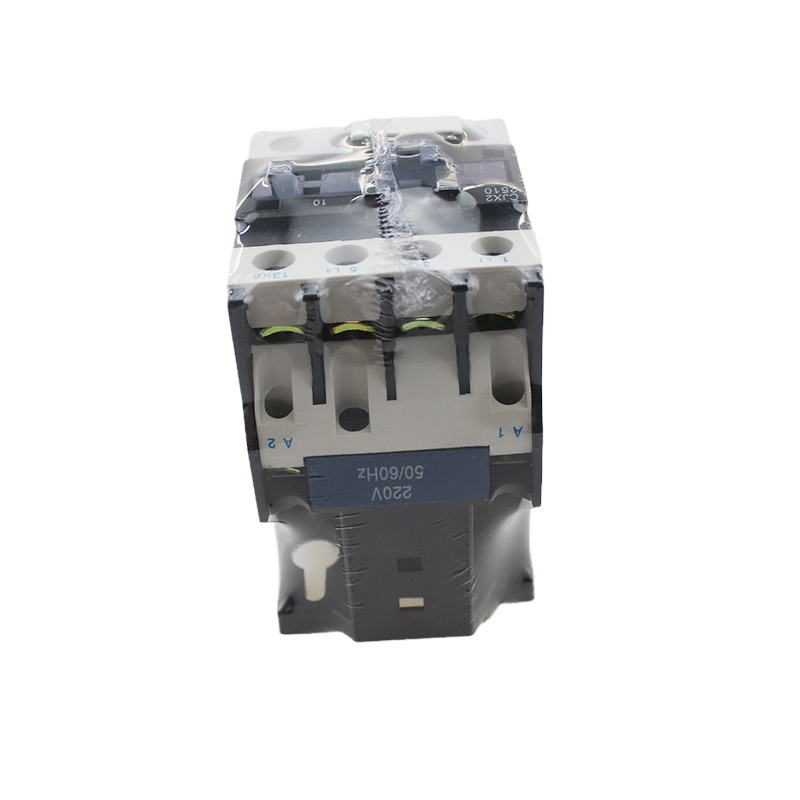

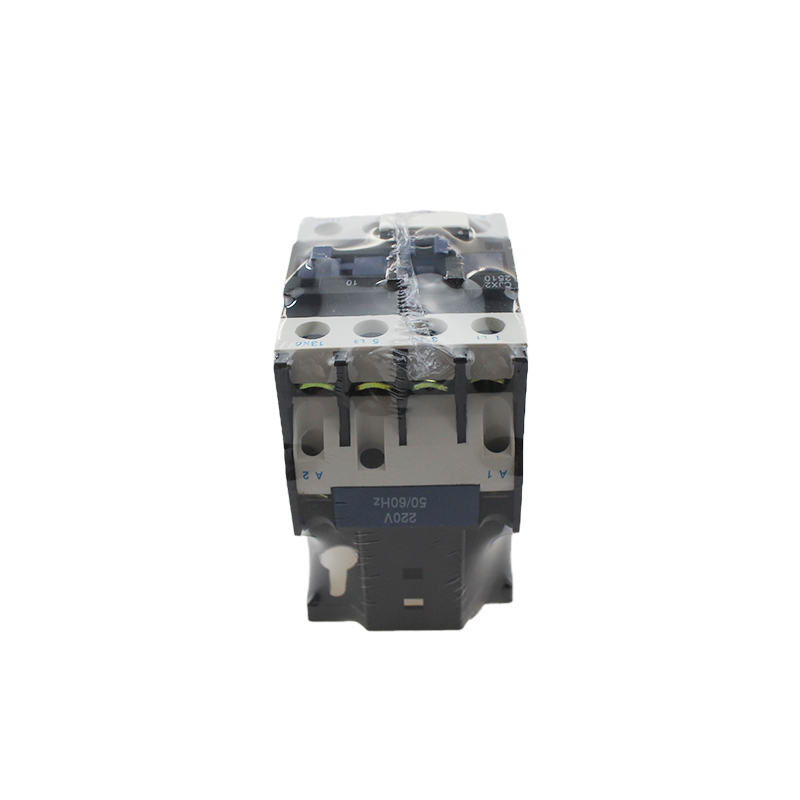

CJX2-2510
CJX2(LC1-D) series AC contactors are mainly used for AC 50Hz / 60Hz.rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reversible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc. Moreover,it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
Specification:
| Designation | Conmmon type AC contactor | ||
| Model | CJX2-2510 | Current type | 25A |
| Rated frequency | 50Hz/60Hz | Coil voltage | 24V 36V 110V 220V 380V |
| Operation frequency | 1200 times/hours | Wiring ability | 4MM² |
| Environment temperature | -5°C~+40°C | Using an altitude | ≤2000M |
| IP Grade | IP20 | Certificate | CCC CE |
