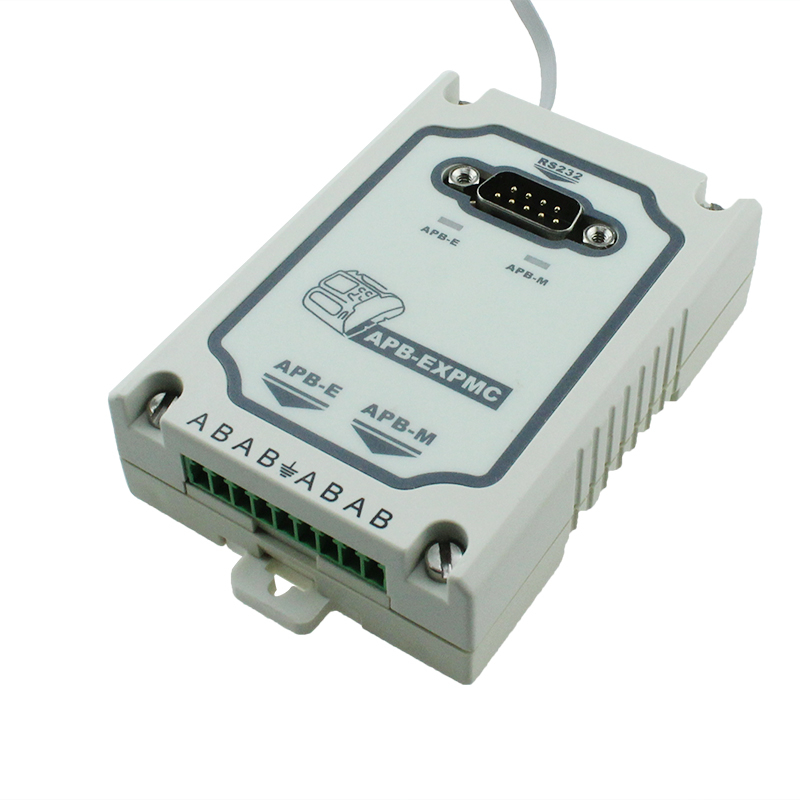

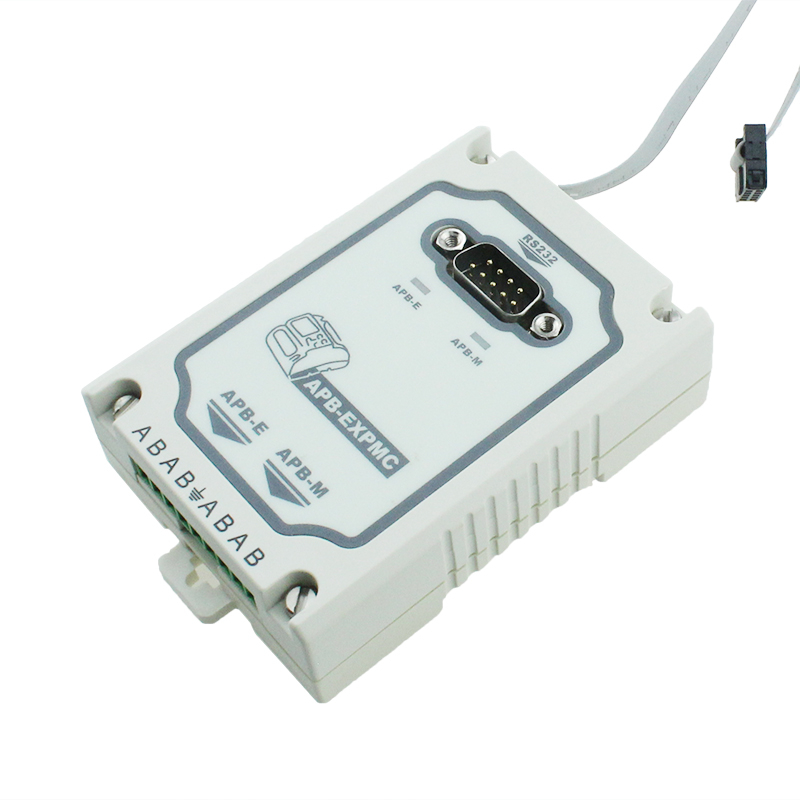

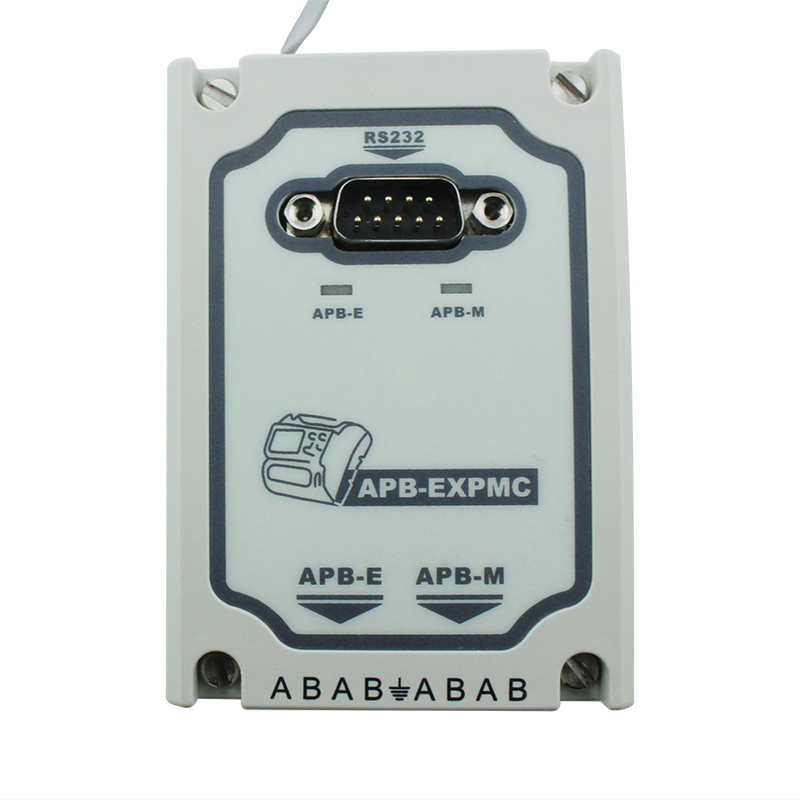

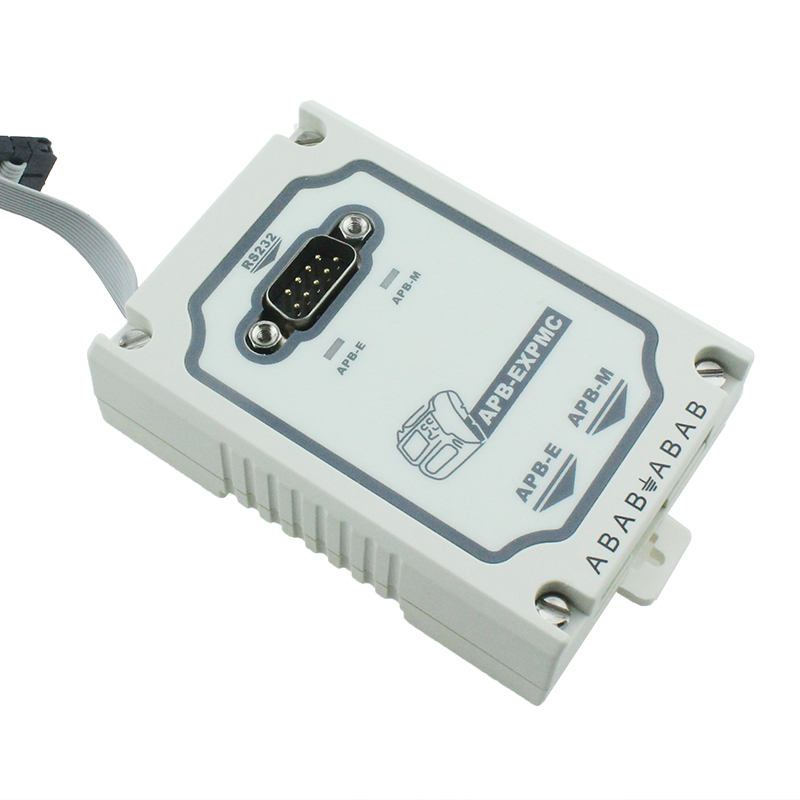

APB-EXPMC
This module is used for the interface sending APB remote signal. The combination of APB PLC and APB communication module can get networking function, which makes multiple APBs become a network with RS-485 bus, and have real-time monitoring on one HMI with MODBUS communication protocol. The user will enjoy more flexibility when designing automation solution.
Technical Parameters
a. Serieal data interface
Baud rate: corresponds with sending baut rate;
Data format: corresponds with sending data format;
Type/RS-232/RS-485
b. Power supply
Power supply: powered by APB main machine or APB expansion module;
c. Power consumption
Current:135mA/5VDC(Communication state).
Other Parameters:
Size:63.8mm*89.7mm*25.6mm
Ambient temperature:-20℃~+60℃.
Relative humidity: (50℃,30%~80% no condensation)

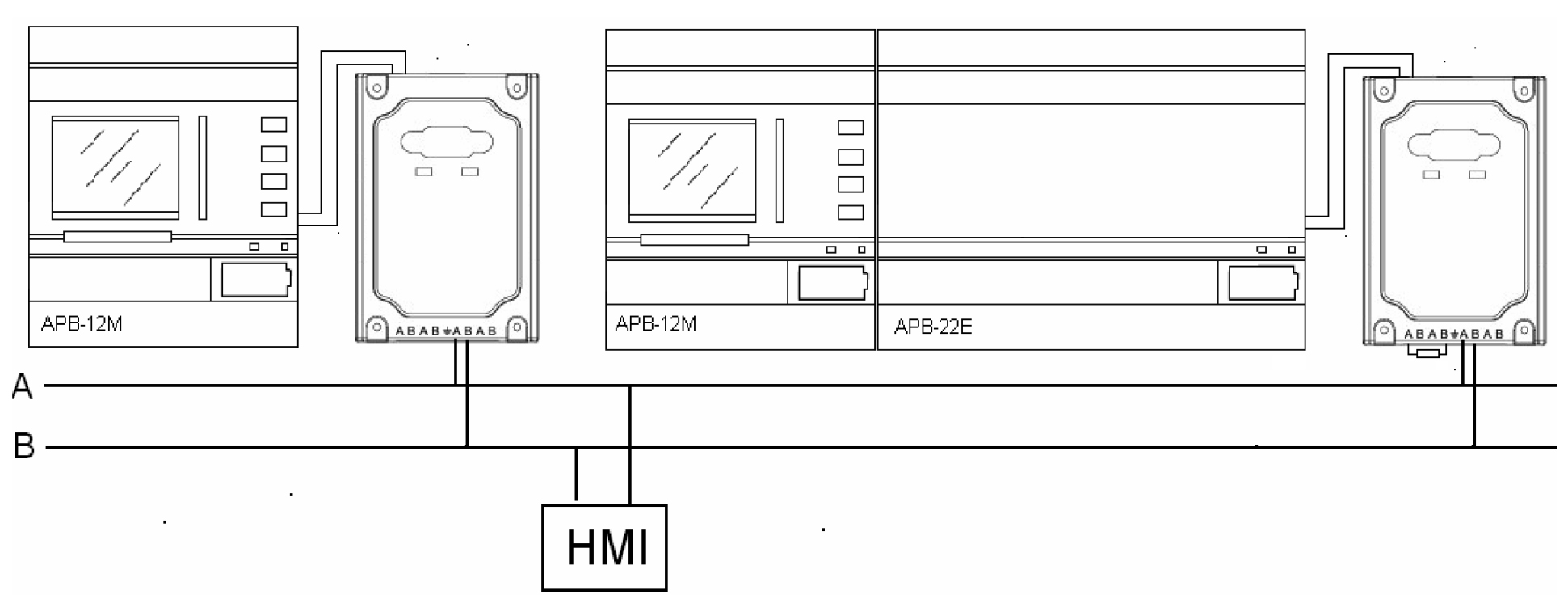

network connection
