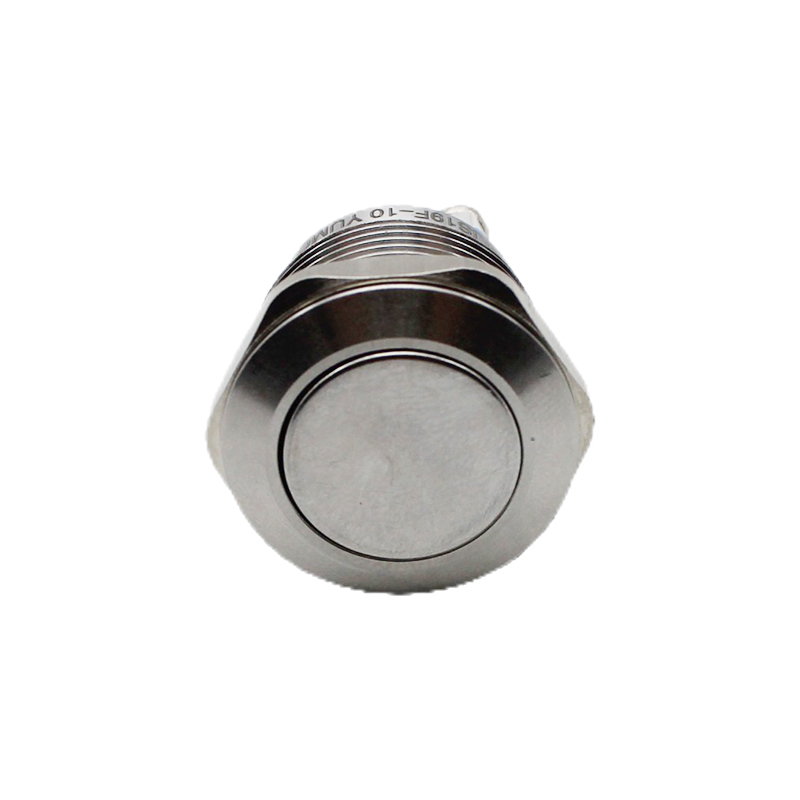

19mm Metal Push button JS19F-10 stainless steel flat round

Features: 19mm diameter. Switch Rating:2A/360VDC. Contact Configuration:1NO Operation Type:Momentary. The Front Shape: Flat Round. The Crust Material:Nickel Plated Brass. IP Degree:IP65.
Availability:
Inquire Add to Basket

  • JS19F-10

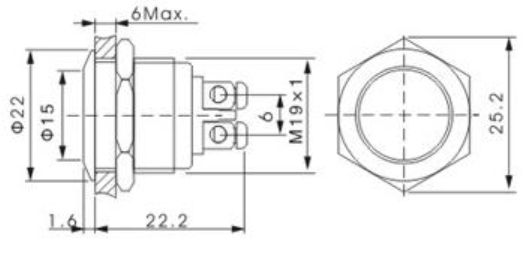

Features: Dimemsions:

  • 19mm diameter

  • Switch Rating:2A/360VDC

  • Contact Configuration:1NO

  • Operation Type:Momentary

  • The Front Shape: Flat Round

  • The Crust Material:Nickel Plated Brass

  • IP Degree:IP67

 JS19F-10


Technical Specifications

Specification JS19F
The Front Shape Flat Round
Terminal Type Screw Termlnals
Switching NO  1
Max.Switch Rating 2A/36VDC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55℃
Mechanical life 1,000,000cycles
Eictical life 200, 000cycles
Panel Thickness 1~6mm
Tortque 5~ 14Nm
Operation Pressure About 4N
Operation Distance About 1.5mm
IP Degree IP67
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Stee(Nickel Plated,Gold Plated)
Base PBT
