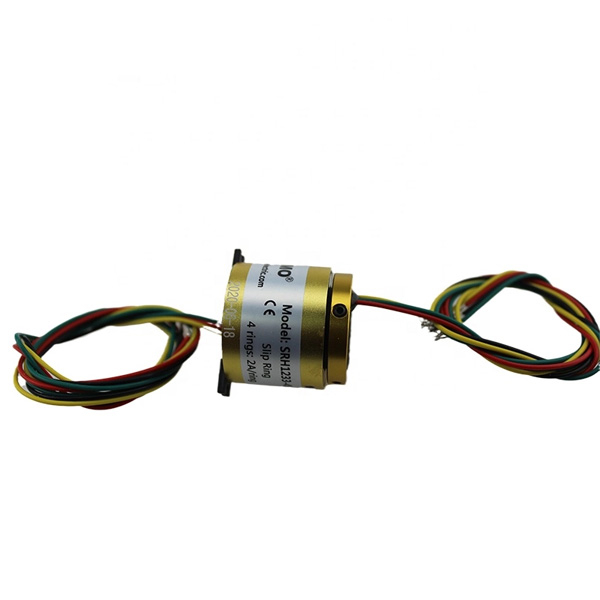

high quality for pneumatic rotating shaft installation with 4 rings of hollow shaft slip ring

SRH series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator and rotor for simplified electrical connections
Availability:
Inquire Add to Basket

  • SRH1233-4S

Description:

SRH Series
SRH series provides a 12.7mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 33mm outside diameter, features long life, fiber brush contact technology for ultimate performance in manychallenging applications.
SRH series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator and rotor for simplified electrical connections.It can transmit signal(2A), 5A current when 360° degree free rotating.

Electrical Data

Parameter

Value

Power

Signal

Rated Voltage

0~440VAC/VDC

0~440VAC/VDC

Insulation Resistance

≥1000MΩ/500VDC

≥1000MΩ/500VDC

Lead Wire

AWG17#, AWG22#Teflon

AWG22#Teflon

Lead Length

standard length 300mm(adjustable)

Insulating Strength

500VAC@50Hz,60s

Electrical Noise

<0.01Ω

Mechanical Data

Parameter

Value

Working Life

See product quality level table

Rotating Speed

See product quality level table

Working Temperature

-30°C~80°C

Operating Humidity

0~85% RH

Contact Material

See product quality level table

Housing Material

aluminum alloy

Torque

0.1N.m;+0.03N.m/6 rings

Protection Grade

IP51

YUMO high quality for pneumatic rotating shaft installation with 4 rings of hollow shaft slip ring
