M20*1.5

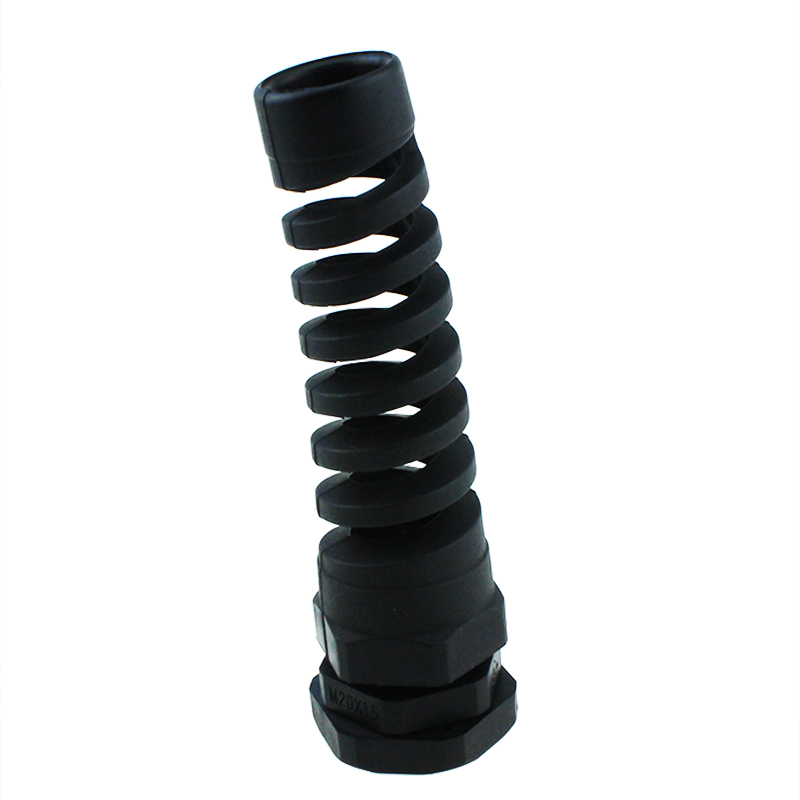

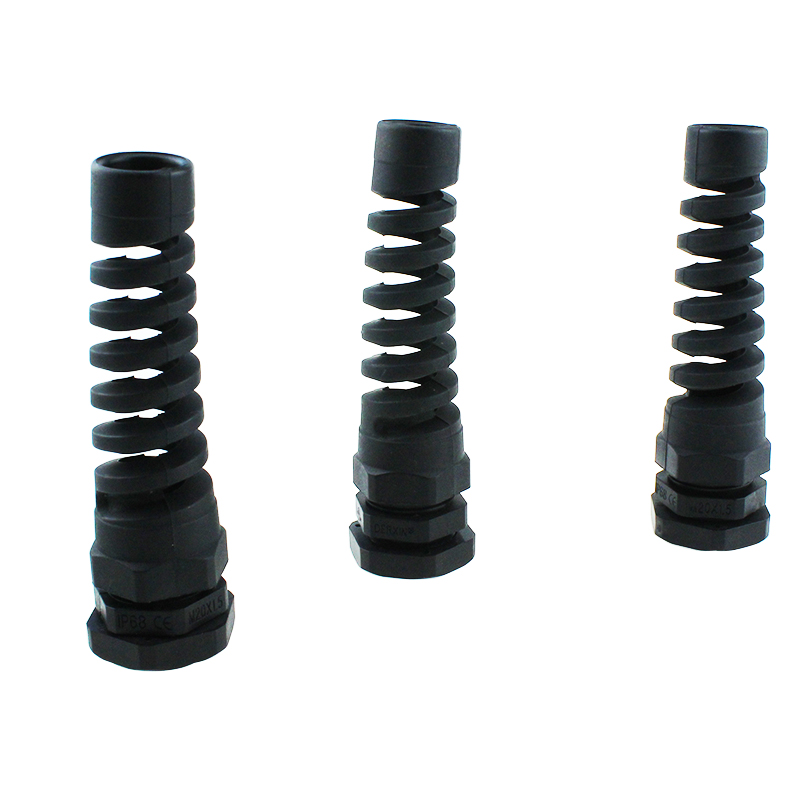

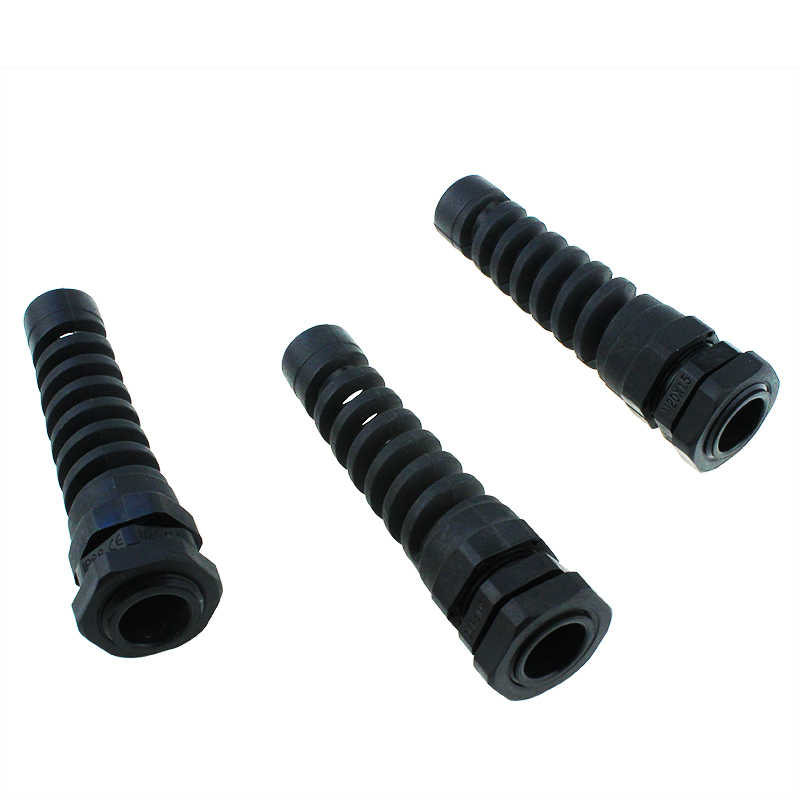

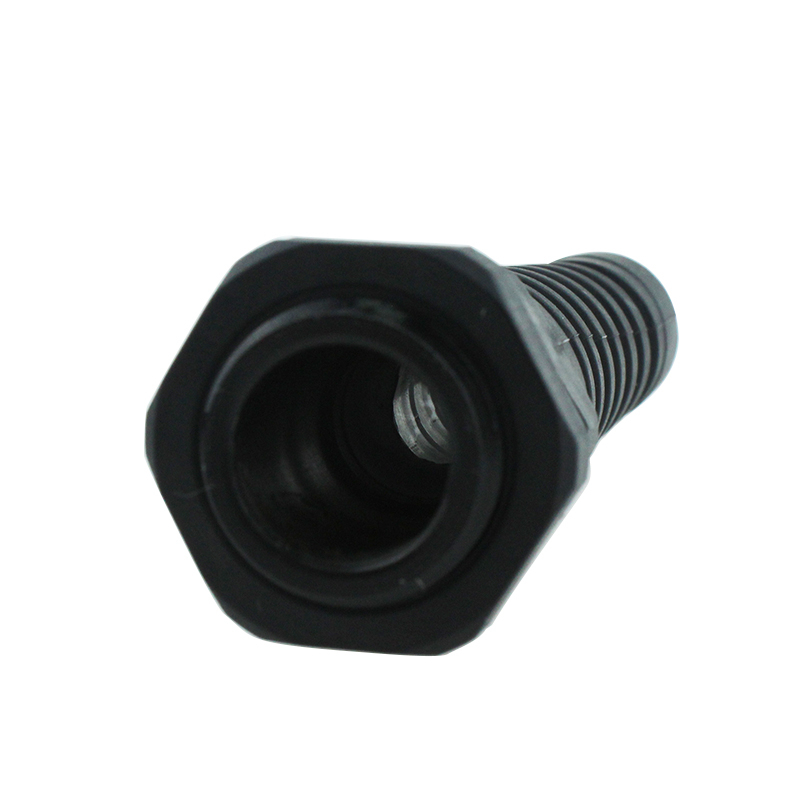

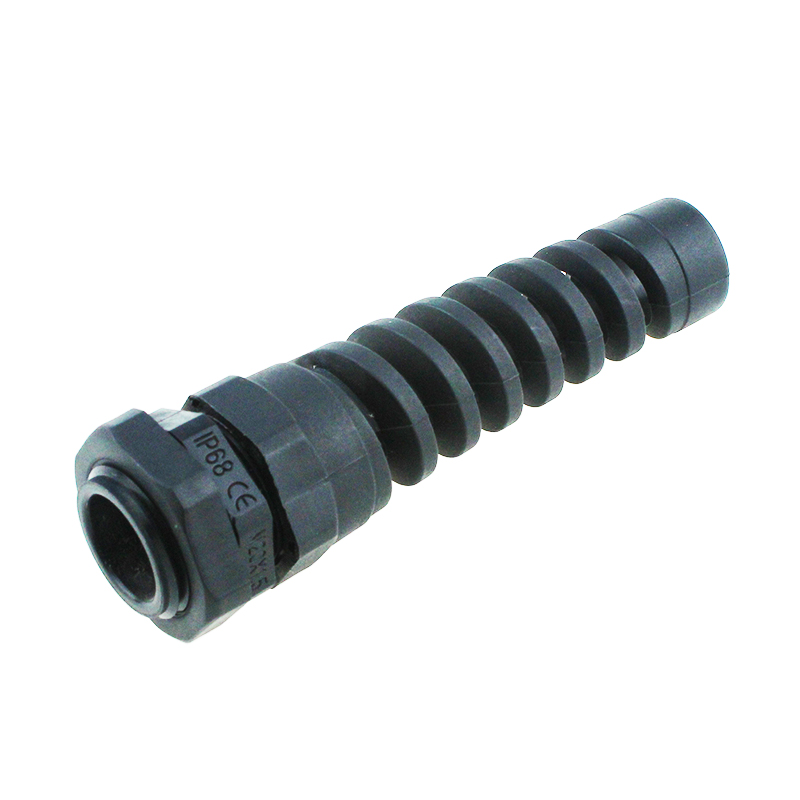

Waterproof M12 M16 M18 M20 Nylon Spiral flex protecting Cable Gland
Material:Nylon PA,UL94-V0
Seal:NBR
Protection class:IP68/1P69K<(the wire/cable is in clamping range,and assemble O-Ring on the groove.)
Temperature range:Static state: -40℃ to 100℃, short term to120℃;
Dynamic state: -20℃ to 80℃, short term to 100℃ .
Product Color:Gray RAL7035;Black RAL9005,Please inquire if the other color requested.

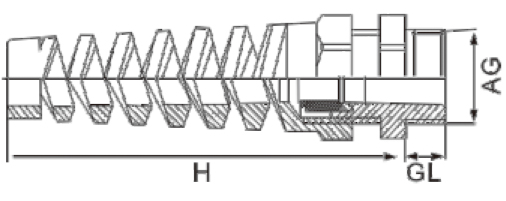

| Thread | Cable range | Thread length | height | Wrench diameter | Thread outer diameter | Panel Mounting Hole |
| mm | mm | mm | mm | mm | mm | |
| PG7 | 3-6.5 | 8 | 53 | 15 | 12.5 | 12.5-12.8 |
| PG7 | 2-5 | 8 | 53 | 15 | 12.5 | 12.5-12.8 |
| PG9 | 4-8 | 8.2 | 63 | 19 | 15.2 | 15.2-15.5 |
| PG9 | 2-6 | 8.2 | 63 | 19 | 15.2 | 15.2-15.5 |
| PG11 | 5-10 | 8.6 | 78 | 22 | 18.6 | 18.6-18.9 |
| PG11 | 3-7 | 8.6 | 78 | 22 | 18.6 | 18.6-18.9 |
| PG13.5 | 6.7-12 | 9 | 88 | 24 | 20.4 | 20.4-20.7 |
| PG13.5 | 5-9 | 9 | 88 | 24 | 20.4 | 20.4-20.7 |
| PG16 | 10.2-14 | 10 | 98 | 27 | 22.5 | 22.5-22.8 |
| PG16 | 7-12 | 10 | 98 | 27 | 22.5 | 22.5-22.8 |
| PG21 | 13-18 | 10 | 112 | 33 | 28.3 | 28.3-28.6 |
| PG21 | 9-16 | 10 | 112 | 33 | 28.3 | 28.3-28.6 |
| M12×1.5 | 3-6.5 | 8 | 53 | 15 | 12 | 12-12.3 |
| M12×1.5 | 2-5 | 8 | 53 | 15 | 12 | 12-12.3 |
| M16×1.5 | 4-8 | 8.2 | 63 | 19 | 16 | 16-16.3 |
| M16×1.5 | 2-6 | 8.2 | 63 | 19 | 16 | 16-16.3 |
| M20×1.5 | 6.7-12 | 9 | 88 | 24 | 20 | 20-20.3 |
| M20×1.5 | 5-9 | 9 | 88 | 24 | 20 | 20-20.3 |
| M25×1.5 | 13-18 | 10 | 112 | 33 | 25 | 25-25.3 |
| M25×1.5 | 9-16 | 10 | 112 | 33 | 25 | 25-25.3 |
| NPT1/4 | 3-6.5 | 8 | 53 | 15 | 13.7 | 13.7-14 |
| NPT1/4 | 2-5 | 8 | 53 | 15 | 13.7 | 13.7-14 |
| NPT3/8 | 4-8 | 15 | 63 | 19 | 17 | 17-17.3 |
| NPT3/8 | 2-6 | 15 | 63 | 19 | 17 | 17-17.3 |
| NPT1/2 | 6.7-12 | 13 | 88 | 24 | 21.2 | 21.2-21.5 |
| NPT1/2 | 5-9 | 13 | 88 | 24 | 21.2 | 21.2-21.5 |
| NPT3/4 | 13-18 | 15 | 112 | 33 | 26.6 | 26.6-26.9 |
| NPT3/4 | 9-16 | 15 | 112 | 33 | 26.6 | 26.6-26.9 |
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
