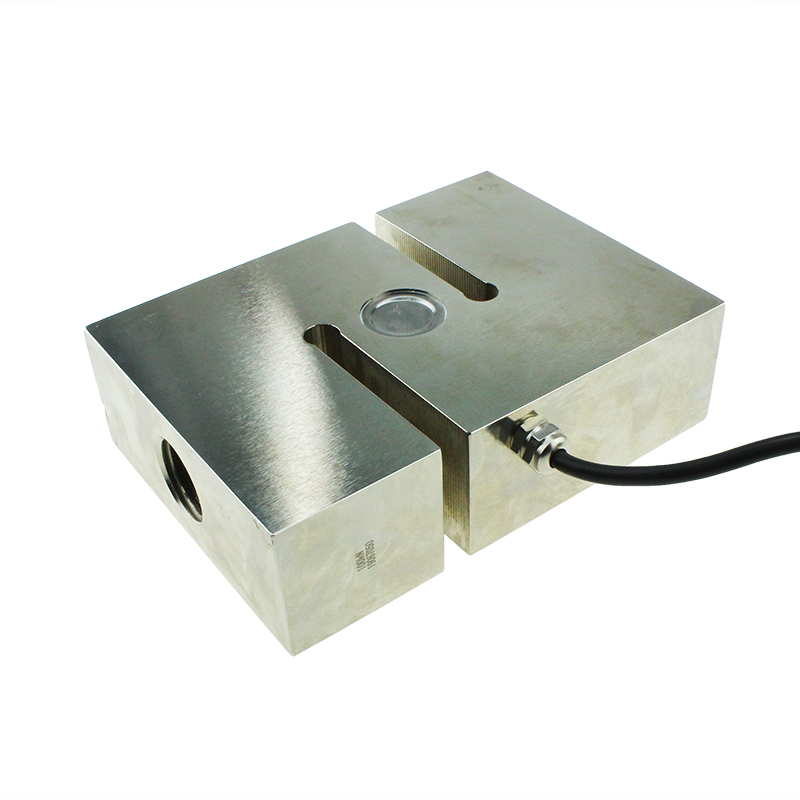

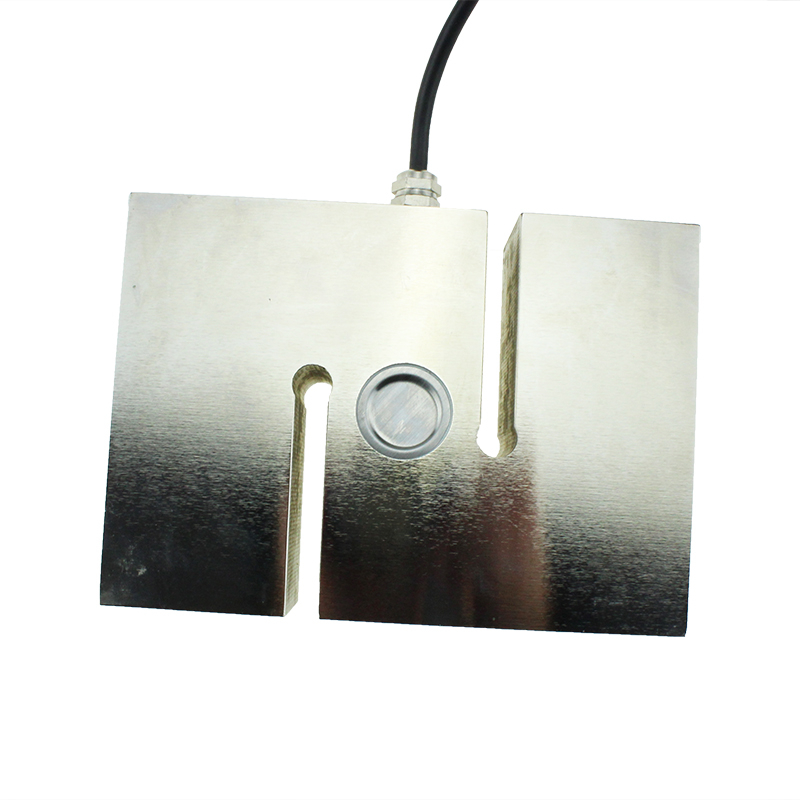

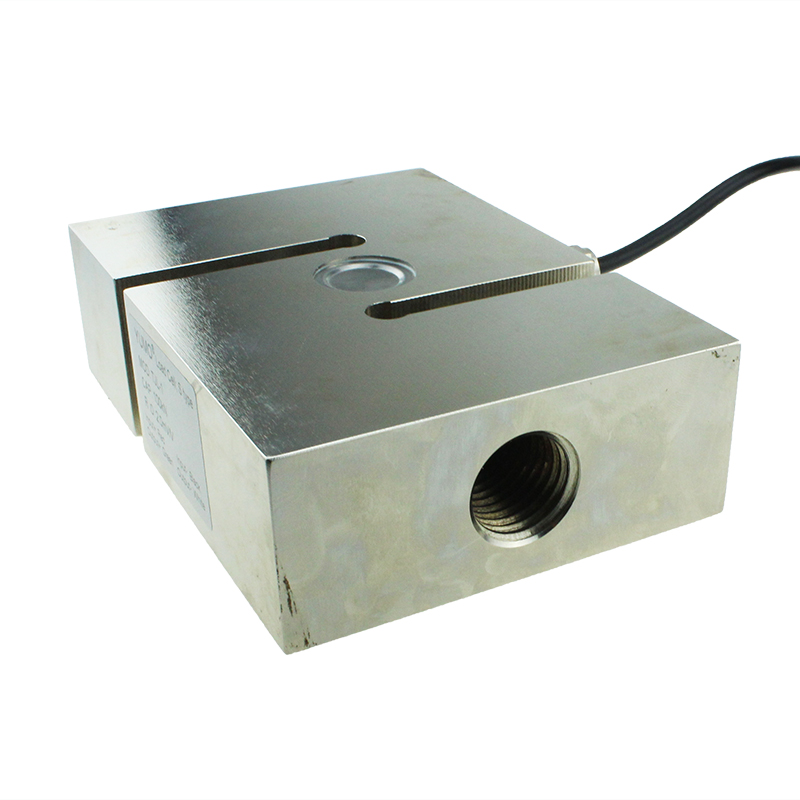

TJL-10T
Features
High accuracy, two-way bearing and easy installation. Applicable to the measurement and control of force values of batching scales, hook scales, electromechanical combined scales, packaging scales, material mechanics testing machines and other equipment
Technical Parameter
| Rated Load | 0.05 ~ 200 (kN) |
| Comprehensive Precision | 0.05 ~ 200 (kN) |
| Sensitity | 2.0 mV/V |
| Creep | ±0.02%F·S/30min |
| Zero Output | ±1%F·S |
| Temperature Effect On Zero | ±0.02%F·S/10℃ |
| Temperature Effect On Output | ±0.02%F·S/10℃ |
| Operating Temperature Range | -20℃~+65℃ |
| Input Resistance | 380+10Ω |
| Output Resistance | 350±3Ω |
| lnsulation Resistance | >5000 MQ |
| Safe Load Limit | 150%F. S |
| Bridge Voltage | 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode of Connection | Input+: Red Input- : Black Output+: Green Output- : White |

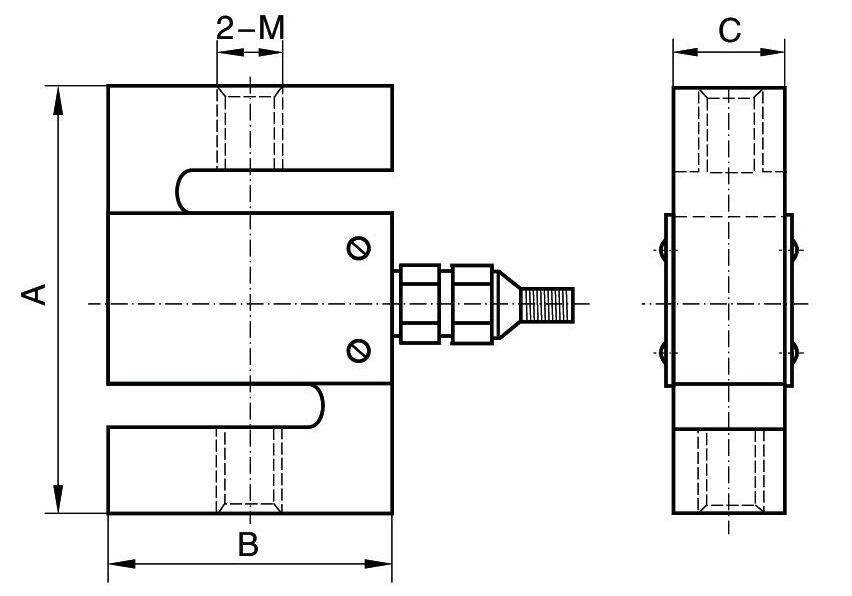

Dimensions
| Range | size(mm) | |||||
| KN | Equivalent to | A | B | C | M | |
| Metric mm | Imperial lnch | |||||
| 0.05-0.5 | 5-50 kg | 64 | 51 | 12.7 | M8 | 1/4-28 |
| 1-7 | 100-700 kg | 76 | 51 | 19.1 | M12 | 1/2-20 |
| 10-15 | 1-1.5 t | 76 | 51 | 25.4 | M12 | 1/2-20 |
| 20-50 | 2-5 t | 108 | 76 | 25.4 | M20 | 3/4-16 |
| 75-100 | 7.5-10 t | 178 | 127 | 51 | M30 | 5/4-12 |
| 200 | 20 t | 188 | 188 | 60 | M36*3 | 3/2-12 |
Features
High accuracy, two-way bearing and easy installation. Applicable to the measurement and control of force values of batching scales, hook scales, electromechanical combined scales, packaging scales, material mechanics testing machines and other equipment
Technical Parameter
| Rated Load | 0.05 ~ 200 (kN) |
| Comprehensive Precision | 0.05 ~ 200 (kN) |
| Sensitity | 2.0 mV/V |
| Creep | ±0.02%F·S/30min |
| Zero Output | ±1%F·S |
| Temperature Effect On Zero | ±0.02%F·S/10℃ |
| Temperature Effect On Output | ±0.02%F·S/10℃ |
| Operating Temperature Range | -20℃~+65℃ |
| Input Resistance | 380+10Ω |
| Output Resistance | 350±3Ω |
| lnsulation Resistance | >5000 MQ |
| Safe Load Limit | 150%F. S |
| Bridge Voltage | 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode of Connection | Input+: Red Input- : Black Output+: Green Output- : White |
Dimensions
| Range | size(mm) | |||||
| KN | Equivalent to | A | B | C | M | |
| Metric mm | Imperial lnch | |||||
| 0.05-0.5 | 5-50 kg | 64 | 51 | 12.7 | M8 | 1/4-28 |
| 1-7 | 100-700 kg | 76 | 51 | 19.1 | M12 | 1/2-20 |
| 10-15 | 1-1.5 t | 76 | 51 | 25.4 | M12 | 1/2-20 |
| 20-50 | 2-5 t | 108 | 76 | 25.4 | M20 | 3/4-16 |
| 75-100 | 7.5-10 t | 178 | 127 | 51 | M30 | 5/4-12 |
| 200 | 20 t | 188 | 188 | 60 | M36*3 | 3/2-12 |
