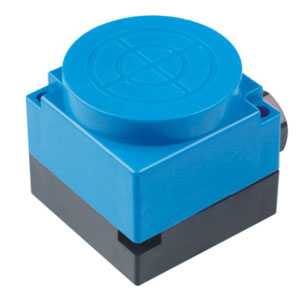

LMF55 angular column inductive proximity switch, detection distance 25mm

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1”~2” metal object. Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch,  will be your best choice.
Availability:
  • LMF55

LMF55 series angular column type inductive proximity switch


Sensing range 0-25mm , angular column inductive proximity switch. China offer customized design!

LMF55 Inductive proximity switch
Detecting rang mm 0-25MM part no.
Non-flush DC 6-36V NPN NO LMF55-3025NA
NC LMF55-3025NB
NO+NC LMF55-3025NC
PNP NO LMF55-3025PA
NC LMF55-3025PB
NO+NC LMF55-3025PC
2 Wires NO
NC
AC 90-250V SCR NO LMF55-2025A
NC LMF55-2025B

NO+NC LMF55-2025C
Relay output LMF55-2025JC
LMF55 Inductive proximity switch  Characteristics
Output current DC 300mA
SCR/relay 500mA/2A
Output voltage drop DC≤1.5V  /  DC(Two wire system)≤5V / AC≤7V
Consumption current DC≤1mA/ DC(Two wire system)≤13mA /AC≤2mA
Standard detected object 70×70×1(A3 Iron)
Repeated precision 0.05
Response Frequency 200Hz/5Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50MΩ
Shell material ASB Resin
Protection grade IEC Standard IP67
Alternative model


LMF55 proximity switch Dimension
