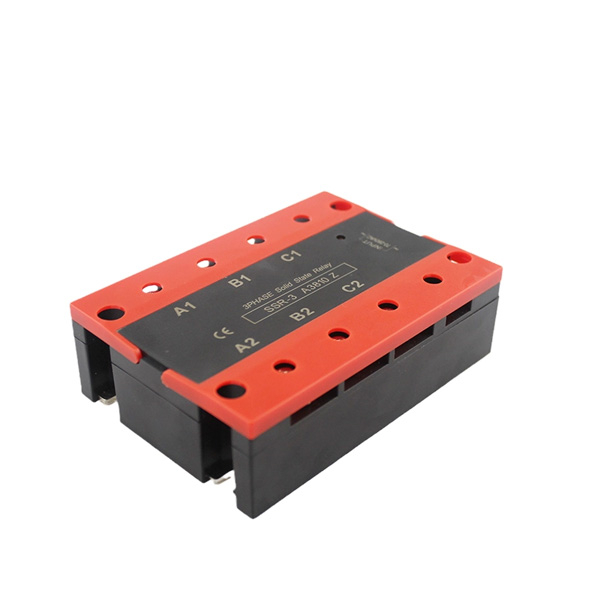

SSR-3A 3810Z

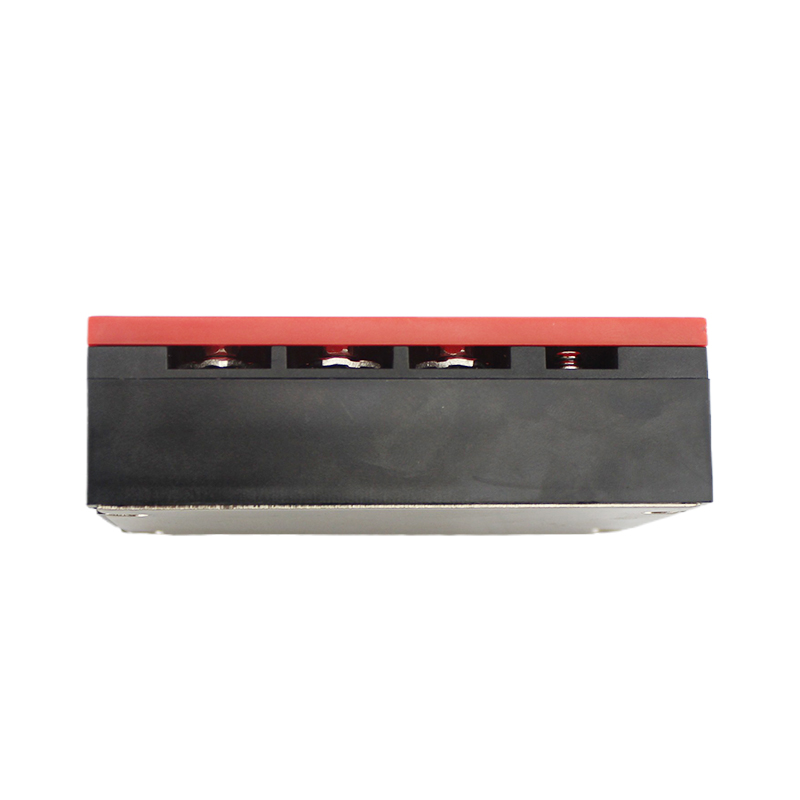

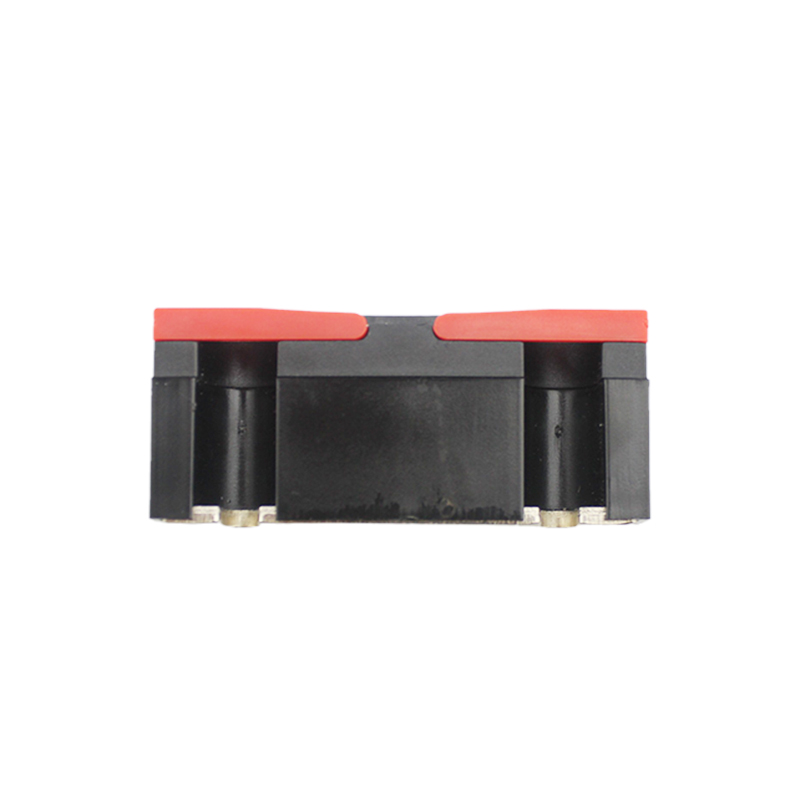

3 Phase Solid State Relay Aluminum Base Black Body with Red Cover
Product performance and characteristics
1. Wide input voltage range, small control current, less than or equal to 10mA;
2. No mechanical action parts, long service life and high reliability;
3. Fast switching speed, zero voltage on, zero current off, low RF interference;
4. Built in resistance capacitance absorption to protect the impact of the product on the starting instant current;
5. Photoelectric isolation between input and output circuits, with insulation withstand voltage of 2500V;
6. The product is small in size and filled with epoxy resin, which is shockproof, moisture-proof and corrosion-resistant
| Model | SSR-3A 3810Z |
| Control Voltage | 90-250VAC |
| Load Voltage | 24-480VAC |
| Control Current | AC≤10mA |
| Dielectric Strength | Input - output - floor ≥2500VAC |
| Insulation Resistance | 1000M/500VDC |
| Ambient Temperature | -30℃~+75℃ |
| Rated output current | 380V |
| Rated output voltage | 10A |
