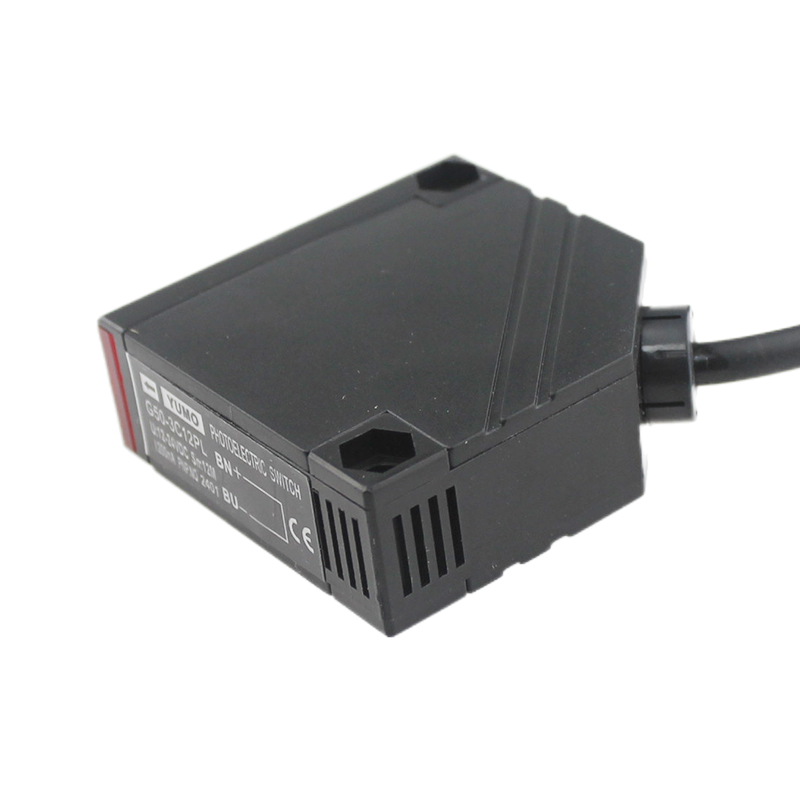

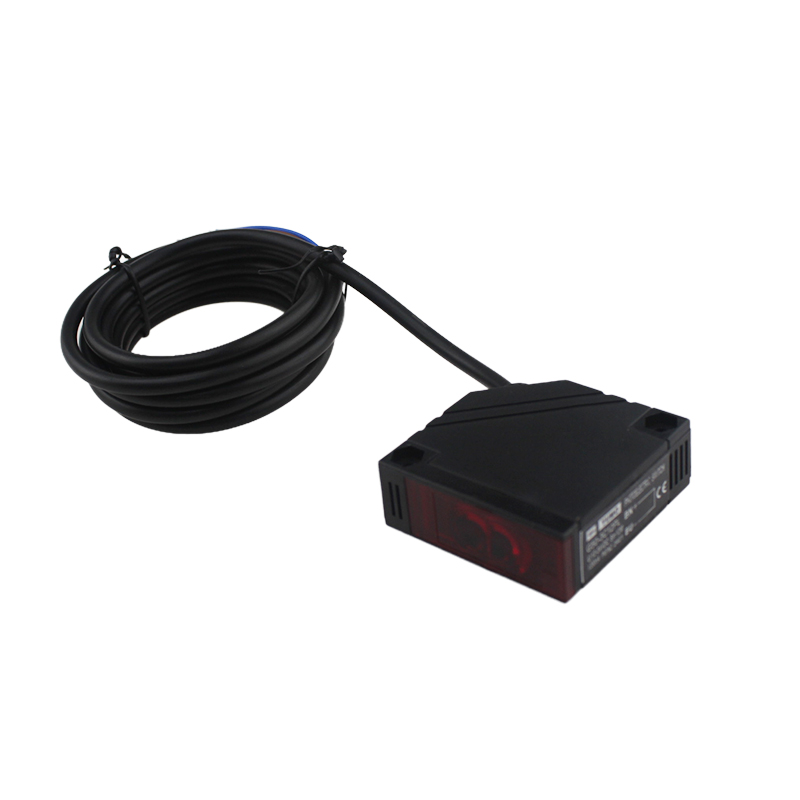

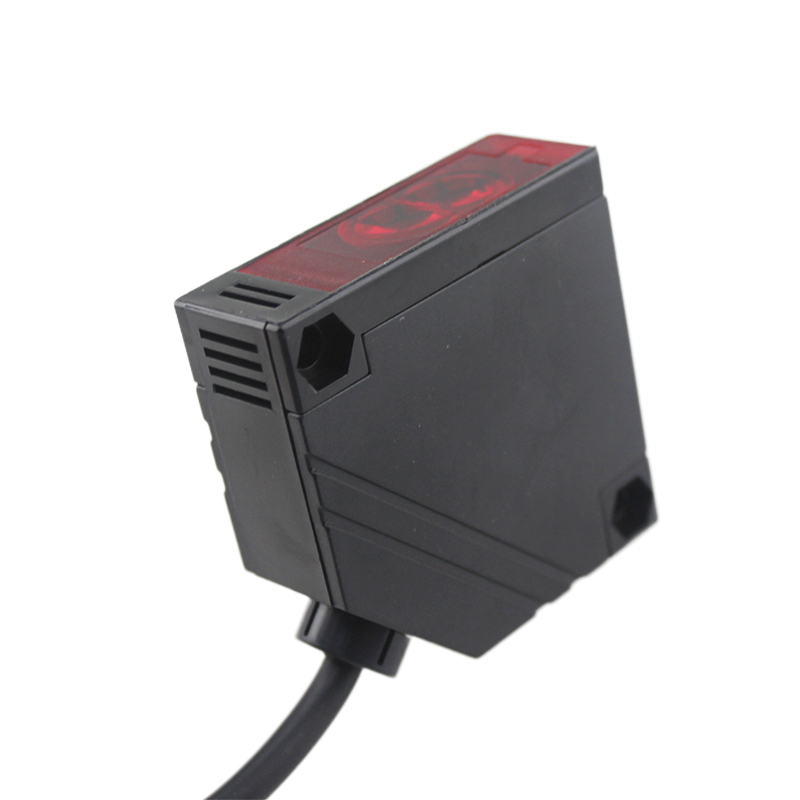

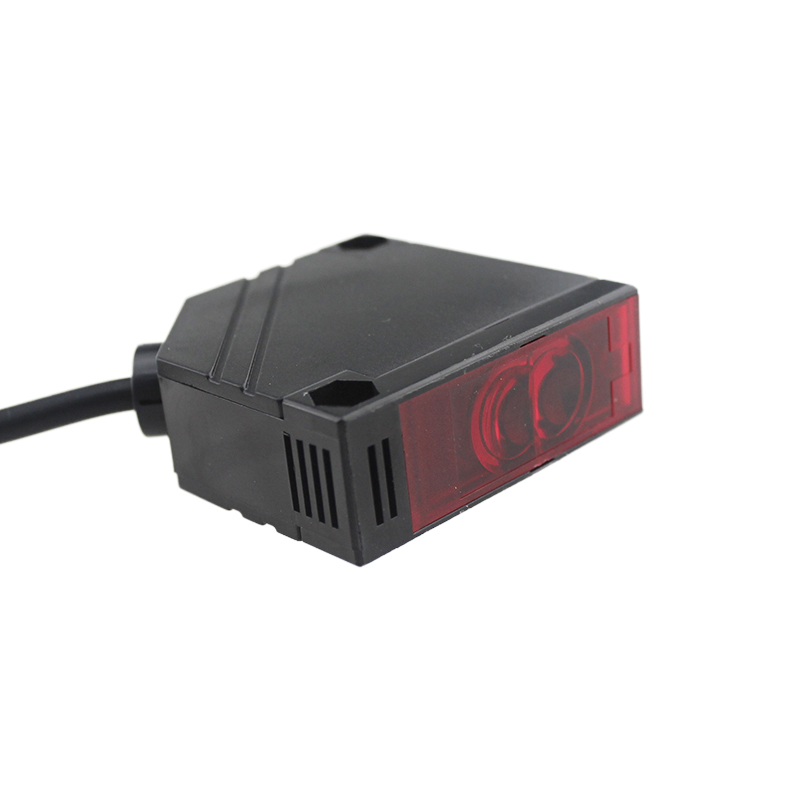

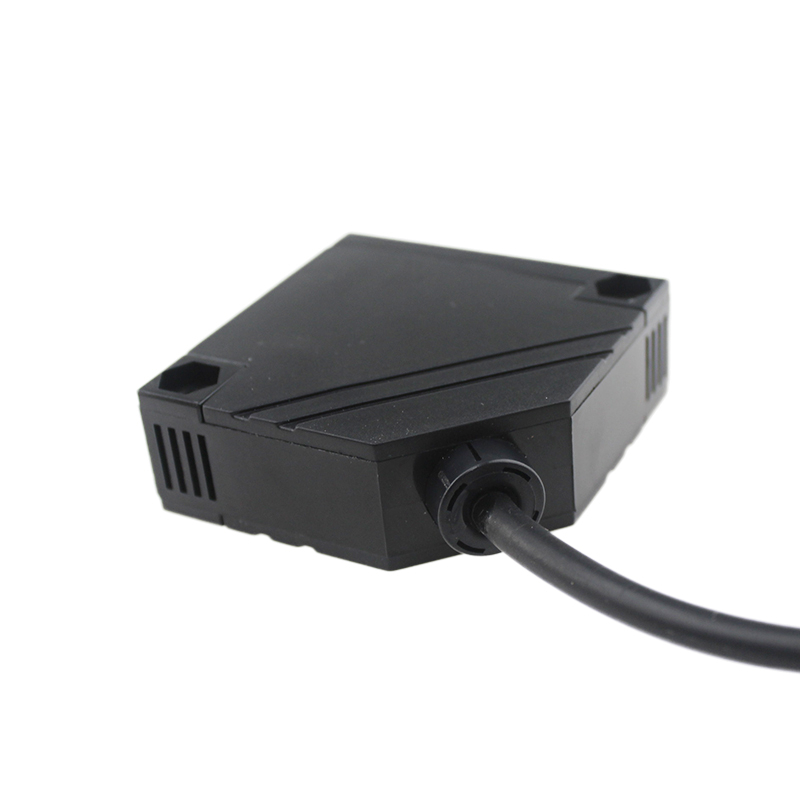

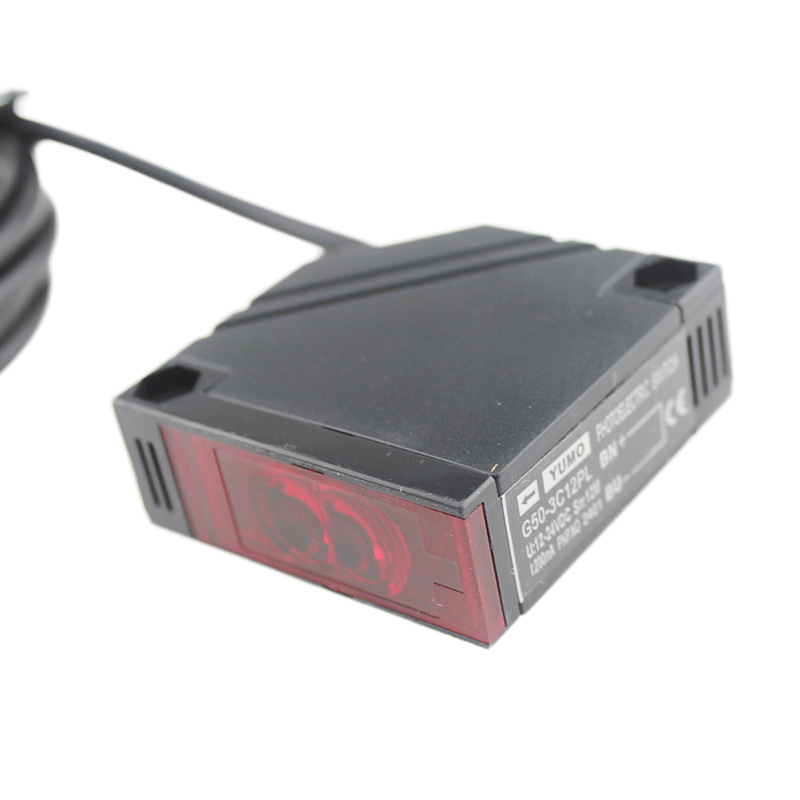

G50-3C12PA
Technical Parameter
Structural category | Photoelectric switch | |||||
Outward appearance code | G18 | G30 | G50 | |||
Outward appearance illustration | ||||||
Diffuse type | Detection distance | 10cm | 20 -100cm | 30cm 50cm | ||
10- 30 VDC | NPN | NO | G18 -3A 10NA | G30 -3A 70NA | G50 -3A 30NA | |
NC | G18 -3A 10NB | G30 -3A 70NB | G50 -3A 30NB | |||
NO+NC | G18 -3A 10NC | G30 -3A 70NC | G50 -3A 30NC | |||
PNP | NO | G18 -3A 10PA | G30 -3A 70PA | G50 -3A 30PA | ||
NC | G18 -3A 10PB | G30 -3A 70PB | G50 -3A 30PB | |||
NO+NC | G18 -3A 10PC | G30 -3A 70PC | G50 -3A 30PC | |||
90~250 VAC | SCR Controllable Silicon | NO | G18 -2A 10LA | G30 -2A 70LA | G50 -3A 30LA | |
NC | G18 -2A 10LB | G30 -2A 70LB | - | |||
| Relay output | - | G30 -2A 70JC | G50 -3A 30JC | |||
Retrore-flictive | Detection distance | 2m | 3 -5m | 4m | ||
10- 30 VDC | NPN | NO | G18-3B2NA | G30-3B3NA | G50-3B4NA | |
NC | G18-3B2NB | G30-3B3NB | G50-3B4NB | |||
NO+NC | G18-3B2NC | G30-3B3NC | G50-3B4NC | |||
PNP | NO | G18-3B2PA | G30-3B3PA | G50-3B4PA | ||
NC | G18-3B2PB | G30-3B3PB | G50-3B4PB | |||
NO+NC | G18-3B2PC | G30-3B3PC | G50-3B4PC | |||
90~250 VAC | SCR Controllablerollable Silicon | NO | G18-2B2LA | G30-2B3LA | - | |
NC | G18-2B 2LB | G30-2B 3LB | - | |||
Relay output | - | G30-2B3JC | - | |||
Tough beam | Detection distance | 5m | 10m | 5m | ||
10- 30 VDC | NPN | NO | G18 -3C 5NA | G30 -3C 101NA | G50 -3C 5NA | |
NC | G18 -3C 5NB | G30 -3C 101NB | G50 -3C 5NB | |||
NO+NC | G18 -3C 5NC | G30 -3C 101NC | G50 -3C 5NC | |||
PNP | NO | G18 -3C 5PA | G30 -3C 101PA | G50 -3C 5PA | ||
NC | G18 -3C 5PB | G30 -3C 101PB | G50 -3C 5PB | |||
NO+NC | G18 -3C 5PC | G30 -3C 101PC | G50 -3C 5PC | |||
90~250 VAC | SCR Controllable Silicon | NO | G18 -2C 5LA | G30 -2C 101LA | G50 -3C 5LA | |
NC | G18 -2C 5LB | G30 -2C 101LB | - | |||
Relay output | - | G30 -2C 101JC | G50 -3C 5JC | |||
DC/SCR/Control output | DC:200mA, AC:300mA | DC:200mA, AC:300mA , relay: 2A | ||||
DC/AC Consumption current | DC15mA, AC:10mA | |||||
DC/AC Response time | DC2mS, AC20mS | |||||
Directional angle | 3°-10° | |||||
Directed object | <> Transparent or opaque body | |||||
Working environment temperature | -25C degree~ + 55 C degree | |||||
Intensity of illumination of working environment | Sunlight under 10000LX incandescent lamp under 3000LX | |||||
Shell material | Plastic | |||||
Protection grade | IP66 | IP66 | IP54 | |||
