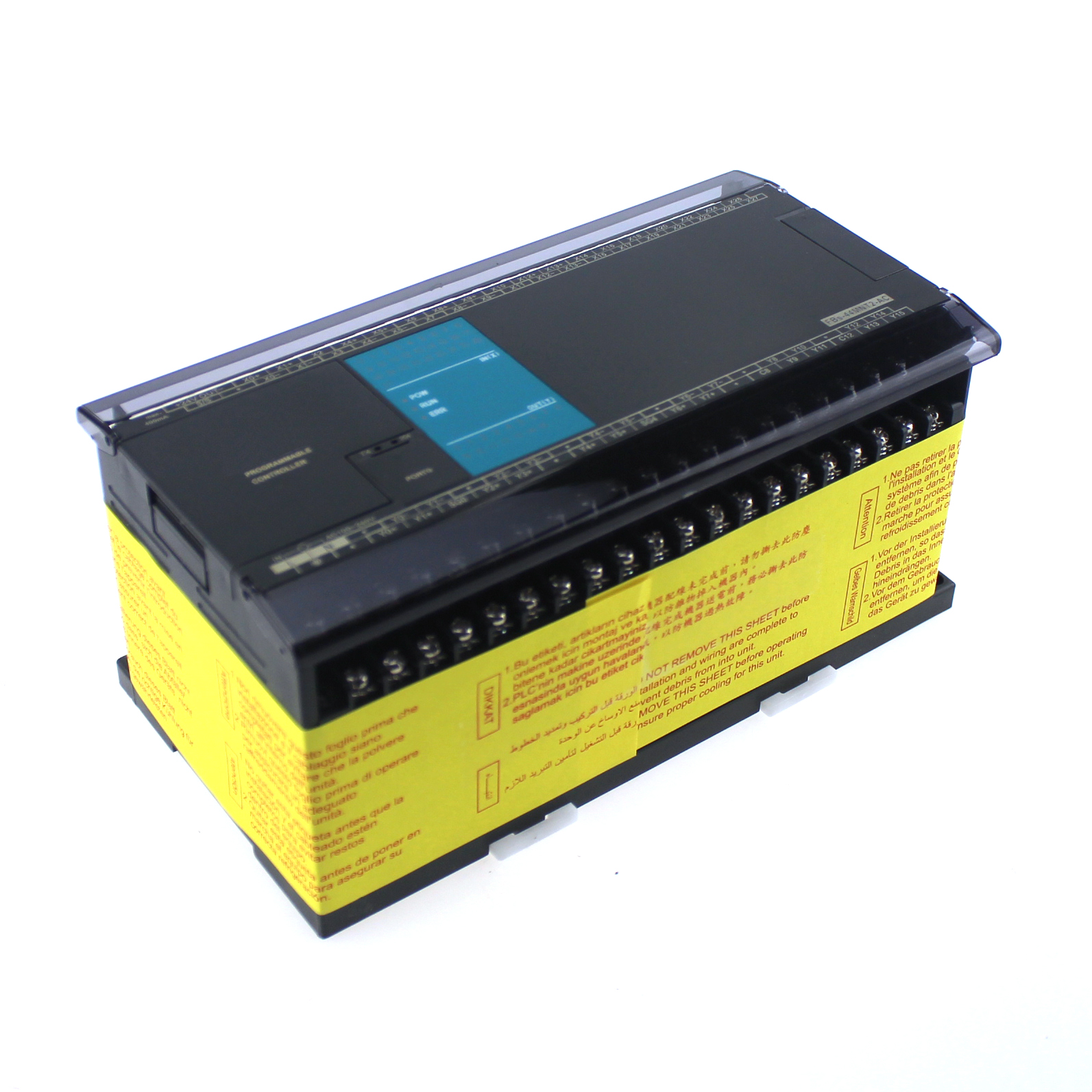

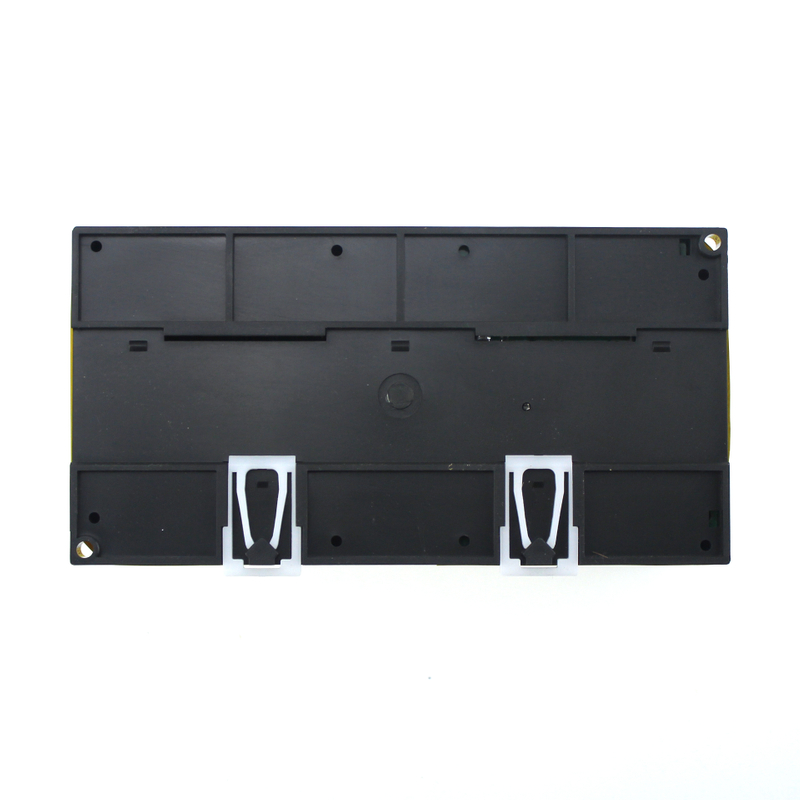

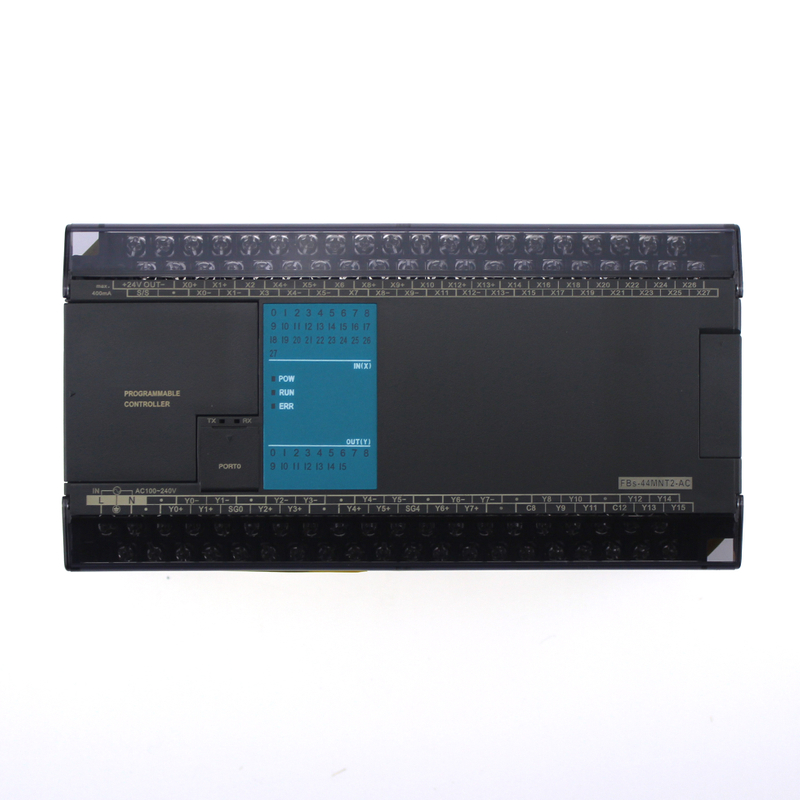

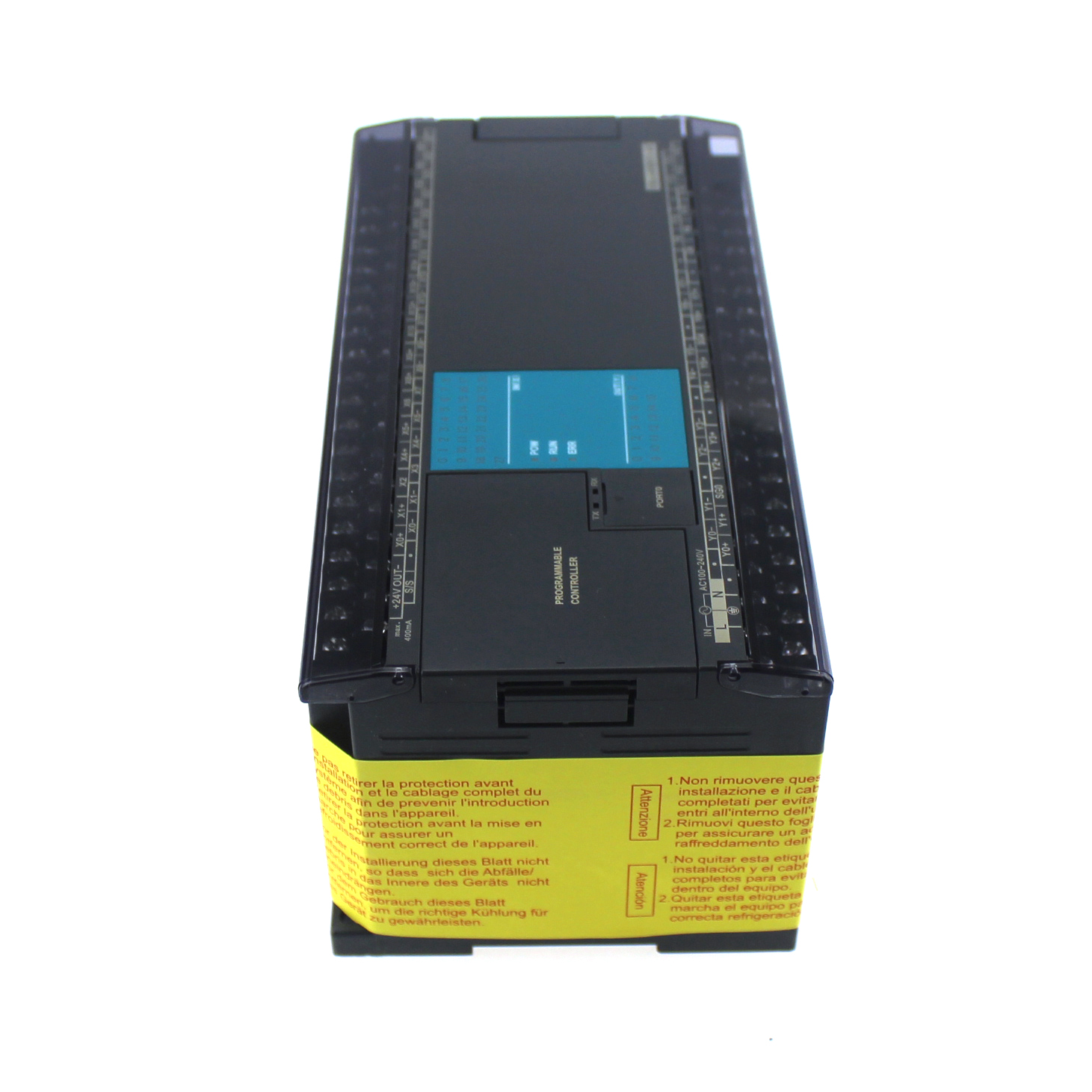

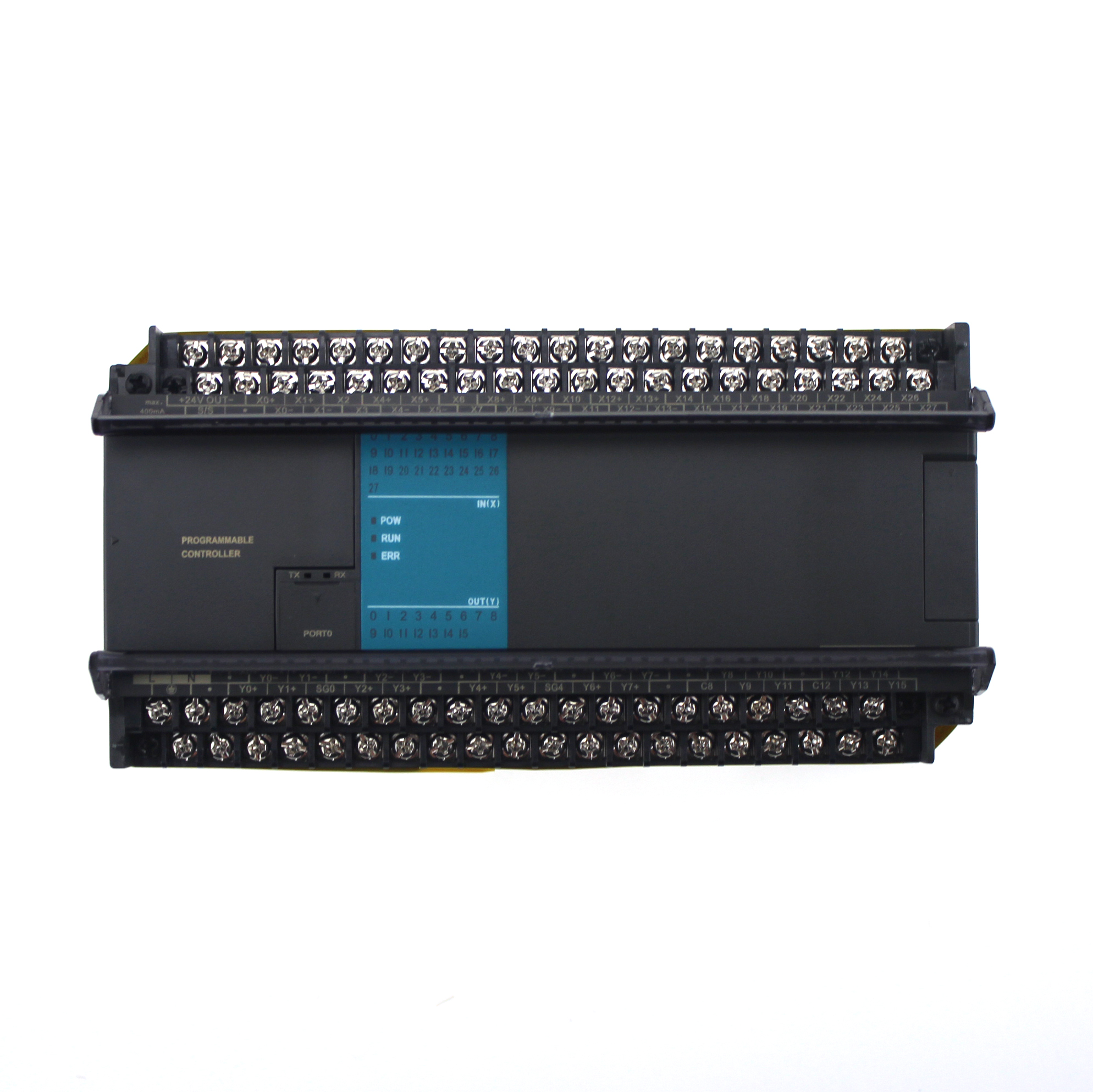

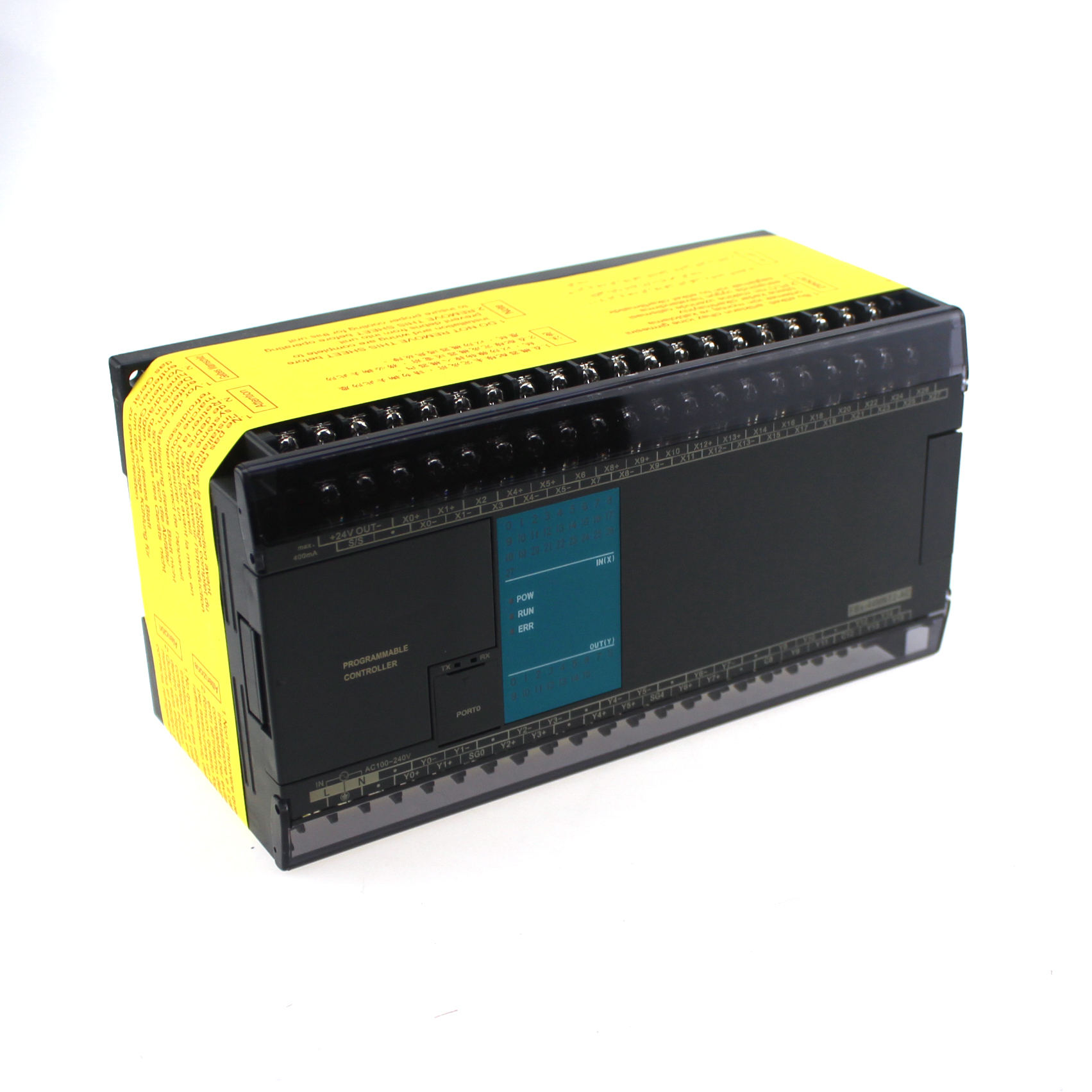

FBS-44MNT2-AC
Features:
Fatek-USA FBs-PLC has more than 300 instructions which adopt a user-friendly and readable multi-input/multi-output function structure. With this multi-input instruction structure, the user can derive many types of functionality which other brands of PLC's may require the use of many instructions to achieve this.
Software:
Ladder programming tool - WinProladder, can be downloaded from our website at no extra charge.
FBs-40MCR2-AC Specifications:
• 24 points 24VDC digital input (up to 10KHz in 4 points)
• 16 Points Relay digital output
• 1 built-in RS-232 (can be expanded up to 3)
• 100~240VAC power supply,
• UL certified.
Technical Parameters:
| Specification | FBs-40MCR | FBS-44MNT2-AC | ||
| Digital Input | 24VDC | High speed (200KHz) | 6 points | |
| Medium speed (20KHz) | 2 points | |||
| Medium speed (Total 5KHz) | 8 points | |||
| Medium low speed (0.47ms) | 8 points | |||
| Digital output | Relay | 16 points | ||
| Transistor | High speed (200KHz) | 6 points | ||
| Medium speed (20KHz) | 2 points | |||
| Low speed | 8 points | |||
| Communication Port | Built-in | 1 port (Port0, USB or RS232) | ||
| Expandable | 4 ports (Port1~4, RS485 or RS232 or Ethernet or GSM or ZigBee) | |||
| Calendar | Built-in | |||
| Built-in power supply | SPW24-AC/D12/D24 | |||
| Wiring mechanism | 7.62mm detachable terminal block | |||
