HKT3006 Kit Encoder Optical Incremental Encoder Hollow Shaft Motor Servomotor Encoder

◆ Features ● Miniature size, easy assembling ● 2 quadrature output channel (A&B)+index signal ● Resolution up to 500 cpr
Availability:
  • HKT3006

HKT30

Note

Please contact sales representative to confirm the correctness and availability of the part number


Description:
Industry: servo motor
Product Structure: hollow shaft
Outside diameter (mm): 30
Aperture / Shaft Diameter (mm): 4,5,6,8,10
Resolution (CPR): 100,200,256,360,400,500,1000,1024
Operating voltage: 5V

Output circuit: voltage output, open collector, line drive



Feature

Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.



Technical Specifications


Electrical  Specification

Output circuit

Line driver output/ Voltage output

Power Vcc

5VDC

Current Consumption

≤65mA

High-level output

Min Vcc*85%

Low-level output

Max 0.3V

Rise Time Tr

Max 200ns

Fall  Time Tr

Max 50ns

Max Responding Frequency

100kHz

Mechanical Specification

Max speed(r/min)

Starting Torque

Max. Shaft Loading

Shocking

Vibration

12000

<0.05Nm

Radial:25N, Axial:15N

50G/11ms

10G 10-2000Hz

Rotor  Inertia

Working Temperature

Storage Temperature

Protection Grade

Weight

4*10-8Kgm2

-20~85℃

-20~85℃

IP50

100g


Connection Table

Line Driver 0V Vcc A+ A- B- B+ Z+ Z-
Ribbon Cable Color 2 3 4 5 6 7 8


TTL 0V Z A Vcc B
Ribbon Cable Color 2 3 4 5


Pictures

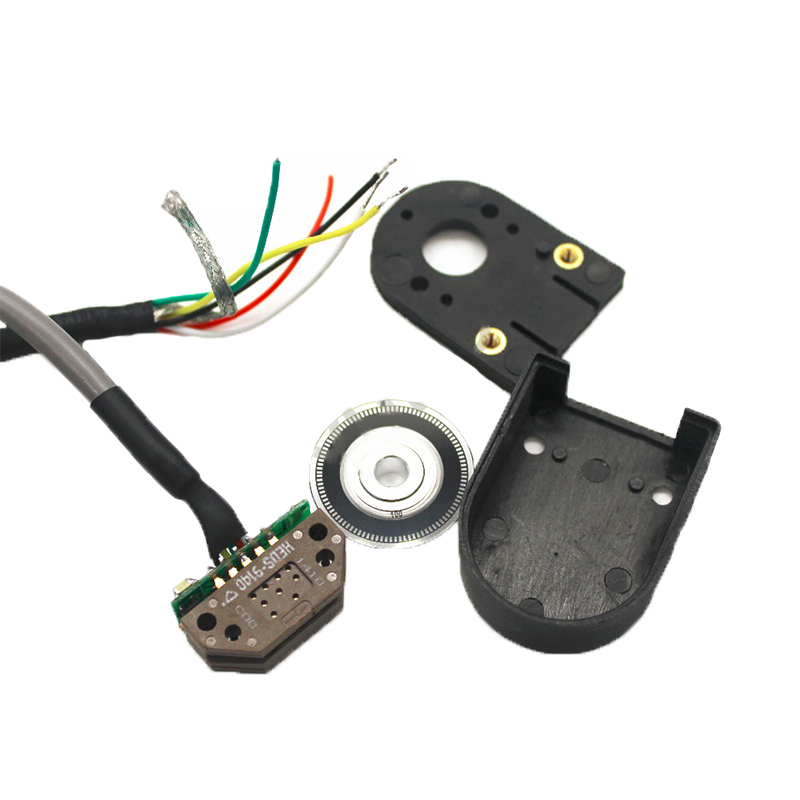

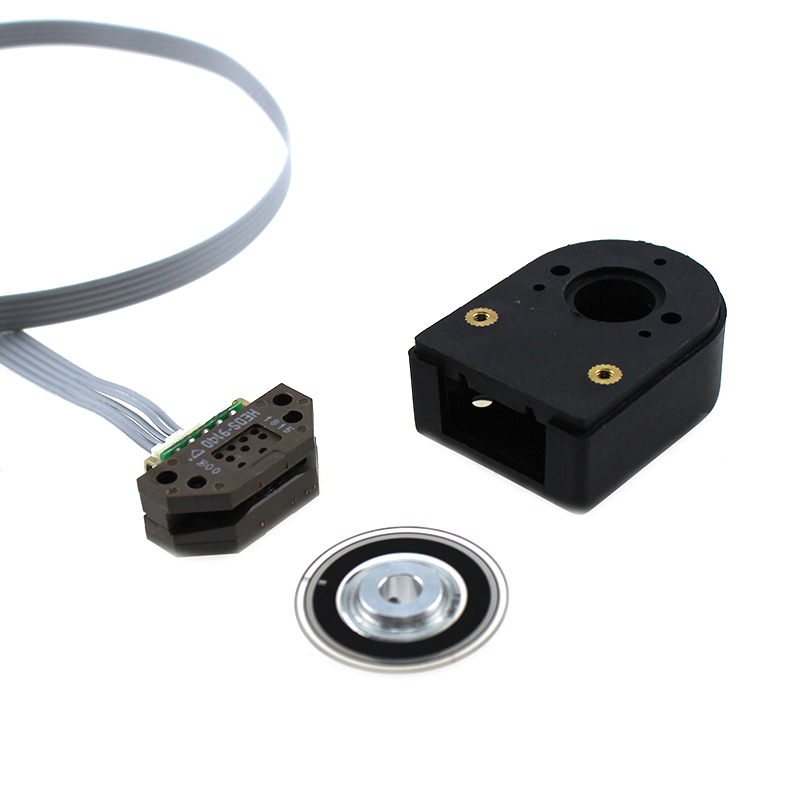

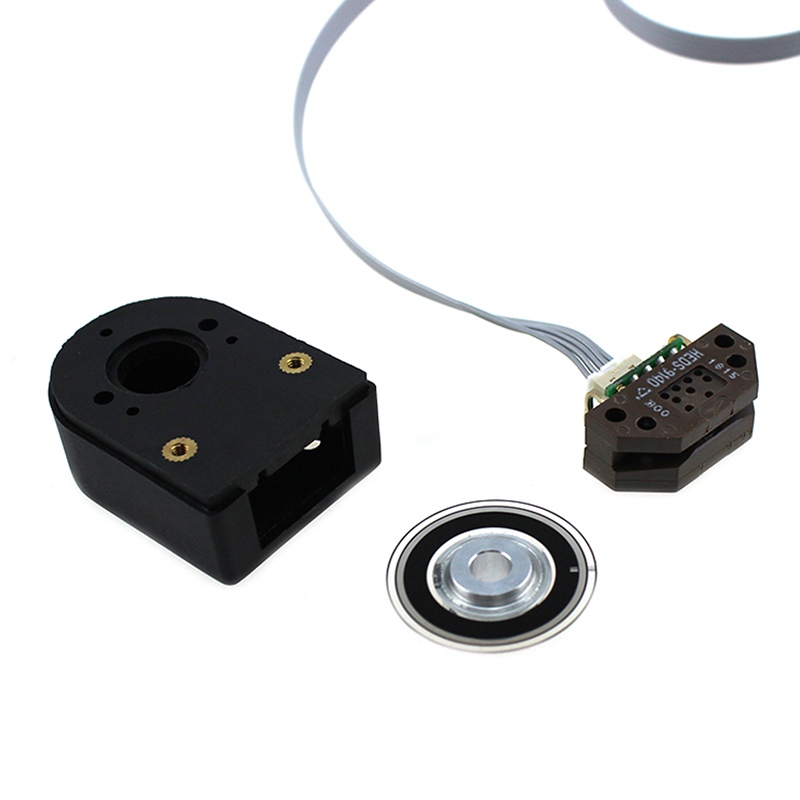

HKT30 (4)HKT30 (5)HKT30 (3)

Diamensios
HKT30 (6)

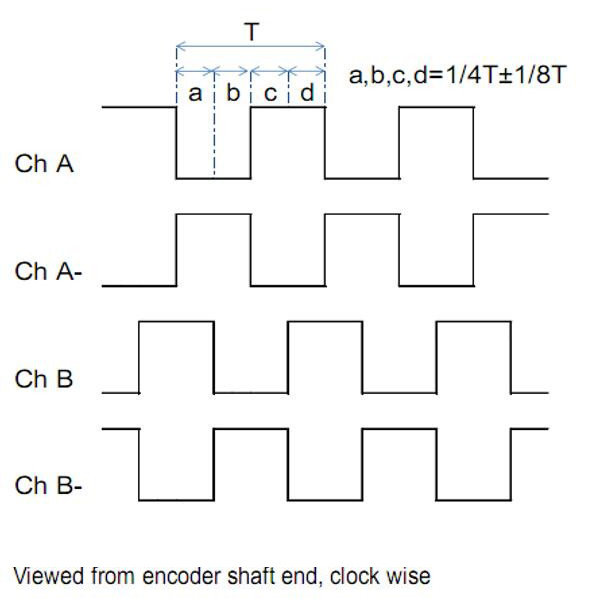

Output Waveform

3004
