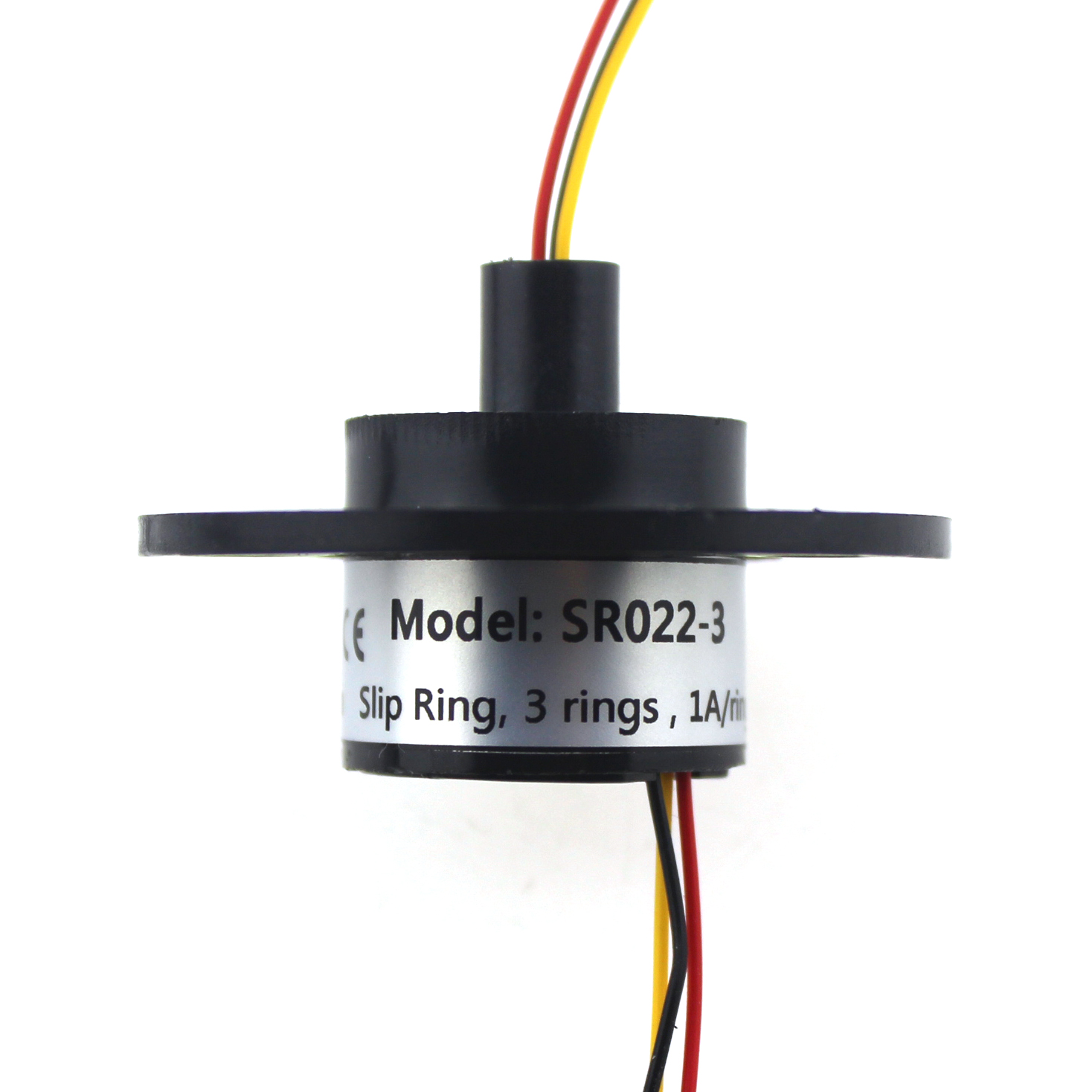

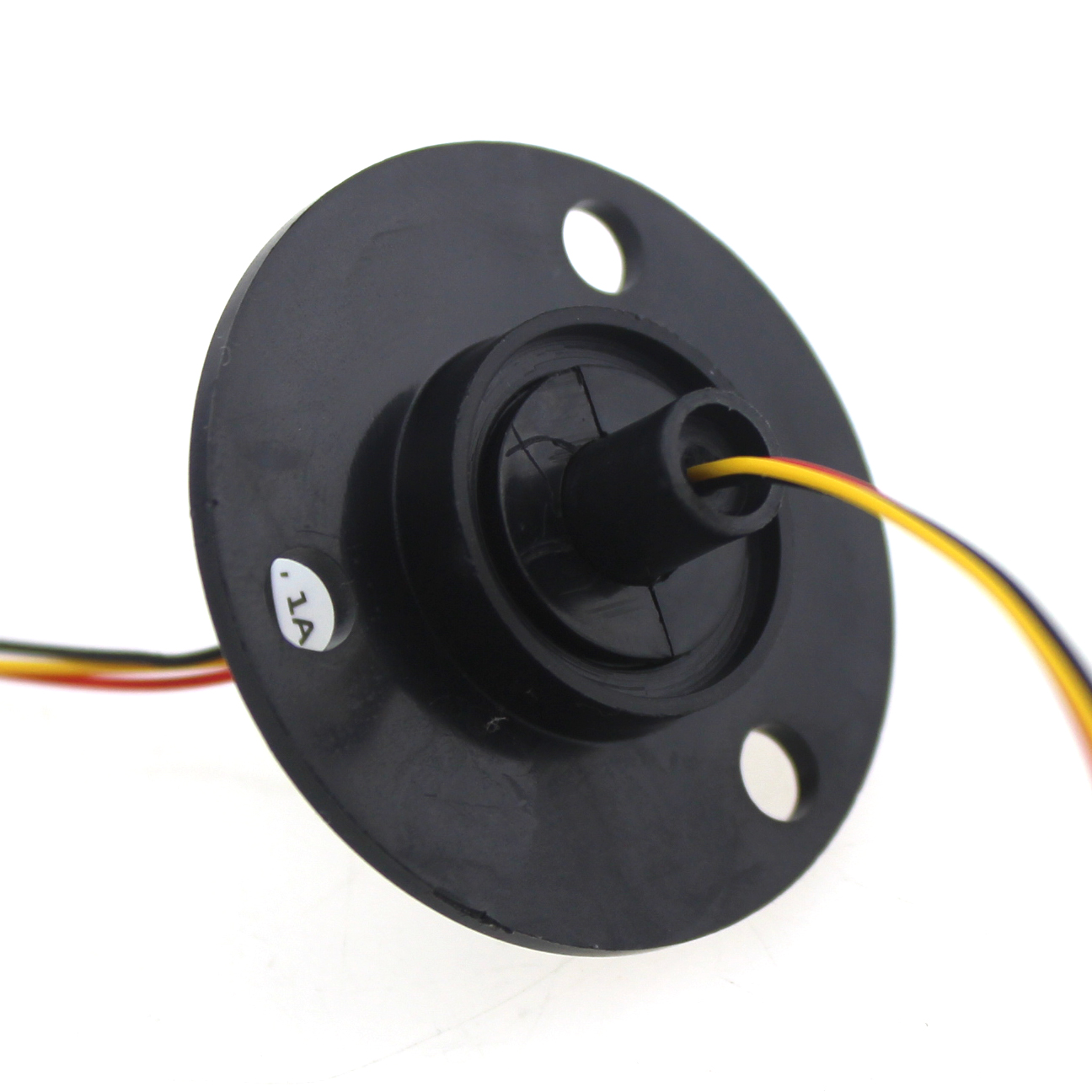

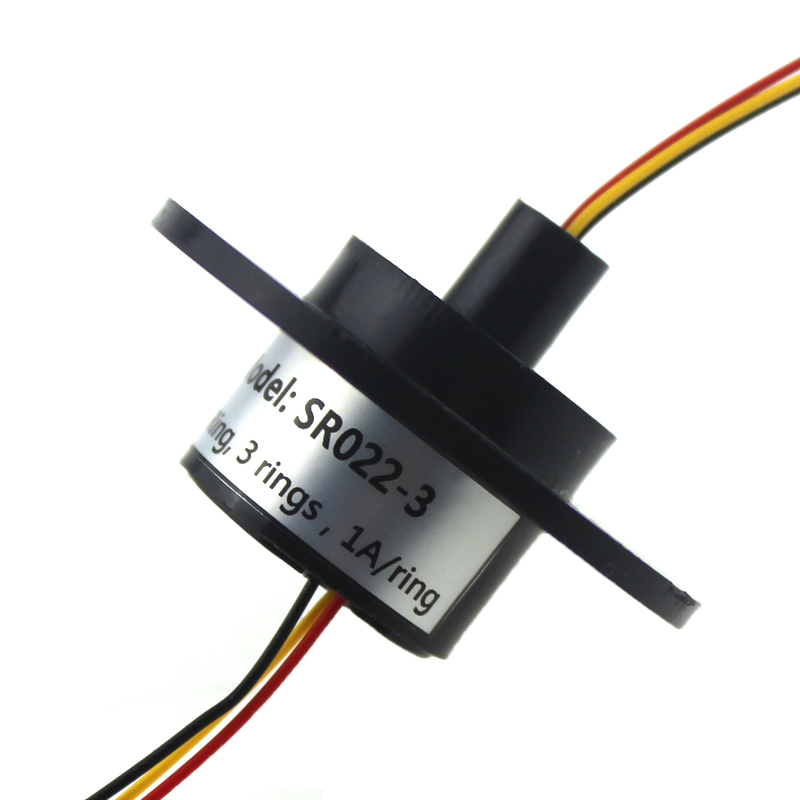

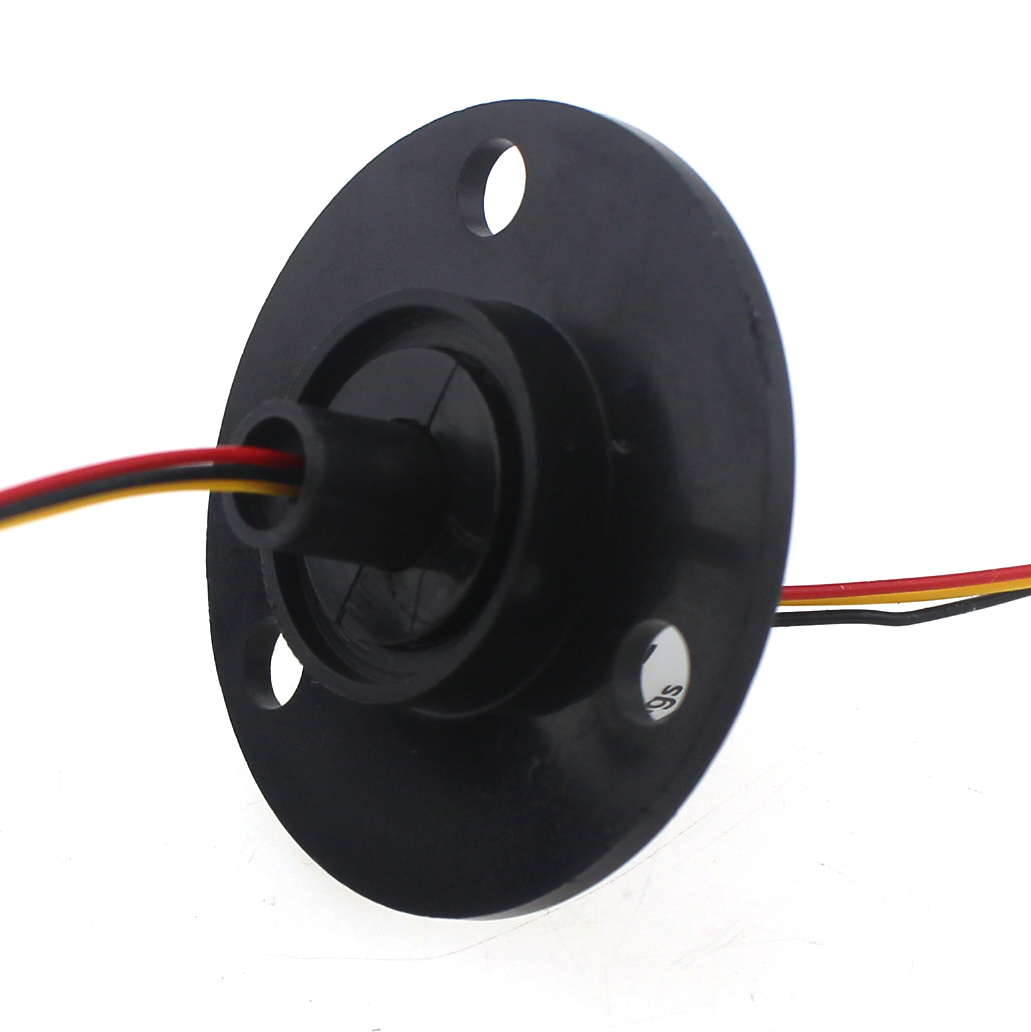

SR022-3
Capsule Slip Ring OD 22mm 3 Circuits 1A Electrical Contacts with CE,ROHS Certificated
The SR022-3, with 3 wires and compact 22.00mm body diameter, which we call our “mini”, is our newest design and smallest physical package.Uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
SR is a kind of standard cap slip ring with current 1A.
The internal structure of the reactor is more precise and compact with the domestic advanced surface treatment technology of military industry.
The use of gold-gold contact points ensures stability and service life, and is mainly used for civilian and commercial applications.
Smooth running, compact structure, low torque, compatible data bus protocol.
Color conductor is used to connect the stator and rotor to simplify the circuit connection.
The conductive ring adopts a 90-degree V groove design with smooth rotation, low torque and low electrical noise.
Class product integrated structure, advanced fiber brush technology, support power, signal mixed transmission.
Product information
| Path number | 3 |
| Rotate speed | 250 RPM/min |
| Rated current | 1A/ channel |
| Protection class | IP54 |
| Rated voltage | 220V |
| Contact material | Precious metal |
| Insulation resistance | 500mΩ @ 500VDC |
| Case material | engineering plastics |
| Electrical noise | 10 m Ω @ 6 VDC, 50 ma, 5 RPM |
| Torque | 0.01 N.M |
| Working life | is over 5 million revolutions |
| Bearing | high precision ball bearing |
| Working temperature | 40 ℃ ~ + 80 ℃ |
| Wire specification | AWG#28 Teflon wire UL |
| Relative humidity | 60% |
| Wire length | 250mm |
| Mechanical vibration | MIL- sid-810e |
| Certification | RoHS、CE |
| Inner diameter * outer diameter | 0 * 22mm |

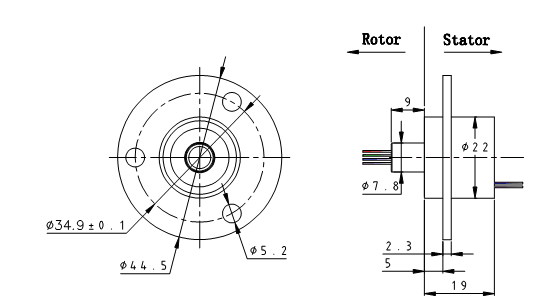

Dimensions（mm）
