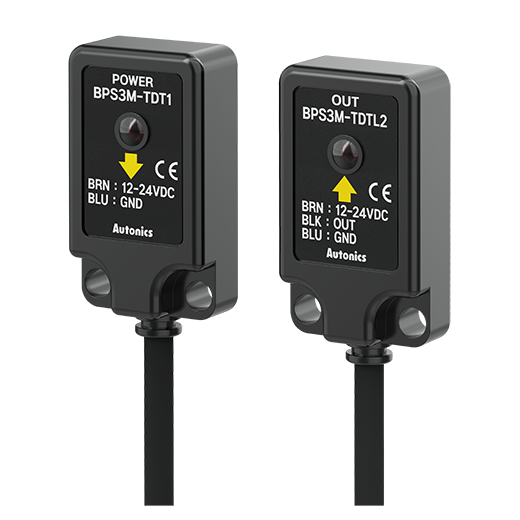

BPS3M-TDT
Autonics
Description:
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Ø5mm |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Dark ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø3, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP67 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Material | Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Weight | Approx. 66g |
