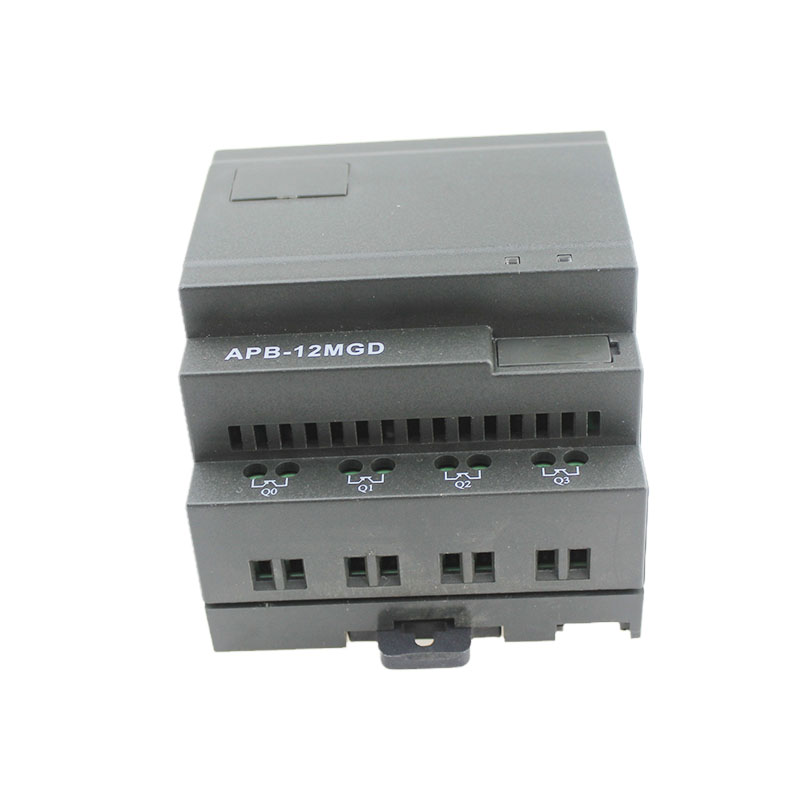

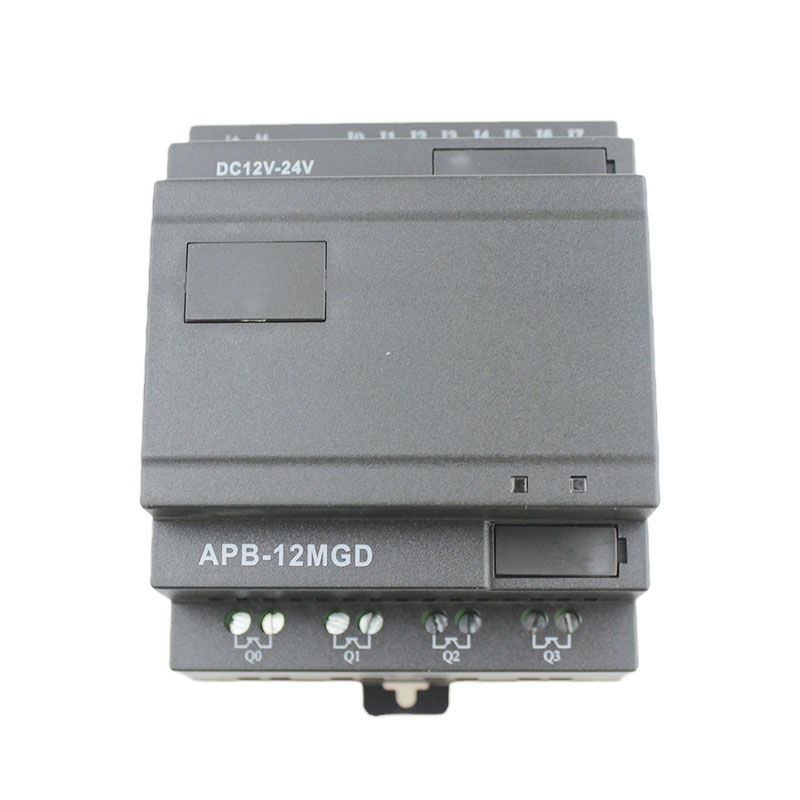

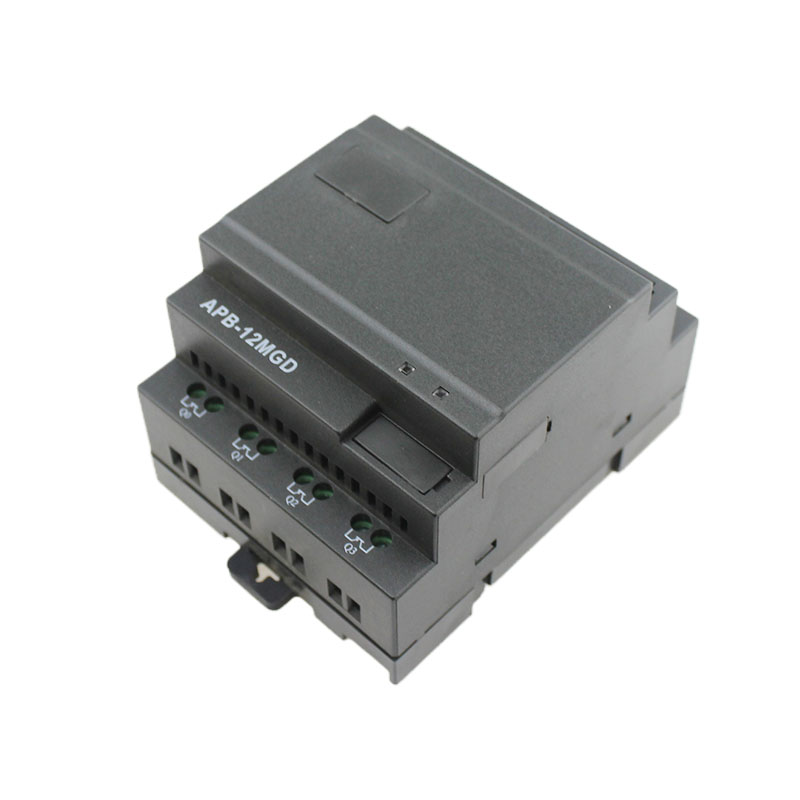

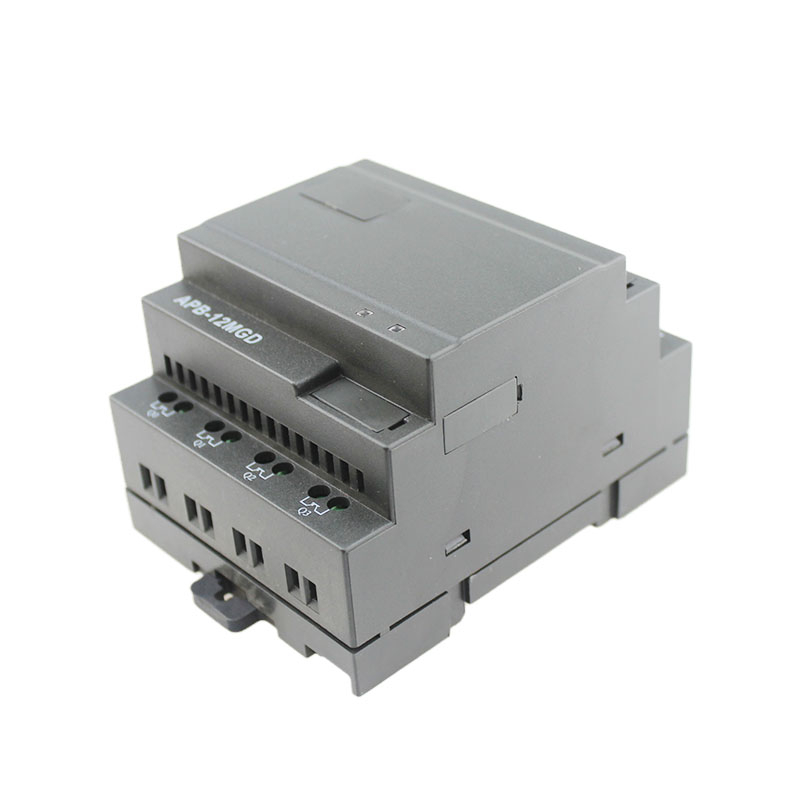

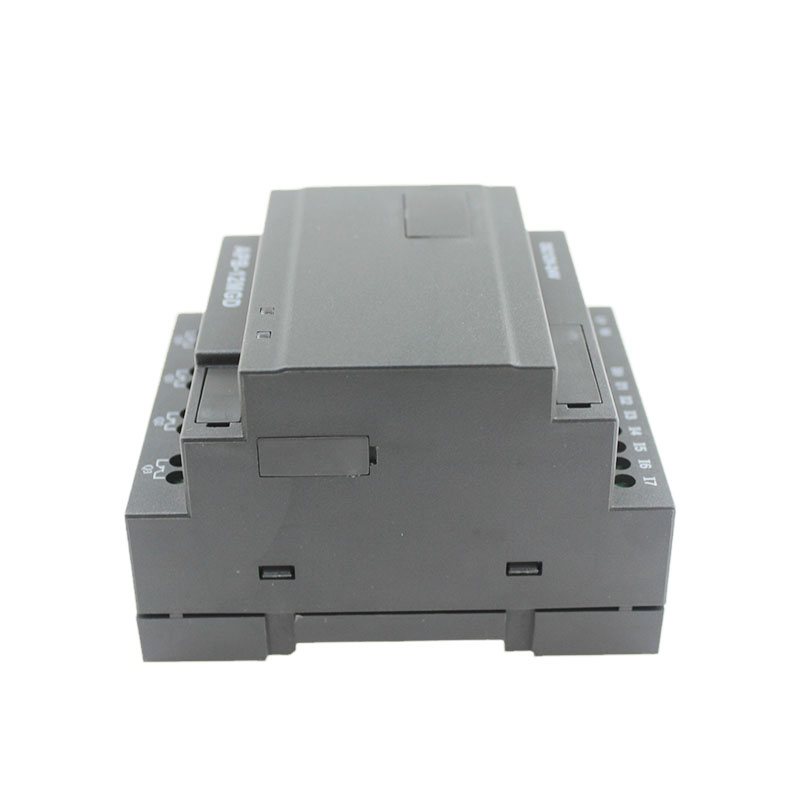

APB-12MGD
| Features: |
|
|
 It is allowed to place a Li-ion battery to power the clock; |
| Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA; |
| High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ; |
| MODBUS protocol, and can be connected to SH-300 (Text Panel); |
| New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.; |

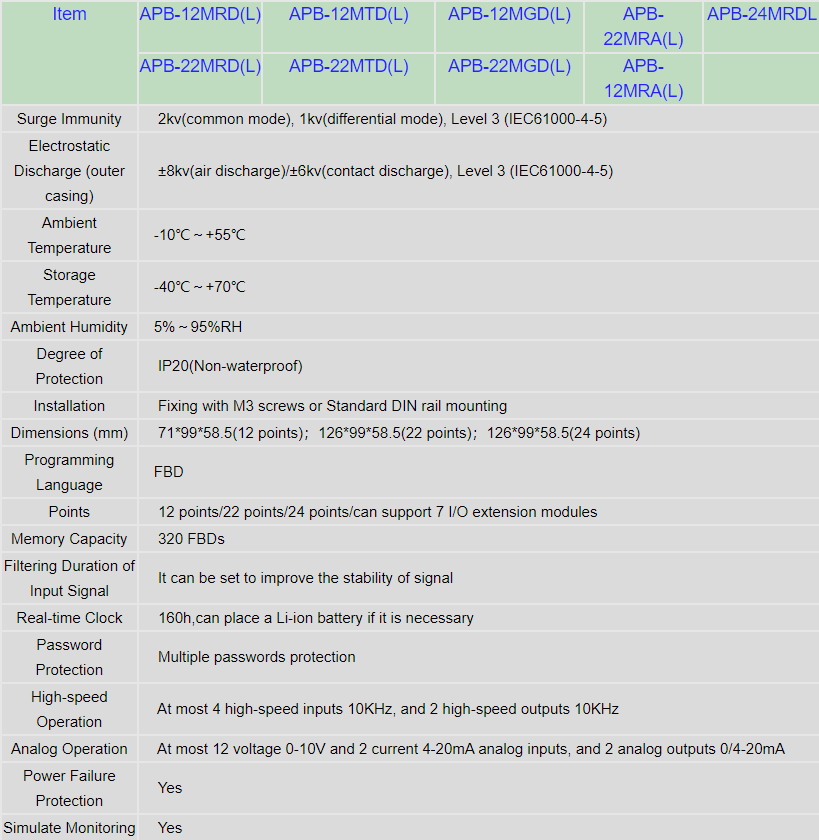

Technical Parameter
| Features: |
|
|
| It is allowed to place a Li-ion battery to power the clock; |
| Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA; |
| High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ; |
| MODBUS protocol, and can be connected to SH-300 (Text Panel); |
| New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.; |
Technical Parameter
