sensor LM12-3002LA IP67 two wire system NO connector inductive proximity switch sensor from China manufacturer

Model:
LM12-3002LA

Product Description

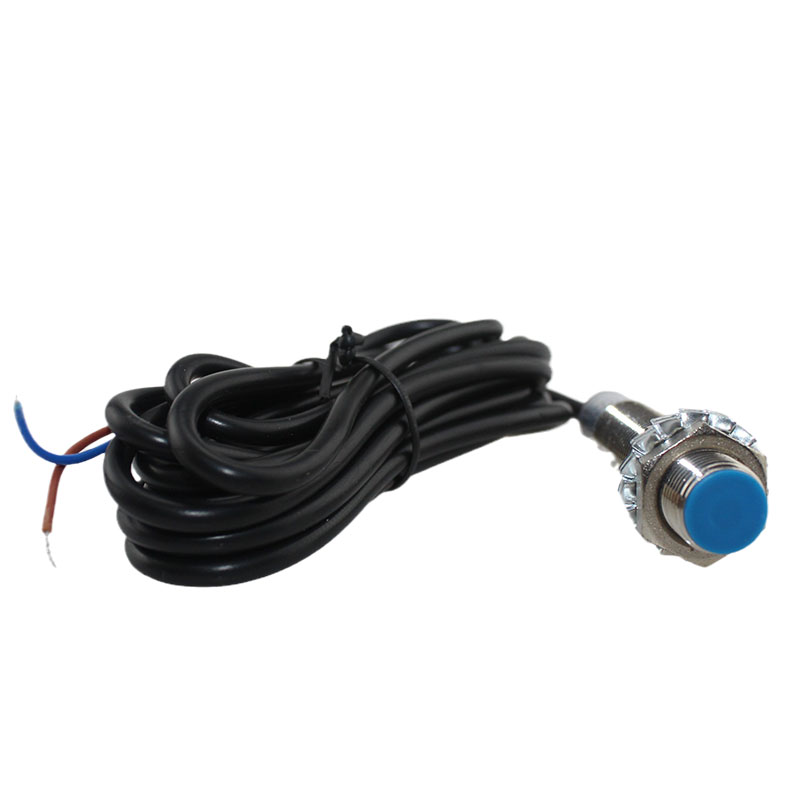

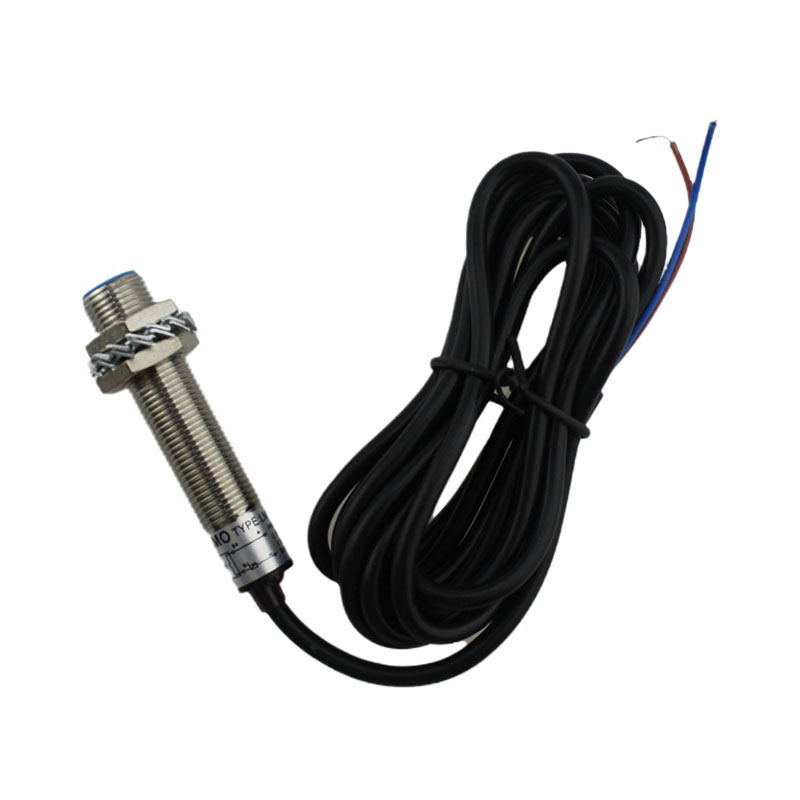

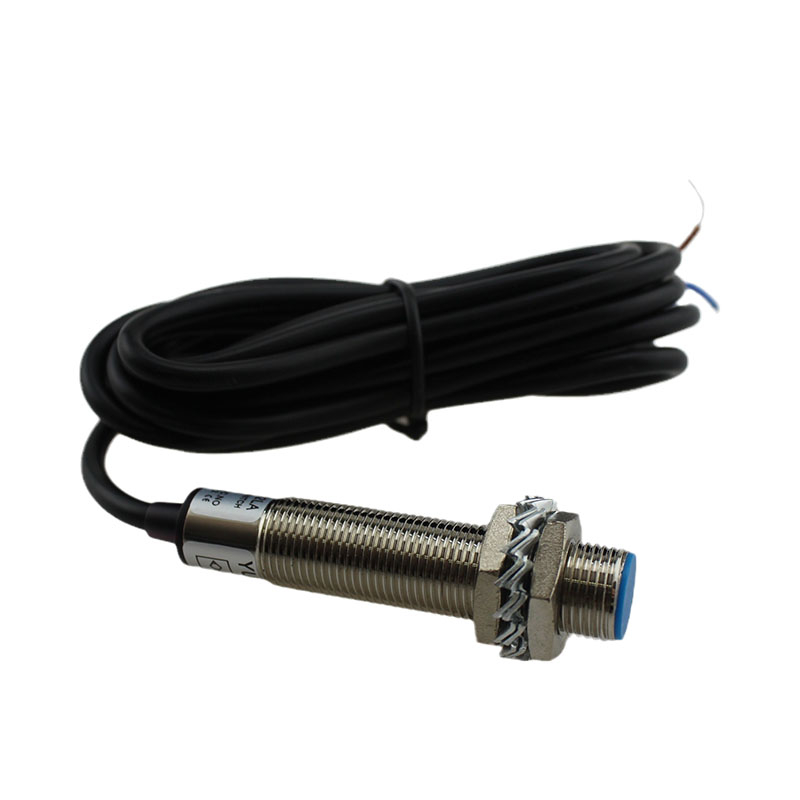

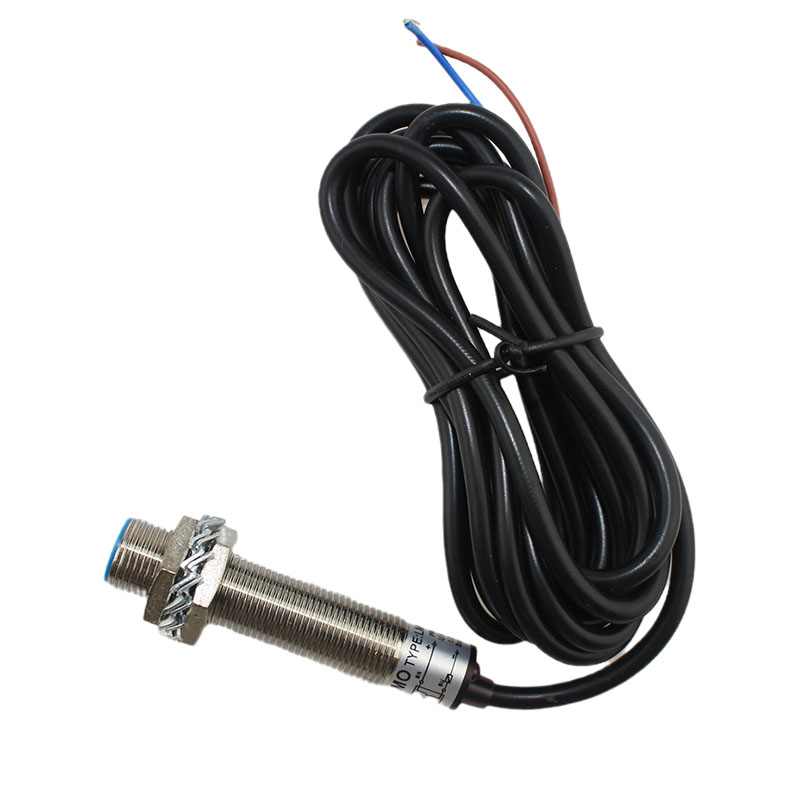

sensor LM12-3002LA IP67 two wire system NO connector inductive proximity switch sensor

Product Description

Main Features of proximity switch
1.Compact volume
2.High precision of repeated location
3.Diversified exterior structures
4.Good performance of anti-interference
5.Many output forms
6.High on-off frequency
7.Wide voltage range
8.Dust proof, vibtation proof, water proof and oil proof
9.With short-circuit protection and inverted connecting protection
10.Long service life

M12 Inductive proximity sensor switch
Detecting rang 2mm				part no.	other part no.	OMRON Omron part no.	Autonics Part no.
Flush	DC	NPN	NO	LM12-3002NA	LJ12A3-2-Z/BX	E2E-X2E1	PR12-2DN
			NC	LM12-3002NB	LJ12A3-2-Z/AX	E2E-X2E2	PR12-2DN2
			NO+NC	LM12-3002NC	LJ12A3-2-Z/CX
		PNP	NO	LM12-3002PA	LJ12A3-2-Z/BY	E2E-X2F1	PR12-2DP
			NC	LM12-3002PB	LJ12A3-2-Z/AY	E2E-X2F2	PR12-2DP2
			NO+NC	LM12-3002PC	LJ12A3-2-Z/CY
		2 Wires	NO	LM12-3002LA	LJ12A3-2-Z/EX
		2 Wires	NC	LM12-3002LB	LJ12A3-2-Z/DX
	AC	SCR	NO	LM12-2002A	LJ12A3-2-J/EZ	E2E-X2Y1	PR12-2AO
		SCR	NC	LM12-2002B	LJ12A3-2-J/DZ	E2E-X2Y2	PR12-2AC
			NO+NC
		Relay output
Detecting rang 4mm
Non-flush	DC	NPN	NO	LM12-3004NA	LJ12A3-4-Z/BX	E2E-X5ME1	PR12-4DN
			NC	LM12-3004NB	LJ12A3-4-Z/AX	E2E-X5ME2	PR12-4DN2
			NO+NC	LM12-3004NC	LJ12A3-4-Z/CX
		PNP	NO	LM12-3004PA	LJ12A3-4-Z/BY	E2E-X5MF1	PR12-4DP
			NC	LM12-3004PB	LJ12A3-4-Z/AY	E2E-X5MF2	PR12-4DP2
			NO+NC	LM12-3004PC	LJ12A3-4-Z/CY
		2 Wires	NO	LM12-3004LA	LJ12A3-4-Z/EX
		2 Wires	NC	LM12-3004LB	LJ12A3-4-Z/DX
	AC	SCR	NO	LM12-2004A	LJ12A3-4-J/EZ	E2E-X5MY1	PR12-4AO
			NC	LM12-2004B	LJ12A3-4-J/DZ	E2E-X5MY2	PR12-4AC
			NO+NC
		Relay output
Sensor Characteristics
Output current	DC	200mA
Output current	SCR/relay	300mA
Output voltage drop		DC(NPN;PNP)type <3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V
Consumption current		DC(NPN;PNP) DC 12V 8mA;24V 15mA; AC type: AC <10mA DC<15mA;AC<10mA
Standard detected object		15×15×1(A3 Iron)
Repeated precision		0.01
Response Frequency		400Hz/25Hz
Working environment temperature		-25℃ ~+75℃
Insulation resistance		≥50MΩ
Shell material		Metal
Protection grade		IP67
Alternative model		E2E-X5M*
