PR-12 range is advanced level model, incorporating a good mix of digital & analogue IO , Integrated High Speed inputs
and PWM output, counters, timers,real time clock and time switch functions. Available in 120V/240VAC or 12V/24VDC
versions ;Easy to configure with drag-and-drop function blocks or ladder using FREE xLogicSoft software.
PR-12 range offers 4-line detachable LCD display and keypad for modifying parameters or display and control whilst
program is running.

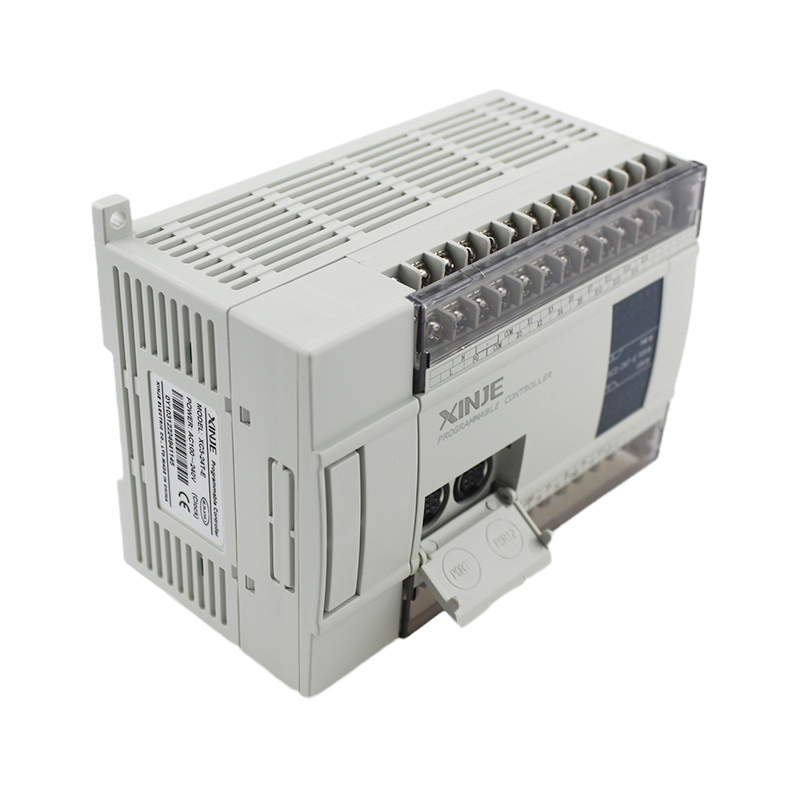

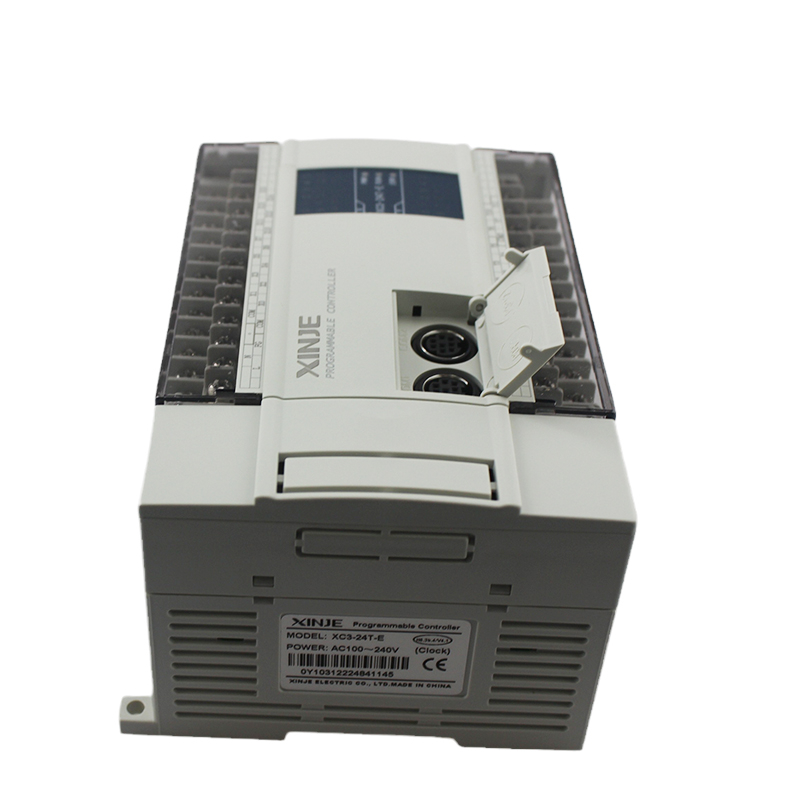

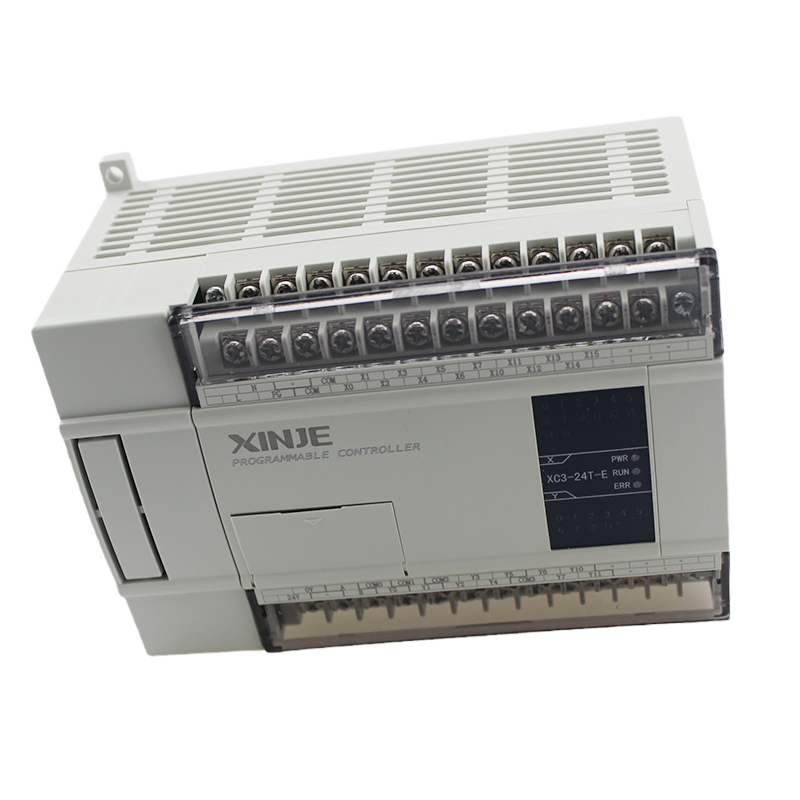

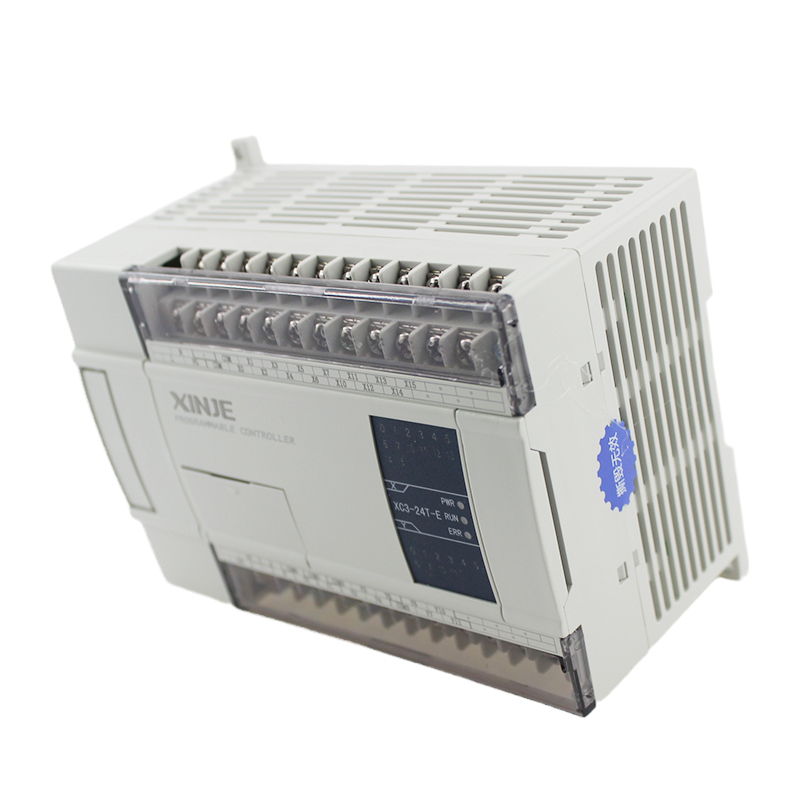

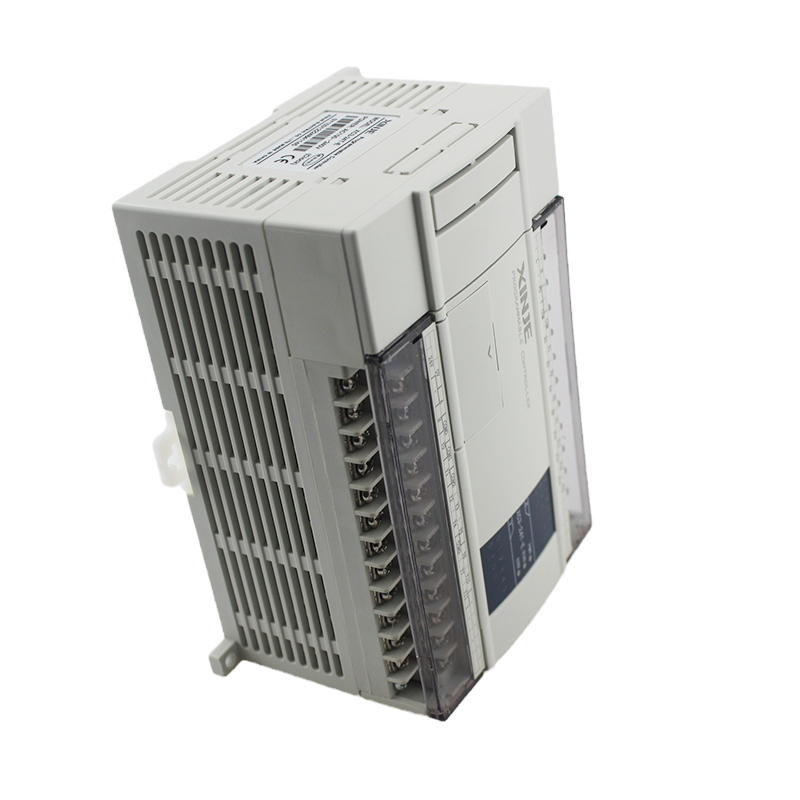

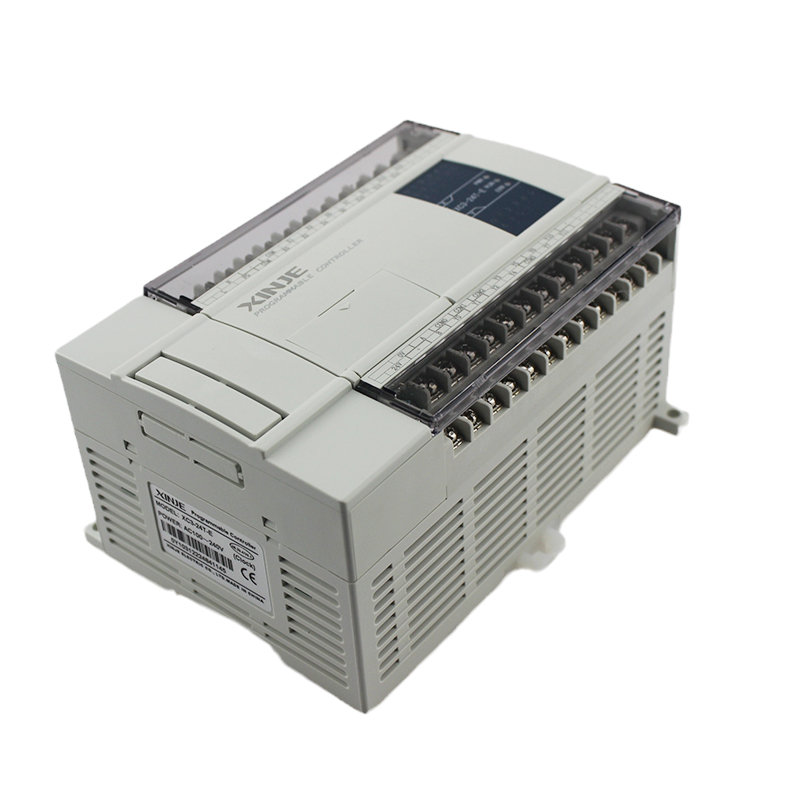

XC3-24T-E
Xinjie
Programmable Relay PR-12 Series (Economic Range) Overview
Economy PR-12 range is the entry level model of xLogic Micro PLC family, able to process up to 64
function blocks in a single program, also is the perfect maintenance product, and yet can adequately
control a new process from the start. Economy PR-12 Series is capable of replacing many of the discrete
components(such as multiple timers, relays, contactors and counters etc) used in conventional systems,
opening up a whole new range of possibilities for economical simple control solutions. Economy
PR-12 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse
counting capabilities, but analog inputs also are available, clock with calendar, counters , timers, and
available in 120/240VAC or 12V/24VDC versions,Easy to configure with drag-and-drop function blocksusing FREE xLogicSoft software.
GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks:64
Operation temp. :-20℃-55℃
Storage :-40℃-70℃
Protection: IP20(Non-waterproof)
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Dimensions: 72*90*58 (Unit, mm）
Certificate: CE,C-UL,ROSH,REACH
Installation: 35mm-DIN rail or screw for installation
Modify parameters via keypad LCD：no
Password protection : 4-digit number password protection or disable program upload function
Communication interface : 1 Program/RS232 port ( TTL interface)
Communication protocol : Modbus RTU/ASCII
Technical Index
Power supply: | |
Nominal voltage | DC 12-24V |
Operating limits | DC 10.8-28.8V |
Immunity from micro power cuts | Typ.5 ms |
Max. Startup current | Max. 0.25A |
Max. absorbed power | 3.2 W (10.8V dc) ; 3.8 W (28.8V dc) |
Protection against polarity inversions | Yes |
Input parameters: | |
Input No | 8 ( I1-I8 ) |
Digital input | 8 ( I1-I8 ) |
Analogue input | 4 ( I1-I4)(0..10V DC) |
Digital inputs( I5-I8 ) | |
Input voltage | DC0-28.8V |
Input signal0 | < 5V DC; <1mA |
Input signal1 | > 8 V DC;>1.7mA |
Input current | 2.3mA @ 10.8V dc |
Response time | 0 to 1 ：<1 ms ；1 to 0 ：<1 ms |
Maximum counting frequency | Typ.：4 HZ |
Sensor type | Contact or 3-wire PNP |
Input type | Resistive |
Isolation between power supply and inputs | None |
Isolation between inputs | None |
Inputs used as digital inputs( I1-I4 ) | |
Input voltage | DC0-28.8V |
Input signal0 | < 5V DC;<0.1mA |
Input signal1 | > 8 V DC;>0.3mA |
Input current | 0.4mA @ 10.8V dc |
Response time | 0 to 1 ：Typ. 1.5 ms ；1 to 0 ：Typ. 1.5 ms |
Maximum counting frequency | Typ.：4 HZ |
Sensor type | Contact or 3-wire PNP |
Input type | Resistive |
Isolation between power supply and inputs | None |
Isolation between inputs | None |
Inputs used as analog inputs( I1-I4 ) | |
Measurement range | DC 0---10V |
Input impedance | Min, 24KΩ ; Max. 72KΩ |
Input voltage | 28.8 V DC max |
Resolution | 9bit ,0.015V |
Accuracy at 25 °C | ± (Max.0.03)V |
Accuracy at 55 °C | ± (Max.0.06)V |
Isolation between analog channel and power supply | None |
Cable length | 10 m max. shielded and twisted |
Output parameters: | |
Output No. | 4 (Q1-Q4) |
Output type | Relay output |
Max. Allowable Power Force(Resistive) | CE: 10A,250V AC/DC30V |
Electrical durability Expectancy | 105 Operations at Rated Resistive Load |
Mechanical life | 107 Operations at No Load condition |
Response time | Operate Time : 15 mSec. Max. |
Built-in protections | Against short-circuits: None |
Switch frequency: | |
Mechanism | 10Hz |
Resistor/light load | 2Hz |
Sensitive load | 0.5Hz |
Other parameters: | |
Weight | Approx.300g |
Installation Dimensions
Wiring Diagram
Input&Output
