SDL16-CB8325
SDL16 button series
| Environment | |
| Reached standard | IEC60947-5-1; GB/T14048.1, GB14048.5 |
| Surrounding temperature | Operation: -5℃~+55℃, Storage: -25℃~+70℃ |
| Anti-vibration property | Mushroom head button : 10g, other buttons and indication lamp:15g(40Hz<Frequency<200Hz) |
| Anti-impact | Button:70g Mushroom head button: 15g, Selector switch : 200g |
| Protection grade | IP65:Flush head and extended head, with or without indication lamp button (installation) |
| IP65: Button with cover | |
| Mechanical | Button: 3 million times operation,“ Emer gency stop button”:300 thousand times operation |
| Rated operating character | AC-15 : A600 or Ue=240V & Ie=3A DC-13 : Q600 or Ue=250V & Ie=3A |
| Rated insulation voltage | Ui=600V, pollution grade is 3 |
| Rated withstanding impulse voltage | Uimp=6kV |
| Contact operation | Slow breaking (NC or NO) |
| Reliable operation | Safe mounting (Mushroom head shape: “Emergency stop ping”button:Breaking of NC contact is reliable |
| Operating pressure | Flush button and convex button : 1DAN and 1 NC contact: 0.8DAN |
| Auxiliary contact : +0.5DAN and NC: +0.3DAN | |
| Short-circuit protection | 10A fuse type complies with IEC269-1, GB14048.3 |
Technical Specifications
| Description | Contact | Circuit | Color | Type | Contour |

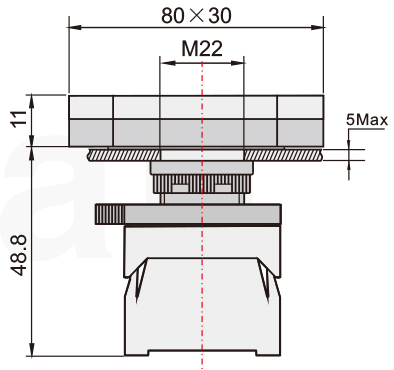

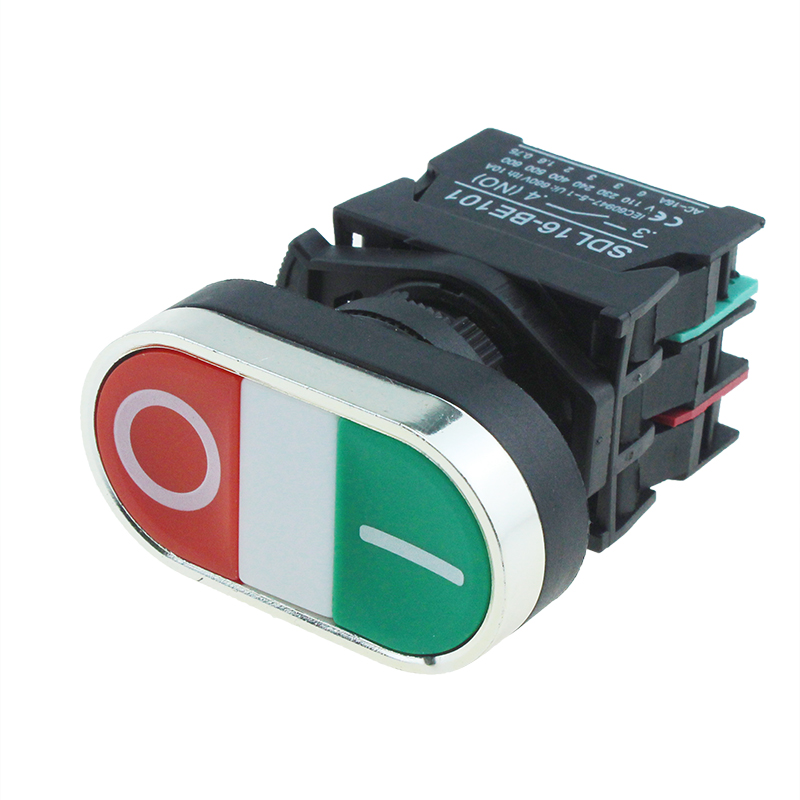

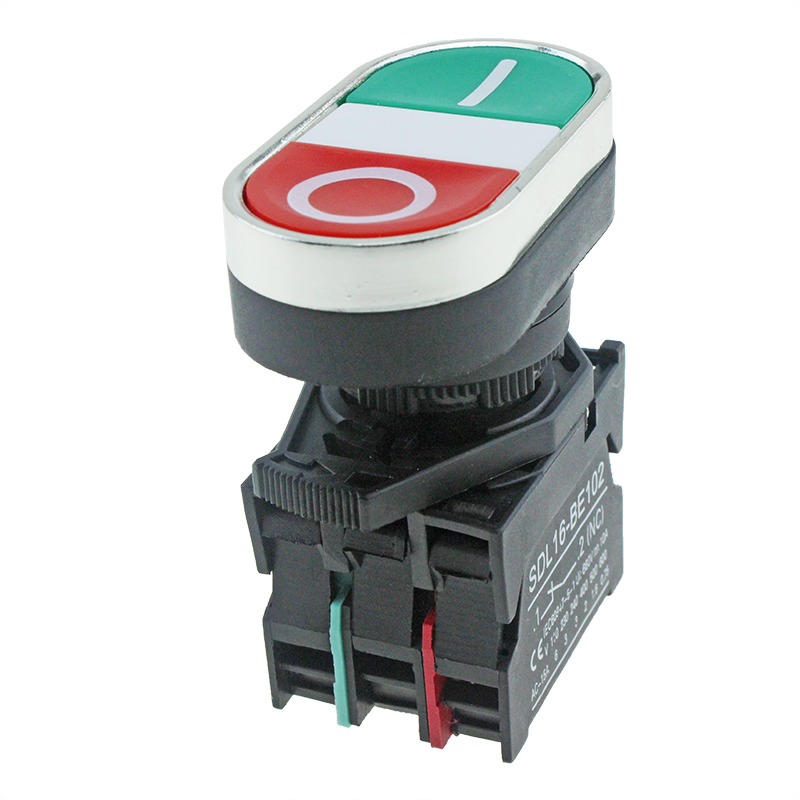

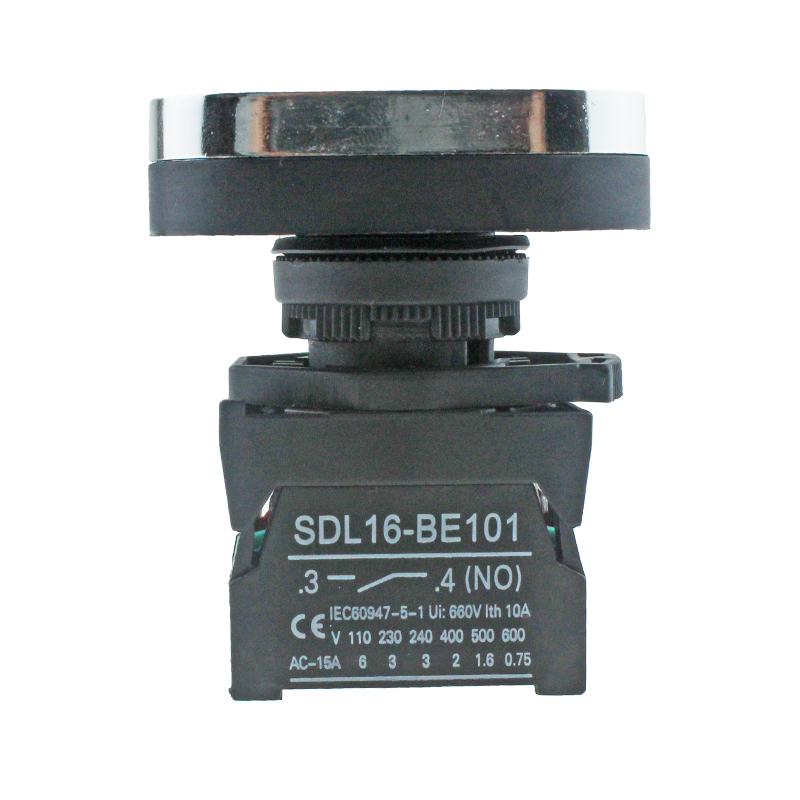

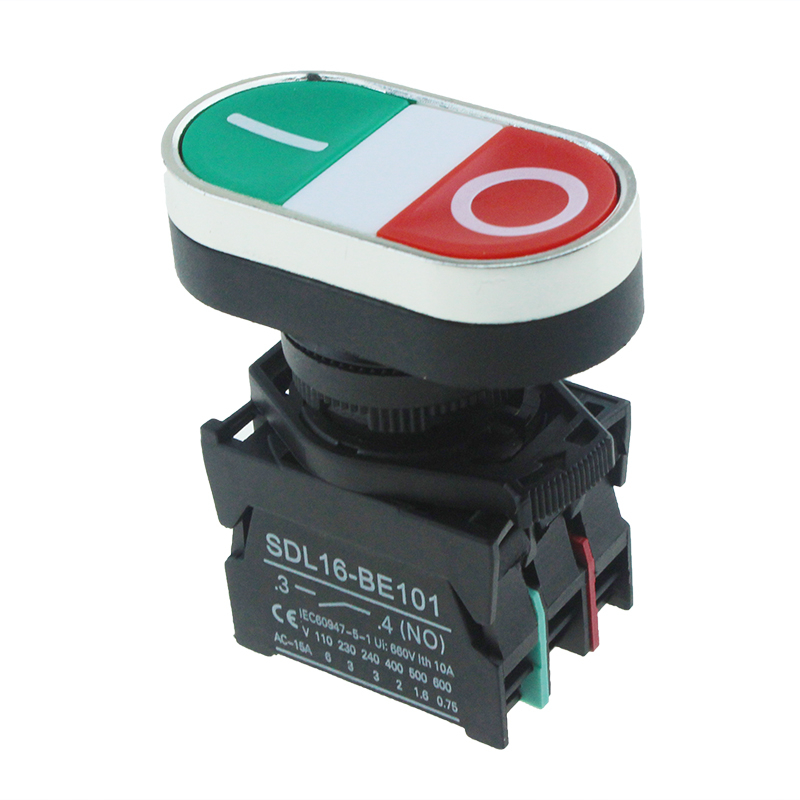

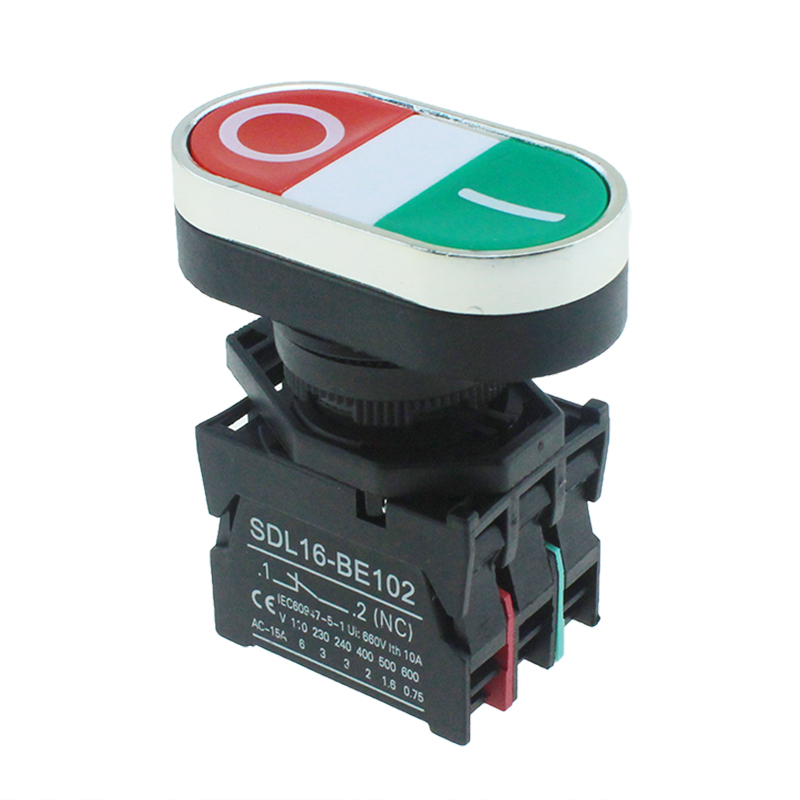

| Without pilot light 1 flush green pushbutton 1 flush red pushbutton Marked IP40 | N/O + N/C |  |  | SDL16-CB8325 |  |
