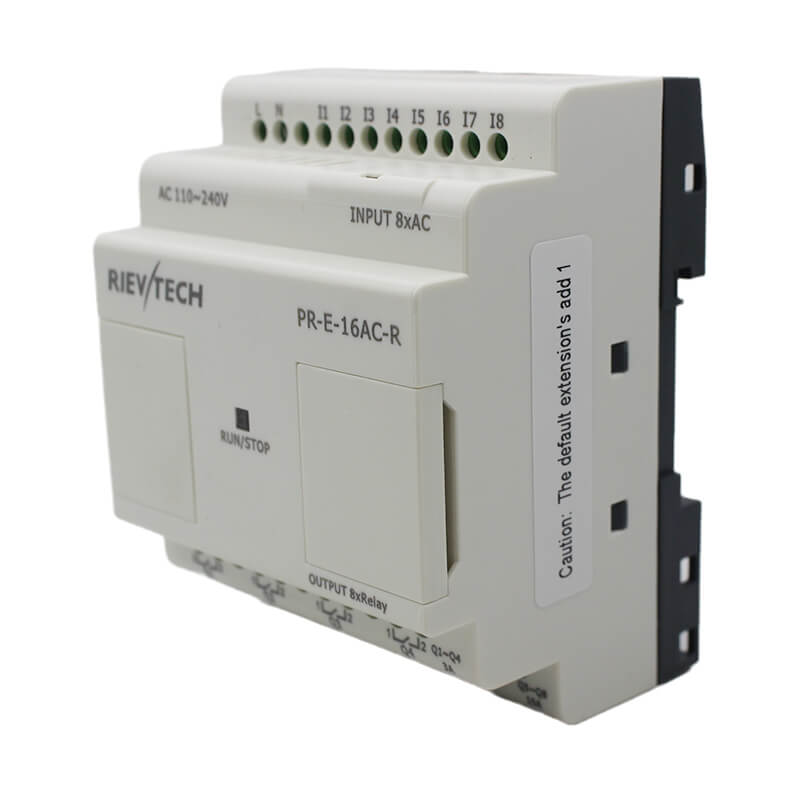

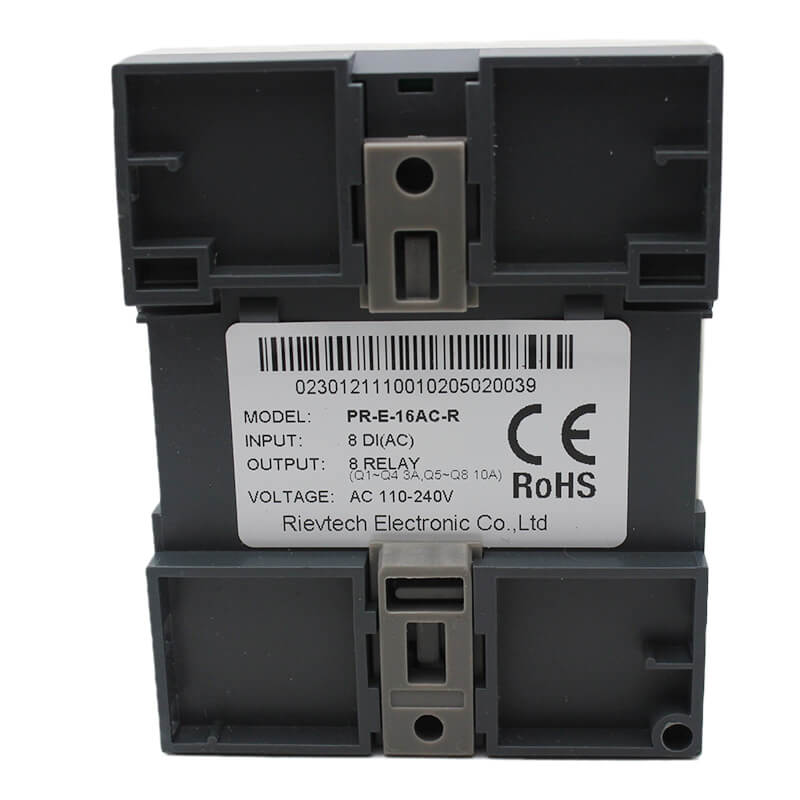

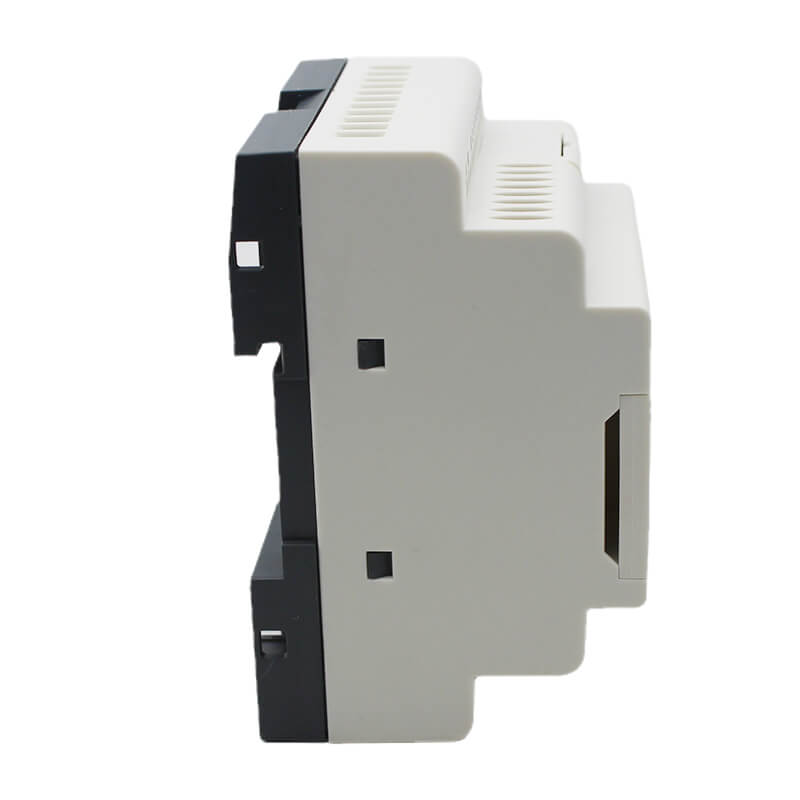

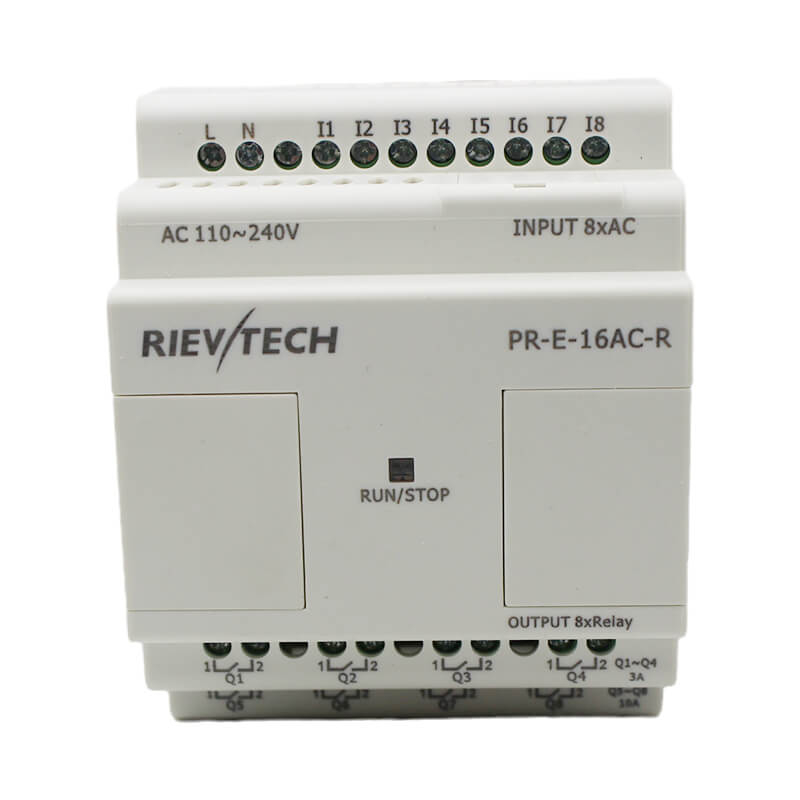

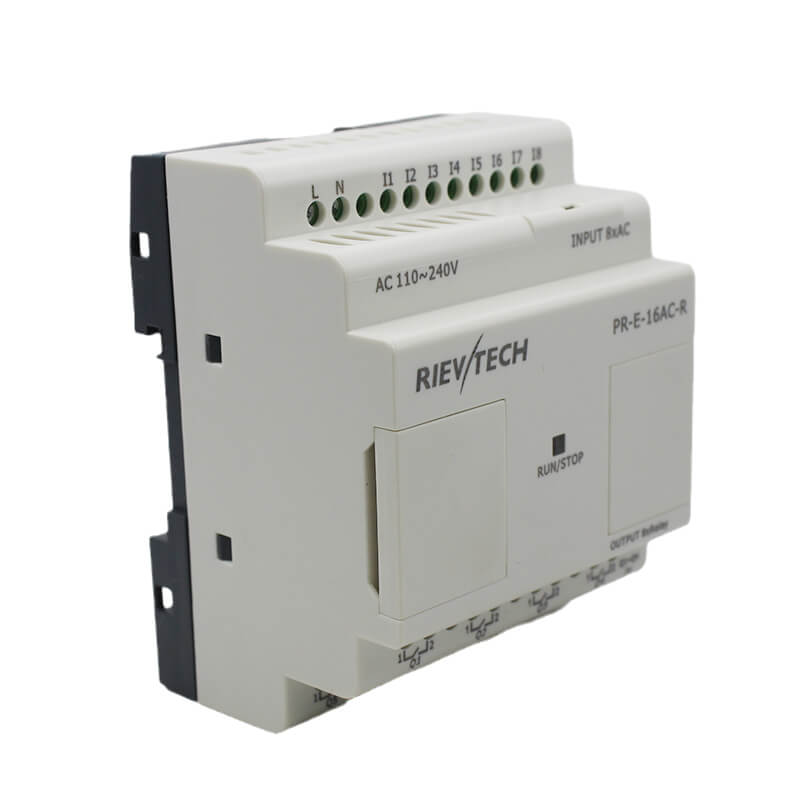

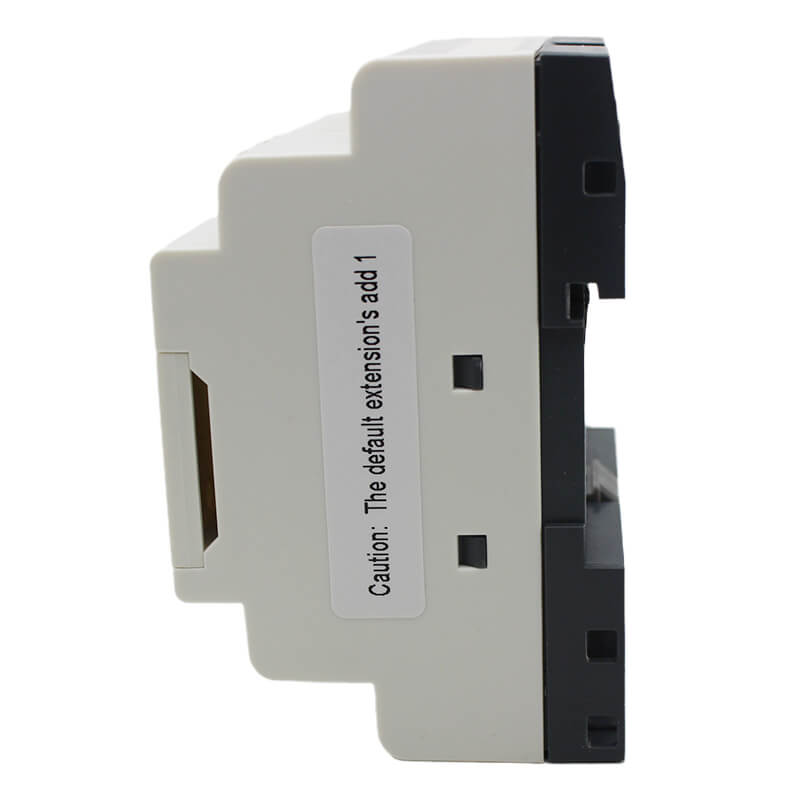

Programmable Logic Control Systems PR-E-16AC-R in Stock PLC
PR-E-16AC-R Datasheet:
| Power supply | |
| Power | AC110V-240V |
| Input parameters: | |
| Input No | 8 (I1-I8) |
| Digital input | 8 ( I1-I8) |
| Analogue input | None |
| Power range | AC 0-240V |
| Input signall | AC 0-40V Input current: <0.03mA |
| Input signal1 | AC79-240V Input current: >0.08mA |
| Output parameters: | |
| Output No | 8 (Q1-Q8) |
| Output type | Relay output |
| Continuous current | Q1-Q4(3A),Q5-Q8(10A) |
| Switch frequency: | |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: | |
| The main frequency range | 47-63Hz |
| Operation temp. | 0ºC-55ºC |
| Storage | -40ºC-70ºC |
| Mounting | On 35-mm DIN rail, 4 WM wide, or wall mounting |
| Weight | Approx.250g |
| Certificate | CE |
