AC1500, AC2000, BC2000, BC3000, BC4000

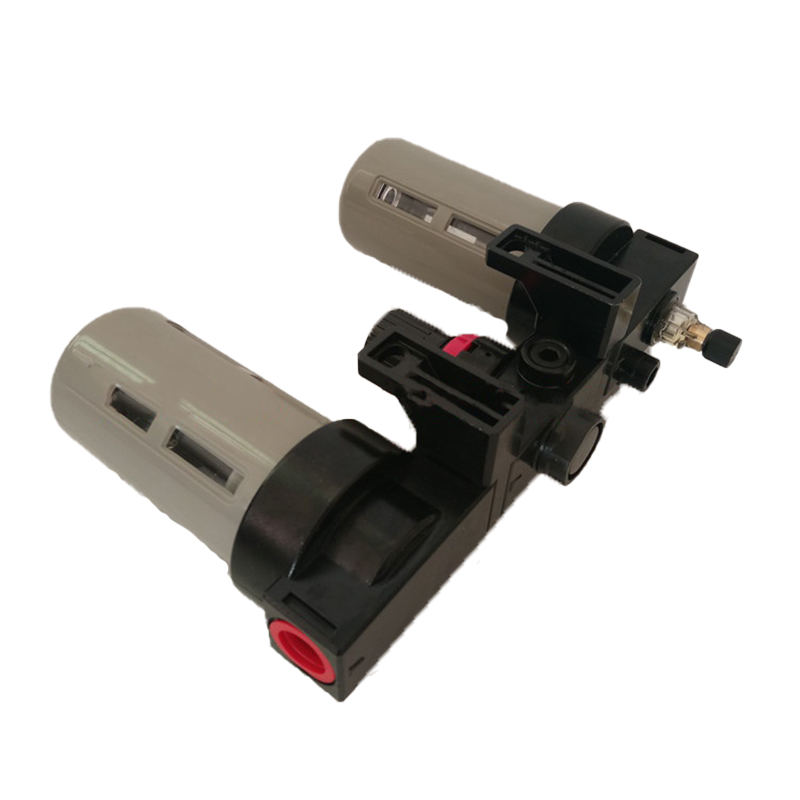

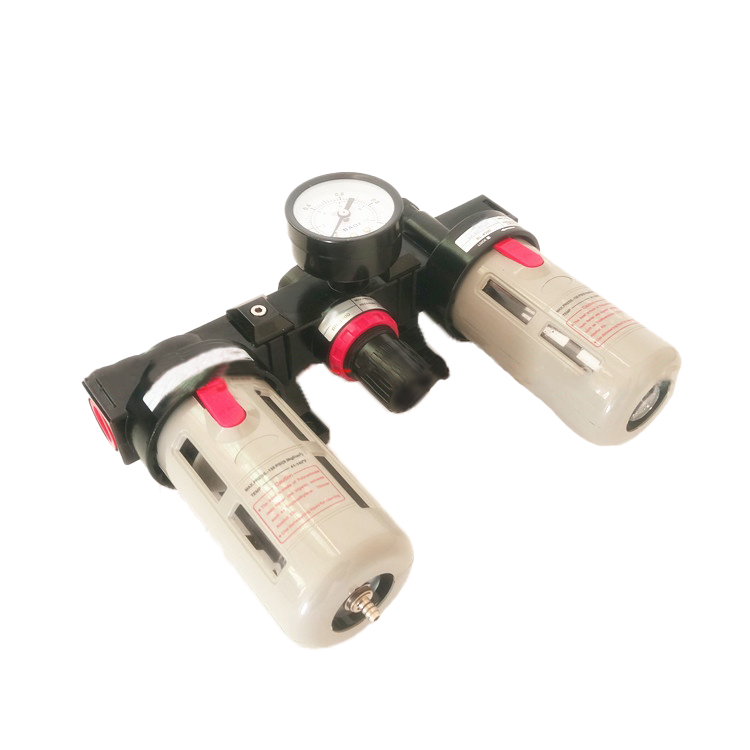

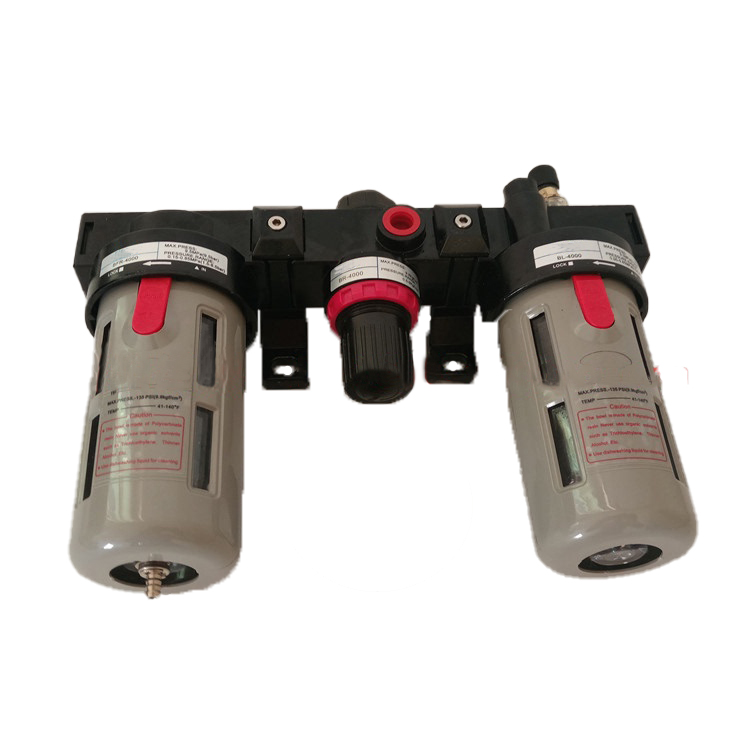

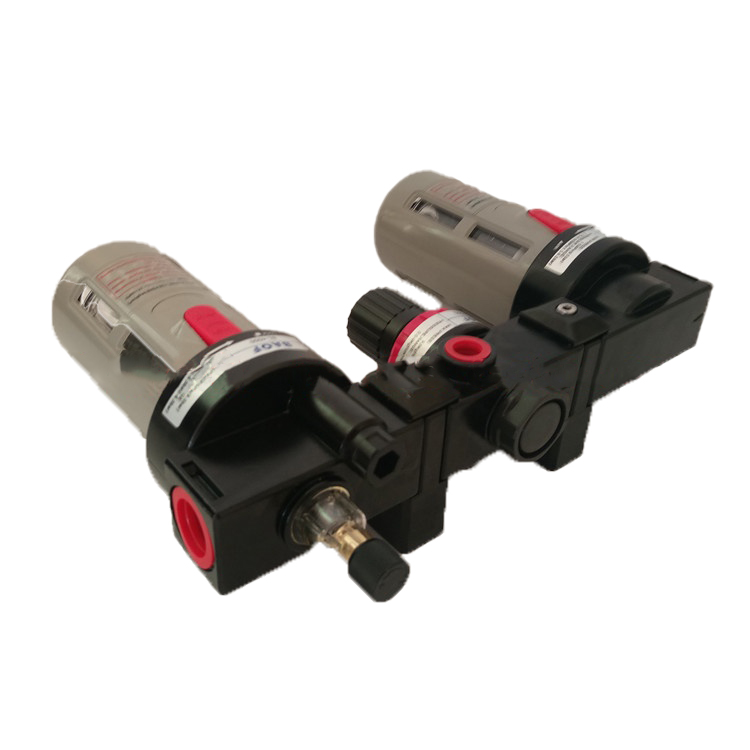

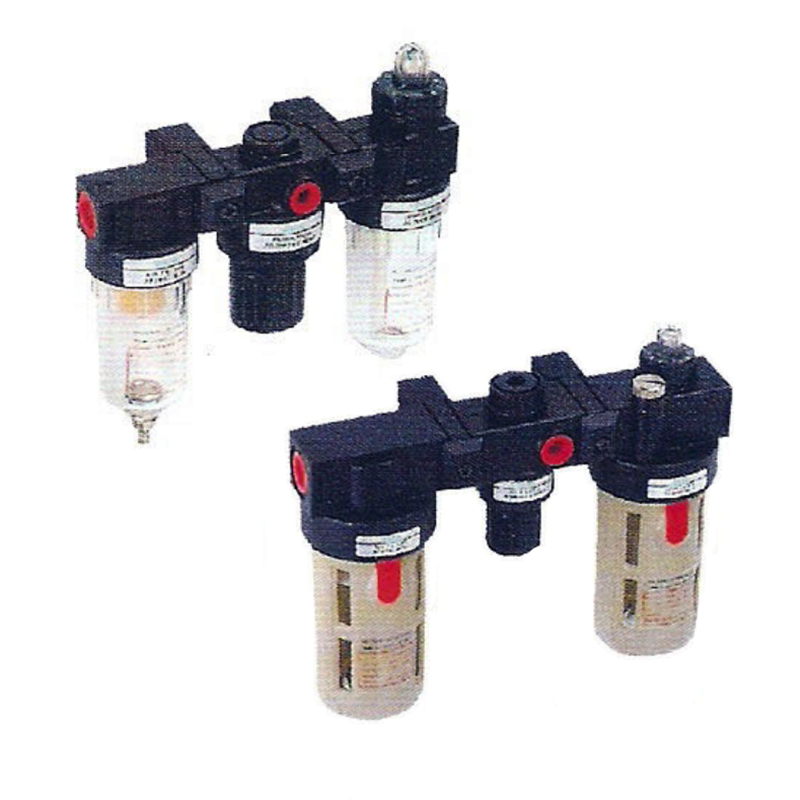

pneumatic airtac type ac//bc Series compressor air pressure filter regulator Combination (F.R.L combination)
How to order?
Product Type: eg. AC 2000 D
1. Type
AC: Small Size
BC: Middle Size
2. Joint Pipe Bore
1500: G1/8''
2000: G1/4''
3000: G3/8''
4000: G1/2''
3. Drain Type
If it is blank: Differential Drain
D: Automatic Drain
Specification:
| Type | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 |
| Operating Fluid | Air | ||||
| Joint Pipe Bore | G1/8'' | G1/4'' | G1/4'' | G3/8'' | G1/2'' |
| Filtering Element Roughness | 40μ | ||||
| Range of Adjustable Pressure | 0.05~0.85MPa | ||||
| Max. Adjustable Pressure | 0.95MPa | ||||
| Ensured Pressure Resistance | 1.5Mpa | ||||
| Operating Temperature Range | 5-60℃ | ||||
| Capacity of Filter Cup | 15 cc | 60 cc | |||
| Cpacity of Oil Feed Cup | 25 cc | 90 cc | |||
| Suggested Lube | ISO VG 32 or Same Grade Oil | ||||
| Weight | 0.7KG | 0.9KG | |||
| AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | ||
| Material | Body | Aluminum Die-casting Forming | ||||
| Container Cup | PE | |||||
| Protective Cup Cover | Iron | |||||
| Composing Elements | Filter | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
