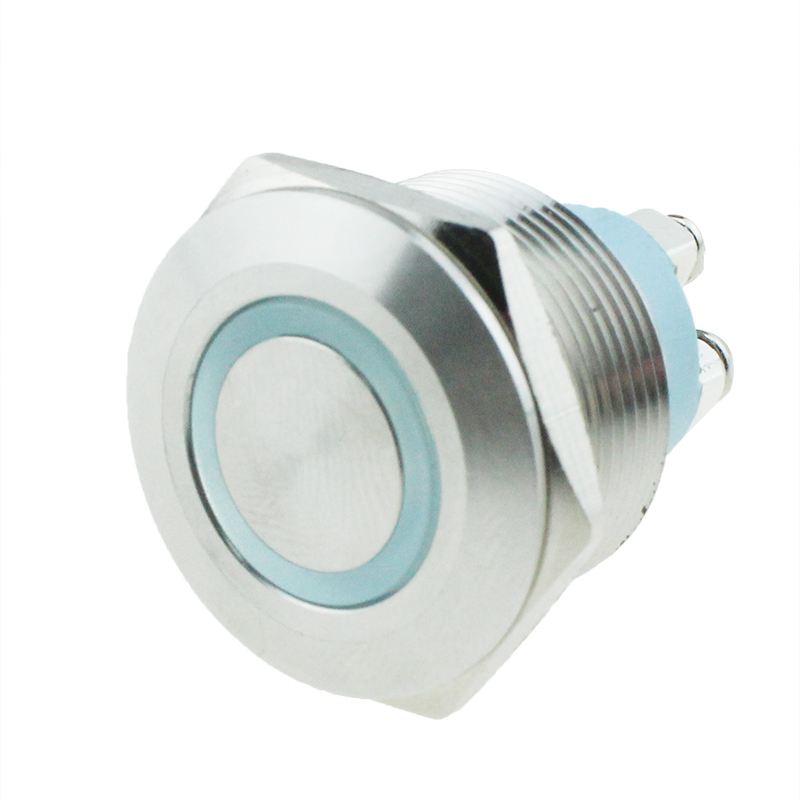

Metal push button JS22F-11E-W-12V-S Selevator equipment waterproof LED button

Metal Switch Features
1,With the stability of the connection performance,the use of security equipment.
2,Beautiful,high end ,fashion design
3,Medical grade imported stainless stell material,environmental is beautiful with no rust.
4,Protection performance IP65,waterproof,dust can be competent for the harsh environment.
5,Compact design,compact size,can be used for any small equipment.

Availability:
Inquire Add to Basket

  • JS22F-11E-W-12V-S

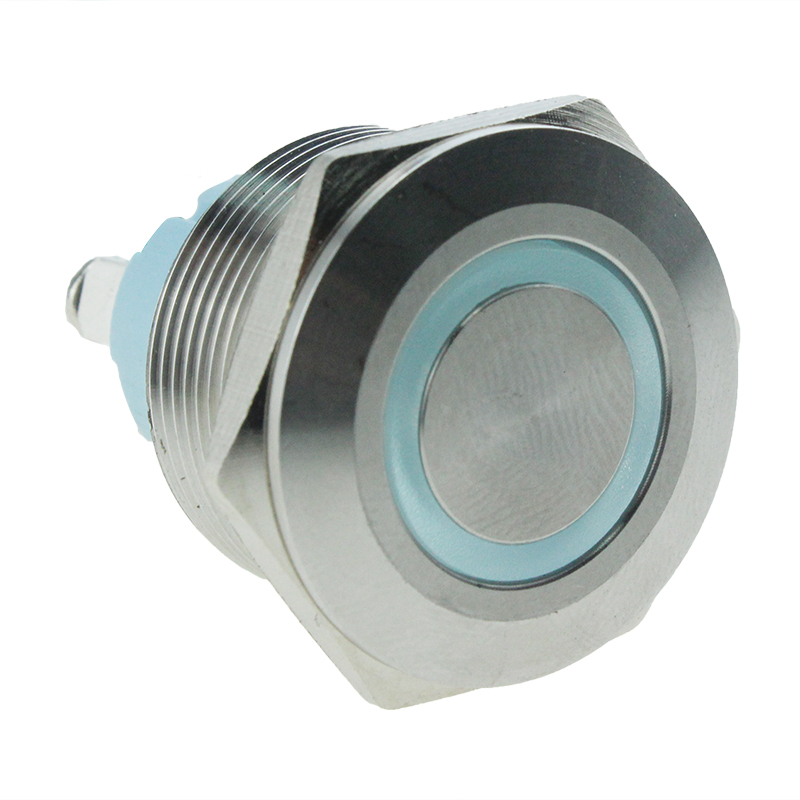

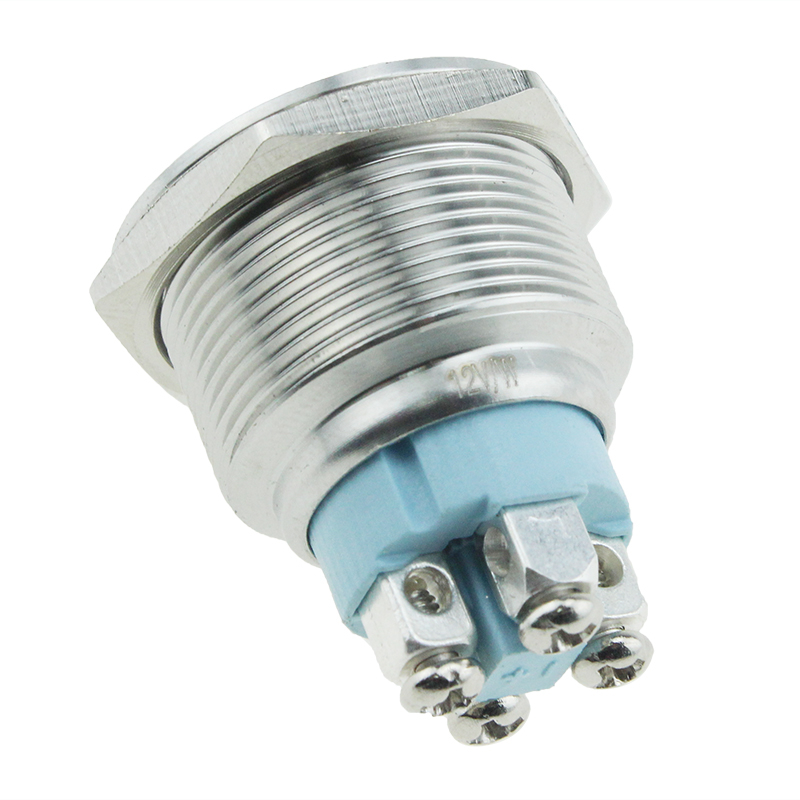

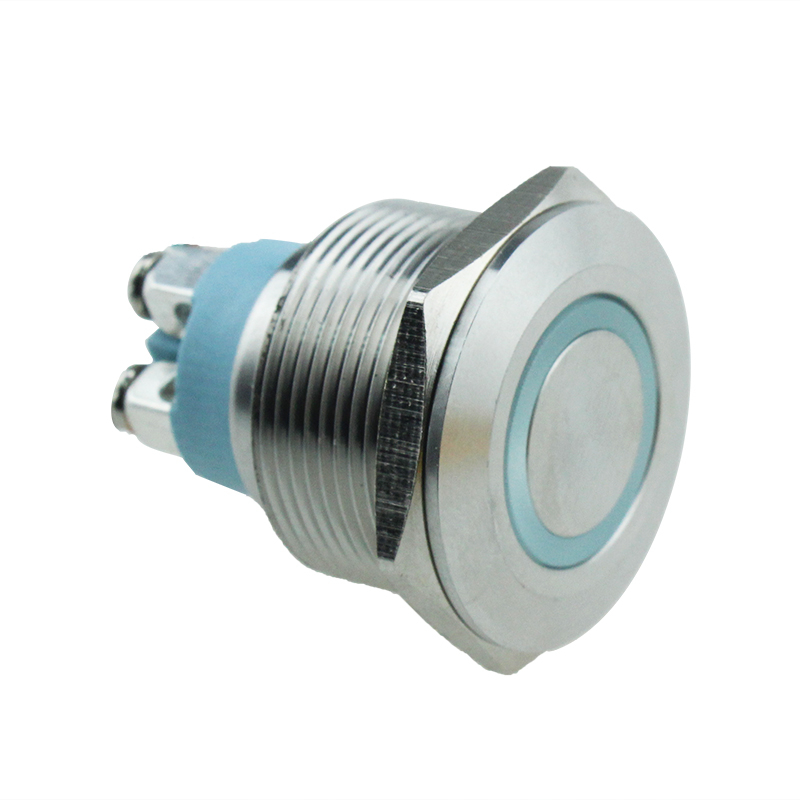

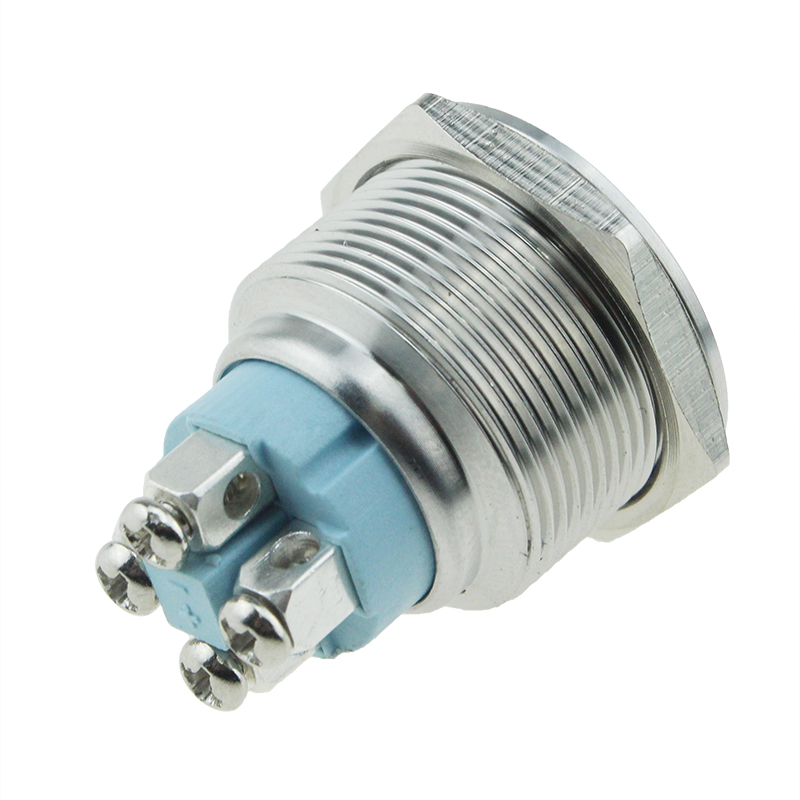

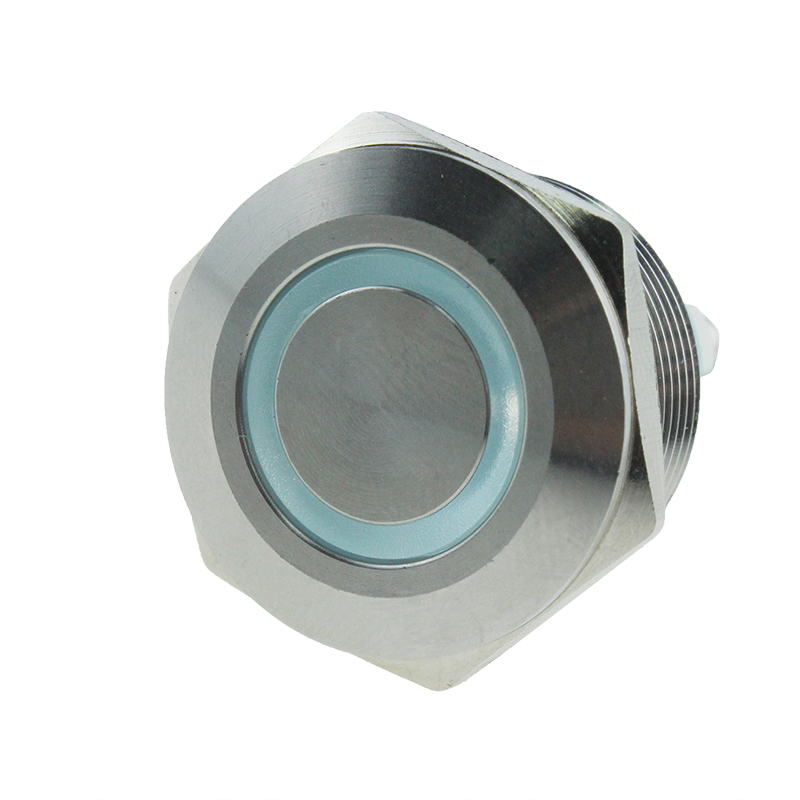

Metal push button JS22F-11E-W-12V-S  Selevator equipment waterproof LED



The Front Shape Flat Round
Terminal Type Pin Terminal(2.8x0.5mm)
Switching NO.2
Max.Switch Rating Ith:5A Ui:250VAC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃-+55℃
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~8mm
Tortque 5~ 14Nm
Operation Pressure About 5.5N
Operation Distance About 2.5mm
IP Degree IP65 IK10
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel
Base PA
LED Specl Type Ring Illuminated(LED)
Rated voltage 6V/12V/24V/36V/110V/220V
Color R  G  Y  O  B  W
Life 40000 hours

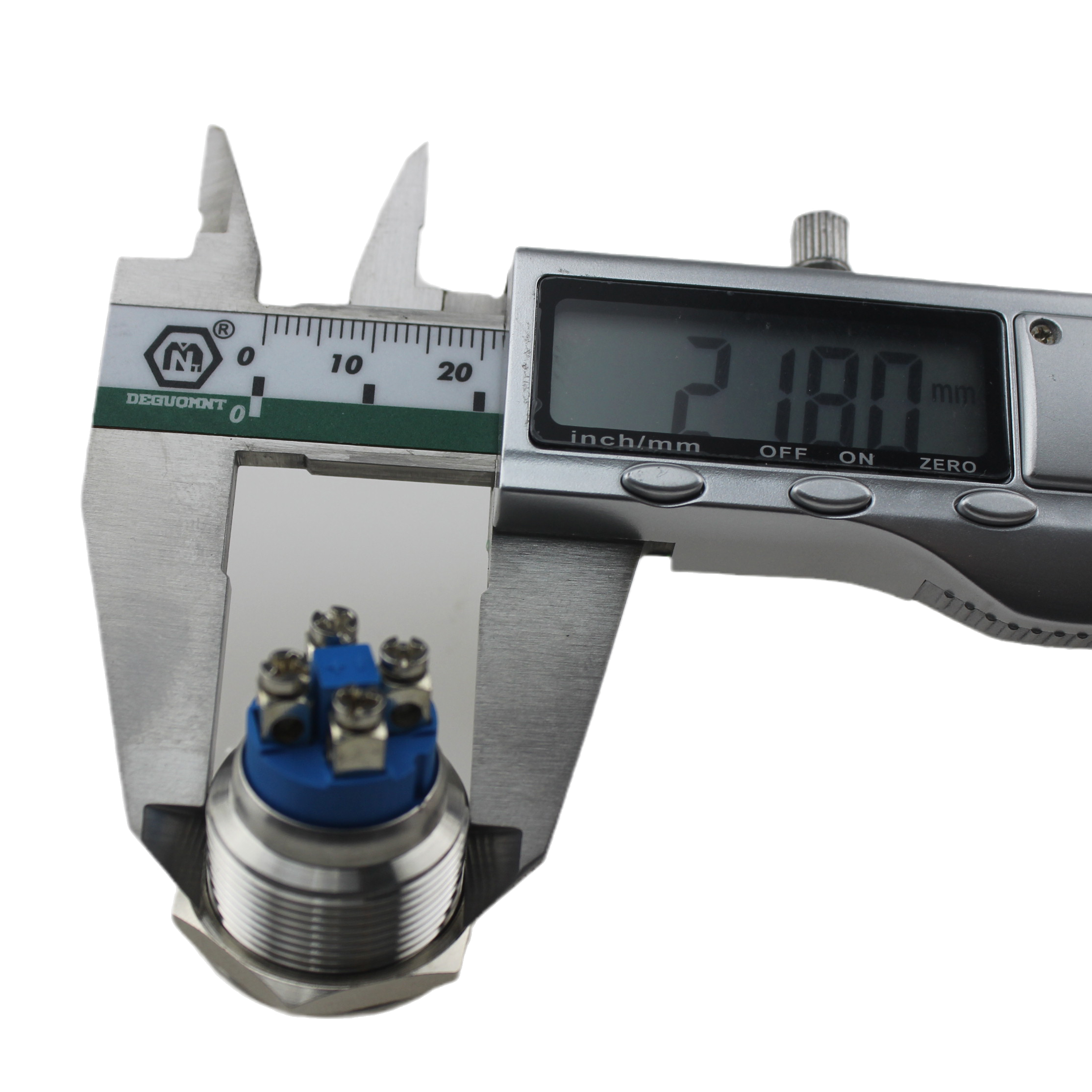

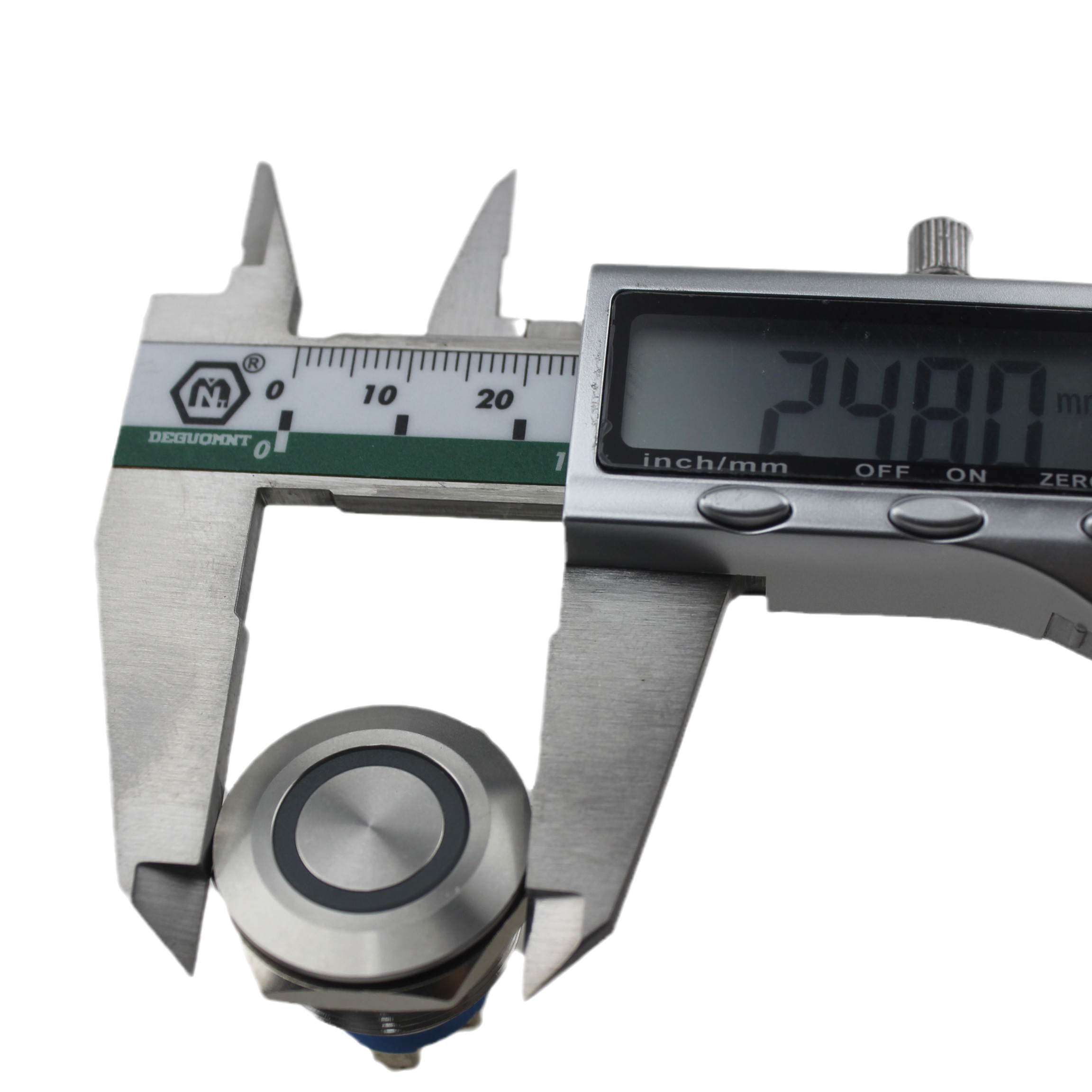

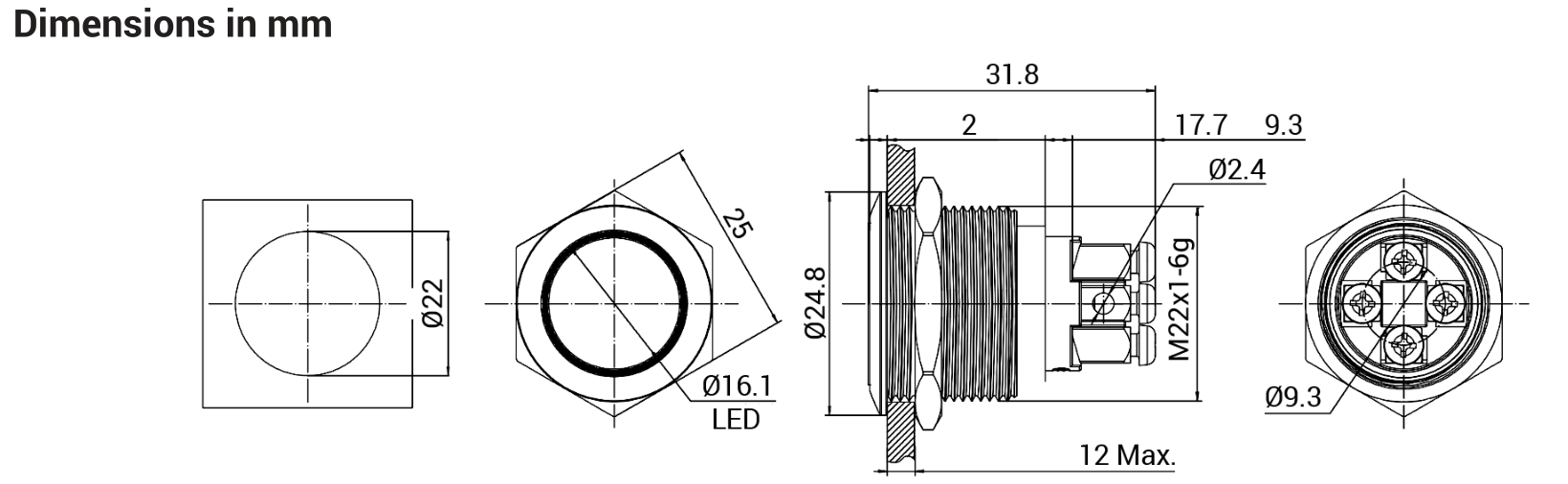

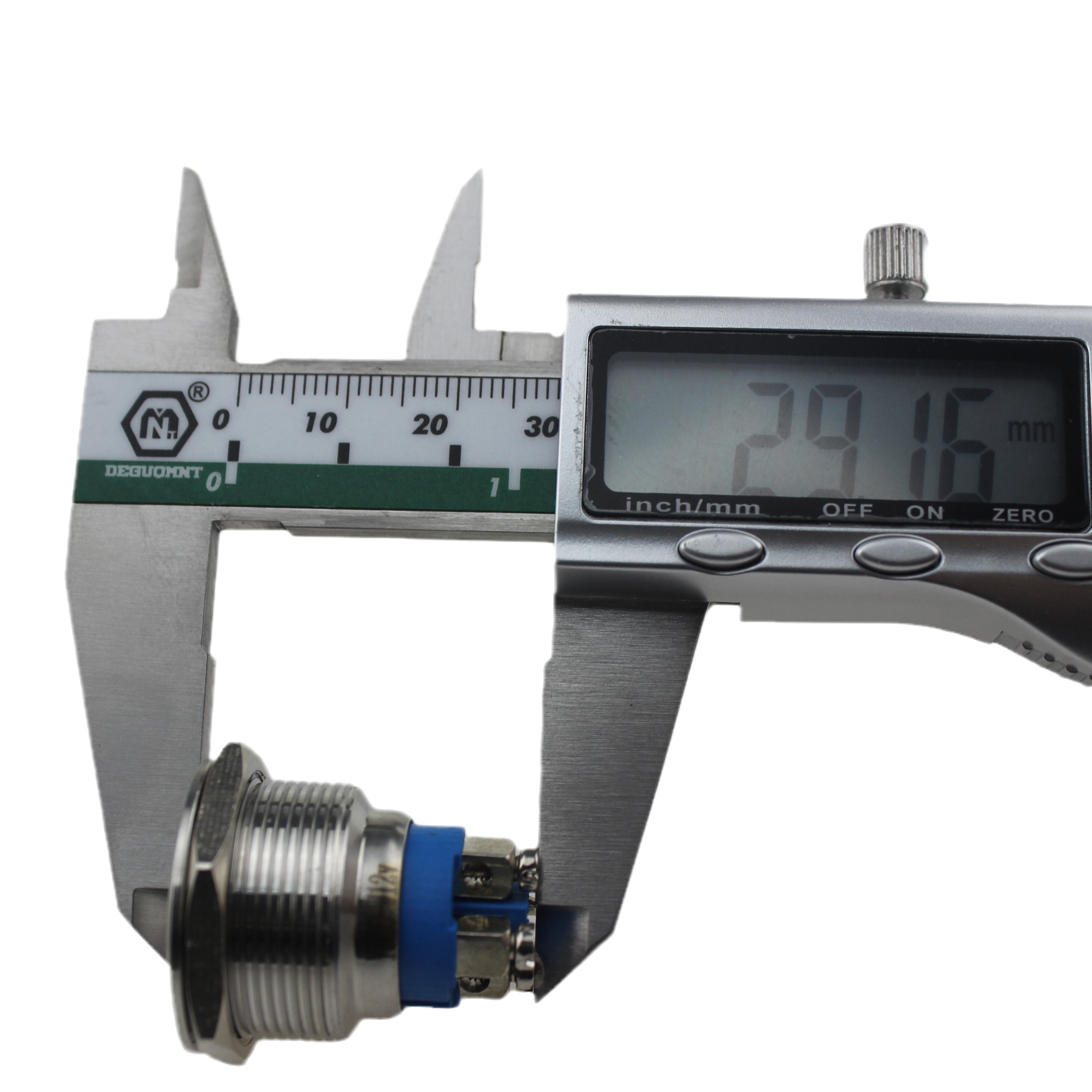

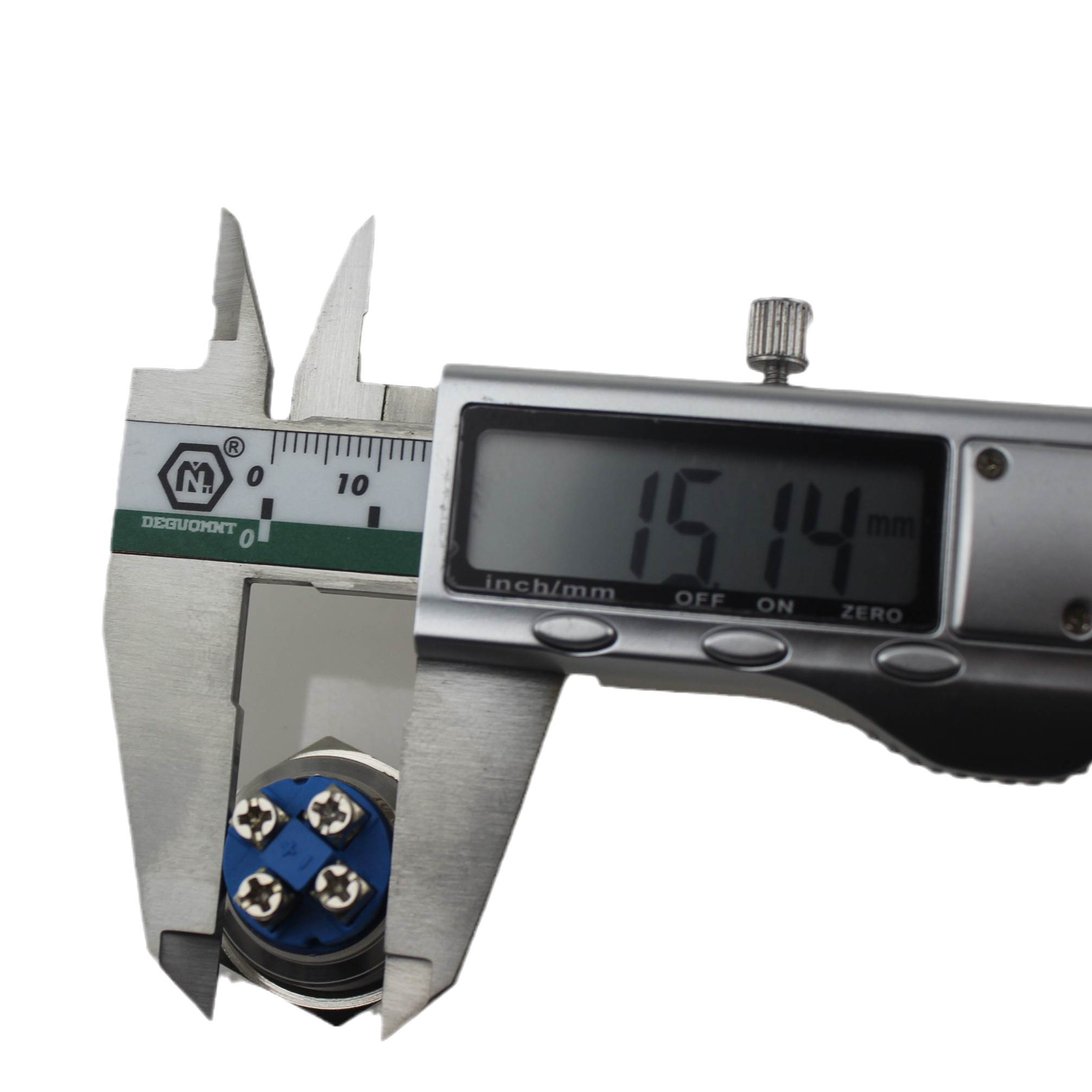

Metal Push Button ScrewMetal Push Button Screw (9)Metal Push Button Screw (8)Metal Push Button Screw (6)Metal Push Button Screw (7)











Previous:
Next:

RANDOM PRODUCTS

LMF12 Inductive proximity switches sensors
LMF12 Inductive proximity switches sensors
APB-22ERD APB Series Programmable Logic Controller PLC controller PLC
APB-22ERD APB Series Programmable Logic Controller PLC controller PLC
ISMM2188 Pulse Generator MPG Hand wheel CNC Pendant Rotary Encoder
ISMM2188 Pulse Generator MPG Hand wheel CNC Pendant Rotary Encoder
ISC3806-G03-2500BZ1-5L Outer diameter 38mm Solid Shaft Incremental Rotary Encoder
ISC3806-G03-2500BZ1-5L Outer diameter 38mm Solid Shaft Incremental Rotary Encoder
HOKUYO PLX-403W Free Power Source Photo Sensor
HOKUYO PLX-403W Free Power Source Photo Sensor
Hot Sale 4mm Voltage Output Solid Shaft Incremental Rotary Encoder
Hot Sale 4mm Voltage Output Solid Shaft Incremental Rotary Encoder
IHA8030 Hollow Shaft Elevator Accessories Optical Rotary Encoder
IHA8030 Hollow Shaft Elevator Accessories Optical Rotary Encoder
SM8-31010NA10MM NPN NO Position Magnetic Proximity Hall Effect Sensor
SM8-31010NA10MM NPN NO Position Magnetic Proximity Hall Effect Sensor
IHA3810 Full Hollow Shaft Rotary Incremental Encoder for Textile Machine
IHA3810 Full Hollow Shaft Rotary Incremental Encoder for Textile Machine
Elbow Sensor Connector Waterproof 5m Cable PNP IP67 RK02-2-4P
Elbow Sensor Connector Waterproof 5m Cable PNP IP67 RK02-2-4P

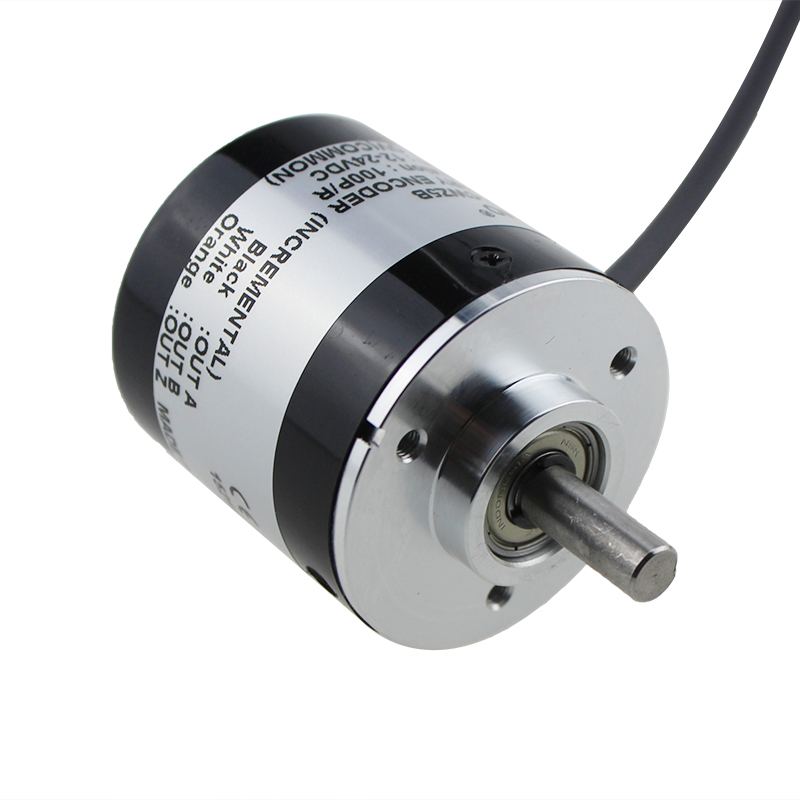

New Hot Sale E6B2-CWZ5B 100 PPR PNP Open Collector Output Solid Shaft Incremental Encoder
