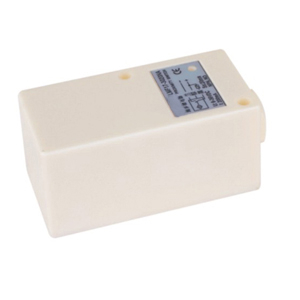

LMF16

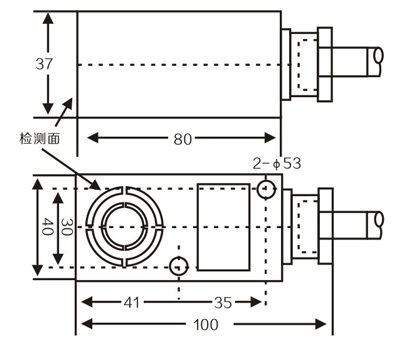

OVERALL DIMENSIONS |  | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 15mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LMF16-3015NA |
| NC | LMF16-3015NB | |||
| NO+NC | LMF16-3015NC | |||
| PNP | NO | LMF16-3015PA | ||
| NC | LMF16-3015PB | |||
| NO+NC | LMF16-3015PC | |||
two wire system | NO | LMF16-3015LA | ||
| NC | LMF16-3015LB | |||
| SCR Control- lable silicon | NO | LMF16-2015A | ||
| NC | LMF16-2015B | |||
| NO+NC | LMF16-2015C | |||
| Relay output | LMF16-2015JC | |||
Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA | |||
| Output voltagc dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 45X45X1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 100Hz/Hz | |||
| Working environment temperature | ||||
| Insulation resistance | ||||
| Shell material | ||||
| Protection grade | ||||
| Altemative model at home and abroad | LJ2-口口/口口口 | |||
OVERALL DIMENSIONS | | |||
| DETECTION DISTANCE | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
two wire system | NO | |||
| NC | ||||
| SCR Control- lable silicon | NO | |||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 15mm | ||||
F l u s h | DC 10- 30 VDC AC 90- 250 VAC | NPN | NO | LMF16-3015NA |
| NC | LMF16-3015NB | |||
| NO+NC | LMF16-3015NC | |||
| PNP | NO | LMF16-3015PA | ||
| NC | LMF16-3015PB | |||
| NO+NC | LMF16-3015PC | |||
two wire system | NO | LMF16-3015LA | ||
| NC | LMF16-3015LB | |||
| SCR Control- lable silicon | NO | LMF16-2015A | ||
| NC | LMF16-2015B | |||
| NO+NC | LMF16-2015C | |||
| Relay output | LMF16-2015JC | |||
Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA | |||
| Output voltagc dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 45X45X1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 100Hz/Hz | |||
| Working environment temperature | ||||
| Insulation resistance | ||||
| Shell material | ||||
| Protection grade | ||||
| Altemative model at home and abroad | LJ2-口口/口口口 | |||
