LM30

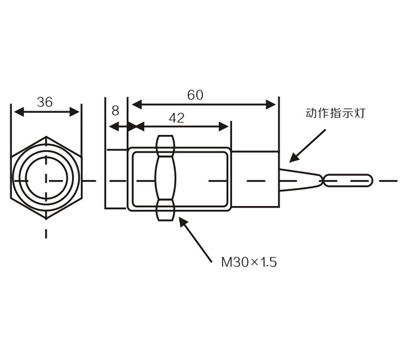

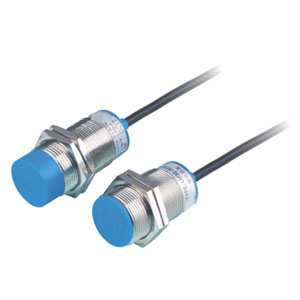

LM30 series cylinderical inductive proximity switch
Outside diameter 30mm cylinder inductive proximity switch, sensing range 10-15mm . China offer customized design!
Installation | Flush | Non-flush | |||||
DC | 3 wires | NPN | NO | LM30-3010NA | LM30-3015NA | ||
NC | LM30-3010NB | LM30-3015NB | |||||
NO+NC | LM30-3010NC | LM30-3015NC | |||||
PNP | NO | LM30-3010PA | LM30-3015PA | ||||
NC | LM30-3010PB | LM30-3015PB | |||||
NO+NC | LM30-3010PC | LM30-3015PC | |||||
2 Wires | NO | LM30-3010LA | LM30-3015LA | ||||
NC | LM30-3010LB | LM30-3015LB | |||||
AC | SRC Control label silicon | NO | LM30-2010A | LM30-2015A | |||
NC | LM30-2010B | LM30-2015B | |||||
Relay output | NO+NC | LM30-2010JC | LM30-2015JC | ||||
Detecting rang | 10mm | 15mm | |||||
Setting distance | 0-8mm | 0-12mm | |||||
LM24 Sensor Characteristics | |||||||
Output current | DC | 200mA | |||||
SCR/relay | 300mA | ||||||
Output voltage drop DC/AC | DC<3V; AC<10V | ||||||
Consumption current | DC<15mA; AC<10mA | ||||||
Standard detected object | 30×30×1(A3 Iron) | ||||||
Repeated precision | 0.05 | ||||||
Response Frequency | 200Hz/25Hz | ||||||
Working environment temperature | -25℃ ~+75℃ | ||||||
Insulation resistance | 50MΩ | ||||||
Shell material | Metal | ||||||
Protection grade | IP67 | ||||||
Alternative model | E2E-X18M□ |
