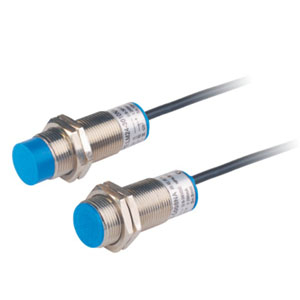

LM24 M24 detection distance 8-10mm Inductive proximity switch sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc.  Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch ,  will be your best choice .
Availability:
  • LM24

LM24 series cylinderical inductive proximity switch

Outside diameter 24mm cylinder inductive proximity switch, sensing range  8-10mm . China offer customized design!


Detecting rang 8mm part no.
Flush DC   NPN NO LM24-3008NA
NC LM24-3008NB
NO+NC LM24-3008NC
  PNP NO LM24-3008PA
NC LM24-3008PB
NO+NC LM24-3008PC
2 Wires NO LM24-3008LA
NC LM24-3008LB
AC SCR NO LM24-2008A
NC LM24-2008B
NO+NC LM24-2008C
Relay output
                          Detecting rang 10mm
Non-flush DC NPN NO LM24-3010NA
NC LM24-3010NB
NO+NC LM24-3010NC
PNP NO LM24-3010PA
NC LM24-3010PB
NO+NC LM24-3010PC
2 Wires NO LM24-3010LA
NC LM24-3010LB

SCR NO LM24-2010A
NC LM24-2010B

NO+NC LM24-2010C
Relay output
LM24 Sensor Characteristics
Output current DC 200mA
SCR/relay 300mA
Output voltage drop DC/AC DC<3V  AC<10V
Consumption current DC<15mA; AC<10mA
Standard detected object 24&times;24&times;1(A3 Iron)
Repeated precision 0.05
Response Frequency 200Hz/25Hz
Working environment temperature  -25℃ ~+75℃
Insulation resistance 50M&Omega;
Shell material Metal
Protection grade IP67
Alternative model  LJ24A4-10-**

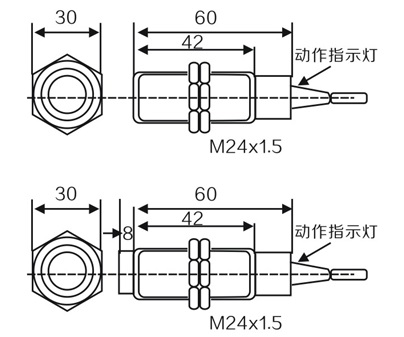

LM24 dimension
