LM14 M14 detection distance 3mm 5mm Inductive proximity switch sensor from China manufacturer

Model:
LM14

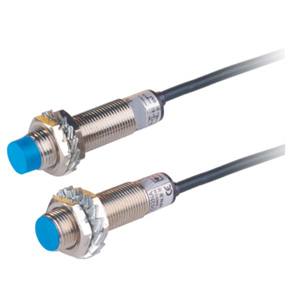

LM14 M14 cylinderical inductive proximity switch

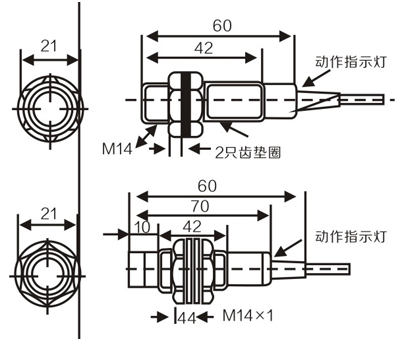

Diameter 14mm , standard detecting range : flush 3mm ; non-flush 3mm. Electric offer customized service

Detecting rang 3mm				part no.	other part no.
Flush	DC	NPN	NO	LM14-3003NA	LJ14A3-3-Z/BX
			NC	LM14-3003NB	LJ14A3-3-Z/AX
			NO+NC	LM14-3003NC	LJ14A3-3-Z/CX
		PNP	NO	LM14-3003PA	LJ14A3-3-Z/BY
			NC	LM14-3003PB	LJ14A3-3-Z/AY
			NO+NC	LM14-3003PC	LJ14A3-3-Z/CY
		2 Wires	NO	LM14-3003LA	LJ14A3-3-Z/EX
		2 Wires	NC	LM14-3003LB	LJ14A3-3-Z/DX
	AC	SCR	NO	LM14-2003A	LJ14A3-3-J/EZ
			NC	LM14-2003B	LJ14A3-3-J/DZ
			NO+NC
		Relay output
Detecting rang 5mm
Non-flush	DC	NPN	NO	LM14-3005NA	LJ14A3-5-Z/BX
			NC	LM14-3005NB	LJ14A3-5-Z/AX
			NO+NC	LM14-3005NC	LJ14A3-5-Z/CX
		PNP	NO	LM14-3005PA	LJ14A3-5-Z/BY
			NC	LM14-3005PB	LJ14A3-5-Z/AY
			NO+NC	LM14-3005PC	LJ14A3-5-Z/CY
		2 Wires	NO	LM14-3005LA	LJ14A3-5-Z/EX
		2 Wires	NC	LM14-3005LB	LJ14A3-5-Z/DX
	AC	SCR	NO	LM14-2005A	LJ14A3-5-J/EZ
		SCR	NC	LM14-2005B	LJ14A3-5-J/DZ
			NO+NC
		Relay output

Sensor Characteristics

Output current	DC	200mA
	SCR/relay	300mA
Output voltage drop		DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10V
Consumption current		DC(NPN;PNP)DC 12V8mA;24V15mA;AC type: AC<10mA
Standard detected object		15×15×1(A3 Iron)
Repeated precision		0.02
Response Frequency		300Hz/25Hz
Working environment temperature		-25℃ ~+75℃
Insulation resistance		≥50MΩ
Shell material		Metal
Protection grade		IP67
